Understanding VFD Drive Circuit Design and Schematic Components

Start with a three-phase bridge rectifier using 600V 30A ultrafast diodes (e.g., STTH30R06W). This setup ensures minimal reverse recovery losses, critical for handling inductive loads up to 5 kW without excessive heat buildup. Place a 220μF 450V snap-in capacitor immediately after the rectifier to smooth DC bus voltage fluctuations–this component alone reduces ripple by 40-60% compared to smaller values.

For the inverter stage, select IGBT modules rated for 150% of the maximum phase current. IRG4PH50UD (12A, 600V) or similar withstands 10-15 kHz switching frequencies while keeping conduction losses below 2W per leg. Gate drivers (e.g., UCC21520) must deliver ±10V at 1.5A to ensure rapid turn-on/off, preventing cross-conduction. Isolate control signals with 6N137 optocouplers or Si826x–this avoids ground loops that can corrupt PWM signals at high frequencies.

The current-sense amplifier (INA188 or AD8421) requires 0.01Ω 1% shunt resistors on each phase leg. Position them after the IGBT emitter to capture real motor current, not switching transients. For 10A nominal current, a 0.01Ω shunt generates 100mV full-scale, well within the amplifier’s ±200mV input range. Add a 100nF ceramic capacitor across the shunt to filter high-frequency noise without phase delay.

PWM generation relies on a 32-bit microcontroller (STM32F334 or TI TMS320F280049) running sinusoidal or space vector modulation. Clock the ADC at 500kHz and synchronize it with the PWM timer to sample current at the center of each switching period. Store look-up tables in flash for 8-bit resolution sine waves, updated at 10μs intervals to maintain <1% THD across a 0-400Hz output range.

Thermal management dictates component placement. Mount IGBTs on a 1mm thick copper baseplate with 2 mil thermal interface material (e.g., Bergquist TF8000). Screw torque must reach 0.8Nm–over-tightening cracks die substrates; under-tightening increases thermal resistance by 25%. Fit a 10kΩ NTC thermistor between the IGBT and heatsink to trigger shutdown at 85°C (1s response time).

Protection circuits separate from the main power path. Use a bidirectional TVS diode (1.5KE440CA) across the DC bus to clamp overvoltage spikes from motor regen–this absorbs 100J without degradation. A 30A PTC resettable fuse in series with the DC bus prevents catastrophic failure if the capacitor short-circuits. For under-voltage lockout, monitor the DC bus with a TL431–set the threshold to 300V (<5ms response) to avoid nuisance trips during brownouts.

Key Components of a Frequency Converter Schematic

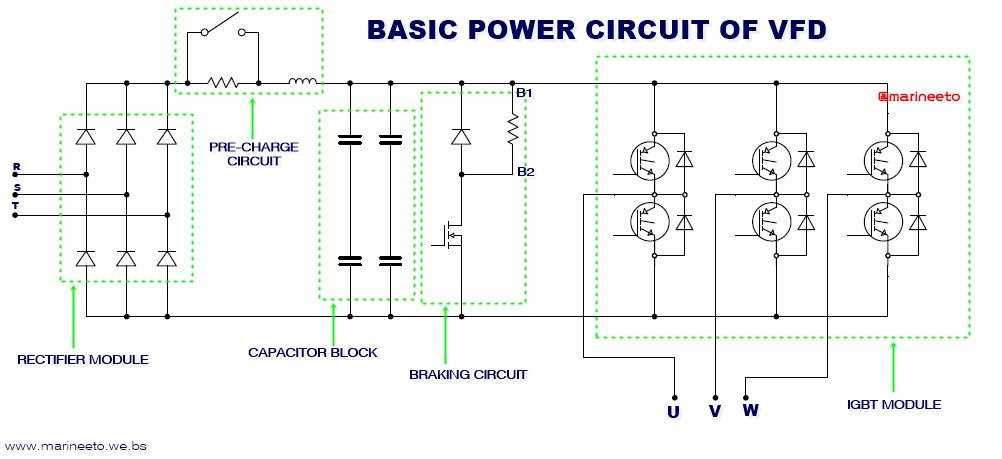

Begin with the power input stage–ensure it includes EMI filters and surge suppression. A three-phase rectifier bridge (e.g., six diodes or SCRs) converts AC to DC; pair this with a smoothing capacitor bank (calculate capacitance based on load requirements: typically 50–200 μF per kW). Overlook this, and voltage ripple will degrade performance.

Incorporate a braking resistor if the load is regenerative. Select a value that dissipates peak energy without overheating–common ranges are 10–50 Ω for 400V systems. For high-inertia applications, integrate a dynamic braking circuit using an IGBT or MOSFET switch to clamp excess voltage at the DC bus.

The inverter section requires a set of six IGBTs or power MOSFETs, arranged in a three-phase bridge configuration. Drive these with isolated gate drivers (e.g., optocouplers or transformer-isolated drivers) to prevent shoot-through. Gate resistor values (typically 5–20 Ω) dictate switching speed; lower resistance increases efficiency but raises EMI risks.

PWM control demands a microcontroller (ARM Cortex-M, TI C2000) or dedicated IC (Infineon IFX007T, STMicroelectronics SPC5). Generate complementary signals with dead-time insertion (1–5 μs) to avoid leg short-circuits. For sensorless vector control, embed a current sense amplifier (e.g., shunt resistors + differential amp) on two phases.

Add a snubber network (RC pairs, ~10 Ω + 0.1 μF) across each switch to suppress voltage spikes during commutation. For frequencies above 20 kHz, use ferrite beads on gate lines to attenuate high-frequency noise. Grounding must be star-point; separate power and control grounds at the DC bus capacitor terminals.

Protection and Monitoring Layers

Implement overcurrent detection using Hall-effect sensors or low-value shunt resistors (≤50 mV drop at full load). Trip thresholds should be set at 120–150% of nominal current with a response time under 10 μs. Overvoltage protection requires a zener diode stack or varistor across the DC bus to clamp transients above 1.1× nominal voltage.

Thermal management hinges on accurate NTC thermistor placement near critical components (IGBT module, braking resistor). Use the microcontroller’s ADC to sample temperature and trigger derating protocols at 80°C, full shutdown at 100°C. Forced-air cooling calculations should assume 4–6 CFM per 100W of heat dissipation in ambient air.

Safety interfaces must include an emergency stop circuit with redundant relays, bypassing the controller to immediately disable gate drive signals. Isolate control inputs with optocouplers (e.g., PS2501) to prevent noise coupling. Finalize with a comprehensive test protocol: verify PWM dead-time, measure DC bus voltage ripple (

Key Components of a Variable Frequency Converter and Their Schematic Representations

Select a rectifier stage with a topology matching the input voltage and power rating. For single-phase inputs under 5 kW, a full-wave bridge configuration using four ultrafast recovery diodes (e.g., MUR860) ensures minimal reverse recovery losses. Three-phase systems demand a six-pulse diode bridge (e.g., KBPC3510) to handle higher currents while maintaining a clean DC bus. Always verify the reverse voltage rating exceeds 1.5× the peak input voltage to prevent avalanche breakdown.

Position the DC link capacitor immediately after the rectifier to smooth voltage ripples. Electrolytic capacitors (e.g., 2200 µF, 450 V) are standard for cost-sensitive designs, but film capacitors (e.g., MKP series) offer longer lifespans in high-temperature environments. Calculate capacitance using C = I_load / (2 × f × V_ripple), where f is the ripple frequency and V_ripple should not exceed 5% of the bus voltage. Include a bleed resistor (200 kΩ) across each capacitor to ensure safe discharge within 5 seconds after power-down.

Implement the inverter stage with IGBT modules (e.g., Infineon IKW40N120T2) for applications above 1 kW to balance switching speed and thermal performance. For lower power, MOSFETs (e.g., IRFP4668) reduce gate drive complexity. Use a three-phase half-bridge configuration, with each leg driven by complementary PWM signals from the controller. Ensure dead-time insertion (typically 1–3 µs) between high- and low-side switches to prevent shoot-through currents that can destroy the module.

Place gate drivers (e.g., IR2110) within 10 cm of their respective IGBTs/MOSFETs to minimize parasitic inductance. Isolate power supplies for each driver using DC-DC converters (e.g., Murata NMV series) to prevent ground loops. The driver’s output stage must deliver at least 1 A peak current to charge the gate capacitance swiftly, reducing switching losses. Incorporate desaturation detection to shut down the driver if collector-emitter voltage exceeds 7 V during conduction, indicating a faulty switch.

Use a current sensor (e.g., Allegro ACS712) on the DC bus or phase outputs to monitor overcurrent conditions. Hall-effect sensors are galvanically isolated and respond within 5 µs, critical for protecting the inverter. Place the sensor on the negative DC bus for single-ended measurement or on all three phases for differential sensing. Configure the controller to trip at 120% of the rated current, with a hysteresis band to avoid false triggering from transient loads.

Integrate a snubber network across each switch to clamp voltage spikes during turn-off. A series RC snubber (e.g., 10 Ω + 10 nF) damped at the switching frequency reduces ringing by 30–50%. For higher power, a RCD (resistor-capacitor-diode) clamp is more effective but increases complexity. Size the snubber components based on L_parasitic and C_oss of the switch, where R = √(L/C_oss) optimizes damping.

The control logic requires a microcontroller (e.g., TI TMS320F28069) with dedicated PWM peripherals. Program the carrier frequency between 2–16 kHz, balancing switching losses and motor harmonic distortion. Use space vector modulation (SVM) for superior DC bus voltage utilization compared to sinusoidal PWM. Ensure the firmware implements soft-start ramp-up and adjustable acceleration/deceleration profiles to prevent mechanical stress on connected loads.

Include thermal protection using NTC thermistors (e.g., Vishay NTCLE100) mounted on the heatsink. Derate the output current by 1.5% per °C above 60°C. Design the heatsink with a thermal resistance below R_th = (T_jmax – T_ambient) / P_loss, where P_loss combines conduction and switching losses. For forced-air cooling, ensure airflow exceeds 50 CFM; liquid cooling is necessary for power densities above 1 kW/cm².

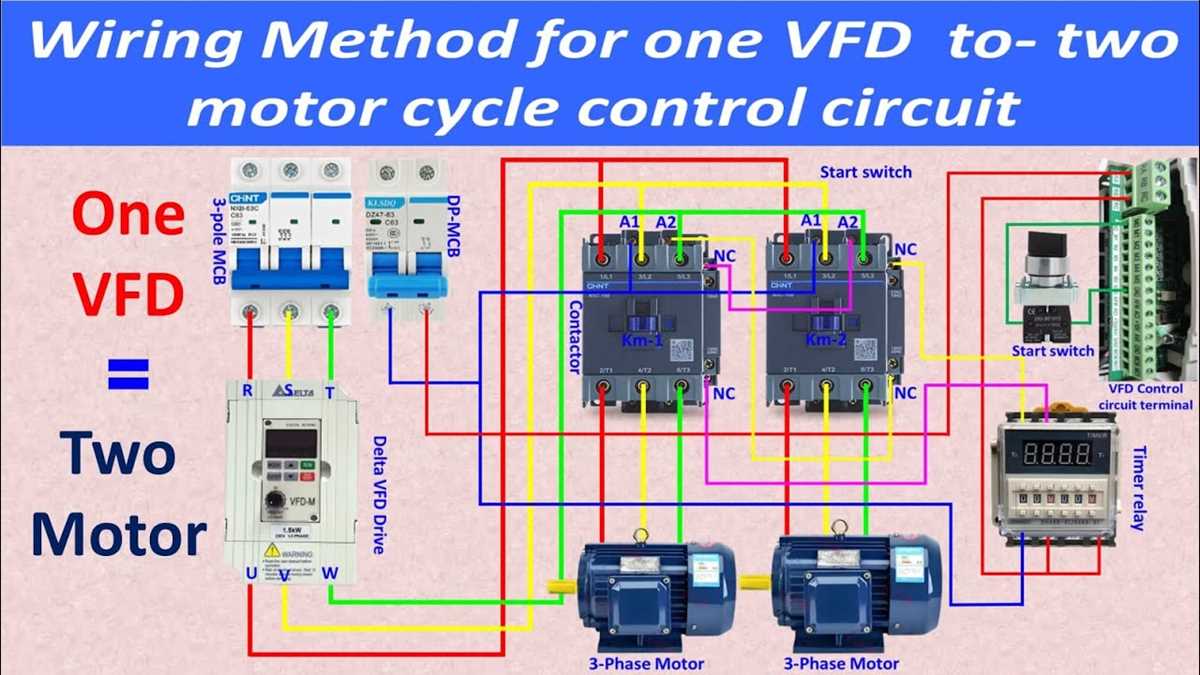

Step-by-Step Wiring for a Basic 3-Phase Frequency Converter Assembly

Begin by securing a three-phase asynchronous motor and a compatible inverter rated for at least 120% of the motor’s full-load current. Verify the voltage and current specifications on the motor’s nameplate–typically 230V or 400V for standard industrial applications. Use shielded, stranded copper cable (minimum 1.5 mm² per phase) to minimize electromagnetic interference, especially if the run exceeds 10 meters. Ground the inverter chassis and motor frame separately with dedicated 4 mm² earth conductors to prevent leakage currents from destabilizing control signals.

Connect the L1, L2, and L3 terminals on the inverter’s input side to the corresponding phases of the power supply. If the supply is 400V three-phase, ensure the inverter’s input voltage selector (if present) is set to the correct range–most industrial models default to 380–480V. For low-voltage applications (230V), reconfigure the inverter’s internal jumpers or DIP switches as specified in the manual. Install a fast-acting fuse (rated at 1.2× the inverter’s maximum input current) on each phase to protect against short circuits without nuisance tripping during motor startup transients.

Component	Wire Gauge (mm²)	Fuse Rating (A)	Voltage Drop Limit (%)
Input Phases (L1–L3)	2.5	Based on inverter max current	<3
Motor Phases (U, V, W)	1.5	N/A	<5
Earth/Ground	4.0	N/A	N/A

Wire the output terminals (U, V, W) directly to the motor’s phase terminals, maintaining consistent phase rotation–swapping any two wires will reverse the motor’s direction. Avoid using contactors or relays between the inverter and motor, as inductive loads can generate voltage spikes exceeding 1000V, damaging the inverter’s IGBT modules. If motor braking is required, connect a DC injection braking resistor (value determined by the inverter’s braking requirements) across the DC bus terminals. Ensure the resistor’s power rating exceeds the motor’s regenerative energy by at least 20% to prevent overheating.

Connect the inverter’s control terminals to external signals if automated operation is needed. For basic speed control, link a 4–20 mA or 0–10V potentiometer to the designated analog input (refer to the inverter’s pinout–common labels include “AI” or “VREF”). For digital start/stop, wire a pushbutton or PLC output to the forward/reverse control inputs (e.g., “FWD” and “REV”), using Normally Open (NO) contacts. Isolate control signals with optocouplers if the environment includes high-voltage noise; otherwise, induced currents can trigger false trips. Calibrate the inverter’s acceleration/deceleration ramps (typically 0.1–30 seconds) to prevent motor stalling or excessive current draw during speed changes.

Before applying power, verify all connections with a multimeter in continuity mode. Check for unintended shorts between phases or to ground–even 100 Ω of leakage can cause erratic behavior. Set the inverter’s parameters to factory defaults initially, then adjust the motor nameplate values (voltage, current, frequency, pole count) via the keypad or software. Run the motor at 50% of rated speed for 30 minutes to monitor for vibrations, overheating, or abnormal noise. If the inverter’s thermal protection triggers, increase the overload setting marginally (e.g., from 150% to 170% of rated current) or improve cooling with a heat sink or fan.

For fault diagnosis, note the inverter’s display codes–common issues include “OC” (overcurrent, often due to wiring errors), “UV” (undervoltage, check supply stability), or “OL” (overload, reduce ramp times or mechanical load). Log motor phase currents during operation; imbalances exceeding 5% may indicate a single-phased condition or incorrect inverter settings. Replace cables showing discoloration or stiffness (signs of thermal degradation) immediately. Store spare IGBT modules and capacitors in climate-controlled conditions, as prolonged exposure to humidity (>60%) or temperatures above 30°C accelerates failure rates.
