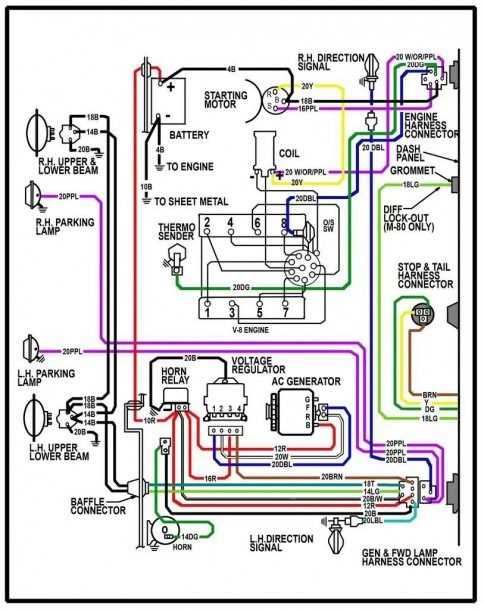

1965 Chevrolet Impala Ignition Switch Wiring Diagram Explained Step by Step
Start with the battery feed wire–thick gauge red–which runs directly to the solenoid terminal. From there, trace the purple wire to the ignition coil’s positive terminal; this carries voltage during startup. The white wire bridges the coil’s negative terminal to the distributor’s points, ensuring spark delivery. If resistance reads zero on this path, replace the points or condenser immediately.
Locate the yellow wire leading to the starter solenoid; this circuit activates the cranking motor. Fuse protection sits inline–check for a 20-amp glass fuse between the battery and ignition feed. Corrosion on the black ground strap under the dash can mimic switch failure; clean terminals with emery cloth until shiny metal appears.
For accessory circuits, the pink wire powers the heater blower and radio–verify continuity with a multimeter set to ohms. Gauges rely on the light green wire from the voltage regulator; dim readings suggest a faulty sender or broken connection. Label each wire before disassembly using masking tape and a permanent marker to avoid cross-wiring.
The dark blue wire routes through the neutral safety switch–a critical safety interlock. Test functionality by shifting into neutral or park; voltage should flow uninterrupted. If stalled, bypass the switch temporarily with a jumper wire for diagnosis. Replace the switch if bypass resolves the issue.
For dimming dash lights, the brown wire connects to the headlight switch’s dimmer post. Inspect the bulb sockets for melted contacts, a common failure point. Spare fuses (10-amp) and terminals (3/8″ female spade) should always accompany any wiring repair kit carried onboard.
Classic Chevrolet Starter Circuit Connections Guide
Begin by locating the solenoid’s “S” terminal–it’s the smaller post, typically marked on the housing. Attach a 12-gauge red wire here, ensuring it’s crimped with a spade connector for a secure fit. This lead carries current from the key mechanism’s accessory position to engage the starter motor without activating unnecessary circuits.
Trace the main power feed from the battery-positive terminal to the coil’s positive side. Use a 10-gauge wire with a fusible link integrated–this protects the system from shorts. The link should be installed within six inches of the battery terminal; GM’s factory specification calls for a 20-amp rating. Skip this step, and risk melting the harness under sustained cranking.
The key-operated assembly has four active positions: OFF, ACCESSORY, RUN, and CRANK. Each position routes voltage differently. Here’s the breakdown:
| Position | Activated Circuits | Wire Color (Factory) |
|---|---|---|
| OFF | None | – |
| ACCESSORY | Radio, heater blower, cigarette lighter | Purple |
| RUN | Coil, gauges, brake lights, turn signals | Pink/Black stripe |
| CRANK | Starter solenoid, coil (bypass resistor) | Yellow |
Ground the assembly’s metal casing directly to the firewall using an 8-gauge braided strap. Factory installs often omit this, leading to voltage drop under load. Without a clean return path, the solenoid may chatter or fail to disengage after start-up, burning the flywheel teeth over time.
Test the bypass circuit by jumpering the pink/black striped wire to the yellow at the bulkhead connector. If the engine cranks, the key-operated assembly’s CRANK output is faulty. Replace the unit rather than attempting repairs–internal contacts wear unevenly, causing intermittent failures that mimic coil or carburetor issues.
Resistor Wire Considerations
Factory schematics show a 1.4-ohm ballast resistor between the RUN output and the coil’s positive terminal. OEM suppliers encoded this as a white ceramic block mounted on the firewall. Aftermarket replacements often use a simple resistor inline, but ceramic types dissipate heat better. Confirm resistance before installation; low readings (1.6 ohms) risk fouling spark plugs under cold conditions.
Finding the Electrical Starter Relay Connector on a Classic Chevy Model
The primary control harness plug is mounted behind the dashboard panel directly adjacent to the steering column. Remove the lower trim piece beneath the instrument cluster by unscrewing two 7/16-inch retaining bolts–accessible only from the driver’s footwell–to expose the black plastic junction box. The wiring cluster you need is the uppermost rectangular connector, secured with a single tab latch; depress the latch while pulling firmly outward to disconnect without damaging the terminals. Label each wire using masking tape before separation: battery feed (red, 12-gauge), accessory lead (pink), solenoid trigger (yellow), and ground return (black with white stripe), matching factory service manual schematics precisely.
Observe the connector orientation–male pins align vertically, notched side facing downward. Use a digital multimeter set to continuity mode to verify each circuit: probe the red wire at terminal one, pink at three, yellow at five, and ground at eight. If readings exceed 0.5 ohms, inspect for corroded contacts or frayed insulation beneath the column shroud; clean terminals with electrical contact cleaner and a wire brush rated for 16-18 AWG copper conductors.
Reinstall components in reverse order: first reattach the plug ensuring a positive click, then secure the dashboard trim with the original bolts torqued to 8-10 ft-lbs. Test operation by turning the key to the “start” position–listen for a distinct click from the relay near the firewall before engine crank. If no response occurs, recheck the yellow solenoid trigger line for voltage drop using a 12V test light at the starter solenoid terminal.
Decoding Wire Colors and Purposes in Classic Chevy Models
Start by locating the purple (violet) wire–this is the primary battery feed that delivers power directly from the fusible link or solenoid. Confirm its continuity with a multimeter (12V+ when the system is off) to rule out corrosion at the terminal connections, a common failure point in older harnesses. If voltage drops below 11.5V, inspect the fusible link for burns or brittle insulation, as this wire handles full current under cranking conditions.
Trace the yellow stripe (yellow/black) lead next–this activates the starter solenoid. Verify it only shows voltage during key engagement to the “start” position; if live at other times, the contact plate inside the cylinder may be welded. For bench testing, use a 12V test lamp between this wire and chassis ground while turning the key–brief illumination should occur only in “start” position. Cross-check with the white (or pink) accessory wire, which remains hot in both “on” and “accessory” modes but cuts power in “start” to reduce starter load.
Critical Ground Paths and Secondary Circuits
- Black wire: The sole ground return for the entire assembly. Attach a secondary ground strap (8-gauge minimum) from this terminal to the firewall if voltage drop exceeds 0.2V under load. Poor grounding causes intermittent solenoid engagement and dim dashboard lights.
- Dark green/white stripe: Powers the coil during cranking only. If the engine stumbles or dies when releasing the key, probe this lead–it should pulse 12V in “start” and drop to zero immediately after.
- Light blue: Supplies voltage to the radio/heater in “accessory” mode. If these components stay on after key removal, suspect a short to the adjacent orange wire (battery constant).
For resistors or ballast bypass systems, note the resistor wire–typically a thinner gauge with cloth insulation colored light gray or brown. This wire runs from the ignition cylinder to the coil’s positive terminal and reduces voltage to ~9V under normal operation. Bypass failure (measured with a multimeter across the coil + terminal and ground) mimics coil failure–replace the wire if resistance exceeds 1.5 ohms.
Troubleshooting Color Variants
- Tag wires before disconnecting: General Motors often swapped suppliers in ’64-’66, resulting in orange stripe substituting for red battery constant in some builds. Always test continuity against factory schematics specific to your VIN’s options.
- Inspect the braided ground strap beneath the cylinder mounting bracket–its absence causes erratic instrument operation and starter whine.
- For air-conditioned models, confirm the tan/yellow stripe wire maintains 12V with the A/C engaged; if not, the pressure switch may be grounding the circuit.
Replace all cloth-insulated wires in segments showing green oxidation beneath the outer jacket, especially near heat sources (exhaust manifolds or headers). Use solder-sealed butt connectors rather than crimp joints for high-current paths like the purple battery feed to prevent moisture intrusion.
Step-by-Step Guide to Testing Electrical Control Pathways in Classic Vehicles
Start by disconnecting the battery’s negative terminal to prevent shorts. Use a multimeter set to continuity mode–probe the primary connector pins while rotating the key through each position. Factory schematics typically denote the accessory, run, and start contacts with distinct resistance values: 0–5 ohms for closed circuits and infinite resistance for open paths. Verify these readings against the manufacturer’s specifications to isolate faulty segments.
If continuity checks fail, inspect the harness for brittle insulation or corroded terminals. A thin wire brush or contact cleaner removes oxidation without damaging copper strands. For intermittent faults, lightly flex each wire near connectors while monitoring the multimeter–intermittent drops indicate fractured conductors requiring splice repairs rather than full replacement.
Advanced Circuit Verification
Set the multimeter to voltage mode and reconnect the battery. With the key off, probe each terminal against ground–readings should match battery voltage at the input pin and zero at all others. Turn the key to accessory: the designated pin must show full voltage while others remain at zero. Repeat for run and start positions, ensuring each stage energizes only its intended circuit.
Load-test suspect circuits by temporarily installing a known-good relay or bulb. A dim output signals excessive resistance–trace the pathway back to its fuse block, checking for undersized wiring or overheated solder joints. Replace any connectors exhibiting heat discoloration, as this compromises signal integrity.
Final Calibration Checks
Reassemble components incrementally, testing after each step. Confirm that anti-theft features (if equipped) trigger no false lockouts by monitoring the dash indicator during engine cranking. For systems with electronic relays, substitute the original unit with a test relay if voltage drops persist during cranking–weak relays often mimic switch failures.
Document all measurements and replacements. Store readings alongside a dated schematic to streamline future diagnostics–consistent voltage drift across seasons identifies deteriorating connections before they strand the vehicle.
