1965 Chevrolet Impala Starter Wiring Diagram and Electrical Connections Guide

Locate the solenoid terminals first–this component on mid-60s full-size models has two small posts: the ignition input (typically a 12-gauge purple or pink wire) and the battery feed (thick red or orange cable, often fused at 40–60 amps). Verify voltage at the ignition post during key turn; if absent, trace back to the ignition switch or fuse block (position 4 or 5 on the factory panel).

Ground paths demand scrutiny: the B-series block-mounted solenoid relies on a direct chassis connection via a braided strap or bolt at the bellhousing. Corrosion here mimics starter failure–clean surfaces with 80-grit paper and apply dielectric grease. Replace the strap if resistance exceeds 0.2 ohms.

Bypass testing confirms solenoid function: jumper the large terminals with a screwdriver while bypassing the ignition circuit. If the engine cranks, suspect the purple wire or neutral safety switch (connector C1 on the steering column). For manual transmissions, the switch may be mounted near the clutch pedal.

Alternator charging circuits intersect here: the thick output wire from the alternator (bathed in yellow insulation) must connect to the starter’s battery terminal without splices. Any added accessories (e.g., high-output alternators) require upgrading the fusible link to 8-gauge wire.

Color codes shift post-1964: earlier models use solid colors (pink = ignition, black/white = tachometer), while later builds introduce stripe patterns. Factory manuals (Chassis Section 12-10) detail these–cross-reference before modifying splices. Use crimp connectors rated for 600V minimum; solder and heat-shrink are mandatory for vibration-prone areas like the firewall.

Neutral safety adjustments: the inhibitor switch passes current only in park/neutral. Misalignment causes no-crank conditions–adjust via the shift linkage or, for automatic transmissions, rotate the switch body on the transmission housing until continuity tests confirm proper engagement.

Classic Bel Air Ignition System: Hands-On Electrical Guide

Locate the solenoid’s S-terminal first–it’s the smaller stud adjacent to the main battery connection. Verify voltage presence with a multimeter set to 20VDC; a reading below 10 volts indicates a faulty circuit or weak battery reserve. Bypass testing requires a heavy-gauge jumper wire connected directly from the positive battery post to this terminal–engagement should be immediate and firm.

• Always disconnect the negative battery cable before servicing high-current components to prevent accidental grounding or tool arcing.
• Check the fusible link in the primary feed–corrosion or heat damage here mimics intermittent failures.
• Inspect the neutral safety switch on automatic transmissions; misadjustment prevents solenoid activation.

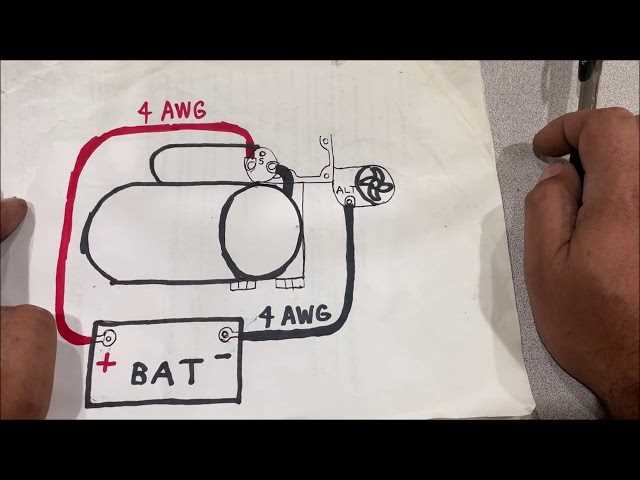

Wire gauge matters: the main feed should be no smaller than 4 AWG, while the trigger circuit requires 10 AWG minimum. Use crimp connectors with heat-shrink tubing–soldered connections risk vibration-induced fatigue in high-amperage paths. Terminal ends must be brushed clean and treated with dielectric grease to block oxidation.

For manual transmissions, the clutch safety switch must be wired in series with the ignition feed. Adjust switch height so the plunger depresses completely at half-pedal travel–incorrect setting delays or prevents cranking. Test with a continuity check while depressing the pedal fully against a block to simulate full engagement.

Relay upgrades reduce voltage drop over extended cable runs. Mount a 30/40-amp SPDT relay within 12 inches of the solenoid and route the control wire through the ignition switch. This preserves switch longevity and delivers maximum current during crank cycles.

Identify the correct battery cable routing–passenger-side grounding paths include the engine block, firewall, and frame rail. Use a star washer between cable clamps and metal surfaces to penetrate paint and ensure consistent conductivity. Confirm ground integrity by measuring less than 0.5 ohms between the negative battery post and engine block.

1. Label each wire before disconnecting–color codes alone are unreliable due to aftermarket replacements.
2. Trace the ignition feed from the switch through the bulkhead connector; corrosion here causes resistance buildup.
3. Replace the solenoid if plunger movement feels sluggish–internal pitting creates high-resistance contact points.

Ballast resistors in the ignition circuit reduce current to the coil but should never be in series with the solenoid trigger. Install a bypass wire if upgrading to an electronic ignition–consult the kit’s instructions for proper voltage handling. Store unused cables in vacuum-sealed bags with desiccant packs to prevent terminal oxidation during long-term storage.

Identifying Electrical Connections in a Classic Chevy Full-Size Model

Begin under the hood near the front passenger side–here lies the solenoid mounted atop the main power delivery unit. Two heavy-gauge cables attach directly: one from the battery’s positive terminal (thick, red insulation) and a shorter lead linking to the motor’s gearbox housing. A third, thinner conductor (often purple or yellow) snakes from the ignition switch; trace this first.

Follow the ignition wire along the inner fender until it connects to a small rectangular relay bolted near the radiator support. This solenoid trigger lead carries 12V only when the key turns to “start,” so probe with a multimeter–readings should spike momentarily. If absent, inspect the fusible link (thick green/black wire) bridging between battery feed and relay; corrosion here cuts voltage before it reaches critical components.

Examine the backside of the motor’s rear housing where three terminals converge. The large top post accepts the main battery cable, the middle lug receives the solenoid output, and the threaded stud below holds the field winding ground strap. Clean contact surfaces with 220-grit sandpaper; even minor oxidation disrupts 200+ amp flow during engagement.

Check the neutral safety switch positioned under the steering column shroud. A grey or tan wire exits this switch, joining the purple (ignition) lead before reaching the relay. Bypass temporarily with a jumper if cranking fails–if the motor spins, recalibrate or replace the switch to restore automatic transmission protection.

Inspect the voltage regulator bolted to the firewall beside the wiper motor. A thin brown wire connects from its “F” terminal to the main harness; this circuit stabilizes generator output and indirectly influences solenoid timing. Loose or broken connections here mimic poor starting characteristics but manifest as dim lights or erratic gauges.

Verify the ground path by locating the braided strap bolted to the block near the dipstick tube–one end attaches to the body, the other bonds the transmission bellhousing. Missing or corroded grounds create phantom electrical issues, so scrape paint from attachment points before tightening.

Once every conductor checks viable, reconnect everything one circuit at a time. Start with the heavy battery lead, then solenoid feed, then relay connections, testing crank function between each step. Intermittent failures often lurk in terminal blocks rather than the actual components.

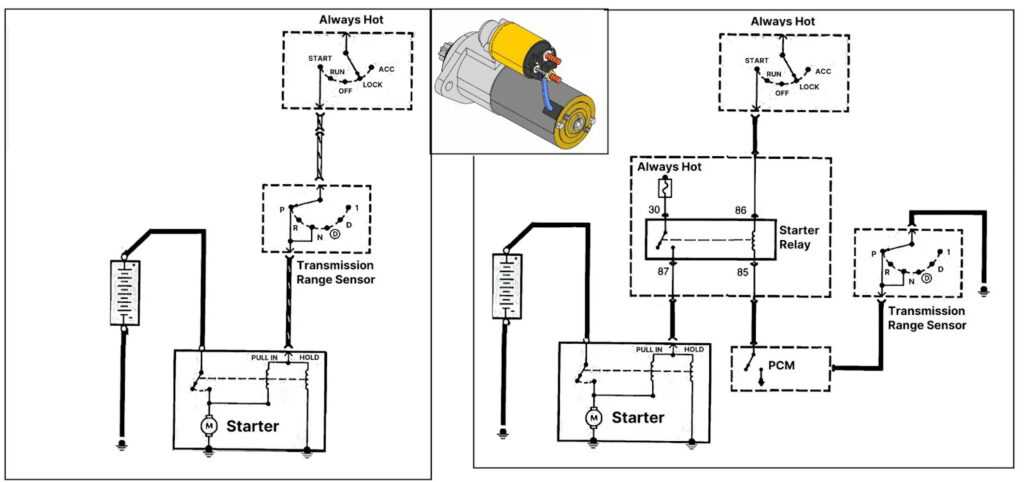

How to Interpret Your Classic Vehicle’s Electrical Blueprint

Locate the ignition switch symbol at the top of the schematic–this is your starting point. Identify the thick red line extending downward; this represents the primary power feed from the battery. Follow it until it splits into two branches: one leading to the solenoid and the other to the fuse block. The solenoid branch will terminate at a circular component labeled “S,” while the fuse block connection typically merges with a 10-amp protective device.

Trace the thinner purple wire branching from the ignition switch. This conductor carries the activation signal to the relay or engagement mechanism. Notice how it bypasses the fuse block entirely–this is intentional, as it ensures direct control without interruption. At the relay, the purple line connects to terminal “50” (marked on most schematics), which triggers the high-current circuit when voltage is applied.

Examine the ground path next. The schematic will show a black wire or multiple strands converging at a common chassis point, often near the engine block. Verify that this connection is not shared with accessory circuits; interference can cause erratic behavior. If the blueprint shows a resistor inline with the ground, note its position–it’s typically a ceramic unit rated for 1.5 ohms, designed to limit surge currents.

Check for auxiliary connections, such as the neutral safety switch or clutch interlock. These appear as dashed lines branching from the main activation path. On older schematics, the neutral safety switch may be integrated into the transmission linkage and depicted as a normally open contact. If your system includes an overdrive, a separate solenoid-controlled circuit will run parallel to the main engagement path, identifiable by a distinct color code like yellow or green.

Map the high-amperage circuit separately. Look for a heavy-gauge brown wire linking the battery’s positive terminal to the engagement coil, then continuing to the heavy-duty contact points. This path carries the cranking current, often exceeding 200 amps, so any corrosion or loose connection will prevent proper function. If the schematic includes a ballast resistor, it will be placed between the ignition feed and the coil–its role is to reduce voltage during sustained operation.

Document deviations from standard configurations. Aftermarket installations, such as remote-mounted relays or upgraded battery relocation kits, may alter the original paths. These changes are usually annotated with handwritten notes or adhesive labels on the physical printout. Cross-reference these modifications with the color codes listed on the factory decal under the dashboard for accuracy.

Test each path methodically before applying power. Use a multimeter to confirm continuity between the ignition switch, engagement coil, and ground. If resistance exceeds 0.5 ohms in the primary circuit or 10 ohms in the activation path, inspect terminals for oxidation or broken strands. Voltage drop tests at key junctions–such as the solenoid’s “B” terminal–should read within 0.2 volts of battery voltage when the system is under load.
