Complete 1968 Chevrolet Camaro Horn Wiring Diagram and Installation Guide

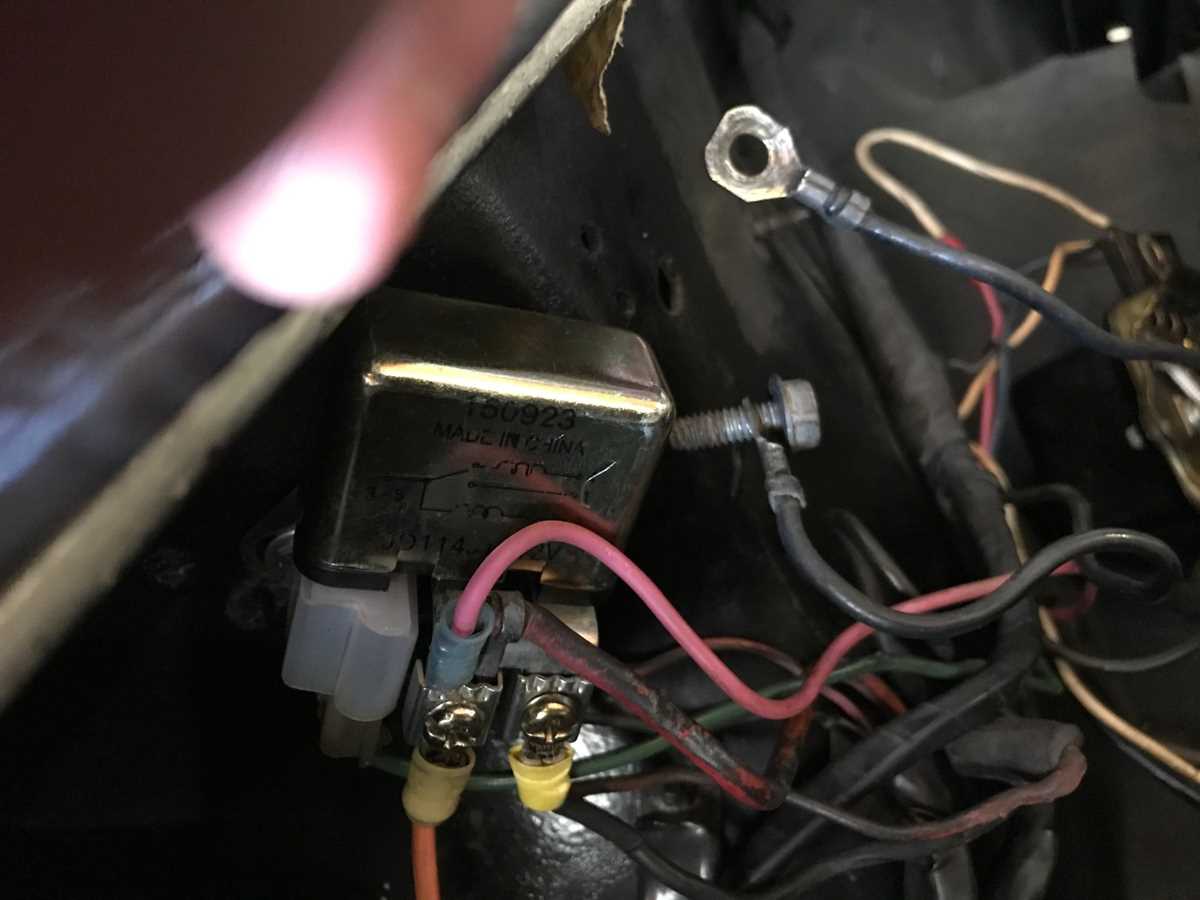

Begin by locating the relay cluster behind the left-side kick panel–this is where the factory switch routes power before distributing it to the signal coils. Use a multimeter set to continuity mode to test the green/black wire (circuit 14) from the relay socket to the steering column harness. If resistance exceeds 0.5 ohms, replace the pigtail connector, as corrosion at the bullet terminals is a common failure point in these models.

Trace the thick red wire (circuit 150) from the relay’s “BAT” terminal directly to the fused side of the main ignition switch. A direct 10-gauge link ensures consistent voltage; bypass any intermediate splices, which may introduce voltage drop under load. For models equipped with factory A/C, verify the inline 20-amp fuse in the harness near the condenser unit hasn’t been replaced with a lower-rated substitute–this can cause intermittent failure under compression loads.

Ground path integrity is critical: the black wire (circuit 250) from the horn solenoid must terminate at a dedicated chassis stud, not shared with other accessories. Sand the mounting surface to bare metal and use star washers to prevent galvanic corrosion. Test by simulating activation–press the steering wheel pad while monitoring voltage at the solenoid’s S-terminal. A drop below 11.8V indicates a compromised ground, often misdiagnosed as a faulty solenoid.

For authentic replication, source original-style connectors for the steering wheel slip ring (part #6425554). Aftermarket replacements use thinner-gauge wire, leading to premature wear under Muncie column tilt mechanisms. Solder and heat-shrink all repairs; crimped connections degrade quickly under vibration. Confirm proper engagement of the horn brushes against the slip ring–misalignment causes erratic operation, mimicking electrical faults.

How to Trace and Repair Classic Signal Circuitry in a First-Gen Muscle Coupe

Locate the central relay block under the driver-side dash cluster–it connects directly to the steering column’s multifunction switch via a thick green wire with a yellow stripe. This conductor carries the primary activation impulse; corrosion here causes intermittent failures. Use a multimeter set to continuity mode to verify conductivity after carefully separating the connector terminals. If resistance exceeds 0.5 ohms, replace the four-inch segment of wiring with 16-gauge copper stranded wire coated in cross-linked polyethylene insulation rated for 125°C.

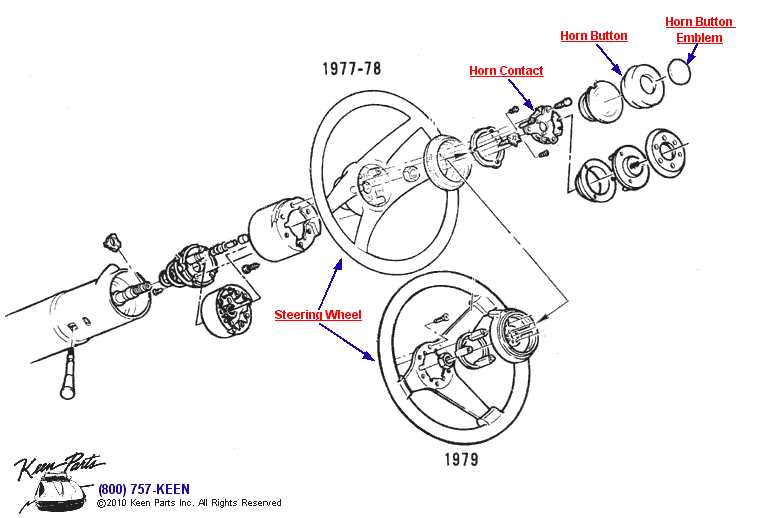

Inspect the dual-contact horn button assembly mounted behind the steering wheel hub. The brass-plated pivot points corrode over decades; buff them lightly with 0000 steel wool followed by a thin coat of dielectric grease to prevent future oxidation. Ensure the spring-loaded plunger makes solid contact with both circular traces when depressed–test by bridging the traces with a screwdriver while monitoring voltage at the relay input. If voltage dips below 11.5V, the button pad requires replacement or the ground path through the steering column needs cleaning.

Ground Path Optimization

The metal bracket anchoring the relay block must establish a low-impedance path to the chassis. Remove paint and primer from the mounting surface using a wire brush, then secure the bracket with a fresh #10 stainless steel screw coated in anti-seize compound. Add a secondary ground strap between the bracket and the firewall’s interior plate if resistance checks reveal more than 0.2 ohms. For models equipped with air conditioning, disconnect the A/C clutch wire at the compressor to avoid parasitic loads interfering with signal testing.

Trace the dual red wires exiting the relay–one powers the high-pitch unit near the radiator support, the other feeds the low-tone resonator behind the front valance. Each wire terminates in a spade connector crimped to the horn’s input lug; corrosion here manifests as weak or distorted output. Apply a 1.5mm heat-shrink sleeve over refitted connectors to seal against moisture. Test each unit individually by applying 12V directly from the battery–if one remains silent, check the internal capacitor for swelling or leaks before condemning the coil.

Verify the fusible link embedded in the main power cable running along the left fender apron. This thin pink wire often melts along its length rather than at the fuse panel–use a heat gun on low to reveal compromised sections that feel brittle to the touch. Splice in a replacement segment using a single inline butt connector and seal it with adhesive-lined shrink tubing. Avoid twisting strands during reassembly; loose connections generate heat and can cause premature failure.

Fine-Tuning Output Characteristics

Adjust the resonator’s mounting angle so its flared opening faces downward at a 20-degree tilt from horizontal. This orientation prevents water ingress and optimizes sound projection through the front grille. If tones appear uneven, swap the positions of the two units; the high-frequency assembly is rated at 400Hz and weighs 1.8 pounds, while the low-tone counterpart rings at 320Hz and weighs 2.1 pounds. Matching impedance prevents phasing issues that create a muted warble instead of crisp dual tones.

Clean the relay’s internal contacts by cycling the activation circuit rapidly 40–50 times using a temporary jumper wire. This removes oxidation without disassembling the relay. If cycling fails to restore a strong click, replace the relay with an HFS-4 type rated for 30A inductive loads–generic replacements often lack the suppressor diode across the coil, leading to transient voltage spikes that damage the multifunction switch over time.

Finding the Signal Transducer Relay in a Classic Pony Car Electrical Layout

Start by examining the driver-side inner fender panel near the battery tray. The relay cluster in this area typically includes a small rectangular or square component labeled with terminal designations (85, 86, 87, 30). Use a flashlight to scan for a black, gray, or beige housing marked with “RLY” or a similar identifier–this distinguishes it from adjacent connectors like the flasher unit or voltage regulator.

• Disconnect the negative battery terminal before probing to prevent shorts.
• Trace the thick guage wire from the steering column switch back to its termination point–this often leads directly to the relay.
• Check for corrosion at the relay socket; clean contacts with electrical cleaner if oxidation is present.
• Swap the relay with a known functioning unit (e.g., headlight relay) to isolate failures.

If the relay isn’t under the hood, inspect the firewall-mounted junction block behind the instrument cluster. Remove the dashboard lower trim panel to access this area–locate a bank of relays positioned left of the fuse box. The signal transducer relay sits on the outermost edge here, identifiable by its wiring harness (yellow/black and dark green leads). Label each connector before detachment to streamline reinstallation.

For hidden mounting locations, consult the vehicle’s original build sheet or dealer service bulletins. Some early models feature the relay inside the glovebox cavity or beneath the passenger kick panel, secured by a single screw or press-fit clip. Use a multimeter in continuity mode to verify relay function–probe terminals 85 and 86 for coil resistance (40–120 ohms typical) and terminals 30 to 87 for open/closed contact states when activated.

Step-by-Step Alert System Switch Circuit Assembly

Disconnect the battery negative terminal first. Failure to do so risks short circuits when handling live connectors. Locate the ground post under the dash near the steering column–it’s typically a bare stud with a 10mm nut. Loosen it just enough to slip the new ring terminal under existing wires, then retighten securely.

Trace the factory signal lead from the relay cluster behind the driver-side kick panel. The wire is color-coded black with a purple stripe; verify its route toward the steering shaft before cutting. Strip 6mm of insulation from the end, crimp a female spade connector, and slide it onto the corresponding tab of the new momentary-contact switch. Apply dielectric grease to prevent corrosion.

Connector Type	Wire Gauge	Terminal Size	Torque Spec (in-lbs)
Ring terminal	12 AWG	#8 stud	15-18
Female spade	14 AWG	0.187″	N/A
Butt splice	16 AWG	N/A	N/A

Mount the switch bracket onto the steering column shroud using the pre-drilled holes. Align the switch body so the actuator arm rests flush against the clockspring housing; incorrect positioning will cause binding. Secure with two #8-32 machine screws, using thread-locking compound on the threads to prevent loosening from vibration.

Run a new fused power feed from the fuse block’s “IGN” slot. Use 14-gauge red wire with a 15-amp fuse holder inline, positioned within 7 inches of the block for safety. Route the wire behind the dash cluster, avoiding sharp edges, and terminate at the switch’s remaining spade connector. Heat-shrink tubing should cover all splices and crimps to insulate against moisture.

Test the circuit by reconnecting the battery and turning the ignition to “ACC.” Press the switch; a distinct click from the relay should be audible under the hood. If silent, check continuity between the switch’s signal terminal and ground–resistance should drop near zero when pressed. Adjust the actuator arm gap if the switch fails to close fully under light pressure.

Avoid using factory splices hidden in the harness loom. Instead, cut the original harness wire cleanly and join with a butt splice crimped with a ratcheting tool–soldering introduces brittleness over time. Wrap each joint with electrical tape, then secure the harness bundle with zip ties every 6 inches to prevent chafing against metal dash supports.

Finally, verify relay function at the engine bay junction. Pull the relay cover and probe the 85/86 coil pins; voltage should read 12.4V when the switch contacts close. If voltage is absent, inspect the signal wire for nicks or pinched sections between the dash and firewall–common failure points are where the harness passes through grommets.
