How to Connect a 3-Wire DC Fan Complete Wiring Guide

For standard operation, link the positive terminal (typically red) to a 12V or 5V DC power source, depending on the unit’s specifications. The negative terminal (usually black) connects directly to ground. The third lead (often yellow or blue), if present, serves as a tachometer output–attach it to a monitoring circuit or leave it floating if speed sensing is unnecessary.

Ensure the power supply matches the device’s rated voltage. A 12V unit powered by 5V will spin too slowly or fail to start; conversely, exceeding voltage risks permanent damage. Use a multimeter to verify polarity before energizing–reversing connections can destroy internal components instantly.

For PWM control, substitute the constant-voltage source with a pulsed signal (typically 25kHz at 3.3V or 5V logic levels). The ground remains shared, while the tachometer lead outputs a pulse train proportional to rotational speed. A 10kΩ pull-up resistor may be required if the signal appears weak or noisy.

Dissipate heat with adequate airflow; a stalled rotor draws up to 3× the normal current, risking overheating within seconds. If the load exceeds 1.5A, upgrade traces or use thicker conductive paths (minimum 24 AWG for lengths under 30 cm).

Test for functionality without full assembly: apply voltage and listen for smooth operation–grinding or uneven rotation indicates bearing failure or debris obstruction.

Connecting a 3-Pin Cooling Device: Essential Circuit Layout

Start by identifying the black (ground), red (power), and yellow or blue (tachometer output) conductors on the motor assembly. Secure the ground lead to the negative terminal of your power supply–failure to do so will prevent proper operation. Apply +12VDC (or the voltage specified in the device’s datasheet) to the power lead, ensuring current-limiting measures like a 100Ω resistor for transient protection if needed.

Interpreting Speed Signal

The tachometer lead emits two pulses per revolution, requiring a pull-up resistor (4.7kΩ to 10kΩ) connected to +5VDC for reliable readings. Use an oscilloscope or microcontroller input pin with interrupt capability to decode RPM; standard configurations expect a 5V TTL-compatible square wave. Verify signal integrity before integrating with control systems, as noise can distort readings.

For PWM-controlled variants, dedicate the third conductor as a speed input, connecting it to a 25kHz PWM source with a duty cycle range of 30%–100% (minimum speed ensures bearing lubrication). Never exceed the maximum permissible voltage (typically 16VDC) or current (often below 300mA)–consult the motor’s specifications to avoid overheating or permanent damage.

Identifying the Conductors in a 3-Lead DC Cooling Unit

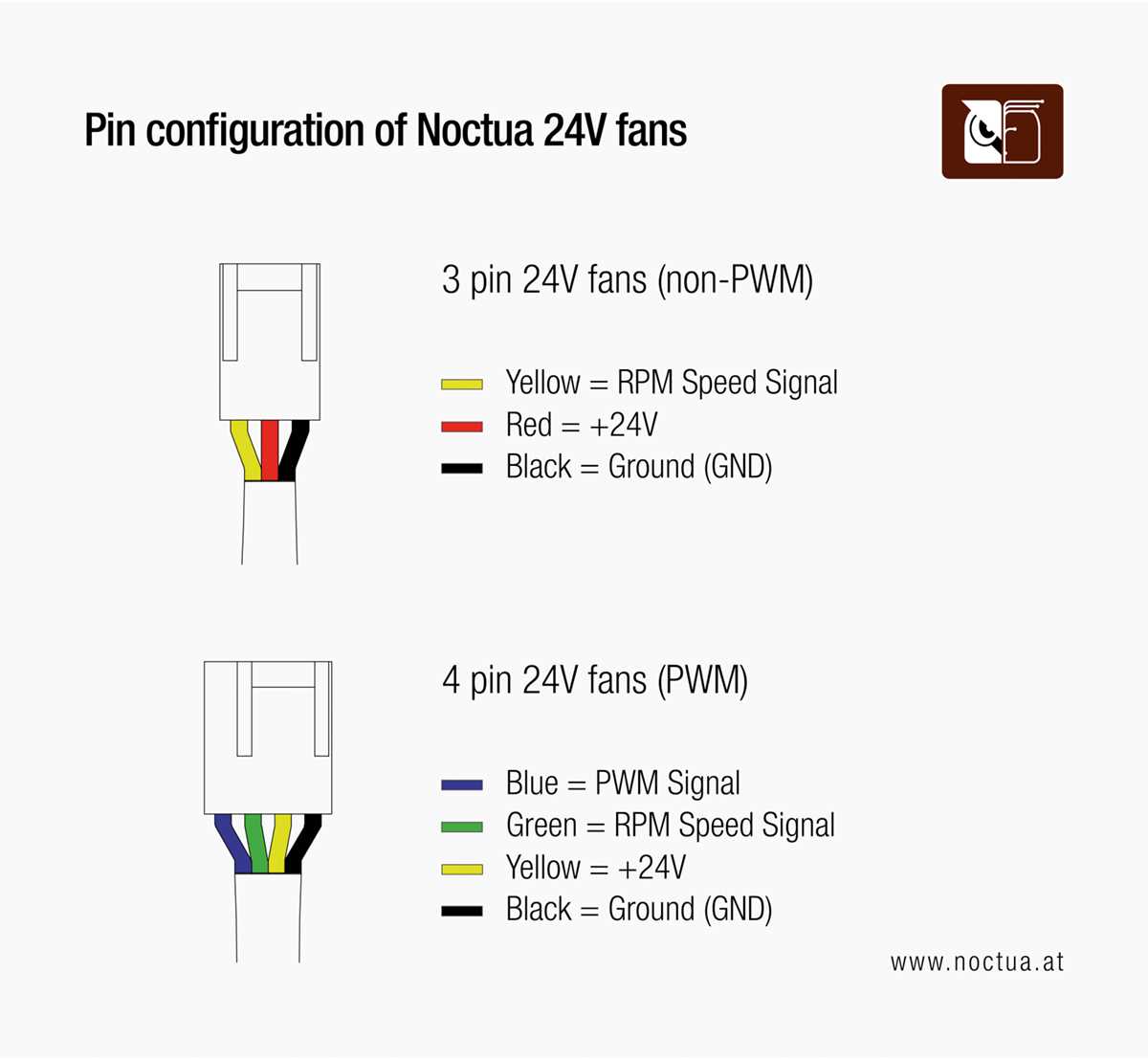

Locate the color-coded strands immediately upon inspection–most units follow a standard: red for positive voltage, black for ground, and a third lead, often yellow, blue, or white, serving as the tachometer output.

Use a multimeter set to DC voltage mode to verify the red conductor; it should register 5V, 12V, or 24V depending on the device’s specifications. The black strand will show negligible voltage when measured against a known ground point.

The third strand differs–apply power to the red and black leads while probing the remaining conductor with the multimeter in frequency mode. A functioning RPM signal will display a pulse frequency corresponding to the rotational speed.

Handling Non-Standard Color Schemes

Units from lesser-known manufacturers may deviate from conventional colors. If red and black are absent, trace the power leads by checking continuity to the input connector or consulting the datasheet–only one pair will handle the full operating voltage.

For the RPM lead, identify it by exclusion: the two conductors carrying power will not change state during operation, while the third will fluctuate. Oscilloscope readings can confirm a square wave pattern typical of tachometer signals.

If documentation is unavailable, reverse-engineer by powering the unit while monitoring each lead with a multimeter. The RPM conductor will exhibit a voltage drop or pulse when the rotor accelerates, unlike the steady-state power conductors.

Label each strand with heat-shrink tubing or adhesive markers before terminating–misidentification can damage the control circuitry, especially in PWM-driven setups.

Connecting Power and Ground Leads for Basic Operation

Attach the positive terminal of the cooling device directly to the voltage source’s output, ensuring the supply matches the motor’s rated input–typically 5V, 12V, or 24V. Verify the printed specifications on the housing or datasheet before proceeding. Incorrect voltage risks overheating or permanent damage. Use a multimeter to confirm the source’s stability if repurposing an existing connector.

Secure the ground lead to the system’s common return path, avoiding shared points with high-frequency components to reduce interference. For standalone setups, connect directly to the power supply’s negative terminal. In integrated systems, trace ground routes back to the main board to prevent ground loops, which can introduce noise and degrade performance.

For 3-signal arrangements, the third conductor usually carries a tachometer pulse or PWM control. Leave this unconnected for basic operation, but insulate it with heat-shrink tubing or electrical tape to prevent short circuits. If testing rotational speed later, ensure this line remains isolated from power rails.

Polarity and Connection Methods

• Soldering: Use rosin-core solder and a temperature-controlled iron (300–350°C). Pre-tin both surfaces, apply minimal heat to avoid melting plastic housings, and secure with adhesive-lined tubing.
• Crimping: Select terminals matching the lead gauge (e.g., 22–24 AWG). Use a ratcheting crimper for consistent pressure; avoid hand tools to prevent loose connections. Verify with a tug test (5–10 N force).
• Terminal Blocks: Opt for screw-type or spring-clamp blocks rated for the current draw (usually <1A). Tighten screws to manufacturer torque specs (typically 0.5–1 Nm). Avoid over-tensioning, which strips threads or cracks plastic bases.

When powering from a variable source like a bench supply, start at the lowest setting and incrementally increase while monitoring current draw. A sudden spike or stalling indicates an obstruction or misconnection. For 12V models, expect 100–300 mA under normal load; deviations suggest mechanical resistance or faulty bearings.

Troubleshooting Immediate Failures

1. Motor spins erratically: Check for intermittent contact at the solder joint or terminal. Reflow connections if cold solder is suspected.
2. No rotation: Confirm voltage presence at the device’s input with a multimeter. Test continuity on the return path to the power source.
3. Excessive heat: Reduce input voltage or inspect for blocked airflow. Higher-than-rated current (e.g., >500 mA at 12V) signals a short circuit.
4. Unusual noise: Lubricate bearings with light machine oil or replace if grinding persists. Verify mounting screws are snug but not compressing the housing.

For long-term reliability, use strain relief near connection points. Route conductors away from sharp edges or moving components. Apply conformal coating if operating in humid or dusty environments to prevent corrosion. Regularly inspect for oxidation or thermal discoloration, which precedes failure.

Integrating the Tachometer Feedback Lead for Rotational Speed Tracking

Connect the pulse-output conductor to a microcontroller or dedicated RPM monitoring IC such as the LM2907 or TPIC8101. These components convert frequency signals into readable voltage levels, enabling precise speed analysis. The LM2907, for instance, generates an output voltage linearly proportional to input frequency, scaling typically at 10 mV per Hz for standard configurations. Ensure the chosen device supports the expected pulse range–most DC impellers produce 2 pulses per revolution, requiring circuitry capable of handling frequencies up to 300 Hz for a 9000 RPM maximum.

Implement filtering to eliminate noise from the signal path. A simple RC low-pass network with a cutoff frequency of 1 kHz is effective for most applications, preventing false readings induced by EMI. For environments with high electrical interference, opt for a differential receiver like the AM26LS32 to condition the feedback before processing. Below is a reference configuration for passive filtering:

Component	Value	Purpose
Resistor	1 kΩ	Forms part of RC network
Capacitor	100 nF	Smooths signal fluctuations
Diode (Optional)	1N4148	Clamps negative transients

Calibrate the monitoring system using an oscilloscope to verify pulse integrity. Measure the time interval between successive edges; divide 60,000 by this value in milliseconds to derive RPM. For example, a 20 ms interval equates to 3000 RPM. Microcontrollers with timer peripherals–for instance, STM32 or PIC–can automate this calculation. Configure interrupts on rising or falling edges to capture timing accurately without CPU overhead.

Power supply decoupling is critical for stable readings. Place a 10 µF tantalum capacitor near the sensing circuit’s VCC pin, supplemented by a 0.1 µF ceramic capacitor to suppress high-frequency noise. Avoid shared traces with inductive loads, which can introduce coupling artifacts. If integrating with a motor driver IC like the DRV10866, exploit its built-in tachometer interface for simplified integration; these devices often include hysteresis and noise rejection tailored for rotary encoders.

For advanced diagnostics, log speed variations against load conditions. A sudden drop in RPM under constant voltage suggests bearing wear or blade obstruction–patterns detectable with continuous monitoring. Embedded platforms like ESP32 or Raspberry Pi Pico can stream data to a host system via UART, SPI, or I2C for real-time analytics. Use a moving average filter over 10–20 samples to smooth transient fluctuations while preserving responsiveness.
