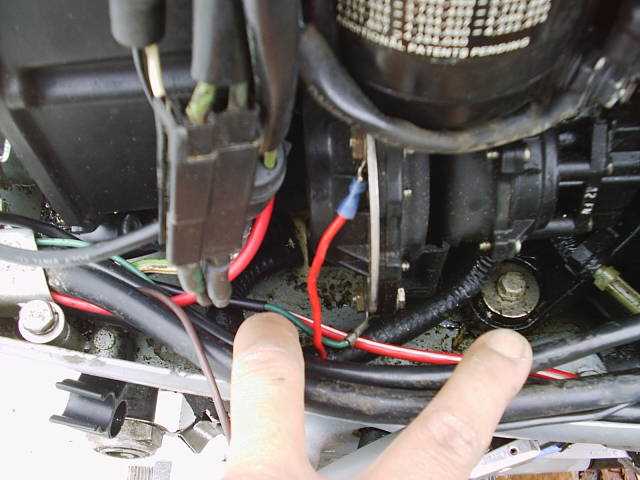

1976 evinrude 70 hp wiring diagram

Locate the ignition module near the powerhead’s flywheel–it’s critical for troubleshooting misfires or erratic RPM. Use a multimeter to verify voltage at the purple wire (tachometer signal) when the engine cranks; readings below 2.5V suggest a faulty stator or corroded connections. The brown wire (battery charge) should read 13.8–14.4V at 3000 RPM–any deviation points to rectifier failure or loose ground.

Route the green/white kill-switch wire directly to the battery’s negative terminal; splices or extended runs introduce resistance, causing intermittent shutdowns. Replace the original 7.5A fuse with an 8A blade-style fuse–this prevents nuisance tripping while maintaining protection. Inspect the choke solenoid’s orange wire for insulation cracks; moisture intrusion here mimics carburetor flooding.

The CDI box’s capacitor stores up to 400V; discharge it by touching a 10W resistor across the red and black leads before handling. If the electric start engages but the engine doesn’t turn, check the 10-gauge yellow wire for voltage drop–corrosion at the solenoid’s M-terminal is common. For models with adjustable timing, set the stator gap to 0.012″ using a feeler gauge; misalignment advances ignition by 3° and increases pinging.

Use dielectric grease on all bullet connectors–especially the pink/yellow pair linked to the temperature sender. The lean-burn model’s blue wire (trim sender) must read 1–4kΩ across its range; outside values trigger false “overheating” codes. When rewiring, bundle harnesses with spiral wrap rather than zip ties–vibration can chafe wires against the transom bracket within 200 hours of operation.

Test the neutral safety switch (white/blue wire) by tilting the motor down 15°; the circuit should open at 10° tilt to prevent accidental starts. If the gauges flicker at idle, bypass the voltage regulator temporarily–persistent issues indicate a failing alternator rotor (22Ω resistance required). For noise suppression, ground the engine block to the battery via a dedicated 4-gauge cable; factory star washers are insufficient for long-term corrosion resistance.

Practical Guide to Your 70 HP Outboard Electrical Layout

Locate the ignition switch at the helm and trace the brown wire to the power pack–this routes ignition current directly to the coils. If the engine cranks but won’t spark, check the 0.5 mm gap on the trigger contacts next to the flywheel; corrosion here mimics coil failure. Swap in a known-good 40 000-ohm resistor spark plug like NGK B7HS-10 to isolate fouling issues before disassembling the powerhead.

Wire Color Pin Destination Typical Voltage (Key On) Fault Symptom
Purple Tachometer sender 0-12 V AC No tach reading, erratic idle
Yellow/Red stripe Charging stator output 13.8-14.4 V DC Battery drains overnight
Black Ground bus to transom bracket 0 V DC Stray current corrosion, misfire
Blue Remote start solenoid 12 V DC cranking Starter engages but engine won’t turn

Clean the two yellow rings under the flywheel with a brass wire wheel; oxidized connections drop charging voltage below 13.2 V and trigger nuisance overheat warnings. Replace the rectifier with a modern bridge rated 25 A continuous if water intrusion is visible–earlier sintered plates corrode internally without external signs. Keep the kill-switch lanyard plugged; an open circuit here disables both ignition and fuel pump, stranding the boat.

Finding the Factory Electrical Schematic for Your Classic 70 Horsepower Outboard

Check the original owner’s manual first–these often include fold-out schematics tucked in the back pocket. If yours is missing, request a scanned copy from vintage boating forums where collectors upload rare documentation. Look specifically for OMC service bulletins from the mid-70s, as these frequently contain corrected versions that address common ignition issues.

Trusted Sources for Archival Materials

  • IBPMA: The International Boatbuilding & Propulsion Manufacturers Association archives physical copies of OMC technical publications. Submit a research request via their contact form with your model’s serial number for targeted results.
  • Seloc Manuals: Purchase the 1973–1980 outboard repair guide (ISBN: 0-89330-004-2). While not a perfect match, it includes overlapping components like the charging system and CDI module.
  • eBay Sellers: Search for “OMC factory service manual” filtering by year range. Verify the listing includes the electrical section–many only cover mechanical repairs.

Disassemble the engine cowling to locate the identification plate–this displays the exact production week and plant code. Cross-reference this data with MarineEngine.com’s model decoder to pinpoint wiring variants. Motors built in Waukegan, Illinois, often feature dual coil leads, while Sturtevant, Wisconsin, units use a single harness.

Field-Tested Workarounds

  1. Trace existing wires back to the stator and CDI box using a multimeter. Label each connection with masking tape noting voltage output (e.g., “12V @ idle” or “AC pulse”).
  2. Compare your results against generic outboard schematics from Johnson (same parent company). Key differences appear in the kill-switch circuit and warning-light resistors.
  3. Visit a boatyard specializing in vintage motors–they sometimes retain old OMC literature in trade-ins. Ask for the “blue binder” collection.

If all else fails, sketch a diagram based on physical inspection. Document wire colors at connection points (e.g., “black/yellow–ignition pulse”), thickness (gauge), and routing clips. Photograph hidden junctions behind the swivel bracket and under the flywheel–these areas house critical but overlooked grounds and sensor wires.

Step-by-Step Guide to Outboard Motor Harness Color Codes and Terminal Hookups

Begin by isolating the ignition system wires. The primary ignition lead, typically black with a yellow stripe, connects directly to the coil’s positive terminal. Attach it securely using a ring terminal; improper fastening causes intermittent spark loss. The purple wire, often linked to the kill switch, must terminate at the ignition module’s designated post–verify this against the engine’s service manual for variations.

Locate the charging circuit next. The stator output, usually a green wire with a white stripe, feeds the rectifier-regulator. Splice it cleanly, avoiding frayed ends that could short against the powerhead. The brown wire, tied to the battery’s positive terminal, requires a 10-gauge connector to handle current draw without overheating. Confirm polarity with a multimeter–reverse connections fry the voltage regulator.

Fuel system connections demand precision:

  • Blue wire: oil warning indicator–link to the sensor post.
  • Yellow/red stripe: fuel pump relay–secure to the pump’s input post.
  • White: alternator field–attach to the field terminal only.

Tape all splices with marine-grade shrink tubing to prevent corrosion from moisture intrusion.

Grounding and Auxiliary Circuits

Trace the black wire bundle to the engine block. Every ground must terminate at a clean, unpainted metal surface–sand the mounting point if necessary. The orange wire, tied to the tachometer sender, fastens to the back of the gauge cluster with a 6mm bolt. Ensure the gray wire, often overlooked, connects to the shift interrupt switch; missing this causes erratic gear engagement.

Test each connection with a circuit tester before finalizing. Power the engine briefly and check for:

  1. Steady voltage (12.6V–13.8V) at the battery posts.
  2. No flickering lights on the instrument panel.
  3. Consistent spark at all plugs (use a spark tester).

If voltage drops under load, recheck the brown wire’s connection at the starter solenoid–corrosion here mimics a faulty battery.

Label every wire with a permanent marker or colored tape near the terminal. Use this key:

  • Red = high current (starter/battery).
  • Pink = ignition-switched circuits.
  • Dark green = sensors.

Store spare connectors (female 0.25″ quick-disconnects) for quick repairs. Avoid twisting wires together–heat cycles loosen splices, leading to hard starts.

Solving Electrical Faults in a Vintage 70 HP Outboard

Begin by inspecting the ignition switch connections. Loose or corroded terminals here often mimic fuel delivery problems. Remove the cowling and locate the switch–typically a four-post design–then probe each terminal with a multimeter set to continuity mode. If voltage drops below 11.8V during cranking, the switch contacts are degrading. Replace the switch rather than cleaning, as internal wear on these models is progressive.

Check the stator output next. Disconnect the engine’s wiring harness from the power pack and measure AC voltage between the green and yellow wires at 3,000 RPM. Expect 25–35V AC; readings below 20V indicate a weak or shorted stator coil. If the stator tests fine, move to the power pack–swap it with a known-good unit before condemning the stator, since failed power packs frequently burn stators prematurely.

Examine the kill switch circuit if the engine dies abruptly. Trace the orange wire from the switch to the power pack, looking for chafed insulation or intermittent shorts where the wire passes through the transom. A single nick here can create a dead-short path to ground, disabling spark. Use heat-shrink tubing, not electrical tape, to repair damaged sections–tape degrades within a season in marine environments.

For persistent no-start issues, bypass the neutral safety switch temporarily with a jumper wire. If the engine fires, adjust the switch actuation by loosening the mounting screws and repositioning it. The plunger should depress fully only when the gearshift is in neutral; misalignment here is a common oversight during outboard servicing.
