Complete Wiring Guide for 1977 Honda XL 125 Electrical System
Locate the main ignition switch harness near the steering stem–it connects directly to the battery’s positive terminal via a red wire with a 6.0mm spade connector. Identify the black/green stripe wire branching from the switch; this carries signal to the CDI unit. If spark is absent, trace this path first–corrosion at the spade terminals is the most frequent failure point. Replace the connector with a 6.3mm gold-plated variant if resistance exceeds 0.2 ohms.
Check the stator output at the regulator/rectifier: three yellow wires enter the white two-pin connector, each generating ~20V AC at 5,000 RPM. Measure between any two yellow wires–readings below 18V indicate a shorted coil. Desolder the stator leads and inspect the winding insulation. Rewind with 0.4mm enamel-coated wire if resistance between phases drops below 0.6 ohms.
The left handlebar pod contains two critical systems: the horn circuit (brown wire) and the lighting circuit (white or blue wire). The headlight draws 3.2A at 12V; any flickering above 60W load suggests a faulty zener diode inside the headlight bucket. Bypass the stock 3-pin connector with soldered joints if corrosion persists.
For turn signals, the flasher relay sits behind the left side panel, fed by a green/white stripe wire from the ignition switch. Test relay clicks–if silent, replace with a 12V 3-pin electronic flasher (avoid mechanical relays; they fail under vibration). Ground connections use black wires with a silver ring terminal–scrape paint beneath the mount for proper conductivity.
When routing wires, avoid the frame’s sharp edges near the rear swingarm pivot. Use spiral wrap (12mm diameter) and adhesive-lined heat shrink at junctions. Replace bullet connectors with soldered joints if exposed to moisture–Honda’s original crimp terminals corrode within 800 miles in wet conditions.

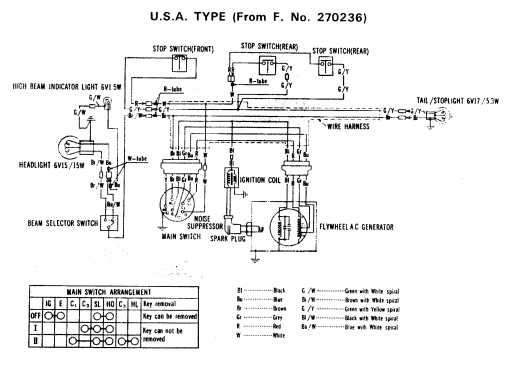

XL 1977 Enduro Electrical Schematic Breakdown
Locate the ignition switch terminals first–mark them A (battery), B (ignition feed), and C (lights). Terminal A connects directly to the 6V lead-acid battery’s positive post via a 10A fuse; bypassing this fuse risks damaging the rectifier. Terminal B supplies power to the coil and points assembly when the key is in the “on” position; resistance here should read 0.3–0.5 ohms. Terminal C splits into two branches: low-beam (45W) and high-beam (50W), controlled by a three-position toggle mounted on the handlebar clamp.
Trace the black/yellow stripe wire from the stator output to the rectifier–this is the charging circuit. The stator generates ~7.2V AC at 5,000 RPM; the rectifier converts it to DC for the battery. Check diode continuity with a multimeter; forward voltage drop should measure ~0.6V. If readings exceed 0.9V, replace the rectifier–common failure point on these models. The stator plate itself is press-fit; never pry it directly–heat the crankcase with a heat gun to 60°C, then tap gently with a soft mallet.
Critical Circuit Checks
| Component | Wire Color | Expected Voltage (Key On) | Resistance (Ohms) |
|---|---|---|---|
| Ignition coil primary | Black/white | 6.0–6.3V | 0.3–0.5 |
| Stator output | Black/yellow | 7.0–7.4V AC | 0.2–0.4 |
| Rectifier DC out | Red | 6.2–6.5V | N/A |
| Headlight ground | Green | 0V | 0.1–0.2 |
Disconnect the kill switch before testing–accidental grounding while the engine runs can fry the points. The switch uses a single green wire; continuity should exist only in the “run” position. Replace the switch if resistance exceeds 0.2 ohms; corrosion in the handlebar clamp bracket is a frequent culprit. Tail-light circuit shares the ground with the rear brake switch–a short here dims headlights. Use a dedicated ground strap from the frame to the light housing if flickering persists.
Reassemble the flywheel cover gasket with RTV silicone–OEM paper gaskets often leak. Torque the cover bolts to 12 Nm in a crisscross pattern; over-tightening cracks the magnesium alloy. After assembly, spin the engine by hand–dragging indicates misaligned stator or bent flywheel keys. Final step: ballast resistor. It sits between the coil and points; resistance should measure 1.2–1.5 ohms. Swap with a known-good unit if the engine misfires above 4,500 RPM.
Finding Key Electrical Bundle Interfaces on the Vintage Off-Road Bike

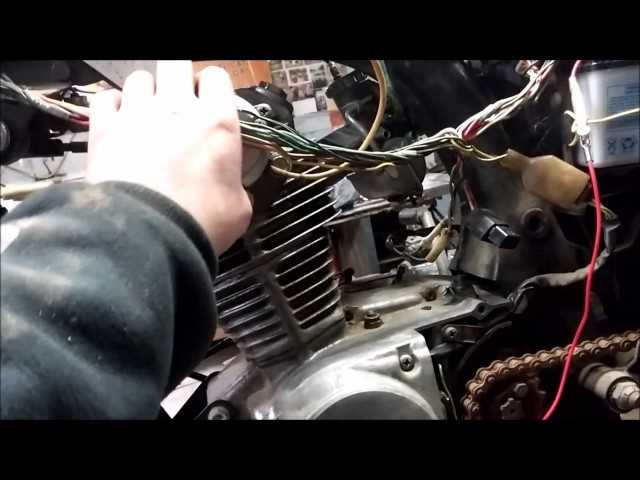

Start by removing the seat and side panels–these components block direct access to the central harness routing channels. The primary connectors cluster beneath the fuel tank, secured by a rubber grommet and two 10mm bolts. Trace the thickest cable loom from the ignition switch; it branches into three directions: headlamp housing, instrument cluster, and rear light assembly.
Identify the multi-pin plug near the steering stem–this 6-way interface links the CDI unit, coil, and stator. Label each terminal before disconnection: red/yellow (positive charge), white/black (pulse generator), and blue/white (coil trigger). A secondary 4-pin connector sits adjacent, managing lighting controls. Check for brittle insulation here–corrosion often begins at solder joints.
- Blunt-nose pliers ease release of locking tabs on the main ignition connector.
- Avoid yanking wires–twist gently while pulling the plastic housing apart.
- Inspect for green/white corrosion on ground terminals, especially near the frame.
- Use dielectric grease on reconnected terminals to prevent future oxidation.
The charging system’s output connector hides behind the left side cover. Look for a 3-pin rectangular interface with yellow (AC output), white/red (rectifier input), and green (ground) wires. Verify continuity with a multimeter–voltage should read 12.5V+ at 5000 RPM. If readings drop below 11.5V, suspect a failing stator or regulator bridge.
Smaller 2-pin connectors often disconnect during routine maintenance. The turn signal flasher relay’s harness joins near the airbox, while the horn’s lead attaches to the front fork brace. Replace any connectors exhibiting melted plastic or deformed pins–these indicate overheating failures. Secure loose bundles with spiral wrap to prevent vibration-induced wear.
Locating Key Ignition Elements on Electrical Schematics
Trace the red wire from the battery terminal–this delivers power to the ignition switch. Verify continuity at the switch’s 30-amp fuse; typical failures occur here due to corrosion or loose connections. The switch itself should have three output terminals: one leads to the main harness, another to the lighting circuit, and the third (often marked IG) supplies voltage to the coil.
Follow the IG line to the ignition coil; it splits into primary and secondary windings. The primary winding connects to the electronic control unit (ECU) via a thin black wire–this carries the pulse signal. Check for 12V at the coil’s positive terminal when the key is turned; absence indicates a break in the IG lead or a faulty switch.
The ECU receives pulses from the stator’s trigger coil, housed within the flywheel. Locate the stator’s three-phase output wires (typically yellow), which converge into a rectifier-regulator. One white wire exits this assembly, delivering the signal to the ECU’s trigger input–test for AC voltage (~0.5V) with the engine cranking.
Examine the kill switch wiring–usually a black wire with a white stripe. This runs from the handlebar switch to the ECU, grounding the ignition pulse when engaged. If the engine shuts off unexpectedly, inspect this path for shorts or opens using a multimeter in continuity mode.
The spark plug cap attaches to the coil’s secondary winding via a high-tension lead. Replace the cap if resistance exceeds 5 kOhms; higher values degrade spark intensity. Ensure the plug wire is securely seated in both the coil tower and the cap–vibration loosens these over time.
Identify the alternator’s charging wires (red with a yellow stripe) exiting the stator. While not part of ignition, a weak charge can mimic ignition faults by starving the coil of voltage. Measure output at 5,000 RPM–expect 13.5–14.5V DC at the battery terminals.
Inspect the ground paths–critical for ignition function. The ECU’s ground wire (green) must attach to a bare engine bolt; corrosion here creates intermittent failures. Clean contact surfaces with a wire brush and verify zero resistance between the ground terminal and the negative battery post.
Use colored markers to label each wire as you test: red for power, black/white for kill circuits, yellow for stator output. This prevents misconnections during reassembly, especially if the schematic lacks clear identifiers. Record readings for future troubleshooting–a voltage drop greater than 0.5V on any line warrants further inspection.
Tracing Electrical Circuits for the Lighting System
Start by isolating the headlight circuit at the ignition switch’s output terminal–typically marked “H” or “HL” on the original schematics. Use a multimeter set to continuity mode to verify the path from the switch through the fuse block (if present) and into the headlight connector. Resistance readings above 0.5 ohms indicate corrosion or a poor splice; disassemble the connector housing and inspect the terminals for green oxidation or melted plastic. Replace any compromised pins with OEM-spec components to prevent voltage drop.
Handling Turn Signals and Brake Lights
Locate the flasher relay mounted near the instrument cluster–its removal requires gently prying the securing tabs. Probe the relay’s input (battery voltage) and output (signal voltage) with the ignition on but engine off; if voltage is absent at the output, replace the relay. For the rear light assembly, trace the brown wire from the taillight socket back to the brake switch; a common failure point is the switch’s plunger mechanism, which often sticks. Clean the switch contacts with electrical cleaner and test operation by manually pressing the plunger while observing brake light activation.
Test the neutral light circuit by connecting a test light between the neutral switch (under the engine cover) and a known ground. If the light fails to illuminate, shift through all gears while monitoring–if still inactive, replace the switch. For sidelight circuits, check the bulb holders for cracked insulation where the wires exit, a frequent issue causing intermittent failures. Solder any frayed ends with heat-shrink tubing for a permanent fix.
