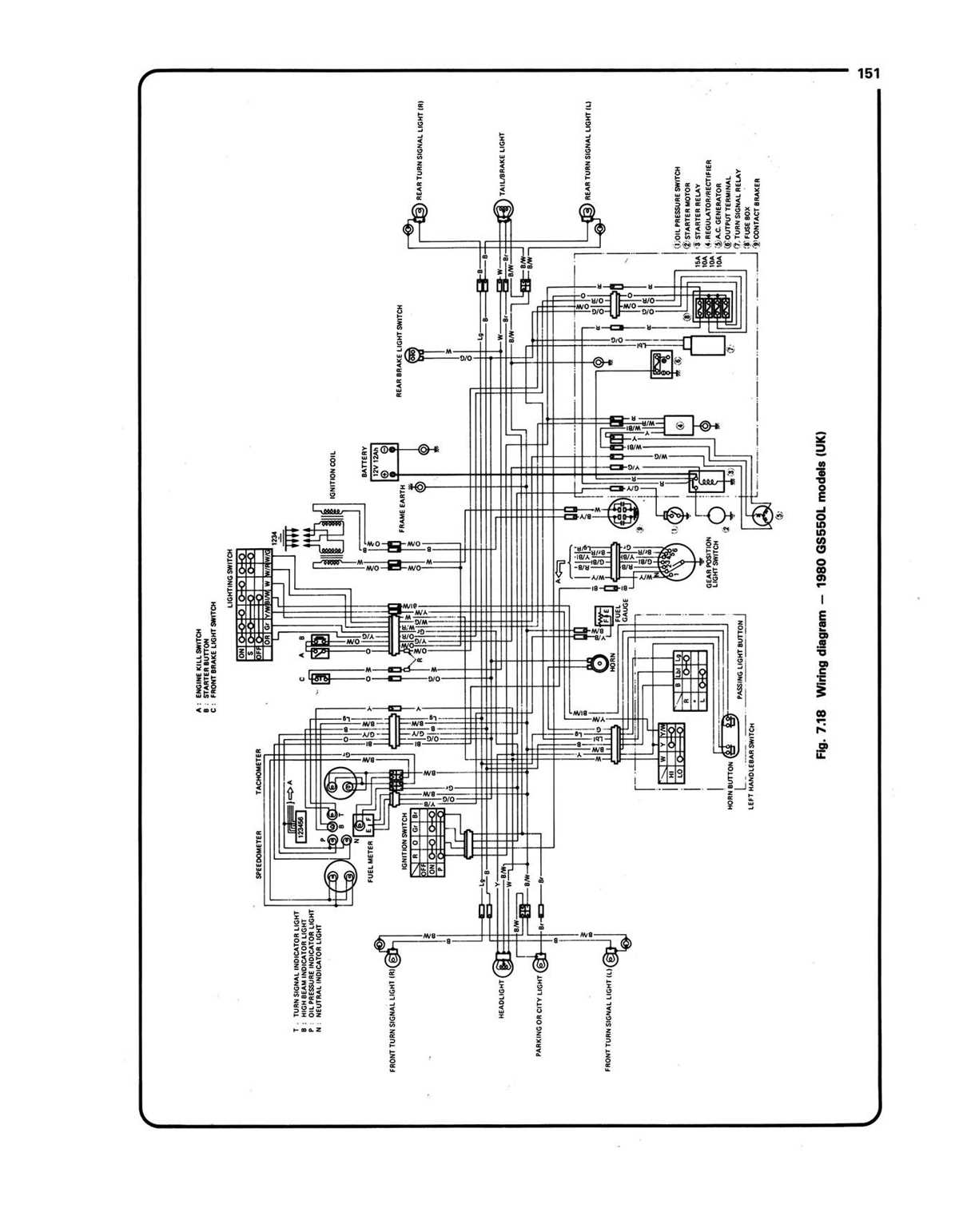

Complete Wiring Guide for 1980 Suzuki GS550 Electrical System Layout
Start by locating the main harness connector near the battery tray–this is where the majority of voltage distribution begins. The harness splits into three primary branches: ignition, lighting, and charging. Use a multimeter set to continuity mode to trace each wire back to its source component. Burnt or brittle insulation often occurs around the regulator/rectifier and stator connections, so prioritize these areas for inspection.
The color-coding follows an unconventional scheme for the model year. Solid brown wires carry switched power to the headlight and taillight, while orange-striped conductors supply voltage to the ignition coils. Yellow wires with a green stripe ground the system–verify these first if lights flicker or the starter engages intermittently. Avoid guessing; cross-reference with a factory service manual or verified schematics derived from dismantled harnesses.
For ballast resistor bypass, identify the white wire with a red tracer feeding the coils. If resistance measures above 1.5 ohms, install a modern inline resistor or swap to an electronic ignition module compatible with the stock advance curve. This eliminates misfires caused by degraded components. When soldering repairs, use heat-shrink tubing rated for 150°C to prevent melting under engine bay temperatures.
Check the turn signal flasher relay next to the fuse block. If signals blink erratically, replace it with a solid-state unit matching 3.4Ω resistance. The original bimetal relay fails predictably after 30,000 miles. For charging issues, test stator output at idle–AC voltage should read 25V minimum between any two yellow wires. Replace the stator if readings drop below 20V; no aftermarket alternative replicates the OEM winding pattern.
Label every wire before disconnecting connectors. Photo-document the harness routing at the frame junctions behind the instrument cluster and beneath the fuel tank. Misrouting the neutral sender wire or sidestand switch cables causes starting circuit failures and fuel pump malfunctions. Use T-taps only as a temporary fix–permanent repairs require soldered splices with dielectric grease to prevent corrosion.
Electrical Layout for the 1980 GS550: Hands-On Troubleshooting
Start by locating the black-with-white-stripe (B/W) wire at the ignition switch–this is your main power feed. Use a multimeter to verify 12V between this wire and ground when the key is in the “ON” position. If voltage drops below 11V, inspect the 30A main fuse under the seat and clean the fuse contacts with fine sandpaper, as corrosion here causes intermittent failures. The alternator output (white wire at the stator) should read 14-15V AC at 3,000 RPM; lower readings indicate a failing stator or open circuit in the white/red regulator wire. Replace the stator if resistance deviates from 0.5-1.0 ohms between any two stator coils.
For lighting issues, trace the brown/white (Br/W) headlamp feed back to the left handlebar switch–a broken wire here often hides under the rubber boot near the fork seal. Check the flasher relay (mounted near the battery) for a distinct click when operated; no click means the relay is faulty, typically due to internal corrosion. The brake light circuit relies on the green/white (G/W) wires at both front and rear switches–test continuity with the pedal fully depressed. Replace any bulb with a blackened socket base, as this signals arcing from poor grounding (usually at the rear sub-frame bolt).
Locations and Functions of Key Electrical Connectors in Classic Middleweight Twins
Trace the main harness from the voltage regulator–mounted left of the battery tray–to the black three-pin plug beneath the headlight shell. Match pin orientation: top lug carries switched ignition feed, middle delivers excitation current for the alternator field coil, bottom grounds the assembly. If field voltage drops below 12.4 V at 4 000 rpm, check this junction first; corrosion on the male spade often mimics rectifier failure.
Find the rectangular four-terminal connector next to the fuse block under the seat. Leftmost terminal supplies 12 V constant to critical circuits; adjacent pin feeds the taillight and license-plate lamp; third routes power to the turn signal flasher; rightmost pin bridges the ignition switch kill circuit. Label each wire color-code once disconnected–white with blue stripe, yellow with red stripe, black with white stripe, plain green–to avoid transposing wires during reassembly, which can energize turn signals at key-off.
Behind the speedometer, the circular seven-pin connector interfaces instrument lighting, neutral indicator, high-beam telltale, and tachometer sender. Confirm mating faces: raised notch on the female side must align with the flat on the male plug. If the tachometer reads erratically, probe the grey wire at this point; resistance should measure 50–120 ohms between ground and sender terminal while the motor runs at idle.
The engine loom splits at the rear cylinder fin; locate the spade connector hidden beneath the airbox. It bridges coil primary windings–single red wire on the harness side, paired red-and-green on the coil side–and condenser leads. Clean terminals with 600-grit paper and apply dielectric grease; stray capacitance here introduces misfire at half-throttle openings due to erratic dwell.
Under the gas tank, a two-pin bullet connector links the fuel gauge sender. Disconnect it only after draining the tank below the sender float level; residual fuel can short the contact plate and falsely peg the gauge to full. Resistance sweep across this sender should increase smoothly from 0 Ω at empty to 110 Ω at full; abrupt jumps indicate worn wiper tracks requiring sender replacement.
Color Codes for Factory Harness Wires and Their Circuit Routes
Begin troubleshooting by verifying the ground reference on the main harness plug (black/white stripe) against the battery negative terminal–voltage drop across this pathway should not exceed 0.2V under full ignition load.
The stock harness relies on ten core color codes that remain consistent across primary circuits. Use the following breakdown to trace connections without relying on secondary diagrams:
| Color (Stripe) | Primary Function | Key Termination Points | Critical Notes |
|---|---|---|---|
| Black (White stripe) | Chassis ground | Engine block, frame rails, tail light housing | Splice junction near ignition coil; test continuity to battery negative |
| Red | Main power feed (switched) | Fuse box input, ignition switch output | Verify 12V at fuse box with key ON |
| Blue | Headlight high beam | High beam switch, left handlebar switch, headlight relay | Check resistance at handlebar switch ( |
| Yellow | Headlight low beam | CDI unit, headlight socket, dimmer switch | CDI trigger pulse width: 3.2ms ±0.2ms; mismatch causes misfire |
| Green (Red stripe) | Ignition pulse signal | CDI pickup coil, ignition coil positive | Pickup coil resistance: 120–160Ω; out-of-range requires stator replacement |
| White (Blue stripe) | Charging circuit output | Stator rectifier, battery positive terminal | No-load voltage: 14.2–14.8V AC at 3000 RPM; DC side must sustain 13.8V |
| Brown | Tail/brake light | Rear brake switch, tail light socket | Switch activation resistance: |
| Orange (White stripe) | Instrument cluster power | Voltage regulator, speedometer bulb | Regulator output: 5V ±0.3V; drop here causes false neutral indicator |
| Pink | Fuel gauge sender | Fuel tank sender unit, gauge cluster | Sender resistance: 0Ω (empty) to 100Ω (full); erratic reading suggests float corrosion |
| Light Green | Neutral switch | Transmission housing, gauge cluster | Switch closed ( |
Route discrepancies often originate at the handlebar switch cluster or the main harness connector near the battery tray. Disconnect both ends and perform a continuity test on each wire–expected resistance:
Charging system diagnostics require isolating the stator windings. Unplug the white/blue and green/red wires from the rectifier, then measure AC voltage between stator pairs at 4000 RPM–minimum 30V per phase. DC side voltage drop across the rectifier should not exceed 0.8V; exceeding this threshold mandates unit replacement.
Final validation involves bench-testing the CDI unit with a known-good ignition coil. Trigger the unit using a 3.3V square wave at 10Hz–spark output must maintain 8mm gap at 10kV. If spark weakens or fails entirely, replace the CDI module before proceeding to coil diagnostics.
Step-by-Step Ignition System Circuit Verification
Disconnect the battery negative terminal to prevent accidental short circuits. Label each connector with masking tape and a marker–note wire colors and terminal positions from the factory service manual. Use a multimeter set to continuity mode to check the primary ignition circuit path: probe the ignition coil’s positive (+) terminal (typically a black/yellow wire) and trace it back to the ignition switch. If no continuity exists, inspect the wire harness for breaks or corrosion, especially near the steering head and frame junctions where vibration and moisture accelerate wear.
Verify the CDI unit’s inputs and outputs by locating its connector (usually a 4-6 pin plug near the gas tank). With the multimeter still in continuity mode, test each pin against the corresponding wires in the harness:
- Pin 1 (black/white) – ground reference (should show continuity to engine case).
- Pin 2 (blue/white) – pulse generator signal (test resistance between coil and stator; specs: 80–120 ohms at 20°C).
- Pin 3 (black/yellow) – ignition coil trigger (should align with the coil’s positive terminal).
- Pins 4–6 (varies) – stator outputs (check against manual for voltage AC readings at 3,000–5,000 RPM).
If readings deviate by ±10%, replace the stator or CDI unit.
Reassemble the circuit incrementally: reconnect the battery, then the ignition switch, followed by the coil and CDI. Crank the engine briefly while monitoring the coil’s secondary voltage with an ignition tester–spark should jump a 7mm gap consistently. If misfires occur, swap the spark plug with a known-good unit, ensuring the gap is set to 0.7–0.8mm. For intermittent failures, resolder corroded terminals or apply dielectric grease to connectors, focusing on the handlebar switch cluster where oxidation often disrupts signals.
