Complete 1987 Chevy Truck Wiper Motor Wiring Guide and Diagram

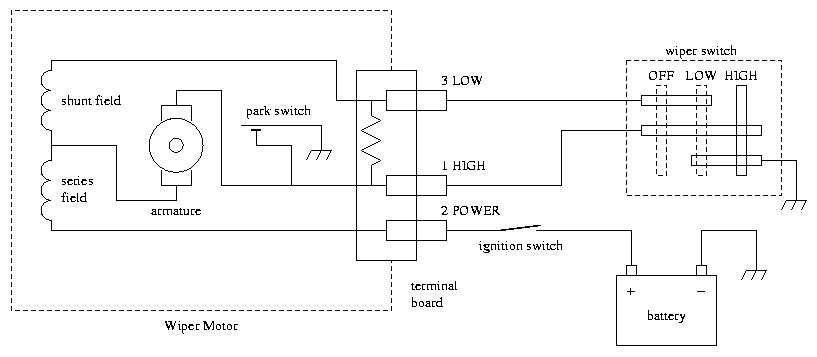

Begin troubleshooting by tracing the main power feed from the fuse block–specifically, the 10A IGN fuse labeled for accessory circuits. Use a multimeter set to DC volts to verify voltage at the red/black wire where it enters the switch assembly under the dash. If readings drop below 11.5V, inspect the wiring harness for corrosion at the bulkhead connector near the firewall, particularly pins B and D. Clean contacts with electrical contact cleaner and apply dielectric grease to prevent future oxidation.
Next, focus on the ground path. The black wire from the motor should terminate at chassis ground G100, located beneath the driver-side kick panel. Scrape away paint or rust buildup at the mounting point to ensure a solid connection. If resistance exceeds 0.5 ohms, run a temporary 12-gauge jumper wire directly to the negative battery post to isolate the issue.
For intermittent operation, check the park switch inside the wiper assembly. With the ignition on and the switch in the OFF position, measure continuity between the blue/white and pink wires. If the circuit remains open, the internal contact points are likely worn–replace the entire module rather than attempting repairs. When reinstalling, ensure the drive linkage engages properly with the motor shaft to avoid binding.
If the system still fails, test the delay module by probing the gray wire while cycling the switch through all positions. Voltage should pulse between 0V and 12V during delay intervals. A steady 12V signal indicates a faulty timer–bypass it by connecting the gray wire directly to the green/white low-speed terminal as a temporary fix. For permanent repairs, source an OEM replacement module (GM part #14029970).
When rewiring, follow the original color-coded harness layout:
- Red/black: Constant power (IGN)
- Pink: High-speed output
- Blue/white: Park switch feedback
- Green/white: Low-speed output
- Gray: Delay module input
Use heat-shrink butt connectors for splices and avoid twisting wires–opt for soldered joints and adhesive-lined shrink tubing for durability.

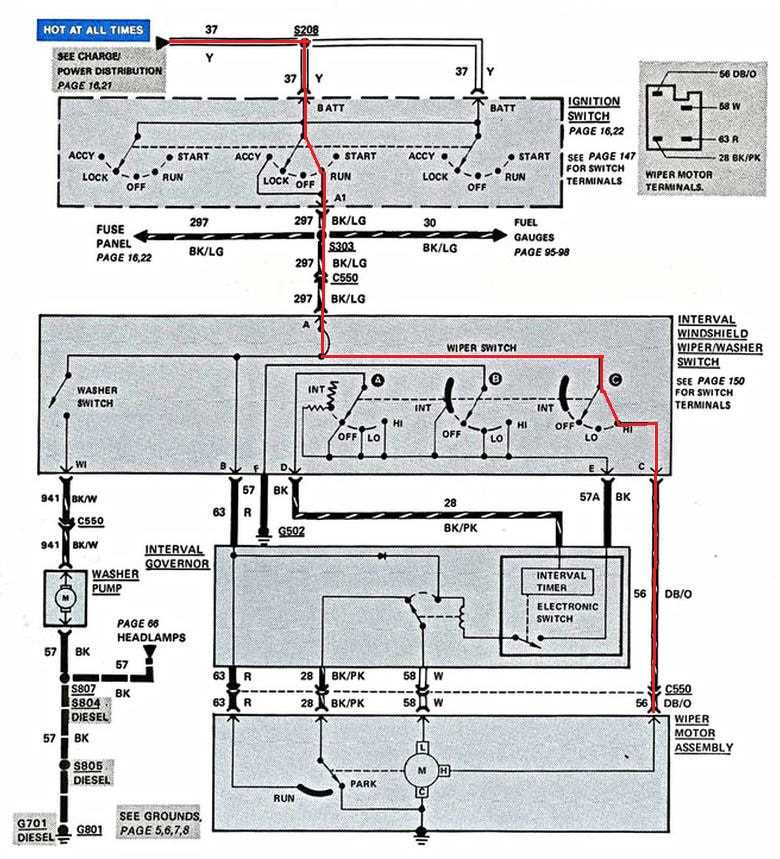

Understanding the Electrical Layout for Classic GMC K1500 Front Panel Cleaning System
Locate the violet wire running from the control switch to pin B on the power unit–this is the intermittent delay circuit and requires a 4.7K ohm resistor in parallel if modifications are needed. The yellow lead (terminal A) carries a fused 12V feed directly from the ignition switch; verify continuity with a multimeter set to 200 ohms before assuming intermittent or low-speed failures are motor-related. Black (ground) must connect to the chassis near the firewall; corrosion here mimics high-resistance shorts, so clean contact points with a wire brush and apply dielectric grease after reassembly.
| Terminal | Wire Color | Function | Voltage (Key On) |
|---|---|---|---|
| A | LT Yellow | Constant power feed | 12.6–13.8V |
| B | Violet | Intermittent timing | 6–8V pulsed |
| C | Brown | Low-speed switch | 0V or 12V |
| D | Black | Chassis return | 0V |
The brown wire (terminal C) toggles between chassis and 12V when the stalk lever moves to low speed–test with a noid light if the blade cycles only once then stops, indicating a faulty switch or broken trace inside the column harness. Replace the stalk switch if resistance measures above 2 ohms or if voltage drops below 10.5V under load. For high-speed operation, the dark blue lead (not listed in the table) bypasses the delay module entirely and should read full system voltage when engaged; a faulty relay inside the fuse block often causes sporadic high-speed cut-out.
Finding the Windshield Cleaner Actuator and Electrical Link Attachment Points
Begin beneath the dashboard on the driver’s side–locate the fire wall grommet, directly above the steering column. The actuator’s two main leads emerge here, typically bundled in black or tan insulation, held by a plastic clamp or zip-tie. Peel back the sound-deadening mat if present; the attachment cluster sits roughly 3 inches left of the pedal assembly. Verify colors: solid tan for park, black-and-tan stripe for low speed, dark blue for high speed. Cross-check against the firewall schematic to avoid misrouting.
Inspect the hood linkage: raise the hood, remove the cowl cover–usually secured by five plastic clips–and trace the rod connecting the pivot arm to the actuator. The rod’s ball joint should snap cleanly into the pivot; corrosion here causes binding. Disconnect at the firewall first, then unbolt the actuator bracket–three 10 mm bolts, head size 13 mm–while supporting the linkage to prevent dropping the rod into the engine bay. Label each connector with masking tape before separation to ensure correct reattachment.
On the engine compartment side, follow the two-wire pigtail from the actuator to its harness splice–roughly 8 inches forward of the firewall, near the brake master cylinder. The splice block is often concealed under a rubber boot; cut away any deteriorated tape. Confirm continuity with a multimeter: park circuit should read 12 V when ignition is ON, low speed should pulse at roughly 30 cycles per minute, high speed at 50 cycles per minute.

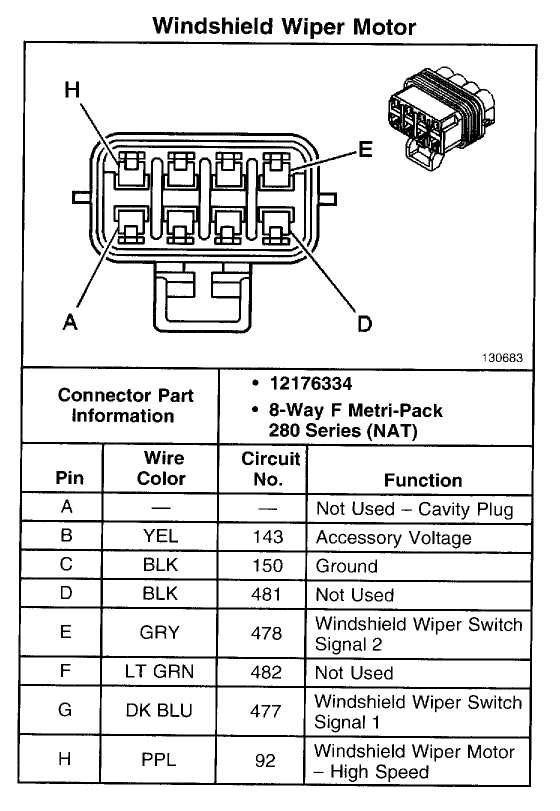

Color Guide for Classic C/K Series Windshield Cleaner Circuit Connections
Connect the dark green conductor from the control switch to the terminal marked “LO” on the rear of the assembly. This path carries the intermittent signal–verify continuity with a multimeter before securing the connector, as corrosion often disrupts this circuit first.
Trace the yellow stripe wire from the fuse block to the high-speed input on the gearbox. This 14-gauge line handles the primary current; splice with heat-shrink tubing ifcuts show wear, ensuring the replacement segment matches the original gauge thickness to prevent overheating during prolonged operation.
The light blue wire links the switch’s park function to the actuator’s cam mechanism. If wipers stall mid-cycle, test this connection for voltage drop–values below 11.8V at idle indicate a frayed segment near the firewall grommet, where chafing is common.
Backprobe the brown lead at the harness plug while cycling through delay settings. A stable 8-12 second pause between sweeps confirms proper timing resistor function; fluctuations suggest a faulty rheostat or degraded solder joint behind the dashboard cluster.
Route the black ground cable directly to the chassis using a star washer compression fitting at a bare metal point within 18 inches of the unit. Avoid daisy-chaining this line–shared grounds cause erratic speed changes or complete failure during heavy electrical loads.
For the two-speed variant, distinguish the orange wire (high) from the white/black tracer (low) by labeling both ends before disconnecting. Swap polarity only if the motor spins backward, but reverse the field coil connections instead of the armature to maintain torque characteristics.
Inspect the purple/maroon stripe feed from the ignition switch last. This circuit supplies constant power when the key is in “run”–if wipers activate with the key off, suspect a crossed connection at the steering column bulkhead or a shorted diode in the column-mounted delay module tray.
Identifying Common Faulty Connections and Troubleshooting Shorts
Begin by inspecting the ground strap linking the front assembly to the chassis–corrosion here mimics electrical gremlins, causing intermittent failure when resistance exceeds 0.5 ohms. Use a multimeter in continuity mode, touching probes to the strap’s ends while wiggling it; a flickering reading confirms a compromised junction. Replace with a 10-gauge tinned copper braid, crimping ends under serrated terminals to prevent moisture ingress.
Check the three-prong plug on the control unit–oxidized pins often misalign power delivery, especially under vibration. Remove the connector, blast contacts with electrical cleaner, then re-seat firmly. If voltage at the yellow wire (park switch) dips below 11.8V during operation, suspect a cracked fuse block trace; solder a direct bypass from the 30A circuit breaker to restore stability.
Intermittent Arcing at the Switch
Pull the column shroud and test the toggle contacts–pitted surfaces scatter current at low speeds. Sand contacts with 800-grit emery cloth, then spray with dielectric grease to suppress future carbon buildup. If resistance across the blue wire (high-speed relay) spikes above 0.3 ohms, reroute a dedicated 14-gauge bypass from the ignition-switched hot lead, avoiding the factory harness entirely.
For shorts, disconnect the harness at the firewall grommet–damp insulation here chafes against the brake master cylinder, creating hidden paths. Probe individual wires with a tone generator, listening for cross-talk; split loom tubing segments showing audible bleed-through must be replaced. Terminate exposed conductors with adhesive-lined heat shrink, ensuring overlapping seals at transitions to prevent capillary action drawing moisture.
Tools You Need to Diagnose and Swap the Blade Actuator System
Begin with a multimeter capable of measuring voltage, resistance, and continuity. Ensure it has a minimum 10MΩ impedance for accurate readings in low-current circuits. Analog models risk damaging sensitive components–opt for digital with auto-ranging.
- Test leads with alligator clips: Thinner, flexible probes won’t fit tight connector terminals–use insulated, 18-gauge clips with serrated jaws for grip on oxidized contacts.
- Backprobe pins (22-gauge, 2″ long): Pierces wire insulation without severing strands; essential for live-voltage testing without disrupting the harness.
- Wire strippers (18-10 AWG): Avoid cheap models that nick conductors–choose ones with precision notches and a cutting blade for splicing.
A 12V test light with a sharp probe verifies power presence but risks shorting circuits if mishandled. Pair it with a logic probe for low-voltage signals (
- Circuit breaker or fused jumper wire (10A fuse): Bypass suspect switches or relays to isolate faults. Use 0.5Ω shunt resistors to prevent inrush currents that may trip protection modules.
- Non-contact voltage detector (pen-style): Confirms live wires behind panels without stripping insulation–useful for hidden fuse blocks or corroded junction boxes.
- Crimping tool (ratcheting, insulated terminals): Butt connectors must be compressed with 4:1 ratio force; soldering introduces brittleness in vibration-prone areas.
Keep deoxidizing compound (e.g., CRC Electrical Contact Cleaner) and a wire brush (brass bristles) for cleaning terminals. Corrosion creates high-resistance faults mimicking actuator failure–scrub contacts until shiny, then apply dielectric grease to prevent recurrence. Avoid WD-40: it attracts dust and leaves conductive residue.
- Torx bits (T15, T20): Modern linkage assemblies use tamper-proof fasteners–Phillips or flathead strippers risk damaging heads.
- Flexible shaft driver (¼” hex): Tight spaces under dashboards need angled access; magnetic tips prevent dropping screws into vents.
- Infrared thermometer (-50°C to +380°C range): Hot spots on wiring loom indicate partial shorts–scan the entire path before disassembly.
Document findings with a borescope (720p minimum) for inspecting inaccessible areas like firewall grommets or under-glass mounts. Pair it with a label maker (thermal, 6mm tape) to tag disconnected wires–mark both ends, noting color codes and connector pinouts to avoid cross-wiring during reassembly.
