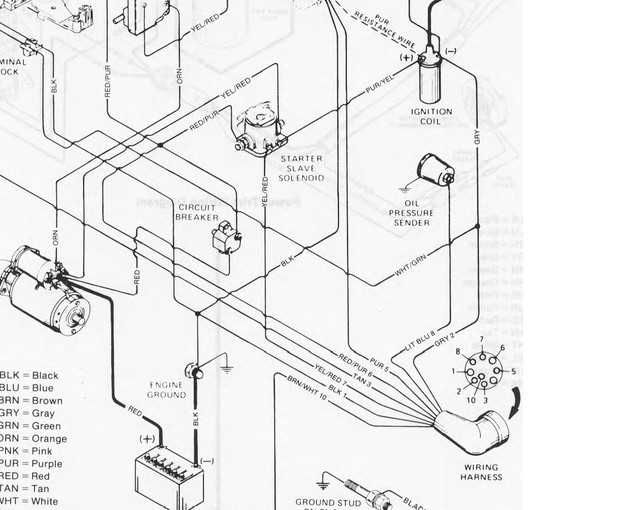

Mercruiser Starter Solenoid Wiring Guide for Marine Engines

Locate the control module near the powerplant–typically mounted on the block or adjacent firewall. Trace the thick red cable from the battery’s positive terminal to the relay’s main input post; this carries full voltage and must use at least 6-gauge wire. Confirm the input post is secured with a locking nut to prevent high-current loosening. On the opposite side, attach the output lead to the motor’s engagement coil using a blue or purple 12-gauge strand–this completes the activation circuit when the ignition sends a signal.

Verify the ignition switch output wire–usually yellow or pink–connects to the relay’s small signal terminal. Use a multimeter set to 20V DC: with the key in the ‘start’ position, you should read 12V here. Absence of voltage indicates a faulty ignition switch or broken conductor; replace the switch if readings remain zero after bypassing the harness.

Ground the relay body directly to the engine block using a star washer and 8-gauge braided strap. Ensure the contact surface is bare metal, free of paint or corrosion; use a wire brush before tightening to 15 ft-lbs. A weak ground will cause intermittent activation or high-resistance arcing, leading to premature coil failure.

Test the completed circuit by engaging the ignition: listen for a sharp click from the relay. If absent, inspect the signal wire for continuity–replace any segment below 0.5 ohms resistance. If clicks occur but the motor remains inert, check the output link to the engagement coil for voltage drop exceeding 0.2V at full crank; exceeding this threshold requires immediate replacement of the cable or relay contacts.

How to Connect Your Marine Engine Ignition Relay

Locate the primary power feed–typically a red cable–on the relay terminal marked “B” or “Battery.” This connects directly to the positive terminal of your vessel’s battery bank, ensuring a stable 12V supply. Use a 4 AWG marine-grade wire to handle startup surges without voltage drop.

Attach the ignition switch wire (usually purple or yellow) to the “S” or “Switch” terminal. This circuit activates the relay when the key turns, so verify continuity with a multimeter before securing the connection. Corrosion-resistant terminals prevent signal loss in humid environments.

• Check for a black/yellow stripe wire: this grounds the relay’s coil. Fasten it to the engine block or a dedicated grounding busbar, not the negative battery terminal.
• If your model includes a safety lanyard, route its wire (often tan) to the “I” or “Interrupt” terminal. This disables the circuit when disengaged.
• Avoid daisy-chaining additional accessories–use a dedicated fuse block for auxiliary loads instead.

For older models with a single small terminal (marked “M”), link this to the motor’s bendix engagement coil. Confirm polarity with the manufacturer’s schematic; reversing it will prevent the pinion from engaging.

Troubleshooting Common Issues

If the relay clicks but the motor doesn’t crank:

1. Measure voltage at the “M” terminal during ignition–it should match battery voltage.
2. Inspect the bendix gear for wear; excessive play causes incomplete engagement.
3. Test the thermal protector (if equipped) with a continuity tester–it resets automatically after cooling.

Secure all connections with adhesive-lined heat shrink tubing, then apply dielectric grease to terminals. Store excess wiring in a vented, UV-resistant polyamide conduit to prevent chafing against sharp edges.

Recommended Tools and Parts

• Crimping tool (with ratcheting mechanism for consistent pressure)
• Marine-grade heat shrink (minimum 5:1 shrink ratio)
• Digital multimeter (auto-ranging, CAT III rated)
• Terminal disconnect kit (1/4″ and 5/16″ sizes)

Finding the Activation Relay on a Marine Powerplant

Begin by identifying the powertrain’s upper housing cover–typically secured with two or four hex bolts and positioned adjacent to the flywheel bell. Remove the cover to expose the internal components. The activation relay is consistently mounted on the starboard side of the block, near the fuel pump or voltage regulator, depending on the model series. Models 3.0L to 6.2L place it directly above the oil filter adapter, while larger variants (7.4L and 8.2L) may integrate it slightly rearward, beneath the intake manifold. Use a flashlight to trace the heavy-gauge cables leading from the battery terminal; one connects directly to the relay’s central post.

Check for visual identifiers: the relay is a rectangular or cylindrical unit, roughly 2–3 inches in length, enclosed in black or grey plastic housing. A metallic tab or stud protrudes from the top, marking the main power feed. If the relay is obscured by auxiliary equipment (such as emission modules or ignition coils), consult the table below for precise displacement-based positioning. Avoid mistaking the relay for the idle air control motor or alternator relays–these are smaller and lack high-current terminals.

Engine Displacement	Relay Location	Adjacent Landmark
3.0L	Upper starboard, near valve cover	Oil filler cap
4.3L	Mid-block, above alternator	Fuel pump bracket
5.0L–5.7L	Forward of exhaust manifold	Power steering reservoir
7.4L–8.2L	Rear starboard, under intake	Distributor base

For models equipped with closed cooling systems (e.g., Bravo drives), the relay may be mounted on a bracket attached to the heat exchanger. In such cases, follow the coolant hoses from the manifold; the bracket is often bolted adjacent to the impeller housing. Sterndrive configurations (Alpha, Bravo) require tilting the engine to access the lower relay–support the drive unit with a block to prevent stress on the gimbal bearing. If corrosion is present on the relay’s terminals, clean them with a wire brush before testing; oxidized connections mimic failure symptoms.

Locate the activation relay’s trigger wire–a thin, spade-terminal conductor typically colored purple or dark blue. This wire runs from the ignition switch and terminates at the relay’s smaller post. Tracing it backward confirms proper identification. On sequential fuel injection systems, the relay may share a bracket with the fuel pump relay–distinguish them by size: the activation relay is larger, with thicker cable connections. Do not confuse the main battery feed (heavy red cable) with the auxiliary circuits (yellow or white wires), as incorrect jumpering risks damaging the onboard electronics.

Models produced after 2000 incorporate diagnostic connectors near the relay; these are rectangular, two-pin sockets labeled “TEST.” Probing these ports with a multimeter (set to 12V DC) while cranking the engine should yield battery voltage if the relay functions correctly. Absence of voltage suggests either a failed relay, corroded ground path (check the engine block mounting point), or an interrupted ignition circuit. Replace the relay if resistance exceeds 0.5 ohms across the main posts or if audible clicking is absent during activation attempts.

Step-by-Step Guide to Identifying Relay Contact Points and Conductors

Locate the control circuit feed first–typically a thin conductor leading to the smaller contact post. This lead originates from the ignition switch or auxiliary control module, often marked with a red or purple sleeve. Verify its function by probing with a multimeter in voltage mode while engaging the switch; expect 12V in the closed position.

Next, trace the heavy-duty input conductor connected to the thicker terminal. This cable carries battery current directly from the power source, usually through a fuse or circuit breaker. Inspect for crimping, corrosion, or fraying, as these indicate potential failure points. Measure resistance across this path–values above 0.5 ohms warrant further investigation.

Identify the motor engagement conductor by following the thick output lead from the relay housing. This wire connects directly to the engine’s engagement mechanism, often labeled with yellow or green insulation. Disconnect the battery before handling; accidental shorting here risks catastrophic discharge. Check continuity while manually activating the relay–absence of a click suggests internal wear.

Examine the ground reference if present, often a bare or black-sheathed wire bolted to the chassis or relay bracket. Corrosion at this junction is common, leading to intermittent failures. Clean contact surfaces with a wire brush and apply dielectric grease to prevent future oxidation. A weak ground manifests as slow or erratic operation.

Label each conductor using heat-shrink tubing or numbered tags before disassembly. Record wire gauge, color, and terminal type to simplify reassembly. For uncertain connections, consult the manufacturer’s service manual–aftermarket relays sometimes deviate from OEM specifications. Use a non-conductive probe to separate wires without risking shorts.

Test relay functionality by bridging the control feed to the power input terminal with a jumper wire. The engagement mechanism should audibly engage; failure indicates internal issues. Replace units exhibiting burnt smells, excessive heat, or inconsistent operation. Always secure connections with lock washers to prevent vibration-induced loosening.

Understanding Electrical Lead Colors and Terminal Links for Marine Ignition Systems

Identify the primary power leads by locating the heavy-gauge cables–typically a bold red for the main battery feed and a thick black for the ground return. These attach to the largest terminals on the actuation switch, designed to handle high-current loads during engine cranking. Verify these connections first, as corrosion or loose fittings here will prevent reliable engagement.

Examine the smaller auxiliary terminals, often marked “S” (switch) and “I” (ignition). The switch lead–commonly a thin purple or yellow wire–delivers activation voltage from the key switch to trigger the high-current relay. The ignition lead, frequently orange or brown, supplies continuous power to the engine control module while the motor runs. Cross-reference these with your vessel’s manual, as variances exist between models.

Critical Terminal Functions and Typical Color Assignments

• Battery Input (+): Red (heavy gauge) – connects directly to the vessel’s power source.
• Ground (-): Black (heavy gauge) – links to the engine block or common chassis path.
• Activation Trigger: Purple or yellow (thin) – originates from the dashboard key switch.
• Main Output (+): Red/white (thick) – feeds current to the cranking motor upon relay closure.
• Ignition Hold: Orange or brown (thin) – sustains voltage to onboard electronics during operation.

Inspect the relay’s mounting bracket for stray wires–some configurations include a safety interlock (e.g., neutral shift switch) via a light blue or green lead. This prevents engagement unless the transmission is disengaged. Trace this path with a multimeter: continuity should exist when the gear selector is in neutral.

If experiencing intermittent failures, probe all connections for resistance–the actuation switch should show less than 0.5 ohms across closed contacts under load. Clean corroded terminals with a wire brush and apply dielectric grease to prevent oxidation. Replace crimped connectors showing heat discoloration, as these indicate past arcing.

For systems with smart relays, note additional leads like the tachometer signal (gray) or temperature sender (tan). These integrate with the marine engine’s ECU and should never carry high current. Label each lead before servicing to avoid reconnection errors–misrouting can damage sensitive onboard modules.
