Complete Wiring Guide for the 1987 Honda FourTrax 350 ATV

For accurate troubleshooting and repairs, locate the main wiring harness connector near the battery. This model’s ignition system splits into three branches: CDI unit, stator coil, and pickup coil. Trace the black/red wire from the stator to the regulator-rectifier–damage here causes charging failures. Use a multimeter set to 20V DC to verify voltage between the battery terminals while the engine runs; readings below 13.5V indicate a faulty regulator or corroded stator leads.

Check the headlight circuit by probing the brown wire at the handlebar switch–12V should appear with the switch in the ON position. If voltage drops, inspect the bullet connectors behind the headlight for oxidation. The taillight shares a ground with the ignition system; a loose ground wire near the rear fender often causes intermittent lighting. Use dielectric grease on all connectors after cleaning to prevent moisture-induced shorts.

Test the kill switch functionality by disconnecting the orange wire at the handlebar–engine cut-off should be instant. If not, the CDI unit or kill switch itself may be faulty. For starter issues, measure resistance across the solenoid terminals: values above 0.5 ohms suggest internal corrosion. Replace the solenoid if engagement is slow or clicks repeatedly without cranking. Always disconnect the spark plug wire before working on the starter circuit to avoid accidental engagement.

Color-coded wires in the schematic follow this legend: yellow (AC power), white/red (ignition), green (ground), blue/red (brake light). Cross-reference the engine stop switch wiring with the CDI pinout–reversed connections can destroy the ignition module. For persistent electrical problems, start with the battery cables; corrosion at the terminals reduces voltage to critical components by up to 2V, mimicking stator failure.

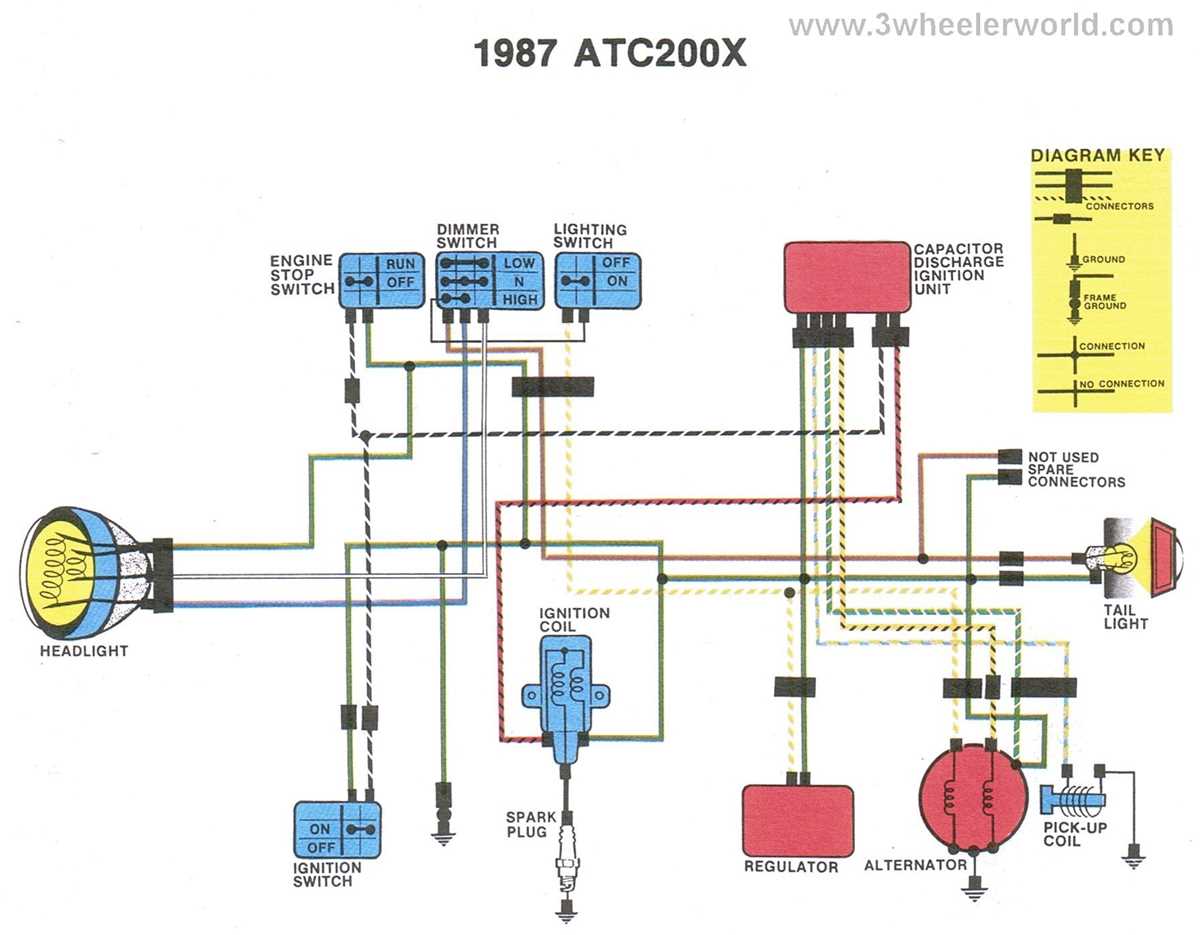

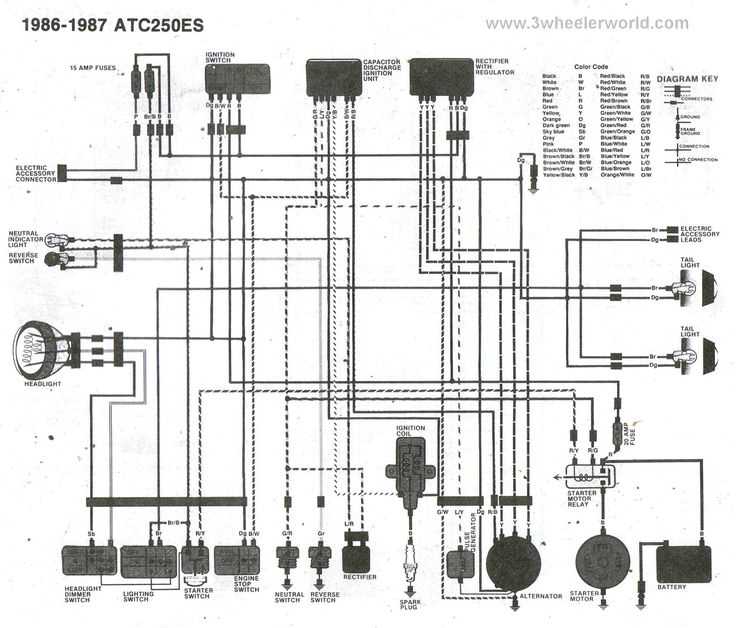

Electrical Schematic for the 1987 ATV Model Guide

Trace the main harness from the ignition switch to pin 1B on the CDI unit–verify continuity with a multimeter set to 200 ohms. Disconnect the battery first; corrosion at terminal B+ often mimics ignition failures. White/red and white/green wires (stator output) require direct testing at 5000 RPM: minimum 20V AC confirms charging system health. Black ground paths must be scraped clean beneath the frame rail near the rear carrier; paint or rust here disrupts sensor signals.

Replace the stock voltage regulator with an aftermarket solid-state unit rated for 15A if voltage drops below 13.2V at idle. The yellow solenoid wires–often overlooked–should hold 12.6V during cranking; anything less points to a weak starter relay or faulty neutral safety switch. Inspect the kill switch circuit: black/white wire continuity should break when toggled off. Splice repairs must use 18-gauge marine-grade heat shrink tubing, not electrical tape, to prevent moisture ingress.

Finding Critical Electrical Link Points on Your 1987 ATV

Begin beneath the seat’s rear panel–remove the two 10mm bolts securing it. The main harness bundle exits near the battery tray, splitting into six distinct plugs: ignition (black, 3-pin), headlight (yellow, 4-pin), taillight (white, 2-pin), CDI (gray, 6-pin), stator (green, 5-pin), and kill switch (red, 2-pin). Label each with masking tape before detachment to prevent cross-connection.

• Ignition plug: sits adjacent to the voltage regulator; traces lead to the ignition coil.
• CDI plug: locate the gray connector near the airbox; it mates to the pulse generator wire (blue/white stripe).
• Stator plug: found under the left side cover; color-coded terminals match the alternator leads–green/yellow (ground), blue (charging), white (lights).
• Verify continuity between pins with a multimeter–resistance on the ignition circuit should read 0.2-0.5 ohms; stator coils 0.1-0.8 ohms.

Count the pin slots before reconnecting–mismatched plugs cause no-start conditions.

Identifying Color Codes and Wire Functions in the ATV’s Electrical Network

Start by tracing the main harness from the battery: the red wire delivers 12V+, black connects to ground, and white typically handles ignition feed. Brown wires almost always serve as the primary ground path for sensors and switches, while yellow usually carries high-beam or headlight current. Locate the fuse block–pink wires often link to lighting circuits, and green frequently controls starter solenoids. Verify these patterns with a multimeter before assuming function; color drift occurs in older builds due to UV fading or aftermarket repairs.

Examine the CDI module: purple wires relay pulse signals from the stator, blue controls ignition timing, and orange carries charging output to the regulator. Confusion arises with purple-striped wires–distinguish solid purple (pulse) from purple/white or purple/black (sensor triggers or kill-switch returns). The alternator wiring harness holds critical clusters: white/red handles AC output, yellow/red and yellow/green split phase currents. Mistaking these for accessory leads can blow fuses or short coils; label each wire before disconnecting for bench testing.

Check the handlebar switch assembly–items like the blue/white wire toggle lighting modes, while black/white connects to the engine stop switch. Rear lighting relies on gray (tail light), blue/yellow (brake), and light green (turn signals). If installed, auxiliary circuits often use brown/white for accessory feeds; confirm these don’t interfere with OEM charging lines. The instrument cluster uses thin gauge wires–red/black for voltage, green/black for tachometer grounding–requiring delicate handling during repairs to avoid signal drop.

Use a wiring schematic specific to the model variant; early runs had variations in transmission safety cut-offs (gray/red) versus later neutral switch wiring (light green). Grounding points differ–engine block, frame, and rear bracket all require separate verification to prevent intermittent faults. When splicing, match wire gauge: 14-16 AWG for power leads, 18-20 AWG for sensor lines. Heat-shrink connections prevent corrosion; avoid twist-and-tape methods in exposed sections like the front axle or under-seat compartments.

Step-by-Step Ignition Circuit Testing Procedure for the Classic ATV

Locate the CDI box beneath the seat–it’s a black rectangular unit secured by two bolts. Disconnect the 4-pin connector and probe the white/red wire (pin 1) with a multimeter set to 20VDC. Crank the engine; readings should fluctuate between 12-14V. No voltage indicates a faulty stator or broken lead–trace the wire back to the alternator coil, checking for shorts or frayed insulation at the frame junction near the rear shock.

Test the ignition coil resistance next: Remove the spark plug cap and measure between the coil’s primary terminals (yellow and black wires) with the meter set to 200Ω–expect 0.2-0.5Ω. Switch to 20kΩ for secondary resistance between the plug cap and primary terminal; ideal range is 6-9kΩ. Deviations above 10kΩ or below 4kΩ confirm coil failure–ensure the ground wire (green) is clean and securely fastened to the engine block before replacement.

Diagnosing Electrical Faults with Schematic Guidance

Check the fuse block first–locations A5 and D2 on the schematic correlate to main and auxiliary circuits. A blown 20A fuse at A5 often mimics ignition failure, while corrosion on the fuse block terminals (common at the rear connector) causes intermittent power drops. Probe the terminals with a multimeter set to continuity mode: readings above 0.5 ohms indicate resistance buildup requiring cleaning with contact spray or terminal replacement.

Inspect the stator output–three yellow wires (YEL) converge at the regulator/rectifier under the seat. Voltage should read 18–25V AC at idle and 35–45V AC at 5,000 RPM. Readings outside this range suggest stator damage; replace the unit if waveform analysis shows distortion. Trace the YEL wires through the harness: chafed insulation near the frame rail (left side, 40cm above suspension link) is a frequent failure point. Reinforce exposed wiring with heat-shrink tubing and strain-relief clamps.

Ground Points and Relay Diagnostics

Component	Schematic Marker	Expected Resistance (Ω)	Common Failure
Engine ground	GND-1 (near carburetor)	<0.2	Paint contamination
Frame ground	GND-4 (right rear bracket)	<0.2	Corrosion from road salt
Starter relay	RLY-2 (under dash)	80–120 (coil)	Stuck contacts

Scrub ground points with a wire brush and apply dielectric grease to prevent oxidation. Test the starter relay by bypassing terminals 85 and 86 with a jumper wire–audible click confirms coil function; no click necessitates replacement. For the fuel pump relay (RLY-3), measure voltage at pin 87 during cranking: 12V indicates proper operation, while 0V suggests a failed relay or ECM signal loss. Verify ECM power at pin 1 (RED wire) and constant 12V; voltage drops below 9V during cranking point to battery or charging faults.
