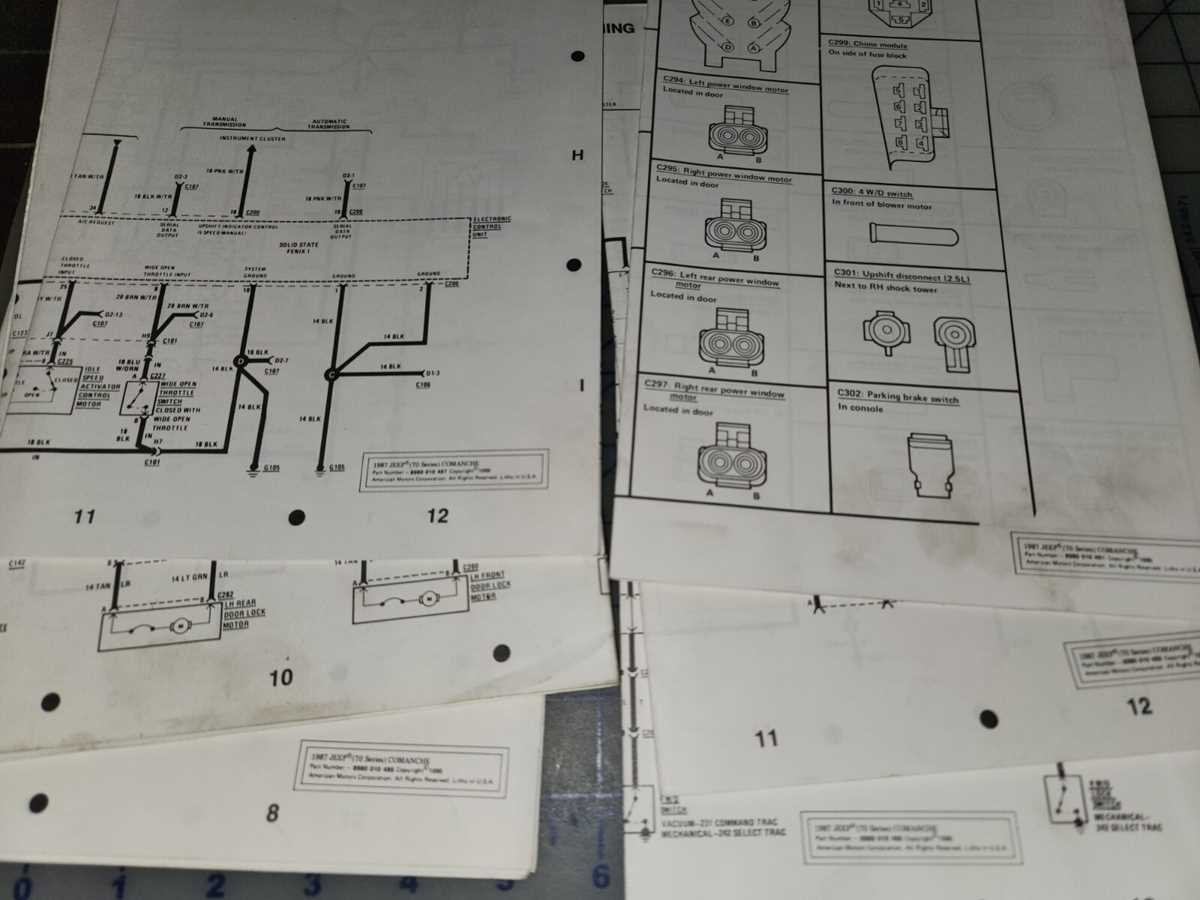

Complete Wiring Diagram Guide for 1988 Jeep Comanche Electrical Systems
Start with the engine bay harness. Locate the main fusible link near the battery–it’s a 14-gauge orange wire branching into three critical circuits: ignition, charging, and headlights. Trace the ignition feed (red with violet stripe) to the bulkhead connector (T01, 12-pin). If voltage drops below 11.8V at this point, check the 30A fusible link for corrosion–replacement requires splicing 16-gauge wire with crimp connectors rated for 125°C.
The instrument cluster relies on a daisy-chained ground (black, pin #10 on T02). Disconnect the 6-pin dash plug and probe for continuity between ground and the fuel gauge sender wire (green/black). No signal? Verify the sender resistance (110Ω empty, 7Ω full) before suspecting the voltage regulator on the back of the cluster, which modulates the 5V reference voltage.
For rear lighting faults, bypass the tail light relay (located behind the driver-side kick panel) using a 12V test light on the brown/yellow wire. If lights illuminate but flicker, replace the relay socket–originals degrade to 80% conductivity after 15 years. The brake switch (above the pedal) uses a 18-gauge white/red wire; splice into this for aftermarket accessories, but avoid exceeding 10A draw to prevent melting the 12-gauge harness.
Critical PCM connections:
- Sensor ground (gray/black, pin 7 on T19) – must measure
- Reference voltage (pink, pin 18) – 4.8-5.2V required for MAP/TP sensors.
- Injector trigger (dark green/white, pins 8-11) – 3.5ms pulse width at idle on a warm engine.
For no-start conditions, probe the crank sensor (AC voltage >0.3V at 200 RPM) before testing fuel pump relay control (gray/pink, pin 2 on T18).
Electrical Layout for the 1987 Pickup Truck: Hands-On Reference
Locate the fuse block under the dashboard on the driver’s side–black plastic cover snaps off to reveal two rows of blade-style fuses. Row A (top) supplies circuits 1–7; Row B (bottom) covers 8–14. Use the table below to match fuse number, amperage and color code before pulling any fuse for testing.
| Fuse No. | Amp Rating | Color | Primary Circuit Protects |
|---|---|---|---|
| 1 | 10 | Red | Headlight switch, parking lamps |
| 2 | 15 | Blue | Ignition coil, fuel pump relay coil |
| 4 | 20 | Yellow | Blower motor, A/C clutch |
| 6 | 10 | Red | Instrument cluster, turn signals |
Trace the thick orange wire (label 14 ga, code C101) from the positive battery terminal to the starter solenoid–this is the main power feed for all chassis circuits. Unplug the connector at the solenoid and measure voltage with a multimeter set to DC 20 V: 12.4 V minimum confirms a healthy lead-acid battery; readings below 12.2 V indicate sulfation or weak cell, requiring load-test before any further checks.
Finding Key Electrical Bundle Junctions in Your Mid-80s Pickup
Begin under the dashboard on the driver’s side; the primary harness cluster ties into the firewall grommet just left of the steering column. Follow the thickest bundle–this is the chassis-to-cabin link–downward until it splits near the brake pedal bracket. Look for a rectangular multi-pin plug (24-pin female connector) secured with a single T-20 Torx screw; this feeds the fuse block and ignition module.
Trace the auxiliary harness forward along the frame rail under the hood. Behind the battery tray, a smaller bundle branches into three distinct junctions: the engine sensor group (rounded 6-pin plug), the alternator regulator (cylindrical 2-pin socket), and the headlight wiring (black rectangular connector with locking tabs). Label each bundle with masking tape before disconnecting to prevent misrouting during reassembly.
Detailed Analysis of Engine Control Module Circuit Connections
Begin by identifying the primary power feed to the ECM, typically labeled as terminal 36 on the 80-pin connector. This input delivers a constant 12V supply from the ignition switch during crank and run positions. Verify voltage with a multimeter at the harness side before connecting to the module–readings should stabilize at 12.2-12.6V with the engine off. Lower values suggest corrosion in the fuse block or relay contact resistance.
Trace the ground paths next. Three critical grounds (terminals 40, 46, and 60) must maintain under 0.1 ohms resistance to chassis. Clean mounting points with a wire brush, removing paint and oxidation. Use dielectric grease on connections to prevent future degradation. A faulty ground causes erratic sensor readings and intermittent stalling.
Sensor Signal Circuit Examination
- Coolant Temperature Sensor: Terminal 2 (blue/white stripe) carries a 0-5V signal. Test resistance across sensor pins–should drop from 10K ohms at 0°C to 250 ohms at 100°C. Verify continuity to ECM pin 2.
- Throttle Position Sensor: Terminal 20 (yellow/black stripe) provides a 0.5-4.5V sweep. Check for a smooth voltage transition from idle to WOT using a scope–voltage spikes indicate worn potentiometer tracks.
- MAP Sensor: Terminal 1 (gray/red stripe) outputs 1-4.5V inverse to manifold pressure. Use a vacuum pump to confirm linear response–minimum 0.5V/kPa change.
- Oxygen Sensor: Heated element draws 12V from terminal 7 (dark green). Sensor signal (terminal 9, yellow) should oscillate between 0.1-0.9V at 1-2Hz frequency during closed-loop operation.
Inspect the fuel injector drivers at terminals 51-54 (red/white, red, brown/white, brown). Each should pulse 12V for 1.5-4.0ms under load, synchronized with crank position sensor input. Probe with a noid light–missing pulses indicate failed ECM drivers or open circuits in the harness. Check resistance across injector coils (14-17 ohms) to confirm internal integrity.
Diagnose the ignition coil interface at terminal 6 (white/blue stripe). This triggers the coil negative terminal, producing a 350-400V spark at the plugs. Measure dwell time (2.5-3.5ms at 800 RPM) with an inductive pickup–variations suggest faulty pickup coil or advance curve errors. Inspect harness shielding around this circuit, as EMI causes misfires.
Critical Voltage Regulation and Data Links
Confirm the 5V reference voltage at terminal 8 (violet/white stripe). This powers all analog sensors–measure precisely 5.0±0.1V at the ECM connector. Voltage drops indicate internal regulator failure. Check CAN bus data lines (terminals 13 and 14, orange/white and green/white) for 2.5V bias with 1V peak-to-peak signal on a scope. Termination resistors (120 ohms) must be present between these lines–missing resistors cause communication errors.
Locating and Verifying Fuse Panel Connections in Your Classic Pickup
Start by removing the lower dash panel beneath the steering column to expose the main fuse block. Label each wire with masking tape as you disconnect them to prevent confusion during reassembly–use a fine-tip marker to note terminal numbers printed on the fuse block.
Use a multimeter set to continuity mode to confirm connections between the fuse block and harness plugs. Probe the male spade terminals while checking for corresponding signals at the wiring loom’s female connectors. Expected resistance should read
Inspect the relay sockets for heat discoloration–darkened terminals signal excessive current draw. Replace any relay showing melted plastic around the coil terminals, even if it still clicks, as internal contact degradation causes intermittent failures during load testing.
Trace the fusible links near the battery positive terminal by following the thick red cables. These 14-gauge links protect critical circuits; cut and peel back the insulation on suspected blown links to expose the broken conductor inside. Solder and heat-shrink a new section of the same gauge wire to restore protection.
Test the turn signal flasher relay by swapping it with the identical hazard relay–they share the same part number. If signals flash normally with the swapped relay, replace the faulty unit. No flash indicates a broken ground path at the steering column’s multifunction switch–clean the M5 bolt securing the switch housing to bare metal.
Check the cigar lighter circuit by probing the 20A fuse slot with the key on–voltage should read battery level. If absent, follow the yellow/light blue wire to the instrument cluster plug C3, pin 8. A break here typically causes dash lights to fail as well; resolder any cracked joints found on the cluster’s circuit board.
Verify the wiper delay module by measuring voltage at the purple/white wire during intermittent operation. The module sends pulsed 12V signals to the motor; constant voltage means a failed delay chip–replace the entire module rather than attempting component-level repair.
For persistent electrical gremlins, use a 40-channel scan tool to monitor live data from the body control module. Look for erratic voltage readings on the door ajar, courtesy lamp, or starter enable circuits–these often point to chafed wires inside the driver’s door hinge area or beneath the front seats.
Color-Coded Lighting and Signaling Circuit Reference
Check the brown wire cluster first–it handles all tail lamp circuits, including license plate illumination. Interruptions here often trace back to corroded connectors near the rear quarter panels. Use a multimeter to verify continuity between the brown wire and chassis ground before replacing bulbs. If readings exceed 0.5 ohms, clean terminals with dielectric grease.
- Dark green wire: Left turn signal and hazard flashers
- Light green wire: Right turn signal and hazard flashers
- Yellow wire: Brake lamp circuit (combined with tail lights)
Split loom tubing degrades faster where routed near exhaust manifolds. Inspect sections behind the dashboard for brittle shielding that could expose conductors. Replace damaged loom with adhesive-lined shrink wrap to prevent moisture intrusion. Secure replacements every 6 inches using nylon zip ties; avoid metal clamps that can chafe insulation.
Headlamp circuits use black (low beam) and red (high beam) conductors. Test relay contacts under load–spikes above 14.5 volts indicate failing alternator diodes rather than faulty wiring. Dim headlamps often stem from poor ground at the battery tray; sand the contact surface bare and reattach with star washers.
- Disconnect battery negative terminal before probing circuits
- Label splices with heat-shrink sleeves marked in corresponding colors
- Route wires away from moving suspension components
- Apply anti-seize compound to bulb sockets to prevent corrosion
Turn signal flasher units typically fail due to internal thermal overload. Bypass testing isn’t reliable–swap with a known-good module instead. The hazard flasher operates independently; verify fuse #12 (15A) before chasing phantom shorts. LED upgrade bulbs require load resistors to prevent hyper-flashing; install them parallel to bulb sockets, not inline.
