Complete Wiring Diagram Guide for 1989 Chevy Truck Models and Color Codes
Locate the underhood fuse block on the driver’s side firewall–it houses critical relays and 30-amp fuses controlling the ignition, headlights, and auxiliary circuits. Trace the red wire (10-gauge) from the battery positive terminal to the starter solenoid; corrosion here disrupts cranking voltage. For rear lighting issues, inspect the brown/white stripe wire at the trailer connector–ground faults cause intermittent brake lights.
The instrument cluster relies on a pink/black feed from the ignition switch; voltage spikes degrade the tachometer signal. Test the purple/white wire at the radio connector for constant 12V–absence indicates a blown fuse or corroded splice near the dash harness. Replace the fusible link (orange, 14-gauge) between alternator and bulkhead connector if charging problems persist.
Heating and A/C circuits depend on the dark green/orange wire at the blower motor resistor–check continuity with a multimeter before replacing the switch. Door ajar sensors connect via light blue/white wires; shorts here prevent dome light operation. For fuel injection models, verify the ECM ground near the passenger kick panel–poor grounding causes rough idle.
Download the GM Factory Service Manual PDF (section 8B) for exact splice locations; aftermarket schematics often omit the anti-lock brake module wiring (gray/red wires) in 4×4 versions. Use a 10-amp fused jumper wire to bypass suspected faulty circuits–never exceed 30 seconds on delicate components like the ECM.
Electrical Schematic for C/K Series: Hands-On Fixes
Start by locating the fusible links near the battery–these melt-prone jumpers often fail after 30 years. Trace the red and orange wires from the alternator to the junction block under the dash; corrosion here mimics bad grounds, causing dim lights or no-start conditions. Replace any brittle connectors with heat-shrink terminals to prevent future shorts.
Pinpoint the ignition switch harness by removing the lower dash panel on the driver’s side. The tan wire supplies 12V to the starter solenoid; test with a multimeter–if voltage drops below 10V at cranking, the switch or its pigtail corrodes. For instrument cluster issues, check the pink wire (constant 12V) feeding the gauges–intermittent flickering usually means a broken trace inside the printed circuit board, solvable by soldering a jumper wire.
Finding Factory Electrical Schematics for Your 1989 GMC Sierra Classic

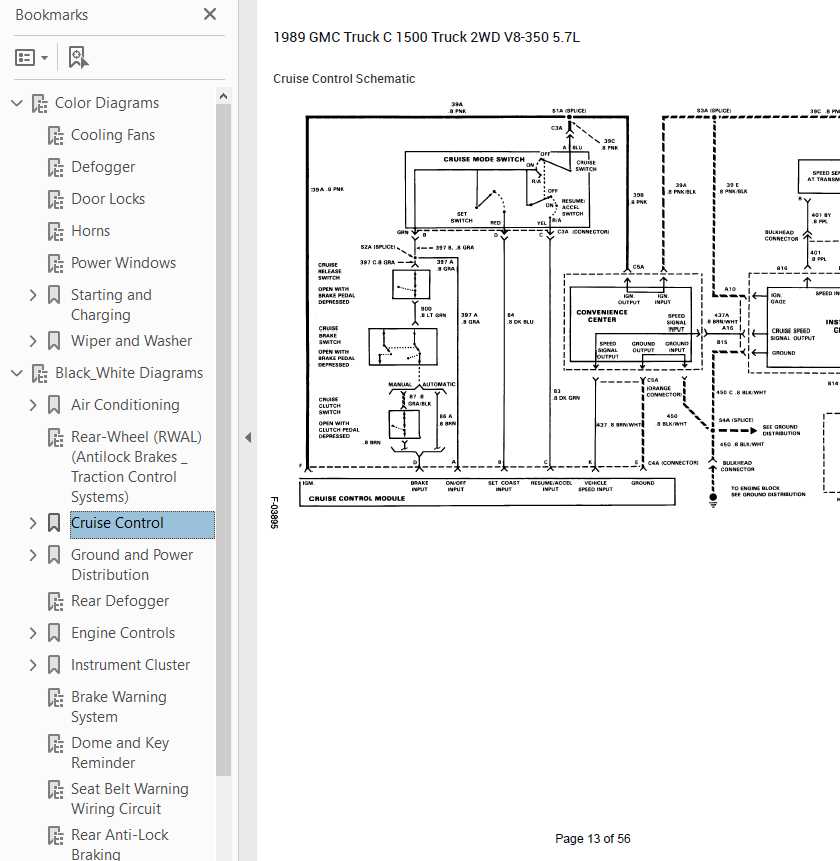

Begin with the official General Motors Service Manual for the C/K platform, specifically the Chassis Electrical section. The 1989 model-year manual (publication #ST-374) contains fold-out sheets with color-coded paths, fuse ratings, and connector pinouts for every circuit–ignition, lighting, instrument cluster, and trailer harness. Local public libraries in regions with strong automotive programs (e.g., Detroit, Flint, Ontario) often carry physical copies; request an interlibrary loan if needed.
| Source | Availability | Key Details |
|---|---|---|
| GM Dealership Repairs Archive | Limited | Microfiche or PDF scans (check with service departments) |
| Helm Inc. Reprints | Print-on-demand | Exact reproductions, includes wiring schematics as separate foldouts |
| eBay Sellers | Variable | Original 1989 manuals, verify condition and completeness |
| Motor Age Technical Service Bulletins | Subscription-based | Supplements factory diagrams with later model-year updates |
For online sources, prioritize ChiltonDIY or Mitchell1 databases–these platforms cross-reference vacuum diagrams, sensor locations, and ground point maps (critical for the C/K’s frameless under-dash setup). Avoid generic forums; instead, search for gm_ck_series_1988-1991_electrical.pdf on niche file-sharing hubs frequented by restoration shops. Confirm the schematic matches your exact trim (e.g., R/V series fuse block layout differs from N/P series).
If tracing a specific fault–say, intermittent tail-light failure–consult the Power Distribution diagram first, noting the BK/W (black/white) stripe for common grounds shared across the rear lighting harness. Label each wire with a Dymo embosser before disconnecting connectors; the C/K’s infamous bulkhead plugs corrode easily, and mismatched repairs often introduce phantom shorts. Carry a multimeter with continuity testing to verify factory paths against the schematic, focusing on splice clusters behind the glovebox and along the rocker panels.
Step-by-Step Color Coding Breakdown for Key Electrical Circuits
Begin by isolating the main power feed–orange (O) carries 12V constant from the battery, while pink (PK) delivers voltage during ignition-on states. Trace these to the fuse block: O connects to the ignition relay and dome light circuits, whereas PK splits to the ECM, gauges, and accessory feeds. Verify continuity with a multimeter before proceeding, as corrosion in the bulkhead connectors (especially near the firewall) often disrupts these paths.
Dark green (DK GRN) and light blue (LT BLU) handle critical sensor inputs–DK GRN transmits TPS/oxygen sensor signals, requiring a low-resistance (tan (TN) for IAC/crankshaft position data, must bypass all intermediate splices; crimp connections here degrade sensor accuracy. For lighting: yellow (Y) switches high-beam, brown (BRN) manages park/taillights–test both sides simultaneously to rule out ground faults at the chassis harness grounding eyelets (G101/G201).
Neutral safety and starter control rely on purple (PPL) and gray (GRY)–PPL toggles the starter solenoid (confirm 10–12V during crank), while GRY (brake switch) inhibits starter engagement unless the pedal is depressed. Check splice S105 for voltage drop under load; replace any heat-shrunk joint showing discoloration. For A/C circuits, dark blue (DK BLU) activates the compressor clutch, but only after the pressure switch (white (W)) validates refrigerant levels–bypass testing with a jumper confirms clutch operation if W reads >9.5V.
Common Circuit Upgrades for Aftermarket Add-Ons
Install a fused relay harness for high-draw components like auxiliary lights or winches. Connect the relay’s 85-pin to the accessory’s switch, 86 to chassis ground, 30 to the battery via a 20-30A fuse, and 87 to the load. Use 12-gauge wire for the load side and 14-gauge for the trigger circuit. Avoid splicing into factory circuits–route new wires directly to the battery terminal with a fuse within 7 inches of the connection point.
- Add a standalone ignition-switched power source for stereos or heated seats. Locate the ignition feed wire (typically pink) at the fuse box, strip a ¼-inch section, and solder a 16-gauge pigtail with heat-shrink tubing. Test with a multimeter–voltage should drop to 0V when the key is off and read 12-14V when on. For memory retention, splice a yellow 12-gauge wire from the accessory’s constant power lead to the battery with a 10A inline fuse.
- Ground aftermarket electronics directly to the engine block or frame using a star washer and 8-gauge wire. Factory grounds often corrode–clean the mounting surface to bare metal, apply dielectric grease, and torque the bolt to 18-22 ft-lbs. For multiple devices, daisy-chain grounds through a single chassis point to prevent voltage drop.
- Use WeatherPak connectors for trailer brake controllers. Crimp the blue wire to the brake output, red to an auxiliary fused source, and white to a dedicated ground. Seal connections with liquid electrical tape and route wires through a grommet in the firewall, avoiding sharp edges.
For electric fans, tap the red/white temperature sender wire at the coolant sensor–install a 15A fuse inline and run 10-gauge wire to the fan motor. Use a 30/40A SPDT relay if the fan draws over 15A, triggering via the sender or a dash-mounted switch. Verify the switch cuts power completely when off to prevent parasitic drain.
Troubleshooting Faulty Connections Using a Multimeter
Set the multimeter to continuity mode (symbol: diode or sound wave) before probing terminals. Clip one lead to the chassis ground or a known reference point–avoid using painted or corroded metal. Touch the other lead sequentially to each connector pin along the suspected circuit. A steady tone or 0-ohm reading confirms a complete path; silence or infinite resistance indicates a break. Work methodically from the fuse box outward, segmenting branches until the interruption is isolated.
Identifying Voltage Drops
Switch to DC voltage (20V scale) for live circuits. Probe the positive side of the power source (battery post, alternator output, or fuse terminal) and the target component’s input while the system is active. A reading under 0.5V suggests normal resistance; drops exceeding 0.7V reveal excessive resistance–likely corroded joints, frayed wires, or loose crimps. Check voltage both upstream and downstream of connectors: if voltage returns to specification past a connector, the fault lies within that junction.
Inspect terminals for oxidation–black or green deposits require cleaning with a wire brush and dielectric grease. For inline splices, bypass the splice by twisting wires together temporarily. If the circuit functions with the bypass, the splice needs re-soldering or crimping with heat-shrink tubing. Avoid twisting wires without proper sealing; moisture will accelerate corrosion and repeat failures.
Use the ohmmeter (200Ω scale) for dead circuits. Disconnect power and isolate the circuit by unplugging the component. Measure across the suspected fault: infinite resistance means an open circuit, while readings under 5Ω typically indicate a short or unintended path. For intermittent faults, gently wiggle connectors and wires during testing–fluctuating readings pinpoint loose strands or fractures beneath insulation.
