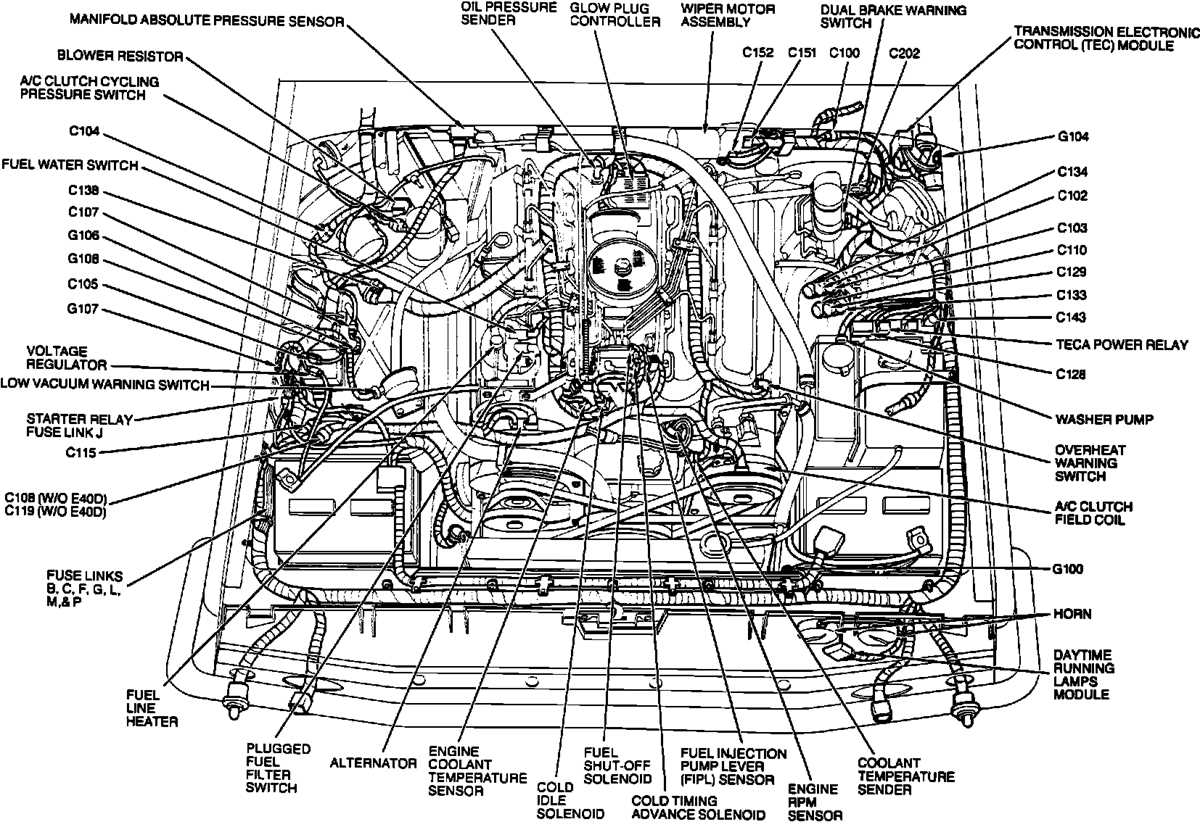

Complete Electrical Wiring Schematic for 1989 Ford F350 Truck Systems
Begin troubleshooting with the main fuse block: located beneath the dashboard on the driver’s side, this panel houses critical relays and circuit breakers. Verify integrity of the 30-amp “Ignition” fuse–corrosion here disrupts power distribution to the entire harness. Use a multimeter set to continuity mode; readings above 0.5 ohms indicate compromised connections. Replace any fuse exhibiting discoloration or deformed metal strips immediately–standard ATC/ATO types are acceptable, but avoid high-wattage aftermarket alternatives.
Trace the vehicle’s harness routing systematically: The primary loom runs from the firewall grommet along the inner fender, branching near the battery tray. Inspect the 10-gauge red wire feeding the starter solenoid–this segment often frays due to vibration. Secure loose sections with spiral wrap; avoid electrical tape for permanent repairs. At the transmission tunnel, the harness splits–follow the yellow-striped wire cluster toward the rear axle sensor, a common failure point in vintage chassis. Probe these connections with a 12V test light; dim illumination suggests high resistance, likely from degraded solder joints.
Check ground points with precision: The most frequent culprit is the engine block grounding strap, bolted near the bellhousing. Scrape paint or rust from contact surfaces, then apply dielectric grease to prevent future oxidation. For dash-mounted components, focus on the passenger-side kick panel; disassemble the plastic cover to expose the instrument cluster harness. The blue/white wire here controls gauge illumination–use a wiring schematic’s color coding (not memory) to verify paths, as aftermarket radios often introduce inconsistent splices.
Isolate trailer wiring conflicts: If auxiliary circuits malfunction, inspect the 7-way connector under the rear bumper. The brown wire (running lights) and green wire (right turn/brake) are prone to shorting due to road debris. Test each pin with a trailer tester; erratic behavior confirms internal ECU confusion, often resolved by bypassing the factory relay (relay #303 in original documentation). For persistent issues, substitute a solid-state relay rated for 40 amps–mechanical relays degrade with age, especially in high-load applications.
Document modifications meticulously: Aftermarket stereos, lift kits, or powertrain swaps introduce deviations from OEM schematics. Use a digital mapping tool to cross-reference wire colors with updated diagrams; the factory manual’s page 14-17 (Section – Electrical Group) lists superseded revisions. Pay special attention to the orange/black wire–it carries constant 12V power to the ECM, and incorrect splicing here triggers hard-start conditions. Always fuse new circuits separately; piggybacking onto existing wires risks overloading low-amperage conductors.
Electrical Blueprint for Heavy-Duty Pickup: Hands-On Reference
Begin troubleshooting by testing the fusible link between the starter relay and alternator–this 10-gauge red wire (circuit #36) frequently corrodes under the driver’s side fender. Use a multimeter set to continuity mode; resistance above 0.5 ohms indicates a break requiring replacement with heat-shrunk 10-gauge wire. Avoid standard automotive splices–crimp connectors must be soldered and sealed with adhesive-lined tubing to prevent voltage drop under load.
| Connector Pin | Color Code | Function | Voltage (Key On) |
|---|---|---|---|
| C201-1A | Y/LG | Ignition Feed | 12.6–14.2 V |
| C201-2B | BK/Y | Ground Reference | 0 V |
| C202-3C | R/Y | Charging Excitation | 0.2–0.8 V |
Verify the turn signal flasher’s output at the steering column connector–pin #47 (light blue/white stripe) should pulse 12 V at 60–120 cycles per minute. If pulses are irregular, bypass the flasher unit with a 3.9 Ω resistor; persistent issues trace back to shorts in the trailer wiring harness, typically at the rear frame junction near the spare tire mount. Remove the taillight assembly and inspect the brown wire bundle for chafing against the frame’s edge–wrap exposed sections in dielectric grease and secure with spiral-cut loom.
For instrument cluster failures, check the printed circuit board behind the speedometer–corrosion on the violet wire (pin #12) disables the fuel gauge sender. Clean contacts with a pencil eraser and reflow solder joints at R2 (2.2 kΩ resistor). If the temperature gauge reads erratically, replace the sender with Motorcraft part #EOT-10835; aftermarket units often fail due to incorrect resistance curves. Always disconnect the battery’s negative terminal before probing dash connectors to prevent shorting the twilight sentry module.
Critical Electrical Schematic Symbols and Color Standards for Heavy-Duty Truck Troubleshooting
Start repairs by identifying the solid black line on schematics–this denotes primary battery feed circuits with continuous 12V power, regardless of ignition state. Locate the red wire with a white stripe (R/W) at the fuse block; this is the ignition-switched hot lead supplying the fuel pump, ignition module, and Powertrain Control Module (PCM). Verify continuity to ground using light green with orange stripe (LG/O) for chassis grounding points, typically connected to the firewall or frame rail–corrosion here causes intermittent failures.
Interpret relay symbols by matching coil (circle with diagonal line) and load (normal switch contacts) terminals. The starter solenoid uses a yellow wire with red stripe (Y/R) for the “S” terminal, while the purple wire with white stripe (P/W) carries the ignition switch signal. For lighting circuits, dark green with yellow stripe (DG/Y) controls left turn/brake functions, and brown with white stripe (BN/W) handles running lights–cross-referencing these colors against the firewall connector prevents misdiagnosis of bulb or switch issues.
Check sensor circuits using white with black stripe (W/BK) for the Crankshaft Position Sensor (CKP) and dark blue with orange stripe (DB/O) for the Throttle Position Sensor (TPS). These low-current paths require a high-impedance multimeter (10MΩ+) to avoid signal disruption during testing. For trailer wiring, gray with red stripe (GY/R) delivers stoplight voltage, while black with pink stripe (BK/P) serves as ground–inspect the 7-way connector for worn pins to resolve trailer light malfunctions.
Step-by-Step Guide to Locating the Fusebox and Relay Panel
Begin by sliding the driver’s seat to its rearmost position to clear space beneath the dashboard. Remove the lower trim panel beneath the steering column by releasing the two plastic clips at the top edge–pull firmly but avoid excessive force to prevent breaking the tabs. Behind this panel, the primary fuse block sits mounted to the firewall, secured by a single 10mm bolt near the center.
- Visually trace the main harness bundle exiting the back of the fuse block–it leads directly to the relay panel, tucked behind the glove compartment.
- Release the glove box by squeezing its sides inward at the hinge stops; let it hang by its lower hinges.
- Behind the glove box, locate a black plastic cover held by two T20 torx screws–remove them to expose the relay cluster.
- Note the orientation of each relay before removal; most are labeled on the socket, but a reference photo avoids mix-ups during reinstallation.
The auxiliary fuse block, often overlooked, sits behind the battery tray on the passenger-side fender well. Disconnect the battery negative terminal first, then lift the tray by removing the three 8mm bolts along its perimeter. Beneath it, a secondary set of fuses and relays controls high-draw circuits like the ignition and charging systems–check for corrosion on the terminals, a common failure point.
For quick diagnostics, use a multimeter set to continuity mode. Probe the fuse sockets with the vehicle off–expected readings should match the following:
- Fuses: 0 ohms (intact); OL (blown).
- Relay sockets: 12V at terminal 30 with key in RUN (for active relays).
- Ground points: <0.5 ohms to chassis.
If readings deviate, trace the circuit back to its source using the vehicle’s electrical schematic–labels on the back of the fuse block cover correspond to wire colors and gauge sizes (e.g., “O/Y” for orange/yellow, “14 AWG”). Replace any damaged connectors with matching gauge terminals to prevent voltage drop.
Tracing and Testing the Ignition System Harness on Heavy-Duty Trucks
Begin by isolating the ignition switch connector and verifying battery voltage at pin 30 (red/light green stripe) with the key in the “ON” position–readings should register 12.6V±0.2V. Use a digital multimeter set to DC voltage, probing the terminal directly; avoid piercing the insulation, as this introduces corrosion risks. If voltage is absent, inspect the fusible link (14-gauge yellow) located near the starter solenoid–its resistance should not exceed 0.1Ω.
Trace the run/start circuit from the ignition switch to the neutral safety switch. At the transmission range sensor, check continuity between pins A and B in “Park” or “Neutral”–discrepancies indicate a faulty switch or misadjusted linkage. For automatic models, verify the inhibitor circuit engages only in these gears; manual transmissions skip this step entirely. Use a test light for quick verification, but follow up with a multimeter for precise resistance readings (target: 0Ω).
Examine the coil feed wire (orange/black) for voltage drop under load. With the engine cranking, voltage at the coil positive terminal should remain above 10.5V–any lower suggests excessive resistance in the harness or faulty connections at the ignition module. Probe the module’s ground (black/white) with the multimeter’s negative lead; stray voltage above 0.2V indicates a poor chassis ground, requiring sanding down the mounting surface to bare metal.
Test the distributor pickup coil by backprobing its connector (green/black and black/orange wires) with an oscilloscope or a dwell meter. A healthy signal displays a clean sine wave (3–8V peak-to-peak) at 2–5 milliseconds; erratic patterns point to a failing sensor or internal distributor corrosion. Replace the pickup coil if readings fluctuate erratically during heat soak tests (engine at operating temperature, then shut off and restarted).
- Key-off draw test: Disconnect the ignition module and measure current between the battery negative post and the module’s ground wire–any reading above 50mA signals a parasitic drain in the starting circuit.
- Cranking amperage: Clip an inductive amp clamp around the battery positive cable while cranking; expect 120–180A for V8 models. Higher values reveal internal engine resistance (e.g., bent connecting rods) or a weak battery.
- Ballast resistor (if equipped): Measure voltage drop across the resistor (white wire) with the engine running–ideal is 1.2–1.8Ω, dropping 1.5–2.5V. Overheating (discoloration) necessitates replacement.
Inspect the starter relay’s control circuit. Apply 12V to the relay’s coil terminals (small pins) while measuring voltage at the large terminals–activation should produce a loud click and near-zero resistance. If the relay clicks but doesn’t engage, disassemble it and check for pitted contacts. Replace the relay if contacts show carbon deposits or uneven wear. For solenoid issues, manually jumper the large terminals with a screwdriver while monitoring voltage at the starter motor; absence of engagement confirms internal failure.
Final verification involves a full harness continuity test. Disconnect the battery, then use a tone generator on each wire, probing every termination point–particularly at splice points under the dashboard and near the firewall. Target resistance for each path:
