Complete 1991 Toyota Corolla Radio Wiring Color Code Guide with Diagram
Installing an aftermarket sound system in a compact import car from the early nineties demands precise cable matching to avoid short circuits or signal loss. Begin by locating the vehicle’s original harness behind the dashboard–typically a multi-pin connector with color-coded wires. Pinpoint the yellow (B+) constant 12V line, red (ACC) ignition-switched 12V, and black (GND) ground as primary power sources. Cross-reference these with the replacement unit’s wiring guide; mismatches risk draining the battery or frying internal amplifiers.
The factory unit often integrates a pink/blue dimmer wire for dashboard illumination sync–neglecting this causes the head unit display to remain lit permanently or fail to adjust brightness. For audio output, identify the gray (+) and gray/black (-) front right, green (+) and green/black (-) front left, purple (+) and purple/black (-) rear right, and blue (+) and blue/black (-) rear left speaker wires. Polarity reversals introduce phase cancellation, degrading bass response by up to 40%.
For models equipped with a factory equalizer or amplifier, an additional solid blue antenna trigger wire (200mA max) activates power antennas–connect this to the corresponding wire on the new unit to prevent antenna motor burnout. If the vehicle includes a light blue/white speed-sensitive volume wire, omit it unless the replacement head unit supports this feature; incorrect routing can cause erratic volume modulation at highway speeds.
Test all connections with a multimeter before final assembly: verify 12V on switched circuits, continuity on grounds, and speaker wires for +12V pulses when tones are played. Secure connections with solder and heat-shrink tubing, avoiding twist-and-tape joints that corrode over time. Finalize by reconnecting the battery and checking for error codes–certain models trigger OBD-I warnings if the radio’s absence is misinterpreted as a system fault.
Electrical Connections for Your Early 90s Sedan Audio System
For the base model trim, locate the red power lead tagged as “B+” behind the factory head unit harness–this wire always carries 12V regardless of ignition state. Pair it with the yellow ignition-switched wire (typically marked “ACC”) to prevent battery drain when the vehicle is off. Cut and splice a 10A inline fuse within six inches of the battery terminal if modifying the circuit for aftermarket units.
Ground connections on this make require direct attachment to unpainted metal chassis points; sand away paint or rust at the mounting location to ensure low-resistance contact. The black ground wire bundled in the OEM plug should be extended if relocating equipment, but never combined with other neutral returns–dedicated grounding prevents noise interference.
Speaker outputs follow a uniform polarity across all four channels: white/white-black (front left), gray/gray-black (front right), green/green-black (rear left), and purple/purple-black (rear right). Confirm impedance matches between old and new components–this series typically uses 4-ohm drivers, while aftermarket systems may default to 2 or 8 ohms.
Illumination control (dim lighting) is handled via the orange wire in the main harness; connect it directly to the replacement radio’s lamp input if retaining dashboard backlight sync. Factory amplifiers, found in higher trims, use a separate pink wire for power antenna activation–cap or splice this to the new unit’s blue/white remote turn-on lead if keeping an external amp.
If integrating a modern double-DIN enclosure, remove the climate control knobs and trim panel retaining clips first–hidden screws secure the lower dash bezel. Use metric socket sizes: 10mm for bolt removal behind the glovebox, 8mm for the radio cage fasteners.
For retrofitting RCA outputs, tap into the front speaker wires before they reach the head unit filters–strip 1/2 inch of insulation, solder directly to RCA terminals, then insulate with heat-shrink tubing. Avoid using the rear speaker outputs if adding a subwoofer; they lack dedicated low-pass processing in stock configurations.
Verify all connections with a multimeter set to DC voltage–probe between each terminal and chassis ground before powering on. Look for steady 12V on constant and switched leads, 0-4V on speaker wires (varying with volume), and no more than 0.5V resistance across ground paths.
When testing, engage the parking brake and shift into neutral for safety–some aftermarket units disable video functionality without these conditions met. Keep the original wiring harness intact if possible; tap into it rather than cutting, allowing easier reversion if necessary.
Matching the Right Connector for Your Vehicle’s Sound System

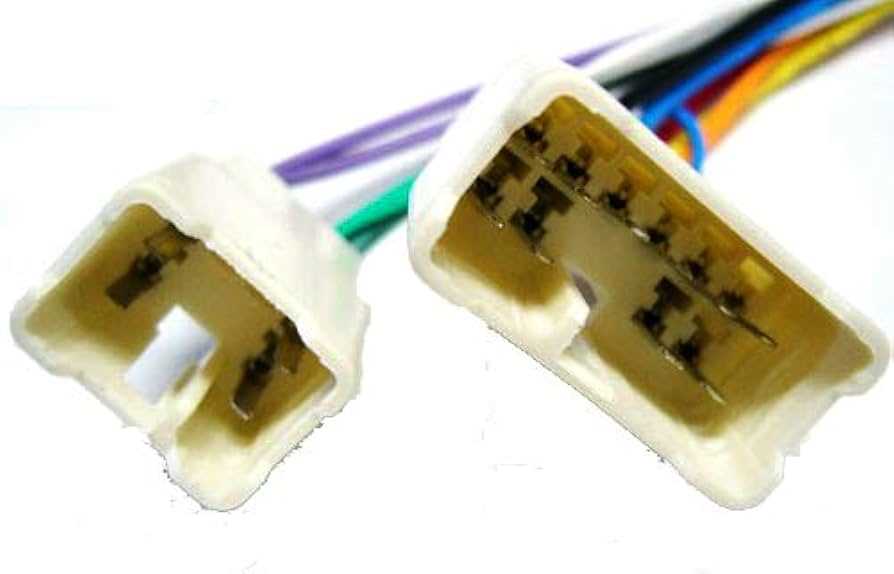

Locate the factory radio harness behind the dash on the driver’s side–it’s a 12-pin plug with distinct color codes: solid yellow (constant 12V), red (switched 12V), black (ground), blue-white (amplifier trigger), and pairs of gray, white, green, and purple (speakers). Purchase an aftermarket adapter with the same pin layout–Metra 70-1761 or Scosche CR02B fit directly without splicing. Verify the connector shape before buying: oval with a central notch differentiates it from 1990 or 1992 models.
- Avoid universal harnesses labeled “import” or “OEM replacement”–they often require cutting wires.
- Check for oxidation on original connections; corroded pins cause intermittent power.
- Use a multimeter to confirm voltage: yellow should read 12V at all times, red only with ignition on.
- If replacing the radio, select a unit with a detachable faceplate–factory theft protection remains active.
- For amplified systems, the blue-white wire must be linked to the new head unit’s remote turn-on or an external relay.
Step-by-Step Guide to Locating the Factory Head Unit Harness
Disconnect the vehicle’s negative battery terminal first to prevent short circuits. The original audio system connector is typically found behind the dash panel on the driver’s side, tucked near the lower steering column area. Use a flashlight to inspect the cavity–look for a rectangular, multi-pin plug with 10 to 16 sockets, often black or gray with a locking tab.
Remove the dash trim panel by prying outward at the edges with a plastic trim tool. Start at the bottom and work upward to avoid snapping clips. Some models require unscrewing a single 10mm bolt securing the lower instrument cluster before the panel fully detaches. Set all fasteners aside in a magnetic tray to prevent loss.
The harness may be concealed behind a protective plastic cover or wrapped in foam insulation. Gently pull the connector free from its mount, pressing the release tab if present. If the plug feels stuck, wiggle it side-to-side while applying steady outward pressure–never force it, as bent pins will disrupt signal flow.
Identifying Pinout and Wire Colors
Trace each wire from the harness back to its origin. Factory schematics for this model use a standard color-coding system: solid red (constant 12V), yellow (switched 12V), black (ground), blue with white stripe (antenna trigger), and purple/brown pairs (speaker outputs). A multimeter set to DC voltage will confirm live wires–probe the metal contacts without piercing insulation.
Label each wire with masking tape before cutting or splicing. Mistakes here risk blowing fuses or damaging amplifiers. For aftermarket integration, matching harness adapters exist (Metra 70-1761 or Scosche CR03), but manual soldering ensures reliability if corrosion is present. Heat-shrink tubing should cover all exposed copper to prevent oxidation.
Reinstall dash components in reverse order, ensuring all clips snap securely. Reconnect the battery last, then test each function–volume, balance, fade, and input selection–before finalizing trim alignment. If static persists, recheck ground connections, particularly at the chassis mount near the kick panel.
Understanding Factory Audio System Wire Colors for Early ’90s Sedans
Identify the primary power feed by locating the solid yellow lead–this wire carries a constant 12V supply from the fuse box, typically rated at 10A. Pair it with the solid red ignition-switched line to prevent battery drain when the key is off; this combination aligns with the harness adapter common to aftermarket head units. Ground connections use a solid black or black with white stripe wire, often bolted to the chassis near the dash or firewall–clean the mounting point thoroughly to avoid intermittent signal loss.
| Function | Standard Wire Color | Alternate Patterns (if present) | Voltage (Key Position) |
|---|---|---|---|
| Battery Constant | Yellow | None | 12V (Always) |
| Ignition Switched | Red | Red/Black Stripe | 12V (ON/ACC) |
| Ground | Black | Black/White Stripe | 0V |
| Front Left Speaker (+) | Light Green | Green/Black Stripe | 4-8V (Dependent on volume) |
| Front Left Speaker (-) | Light Green/Black | Green/Black/White Stripe | 0V (Reference) |
For speaker outputs, match polarity carefully: front-right channels use gray (positive) and gray/black (negative), while rear speakers follow blue (positive) and blue/white (negative). Dimmer circuits may appear as brown or brown/yellow wires–isolate these if not integrating factory illumination, as they can interfere with modern head units. When testing, use a multimeter set to DC voltage; expected readings for speaker wires should fluctuate with audio signal, confirming proper connection without shorts.
Safe Integration of a New Sound System with Factory Harness
Disconnect the negative terminal of the vehicle’s battery before handling any electrical connections to eliminate risk of short circuits or component damage. Use a multimeter to verify power wires–typically 12 volts constant for memory functions and 12 volts switched for ignition-dependent circuits. Factory harnesses often include color-coded leads; cross-reference these with the aftermarket unit’s manual to prevent mismatches.
Trim excess wire to minimize exposed copper, then crimp connectors with a ratcheting crimper for a secure bond. Avoid soldering near plastic components, as heat can warp retainers or dash panels. Heat-shrink tubing provides superior insulation over electrical tape, preventing corrosion from moisture or vibration-induced wear over time.
Test each connection individually before final assembly. Reconnect the battery and cycle the ignition, checking for proper illumination, audio output, and amplifier activation. If the system powers down inconsistently, verify ground connections–ensure they terminate at bare metal, free of paint or corrosion, and within 18 inches of the head unit.
Use a dedicated fuse tap for accessory circuits rather than tapping into existing fuses. Select a fuse slot that aligns with the aftermarket system’s amperage draw–most automotive fuses range from 10 to 20 amps. Insert the tap between the fuse and its socket to maintain circuit protection without overloading factory wiring.
Route all cables away from moving parts, sharp edges, and heat sources like exhaust manifolds or transmission tunnels. Secure loose wires with zip ties spaced every 6–8 inches to prevent rattling or pinching. Excess length should be coiled neatly without straining connectors, as tension can compromise signal integrity over time.
If the vehicle retains factory amplifier controls or data buses, consider using an interface adapter to maintain steering wheel functions and vehicle diagnostics. Bypass adapters may require programming–consult manufacturer documentation for compatibility with specific models. Failure to account for these systems can result in lost functionality or erratic electronic behavior.
