Complete 1994 Club Car DS 36 Volt Wiring Diagram and Troubleshooting Guide
Locate the main solenoid near the battery pack–it’s the rectangular component with thick cables and two smaller wires. Trace the red wire (positive) from the solenoid to the forward-reverse switch; this path controls power delivery to the motor. If the cart fails to engage, check the solenoid’s voltage with a multimeter–less than 34V indicates a weak cell in the battery bank or corrosion at the terminal connections. Clean contacts with a wire brush and apply dielectric grease to prevent oxidation.
Examine the speed controller mounted under the seat. The white (armature) and yellow (field) wires from the motor must connect securely to the controller’s corresponding terminals. Loose or reversed wires will cause erratic acceleration or complete failure. Verify the motor’s brushes for wear; replace if the copper segments show excessive pitting. For intermittent power loss, bypass the controller with a test light–if the motor runs, the issue lies in the controller’s internal components.
Inspect the onboard charger’s 8-pin Molex connector. The gray wire (center pin) carries 110V AC, while the black wire (pin 1) is ground. A faulty charger will display an error code on the dash LED–flashing twice indicates a battery voltage imbalance. Use a hydrometer to check electrolyte levels in each battery cell; specific gravity below 1.225 requires equalization charging at 15.5V for four hours. Replace any battery with a dead cell; mixing old and new batteries reduces the pack’s lifespan.
For headlight or accessory failures, follow the red/white wire from the key switch to the fuse block. A blown 15A fuse (marked “accessories”) suggests a short in the lighting circuit–probe the brown wire from the taillight harness for continuity. If the horn doesn’t sound, test the relay by jumping the 30 and 87 terminals with a screwdriver; a functioning relay will click. The brake light switch (hydraulic type) is often overlooked–adjust its plunger bracket to ensure activation at full pedal travel.
Understanding Electrical Schematics for Early Vintage Golf Carts
Locate the main solenoid–it’s the starting point for tracing power distribution in a DS model electric setup. Disconnect the battery pack first to prevent accidental shorts while handling terminals. The solenoid’s thick red cable connects directly to the positive terminal of the first battery, while its smaller activation wire (typically white or yellow) routes through the key switch. If the cart fails to engage, check continuity on this wire with a multimeter; resistance should read near zero ohms when the ignition is turned.
Examine the speed controller’s wiring harness next. The early DS configuration uses three large cables: one from the solenoid, one to the motor, and a ground return. The controller’s small red wire supplies 12V to internal logic, while the black and brown wires regulate throttle signals. A frayed or corroded brown wire often causes erratic acceleration–replace the entire harness if insulation feels brittle. Solder connections rather than twist-and-tape for longevity in damp conditions.

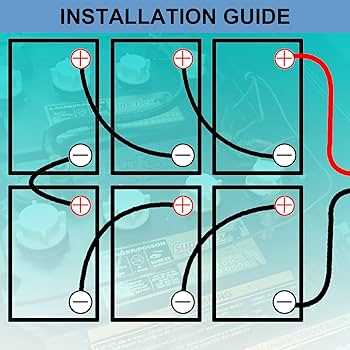

Battery interconnections follow a specific series pattern: the negative of battery one connects to the positive of battery two, continuing through all six cells. Use 4-gauge copper cables with marine-grade connectors to reduce voltage drop; standard automotive cables corrode within months. Verify each connection’s torque with a proper wrench–10-12 Nm is critical–loose terminals create resistance that overheats components. Label each cable with shrink tubing before final assembly to simplify future diagnostics.
The on-board charger receptacle uses a three-pin connector: the large center pin carries high current, while the two smaller outer pins handle sensing and ground. Match the receptacle’s polarity exactly to the charger’s plug; reversing polarity fries the sensing circuit instantly. For off-board charging, a dedicated 36V smart charger with automatic shutoff prevents sulfation–generic chargers often overcharge, reducing battery lifespan by up to 40%. Replace the receptacle if pins show pitting or discoloration.
Headlight and accessory circuits tap into the 12V auxiliary circuit, fused at 20 amps. Trace this circuit from the DC-DC converter’s output–it looks identical to a standard reduction transformer. If accessories fail, check the converter’s input voltage first (should match total pack voltage minus 2V under load). Replace the converter if it emits a high-pitched whine or smells burnt; a faulty unit can drain the main pack overnight.
Forward-reverse switching relies on a microswitch physically engaged by the shifter lever. This switch interrupts power to the controller’s logic circuit in neutral, preventing accidental engagement. Bypass a faulty microswitch only for testing–operating without it risks uncontrolled acceleration. Lubricate the shifter mechanism with dielectric grease during reassembly to prevent corrosion on switch contacts.
Ground integrity determines system reliability. The motor’s case connects via a heavy braided strap to the frame, while the controller bolts directly to a clean, unpainted surface. Sand away paint or rust at ground points; poor grounding causes intermittent failures that mimic controller or motor issues. Use star washers on all grounding bolts to maintain contact under vibration; regular zinc-based anti-seize compounds prevent future oxidation.
Locating Critical Elements in the DS Model’s 36V Power Network
Trace the main solenoid first–mounted near the chassis under the seat, its copper contacts handle the full traction current. A faulty solenoid often mimics a dead battery: listen for a sharp click during startup. If absent, measure voltage at the large terminals while activating the accelerator; readings below 35V indicate internal pitting or coil failure. Replace with an OEM-style unit; aftermarket solenoids with lighter springs risk premature disengagement on rough terrain.
Battery Interconnects and Fuse Configuration
Inspect the six-cell pack’s serial links–corrosion on the 4-gauge straps creates resistive losses that mimic weak batteries. Clean terminals with a wire brush, then coat with dielectric grease; torque to 15 ft-lbs to prevent micro-arcing. The inline fuse holder, typically encased in a black sleeve near the rear tire, uses a 250A slow-blow fuse. Swap it if voltage drops to zero under load; a blown fuse often points to a short in the motor windings or a seized forward-reverse switch.
Verify the tow/run switch behind the accelerator pedal–its three wires toggle between bypass mode and traction engagement. Probe for continuity between the center and outer pins in “run” position; no reading signals a cracked housing or broken toggle mechanism. Rewire with marine-grade 12-gauge wire if chafing is evident, securing loops away from moving suspension arms to prevent intermittent shorts.
Step-by-Step Electrical Schematic Guide for Diagnosing Golf Utility Vehicles
Start by locating the main battery pack beneath the seat. Verify all six 6V batteries are connected in series–terminals must align positive to negative. A mismatched connection reduces system voltage below 36V, causing weak performance. Use a multimeter to test each battery’s output: readings should show 6.0–6.4V per unit. If one reads below 5.8V, isolate and recharge or replace it.
- Disconnect the negative cable first to prevent short circuits.
- Clean corrosion from terminals with a wire brush and baking soda solution.
- Tighten all connections with a torque wrench (target 8–10 ft-lbs).
Trace the thick red cable from the battery pack’s positive terminal to the controller. This path includes the solenoid and key switch. At the solenoid, check for 36V across the large terminals when the ignition is turned. No voltage here indicates a failed solenoid or broken fusible link. Replace the solenoid if the contacts show pitting or burn marks.
Follow the smaller gauge wires from the key switch to the speed sensor and accessory circuits. The sensor (usually a Hall effect device) should output 0–5V pulses when the drive gear rotates. No signal suggests a faulty sensor or severed wire. Strip back the wire insulation to inspect for breaks–resolder if necessary, using heat-shrink tubing for insulation.
Examine the motor connections at the rear of the vehicle. Two thick cables run directly to the armature; voltage here should match the battery pack’s output when the accelerator is pressed. If the motor spins but the vehicle moves slowly, the field coils may be shorted. Test resistance across the field terminals–readings below 0.2 ohms require motor replacement.
- Remove the motor cover to inspect brushes–minimum length is 0.3 inches.
- Lubricate bearings with lithium grease if rotation feels gritty.
- Reassemble with new gaskets if seals appear brittle.
Check the onboard charger’s AC input cord for fraying. At the charger’s output, verify 42–44V DC during charging–lower readings indicate internal component failure. Unplug immediately if the unit emits a burning odor. Replace capacitors if bulging or leaking electrolyte. For vehicles with regenerative braking, test the diode bridge under load; a failed diode causes erratic speed control.
Troubleshooting Electrical Problems in a 36V DS Electric Golf Utility
If the vehicle fails to start despite a fully charged battery pack, inspect the solenoid connections first. Corrosion on the terminals–especially at the M terminal–causes high resistance, preventing proper engagement. Clean terminals with a wire brush and apply dielectric grease to prevent future oxidation. Replace the solenoid if the internal coil resistance exceeds 0.5 ohms when tested with a multimeter. A faulty solenoid often clicks but fails to bridge the battery circuit, leaving the motor inactive.
Identifying Controller and Throttle Malfunctions
Erratic speed or sudden surges indicate throttle or controller issues. Test the throttle potentiometer by disconnecting it from the controller and measuring resistance across the terminals while pressing the pedal. Values should smoothly increase from 0.5kΩ to 4.5kΩ; erratic jumps confirm a faulty potentiometer requiring replacement. For controllers, check input voltage from the battery pack–any drop below 34V under load suggests a failing controller. Replace if voltage sag persists after verifying all connections are secure.
| Symptom | Suspected Component | Test Procedure | Solution |
|---|---|---|---|
| No response when key turned | Forward/Reverse switch | Measure continuity between switch terminals in both directions | Replace switch if continuity is intermittent |
| Motor runs but cuts out | Main circuit breaker | Check for loose connections or tripped breaker (reset if needed) | Tighten terminals or replace breaker if faulty |
| Dim lights, weak performance | Verify output voltage matches accessory requirements | Replace reducer if output is below 5V or 11V |
Intermittent power loss during operation often traces to frayed battery cables or loose interconnects. Visually inspect cables for fraying, especially near the battery posts and solenoid. Tighten all interconnects with a torque wrench to 10 Nm to prevent arcing. Replace cables if insulation is damaged or strands are exposed–cheap replacements fail quickly under load. Ensure the pack’s internal series links are secure; loose links create resistance hotspots that degrade performance.
If accessories like headlights or turn signals flicker, the issue likely lies in the accessory circuit. Check the voltage reducer’s output–older models output 6V but newer accessories may require 12V. Verify the ground connection for accessories, as a poor ground causes inconsistent current flow. For persistent flickering, bypass the circuit temporarily with a direct 6V or 12V source to isolate the problem. Replace the voltage reducer if it fails to stabilize output under load.
