How to Connect PIR Motion Sensor to Arduino Step-by-Step Guide
Connect the HC-SR501 module directly to the microcontroller’s 5V pin for stable power delivery–avoid using longer jumper wires, as voltage drops can trigger false readings. Ground the signal pin to the board’s GND rail, ensuring a shared reference point to prevent noise interference. For signal transmission, link the module’s output to digital pin 2; this configuration allows interrupt-driven detection, reducing processor load compared to polling methods.
The module’s adjustable sensitivity and delay potentiometers require careful calibration. Rotate the left dial (sensitivity) clockwise to narrow the detection range, minimizing false positives in cluttered environments. The right dial (time delay) sets how long the output remains active after motion is detected–opt for 3 to 5 seconds to balance responsiveness and power efficiency. Test both settings with controlled movement at distances of 3m, 5m, and 7m to confirm consistent triggering.
Power consumption spikes when the module triggers, so add a 100µF decoupling capacitor between the 5V and GND lines near the microcontroller’s power input. This stabilizes voltage during transient loads, critical when the board also drives other components like LEDs or relays. If using a 3.3V microcontroller, verify the HC-SR501’s compatibility–most variants tolerate down to 3.6V, but performance may degrade below this threshold.
For extended deployments, replace constant polling in code with hardware interrupts. Set the digital pin to INPUT_PULLUP mode to simplify wiring, but account for inverted logic–motion will pull the pin LOW. Use the following minimal snippet to handle events without blocking execution:
attachInterrupt(digitalPinToInterrupt(2), motionDetected, FALLING);
In the motionDetected function, toggle a flag and timestamp the event for later processing. This approach ensures sub-millisecond response times even during intensive tasks.
Avoid placing the module near heat sources like processors or power regulators, which radiate infrared emissions and can desensitize the detector. Position the Fresnel lens at least 15cm above reflective surfaces (e.g., desks, walls) to prevent stray reflections from triggering false alerts. If deploying outdoors, shield the unit from direct sunlight and use a waterproof enclosure with a moisture-absorbing packet to prevent condensation on the lens.
Connecting Motion Detection Hardware to Microcontrollers
Start by wiring the HC-SR501 module’s output pin to digital pin 2 on the board. This link enables the trigger signal when movement is sensed. Ensure the module’s VCC connects to 5V and GND to the ground rail to avoid false activations caused by voltage instability. A 100µF capacitor between VCC and GND smooths power delivery, reducing noise.
For reliable detection, adjust the sensitivity potentiometer on the module–clockwise increases the range up to 7 meters, while counterclockwise limits it to 3 meters. The delay knob controls how long the output stays high after motion ceases, with a range of 3 seconds to 5 minutes. Set this based on your application: short delays for security, longer for lighting control.
- Use a 1kΩ resistor between the output and input pin to protect the microcontroller from voltage spikes.
- Avoid placing the module near heating vents or direct sunlight, which can trigger false positives.
- If powering from a battery, add an LDO regulator (e.g., AMS1117) for stable 5V output.
Test the setup by uploading a basic sketch that prints “Motion detected” to the serial monitor when pin 2 goes HIGH. If sporadic readings occur, replace the module–cheaper units often fail under low-light conditions. For outdoor use, enclose the assembly in a waterproof case with a Fresnel lens cover to maintain detection accuracy.
The jumper on the module selects between single-trigger and repeat-trigger modes. Single-trigger holds the output high until the delay ends, while repeat-trigger extends the time if motion continues. For most projects, repeat-trigger is preferable, as it prevents brief gaps in detection.
- Verify connections with a multimeter–check for 3.3V at the output pin when idle and 5V during motion.
- Calibrate the module for 1-2 minutes after power-up, allowing its internal components to stabilize.
- For multiple sensors, use a multiplexer like CD4051 to conserve microcontroller pins.
Key Hardware for Motion Detection Integration
Start with the HC-SR501 module–its adjustable sensitivity (3–7 meters) and built-in Fresnel lens make it the most reliable option for detecting infrared fluctuations. Pair it with an ATmega328P-based microcontroller board, preferably the Uno R3 variant, as its 14 digital I/O pins and 5V logic level ensure seamless signal interpretation. Avoid cheaper clones unless they guarantee stable voltage regulation, as inconsistent power delivery skews detection accuracy.
Power Supply and Signal Stability
A 7–12V DC adapter or 9V battery with a linear voltage regulator (LM7805) prevents false triggers caused by voltage spikes. Use a 470μF electrolytic capacitor across the power rails to filter noise, especially when integrating other high-current components. For mobile setups, opt for a 5000mAh Li-Po battery with a 2A fuse to protect against current surges, which often corrupt sensor readings.
The passive infrared element requires a pull-down resistor (10kΩ) on its output pin to eliminate floating states, ensuring the microcontroller’s input pin reads clean HIGH/LOW transitions. Skip breadboards with long wire runs–solder connections on a prototyping shield to minimize interference from ambient electrical noise, a common issue in environments with fluorescent lighting or variable-speed motors.
Include a 5mm red LED with a 220Ω resistor for visual feedback, wired to a dedicated output pin to confirm operational status without taxing the motion detector’s power budget. For extended range projects, consider a dual-element variant (like the AM312) with a 3.3V logic option, but verify compatibility with your microcontroller’s voltage thresholds before substitution.

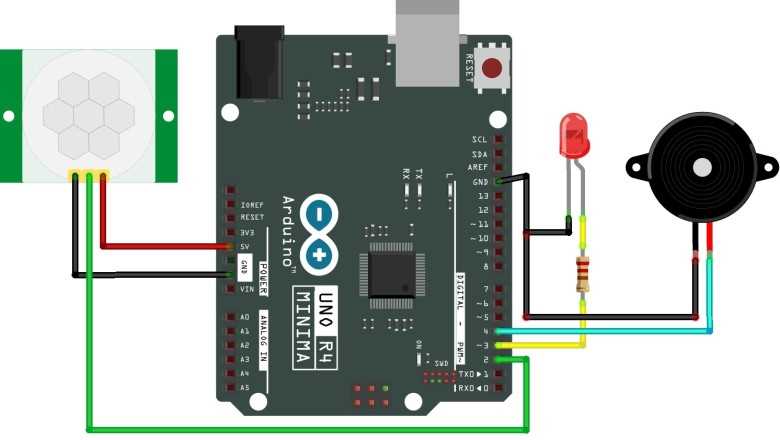

Step-by-Step Wiring Guide Between Motion Detector and Microcontroller Board
Connect the detection module’s VCC pin to the 5V output on the development board using a jumper wire–ensure polarity matches to prevent damage. Ground the module’s GND pin to any available ground pin on the board, ideally adjacent to the VCC connection for stability. The OUT pin should feed into a digital input pin (e.g., D2) on the microcontroller; avoid analog pins unless configuring interrupt-based triggers. Use a 10kΩ resistor as a pull-down on the OUT line if false activations occur in low-light conditions–this stabilizes the signal without additional components like capacitors.
Pin Configuration Reference
| Detection Module Pin | Microcontroller Pin | Notes |
|---|---|---|
| VCC | 5V | Use short wires (<10cm) to minimize voltage drop |
| GND | Any GND | Common ground mandatory for noise reduction |
| OUT | Digital Pin (D2-D13) | Set pinMode to INPUT_PULLUP if internal resistor is preferred |
Position the detector away from direct sunlight or heat sources–these can trigger false positives. If mounting vertically, angle the lens downward to cover the desired detection zone (typically 5-7 meters). Test the setup with a simple sketch monitoring the digital pin’s state (HIGH/LOW) before integrating additional logic or outputs. For battery-powered projects, add a slide switch between VCC and the module to conserve power when inactive.
Optimal Energy Source Setup for Motion Detection Modules
Use a regulated 5V DC supply for stable operation–unregulated voltage risks false triggers or damage. Linear regulators like the LM7805 ensure clean output with minimal ripple, critical for sensitive infrared detection components. A 9V battery with a step-down converter works as a portable solution, but expect shorter runtime due to higher current draw during active states (typically 50-60mA). For extended deployment, switch to a 5V wall adapter rated at 1A or higher to handle peak loads.
Decoupling capacitors near the module’s power pins filter noise:
- Place a 10µF electrolytic capacitor in parallel with the input.
- Add a 0.1µF ceramic capacitor directly between the VCC and GND pins.
- Keep leads under 5mm to minimize inductance.
Avoid shared power rails with inductive loads (motors, relays) to prevent voltage spikes that disrupt detection accuracy.
Low-Power Alternatives
For battery-powered applications, enable sleep modes between detections. Many motion-tracking boards draw less than 50µA in standby, but verify specs–some clones exceed 200µA. Use a 3.3V LiPo cell with an MCP1700 LDO for ultra-low quiescent current (1.6µA). Calculate runtime: a 2000mAh battery lasts approximately 1.5 years at 50µA consumption, factoring in temperature-induced self-discharge.
Test power integrity with an oscilloscope–ripple should stay below 100mVpp. If voltage sags during operation, upgrade to a switch-mode regulator (e.g., LM2596) with 90% efficiency. For outdoor setups, add a transient voltage suppressor diode (P6KE6.8CA) to clamp surges from electrostatic discharge. Never exceed 6V input: most detection modules lack over-voltage protection and fail catastrophically.
Verify ground plane continuity–star topology prevents ground loops. For multi-module systems, isolate analog and digital grounds, connecting them only at the power source. Use AWG 22 or thicker wires for power delivery; thinner wires introduce resistive losses, causing voltage drops under load. Store unused boards with GPIO pins disconnected to prevent parasitic drain from onboard LEDs.
