Complete 1994 EZGO Medalist Golf Cart Wiring Diagram Guide

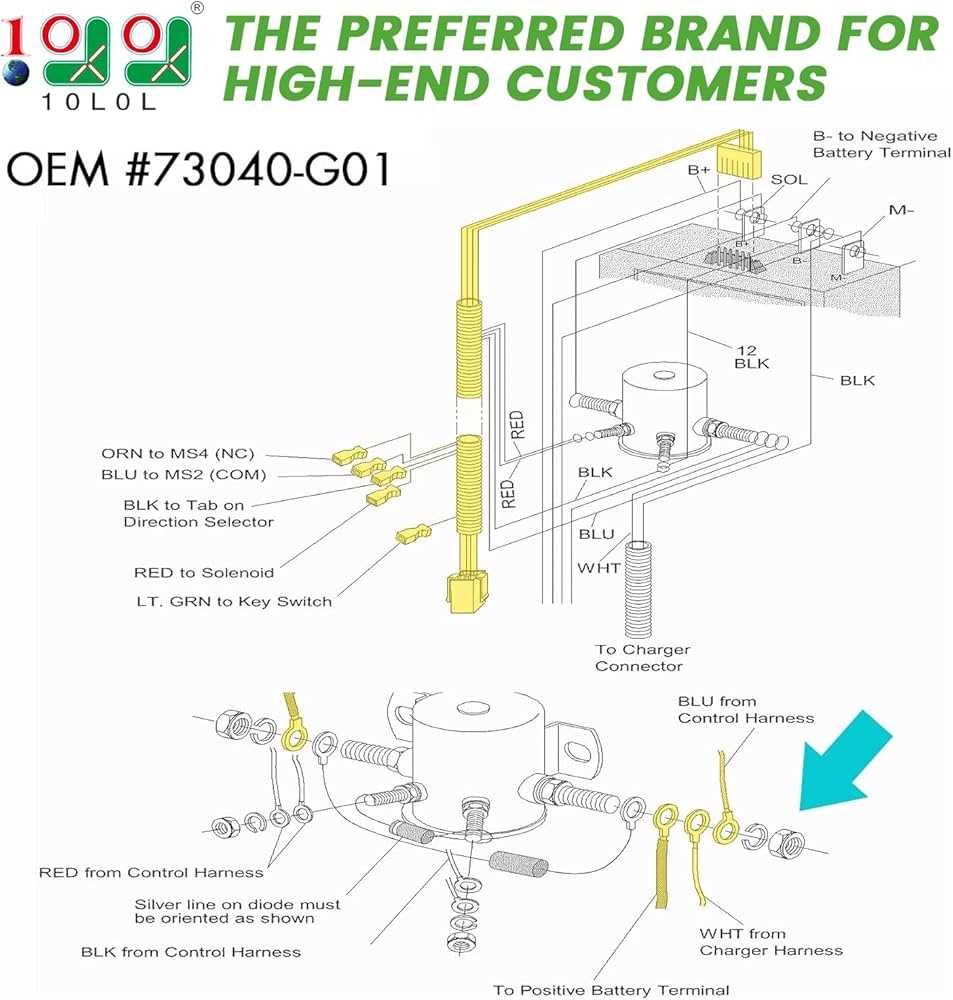

Locate the main solenoid adjacent to the battery pack near the rear axle–it should be clearly labeled with terminal markings S, M, B+ and B-. Disconnect the negative battery cable first to prevent short circuits before testing voltage at each terminal with a multimeter. Readings between 36V–48V at B+ confirm proper charging circuit functionality; anything below 32V indicates a failed voltage regulator or corroded connections.

Trace the red (positive) and black (ground) wires from the controller to the motor, ensuring continuity using the resistance setting on your multimeter. A healthy circuit measures less than 1 ohm; resistance above 5 ohms suggests a broken wire or faulty solder joint in the speed sensor connector. The forward/reverse switch operates through microswitches–test by engaging each direction while monitoring voltage at the controller’s input pins (F, R, B, A).

Inspect the throttle potentiometer’s wiring harness: the purple, green, and black wires should register a smooth voltage transition from 0V–5V as the pedal travels. Erratic readings typically mean a worn potentiometer or damaged contact plate. Check the key switch by verifying that 12V appears at the ignition terminal when turned on–anything below 11V signals a weak battery or poor ground.

Replace any 20-amp fuse in the accessory circuit if it blows repeatedly; this often points to a shorted light socket or defective horn relay. The brake light switch uses a white wire that should toggle from open (infinite resistance) to closed (near 0 ohms) when the pedal is pressed–adjust the switch alignment if readings remain static. Secure all ground points with stainless steel bolts and dielectric grease to prevent oxidation buildup, which degrades performance over time.

For vehicles experiencing intermittent power loss, focus on the run/tow switch: the yellow wire should maintain constant 48V in run mode and 0V in tow. A flickering reading here indicates a failing switch needing immediate replacement. When reassembling, route all wires away from moving suspension components and heat sources like the exhaust manifold to avoid insulation melt.

Electrical Schematic Walkthrough for Early 90s Golf Cart Models

Locate the main solenoid first–it sits adjacent to the battery pack on the passenger side frame rail. The black cable from the solenoid’s large terminal connects directly to the negative post of the primary power source, while the red cable feeds into the controller input. Verify this polarity before proceeding; reversed connections will disable rapid discharge protection and risk overheating the motor. Trace the red wire from the solenoid to the ignition switch–the 5/16-inch ring terminal should be secured under the switch’s lower mounting bolt. If corrosion is present, replace the terminal and apply dielectric grease to prevent future oxidation.

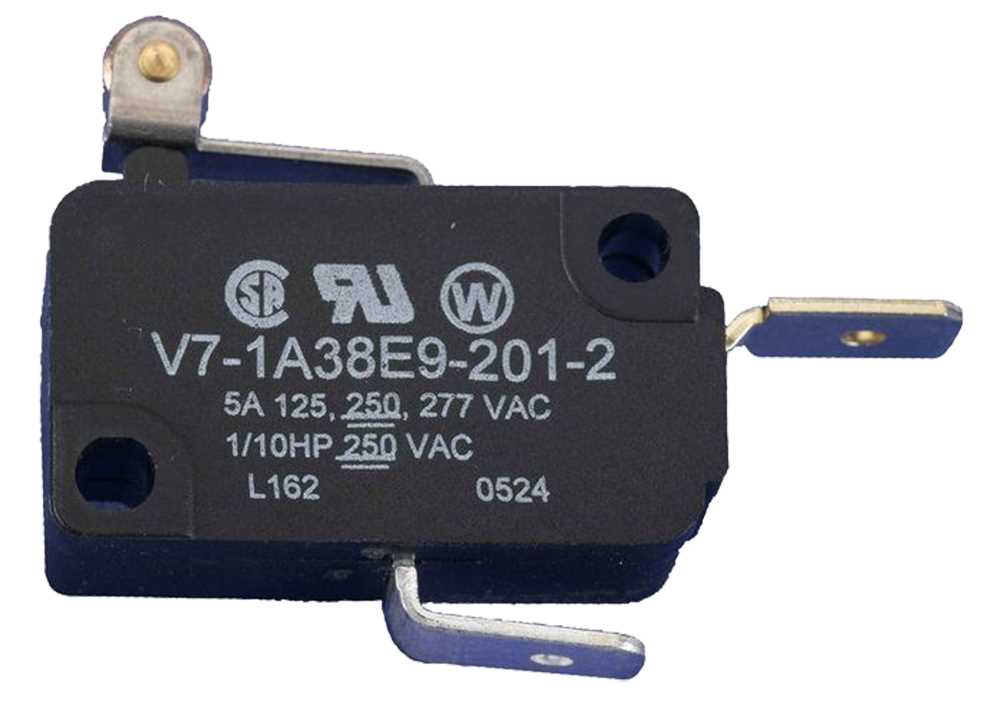

Check the micro-switch beneath the accelerator pedal. The normally open contacts should close when the pedal reaches 20% travel, sending 36 volts to the controller via the purple wire. A faulty switch often causes intermittent power loss; use a multimeter to confirm continuity at full depression. If readings fluctuate, adjust the pedal linkage by loosening the 10mm locknut and turning the threaded rod clockwise until the switch activates reliably. Tighten the locknut and re-test with the cart raised on jack stands.

Battery-to-Controller Path Isolation

Inspect the heavy-gauge orange wire linking the positive battery terminal to the controller. This single conductor carries the full load current; any fraying or discoloration requires immediate replacement with 4 AWG marine-grade wire. Measure voltage drop across the wire with the motor under load–acceptable values should not exceed 0.3 volts. Higher readings indicate internal corrosion; strip back insulation in 3-inch increments to identify the compromised segment. Solder and heat-shrink all splices, then secure the wire with nylon ties every 8 inches to prevent chafing against the frame.

Test the diode mounted on the rear fender near the state of charge meter. It prevents voltage spikes from damaging the meter during regenerative braking. With the key off, probe the anode (white band) and cathode with a diode check setting on the multimeter–forward bias should read approximately 0.6 volts, reverse bias should show open circuit. If readings differ, desolder the component using a 60-watt iron, and replace it with a 1N4007 axial diode. Clean the mounting surface with isopropyl alcohol before reattaching to ensure proper thermal transfer.

Finding Key Electrical Links in a 1994-Class EZGO Golf Cart

Begin by removing the seat base to expose the main power bundle. This cluster sits directly above the rear axle, secured by a black plastic cover held with two 10mm bolts. Once uncovered, you’ll see three primary connectors: a 12-pin rectangular plug (red, for motor control), a 6-pin round plug (blue, linking the speed sensor), and a 2-pin spade terminal (white, supplying battery voltage). Label each before disconnecting–mismatched reconnection can trigger error codes or fuse blows.

Tracing the Motor and Controller Branch

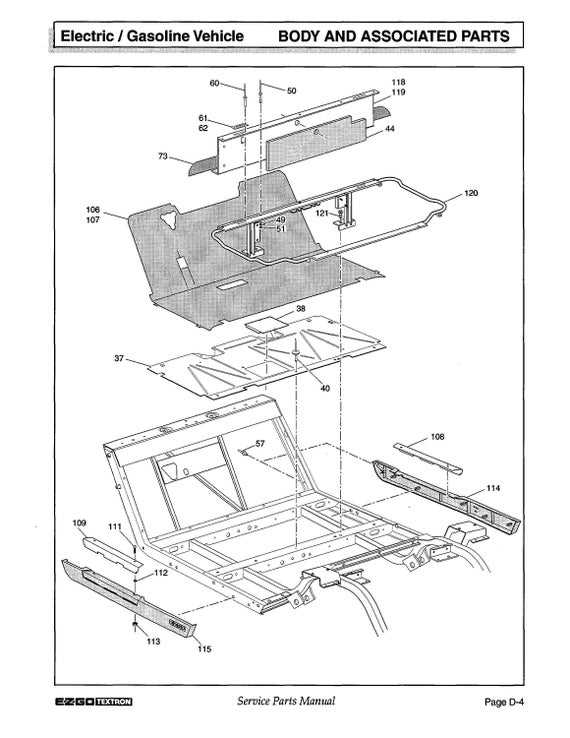

The red 12-pin harness splits into two directions: four wires (yellow/black stripe) run straight to the motor solenoid, while the remaining eight feed the controller beneath the passenger floorboard. Peel back the rubber mat to locate the controller–it’s a silver box with cooling fins. Two screws hold it in place; removing them reveals six small spade inputs–match these to the corresponding harness wires using a multimeter: test for 36 volts on the large terminal pair and signal continuity on the smaller ones.

If corrosion is present–common on carts stored outdoors–clean each terminal with a wire brush and dielectric grease. Replace any cracked insulation immediately; a single chafed wire can disable acceleration or reverse functions without warning.

Step-by-Step Troubleshooting of Common Electrical Issues Using the Schematic

Start by isolating the faulty circuit. Disconnect the battery terminals to prevent accidental shorts, then locate the fuse panel–typically near the controller or under the seat. Check each fuse with a multimeter: a reading of 0 ohms confirms continuity, while infinite resistance indicates a blown fuse. Replace defective fuses with the exact amperage rating, never improvising with higher values.

Examine the solenoid next. Its two large terminals should show voltage when the ignition key is turned; if not, the solenoid may be faulty. Use a voltmeter to test for 36 volts (or the system’s nominal voltage) across these terminals. If voltage is present but the vehicle doesn’t engage, the solenoid’s internal contacts are likely burned and require replacement. Test the small control terminals for signal voltage–absence here points to a faulty ignition switch or wiring break.

Common symptoms and their likely causes:

• No power at all: Check battery connections first–corrosion or loose terminals disrupt current flow. Clean posts with a wire brush and tighten clamps securely. If voltage is present at the battery but absent at the key switch, inspect the main cable harness for breaks or pinched wires.
• Intermittent operation: Wiggle-test each connection while monitoring voltage. A fluctuating reading reveals a loose, corroded, or partially broken joint. Disassemble, clean, and resolder or crimp replacements for any suspect connectors.
• Weak or sluggish performance: Load-test the battery with a carbon pile tester. A healthy 36V system should maintain above 34V under load. If voltage sags excessively, the battery bank is sulfated or failing–replace individual cells or the entire pack as needed.

Inspect the controller if the vehicle starts but lacks speed control. Probe the field and armature terminals: full voltage at the armature with none at the field suggests a failed controller. Conversely, if the field shows full voltage but the armature has none, the problem lies upstream–likely the throttle potentiometer or related circuitry. Test the throttle’s resistance through its sweep; readings outside 0–5K ohms indicate a defective unit.

Trace the light circuit for low-beam failures. Begin at the light switch, verifying input and output with a test light. Follow the circuit path through the dash and down the steering column, checking each splice and bulb socket. Corroded bulb sockets are a frequent culprit–clean contacts with electrical cleaner and replace any visibly damaged sockets. For LED conversions, ensure the driver board is compatible with the system’s voltage; underspec’d units will flicker or fail prematurely.

Advanced Diagnostics: Signal Path Verification

When basic checks fail, map the signal path using the schematic. Identify every component in the affected circuit–relays, resistors, diodes–and test them individually. A diode should pass current in one direction only; reversal indicates failure. For relays, energize the coil terminal (usually 12V) and verify switch closure at the high-current terminals. Record readings at each step; discrepancies pinpoint the exact failure point without guesswork.

Finalize repairs by re-seating all connectors. Apply dielectric grease to connections exposed to moisture, particularly in wheel wells and undercarriage areas. Reconnect the battery last, observing polarity strictly. After reassembly, perform a functional test under load–drive the vehicle while monitoring voltage at key points to confirm resolution. Document any deviations from expected readings for future reference.
