Complete Electrical Wiring Schematic for 1997 Dodge Ram 2500 Truck Models
Start by locating the main fuse block under the driver’s side dashboard–this is your primary access point for most harness connections. The central computer module (PCM) receives power through a red/light blue wire (circuit #30) routed from the underhood junction box, fused at 10A. Verify this feed before troubleshooting sensors or injectors; a missing voltage here disables fuel delivery entirely.
The instrument cluster relies on three key wires: the pink/black (ignition-switched power), dark blue (tachometer signal from the ECM), and light green/orange (fuel gauge sender input). Corrosion at the sender unit connector–common near the fuel tank–can mimic gauge failures. Measure resistance across the sender terminals (should read 0–90 ohms at empty, 13–16 ohms at full) to confirm continuity.
For the automatic transmission, trace the tan/yellow wire from the neutral safety switch to the starter relay. A broken or shorted connection here prevents cranking, even with a functional ignition circuit. The switch itself, mounted on the left frame rail near the transmission, often collects road grime; clean the housing and reseat the connector with dielectric grease.
Headlight circuits use separate fuses for high and low beams (left: circuit #24, 15A; right: circuit #25, 15A). If one fails, inspect the multi-function switch stalk–replace if the clicked resistance feels inconsistent. Taillights share ground through a single black wire (G100) at the driver-side rear lamp assembly; a poor ground here causes intermittent operation. Crimp a new ring terminal directly to the chassis if corrosion is visible.
Power window and mirror circuits involve thinner wires (18–20 AWG) prone to chafing near the door hinges. The master window switch (passenger door) sends commands via a gray/black wire; test for 12V when holding the switch down. If windows operate slowly, check the ground strap between the door and pillar–replace with braided copper if frayed.
Electrical Blueprint Guide for Heavy-Duty Pickup (Third-Gen Model)

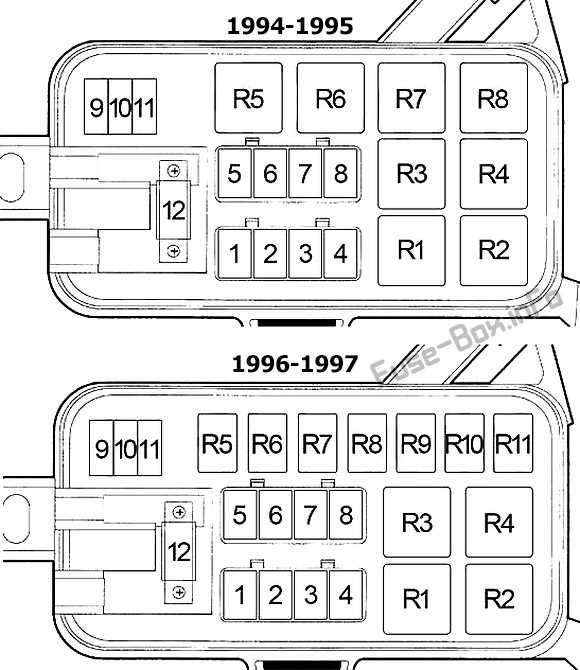

Locate the main fuse block under the driver’s side dashboard–it houses relays and fuses for the engine control module, lighting, and accessory circuits. Label each fuse with its amperage and function using a permanent marker before disconnecting the battery. The under-hood fuse box supplements this with high-current relays for the starter, alternator, and cooling fans.
Trace the battery cables from the positive terminal to the solenoid, then to the starter motor. The negative cable grounds to the engine block and chassis–clean these contact points to prevent voltage drops. For the 5.9L engine variant, note the separate ignition coil packs wiring; each connects via an 8-pin harness to the powertrain control module.
Key Harness Connections
- Instrument cluster: 24-pin connector (white/green wires for gauges, yellow for warning lights).
- Headlight circuit: Dual filament bulbs use a 3-wire system (low beam: yellow/black; high beam: yellow/red; ground: black).
- Trailer wiring: 7-way plug requires a dedicated relay for brake controllers–verify pin assignments against SAE J560 standards.
For aftermarket stereo installations, intercept the factory harness behind the radio slot. The original harness carries switched 12V (purple/white wire), ground (black), and speaker leads (front left: gray; rear right: dark blue). Avoid splicing into the dimmer circuit (orange wire)–it controls dash illumination.
- Disconnect the battery before probing circuits.
- Use a multimeter to test continuity on wires exposed to heat sources (e.g., near exhaust manifolds).
- Replace worn connectors with gold-plated terminals to prevent corrosion.
- Secure loose wiring bundles with nylon zip ties–avoid metal clamps near moving parts.
Check the transmission control module wiring if experiencing erratic shifting. The 47RE automatic uses a 10-pin connector with solenoids controlled via pink/black (shift), tan/black (torque converter), and gray/black (pressure) wires. Manual transmissions omit this module but include a reverse light switch (gray/red wire).
Refer to the factory service manual’s pinout diagrams for ABS and airbag systems. These subsystems have dedicated harnesses with proprietary connectors; never bypass or modify them without OEM guidance. For diesel engines, the injection pump wiring includes a 6-pin connector with wires coded for timing (blue), fuel solenoid (red), and sensor feed (violet).
Locating the Primary Electrical Bundle Junctions Under the Hood
Begin by removing the engine cover if present–most heavy-duty models cluster the bulk of connectors near the firewall or along the driver-side fenderwell. Trace the largest harness trunk from the battery; it splits into two branches: one feeding the alternator and another terminating at the power distribution box beneath a black plastic cover. Use a flashlight to inspect the firewall’s backside–three prominent junctions (each secured by snap-lock tabs) handle the starter, ignition coil, and sensor feeds.
Key Connection Clusters
- Fusebox adjacent bundles: Two 12-pin connectors (tan and gray) route to ECM and transmission module–disconnect only if testing continuity.
- Driver-side wheelwell: A cylindrical plug (rounded, 6 ports) interfaces with ABS and fuel pump circuits. Avoid yanking; depress the center tab before separation.
- Intake manifold: A 4-wire harness (brown/tan) links MAP sensor and throttle body–inspect for chafing where it passes over the valve cover.
Mark each connector with painter’s tape before detachment. Record wire colors–ground straps (bare/black) and voltage leads (yellow/red) follow consistent paths. For intermittent faults, probe terminals with a multimeter while wiggling harness sections near bends or sharp edges where insulation fails.
Tracing the Instrument Panel Circuit Layout for Meters and Indicators
Begin by locating the vehicle’s fuse block beneath the dashboard to identify the gauge cluster power feed. Pin 18 on the brown 22-pin connector delivers constant 12V from fuse 16, a 10-amp circuit critical for illumination and warning signals. Use a multimeter set to DC voltage to verify continuity–probe the fuse terminal while grounding the test lead to the chassis to confirm active supply.
The tachometer and speedometer share ground through pin 1 of the same connector, a black wire terminating at the chassis grounding stud near the steering column. If gauges fail simultaneously, inspect this connection first; corrosion or loose mounting can disrupt all analog readings. Clean the stud with a wire brush and apply dielectric grease to prevent oxidation.
Engine sensors–coolant temperature, oil pressure, and fuel level–relay data via distinct wires: pink (temperature sender), purple (oil pressure switch), and gray (fuel tank sender), respectively. Each wire enters the cluster at pins 7, 8, and 9. Disconnect sensors one at a time while monitoring gauge behavior to isolate faulty components. A dead sender or shorted wire causes needle pegging or erratic movement.
Bulb replacement for turn signals and high-beam indicators requires removing the cluster bezel. Four 194 bulbs (T10 wedge base) sit behind translucent lenses–two for left/right flashes, one for high beams, and one for the check engine light. Rotate bulbs counterclockwise to release; excessive force can crack plastic sockets. Test new bulbs with a 9V battery before installation to avoid repeat failures.
Speed Sensor Calibration Loop
The vehicle speed sensor (VSS) transmits pulses via a tan wire to pin 12 of the cluster, converting magnetic reluctor signals into mile-per-hour readings. Malfunctioning VSS causes speedometer dropout or lag. Bypass the cluster by probing the tan wire at the PCM connector–the ECM should register 5–15 mV pulses at 30 mph. No signal? Replace the sensor or check transmission wiring for fraying near the output shaft.
Voltage Stabilizer Inspection
A dedicated voltage stabilizer module regulates gauge power, preventing needle flutter under alternator load spikes. This component, mounted behind the left-side kick panel, converts fluctuating input to steady 5V for meters. Symptoms include flickering dash lights or erratic fuel gauge swings. Replace the stabilizer if output deviates beyond 5.2V; a simple solder-in unit resolves most issues without recalibration.
For digital odometer retention, pin 6 (yellow/white stripe) carries memory power–interrupting this wire resets trip meters. During battery disconnection, use a secondary 9V backup between pin 6 and ground to preserve data. Failure to do so triggers a “Error” display on the odometer, requiring dealer reset tools for clearance.
Locating the Powertrain Brain Interface Connector Layout and Conductor Hues
Begin by tracing the 60-pin bulkhead connector on the vehicle’s computer module–pin numbering follows a left-to-right, top-to-bottom sequence with odd numbers (1–59) on the top row and even numbers (2–60) below. Critical signal circuits include the 5V reference (pin 3, light blue/black stripe), sensor ground (pin 14, black/light blue), and ignition feed (pin 17, red/dark green). For diagnostic verification, cross-reference voltage readings: pins 24 and 47 (both dark blue/white) must register 12V ignition-on, while pins 5, 31, and 53 (tan/black, gray/red, and gray respectively) should hold 5V with key in RUN. Verify continuity between the module and chassis grounds (pins 16, 32, 48–black wires with colored tracers) using a multimeter; resistance should not exceed 0.2 ohms.
Common Signal Pinout Reference
| Pin | Function | Wire Color | Expected Voltage (Key ON) |
|---|---|---|---|
| 3 | 5V Reference | Light Blue/Black | 4.8–5.2V |
| 9 | Throttle Position Sensor Signal | Dark Green/White | 0.5–4.5V (varies with pedal) |
| 18 | Injector #1 Control | Yellow/Dark Blue | 12V pulsed |
| 22 | Manifold Absolute Pressure Sensor | White/Dark Blue | 0.5–4.5V (barometric at KOEO) |
| 35 | Camshaft Position Sensor Signal | Brown/Yellow | 0–5V AC (sinusoidal) |
| 45 | O2 Sensor Heater Ground | Black/Tan | 0V |
Isolate faults by back-probing connector C2 (gray 60-pin) while monitoring live data with a scan tool–discrepancies between commanded and actual values on pins 35 or 57 (crank/cam signals) typically indicate sensor or wiring faults, not module failure. For harness integrity checks, disconnect both ends of the circuit and verify no shorts to power or ground; resistance between any two non-connected pins should exceed 10k ohms.
