Locate the ignition switch terminal labeled “B+” on the vehicle’s harness–this is your primary power feed. Trace the red wire with a white stripe (18 AWG) from this point to the solenoid coil, ensuring no corrosion exists at the connector. If resistance exceeds 0.5 ohms, replace the wire or clean the terminal with a brass brush and dielectric grease to prevent voltage drops under load.

Inspect the microswitch beneath the accelerator pedal. Its two-prong connector should show continuity only when fully depressed; a faulty switch will cause intermittent stalling. Bypass testing is unreliable–use a multimeter set to diode mode for accurate diagnosis. Replace the switch if readings fluctuate above 0.3V during engagement.

The fuel pump relay, situated behind the dashboard near the fuse block, requires a steady 12.6V input at pin 86. Verify this with a no-load test–probe the harness side of the connector while the key is in the “ON” position. If voltage is absent, check the inline 10A fuse (third slot from the left) for oxidation. Replace it with an identical ceramic fuse rated at 125V, never a lower-rated alternative.

For the reverse warning buzzer circuit, confirm the brown wire from the directional lever terminates at a 220-ohm resistor before reaching the buzzer. Absence of this resistor leads to premature buzzer failure. Solder a replacement resistor directly to the buzzer’s terminals if original mounting points are damaged.

When troubleshooting the headlight circuit, focus on the dimmer switch’s blue-and-yellow wire–this carries the high-beam signal. A weak bulb often indicates a faulty switch rather than a bulb itself. Remove the switch housing and test for proper contact with a feeler gauge (0.015″ clearance required). Lubricate the switch mechanism with silicone spray if engagement feels stiff.

Always disconnect the battery’s negative terminal before probing circuits to avoid shorting the main harness. Use a heat-shrink butt connector for splices, never electrical tape–moisture intrusion will cause intermittent faults within 18 months. Store schematics on acid-free paper to prevent ink fading, as most printing methods degrade under UV exposure.

Electrical Schematic Reference for 1997 Model EZGO TXT Fuel-Powered Vehicles

Locate the ignition switch wire harness connector near the steering column. The violet wire carries 12V from the solenoid to the key switch–verify continuity with a multimeter before proceeding. A break here causes intermittent starting failures, often mistaken for battery issues.

Trace the red wire from the battery positive terminal to the main fuse block. The 30-amp fuse protects the entire electrical system–replace blown fuses with exact amperage, never higher. Corrosion on the fuse contacts mimics a dead battery; clean terminals with electrical contact cleaner and fine-grit sandpaper.

Component	Wire Color	Function	Voltage (Engine Off)
Ignition Coil	Black/Yellow Stripe	Primary Circuit	0V
Voltage Regulator	White	Excitation Input	12.6V
Starter Solenoid	Orange	Battery Feed	12.2-12.8V

Check the kill switch circuit if the engine stalls unexpectedly. The black/white wire grounds the ignition coil through the switch–test for continuity between the switch and coil. A faulty switch leaves the engine primed but unable to spark, resembling a flooded carburetor.

Common Fault Points and Repairs

Inspect the neutral safety switch on the transmission. The tan wire must show continuity to ground in neutral–adjust the switch plate if voltage leaks in gear. Misalignment causes starting attempts with grinding noises, often misdiagnosed as starter failure.

Examine the brake light circuit if rear lights fail or blink rapidly. The brown wire feeds both lights through a single filament bulb–replace bulbs with dual-filament units if only one light functions. Corroded bulb sockets mimic wiring faults; remove corrosion with a wire brush.

Test the horn relay if the horn sounds weak or fails. The gray wire carries power to the relay coil–apply 12V directly to the coil wire to bypass the relay. A faulty relay clicks without engaging the horn, often overlooked in favor of replacing the horn itself.

Replace the entire wire harness if multiple circuits fail intermittently. Rodent damage, shown by chewed insulation on the yellow and green wires beneath the seat, requires complete harness replacement–patch repairs fail within months. Use dielectric grease on connector pins during reassembly to prevent future corrosion.

Identifying Critical Parts in the Vintage Cart Electrical Layout

Begin with the solenoid–mounted near the battery tray or along the engine shroud. Look for a cylindrical unit with two large terminals and two smaller ones; these connect to starter cables and ignition circuitry. Label each terminal before disassembly to avoid confusion during reassembly or troubleshooting.

Trace the main harness from the solenoid to the ignition switch. The switch, typically positioned behind the dashboard, has six contacts: “B” for battery, “M” for motor, “S” for solenoid, and three accessory outputs. Use a multimeter to confirm continuity between “B” and “S” when the key turns to “On”–readings should drop below 0.5 ohms.

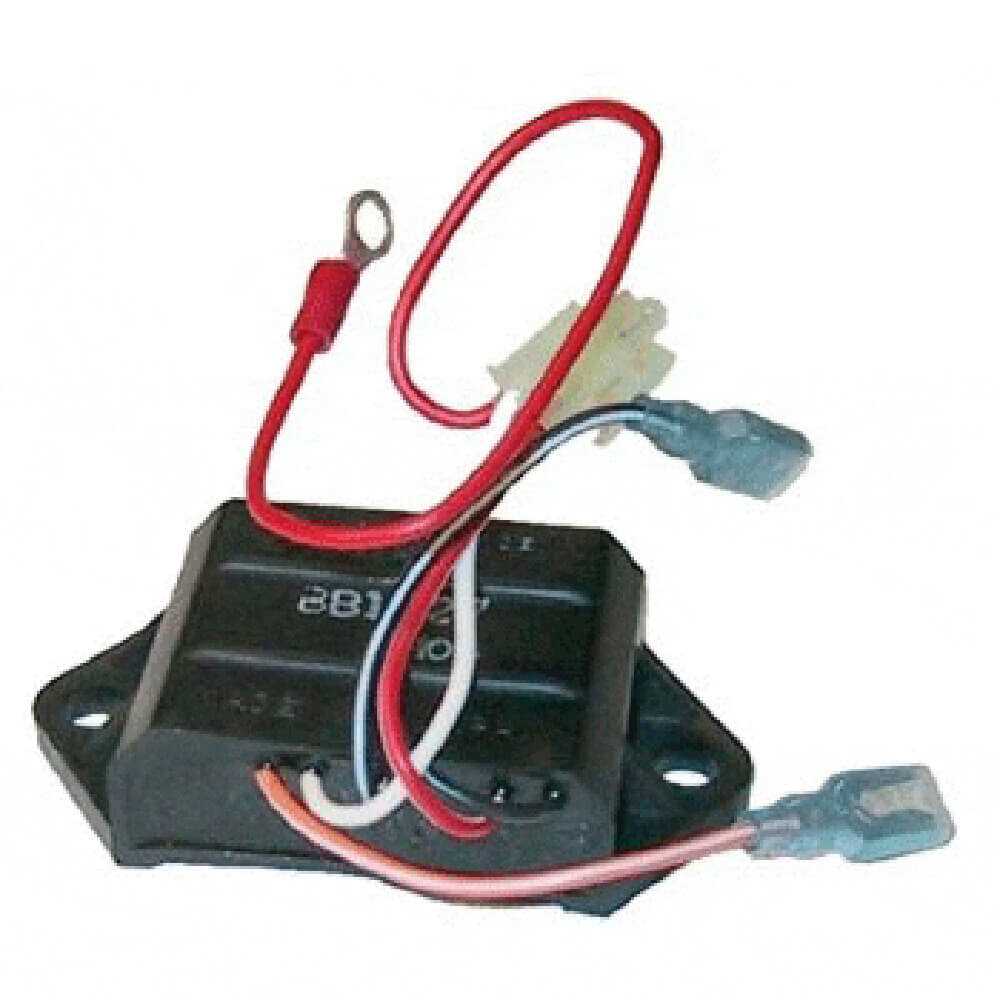

The voltage regulator attaches to the engine compartment’s firewall or side panel, identifiable by its aluminum heat sink and three wires (field, battery, ground). Check color-coding: red for field, white/red stripe for battery, and black for ground. Voltage at the battery terminal should stabilize between 13.8–14.5V under load.

Locate the ignition coil underneath the seat or near the engine block. It has two spade terminals–one from the ignition switch, the other to the spark plug wire. Resistance across the coil’s primary circuit should measure 0.5–1.5 ohms; secondary circuit values range 5,000–25,000 ohms. Deviations indicate coil failure.

Examine fuse block connections beside the battery. Cart models from this era use blade-style fuses (10–30A). Verify amperage ratings against manufacturer specs: ignition circuits typically take 15A, lighting 10A. Corroded fuse holders or melted insulation on wiring suggest overheating–replace both fuse and affected wire segments with equivalent gauge copper strands.

Step-by-Step Ignition Circuit Hookup for Utility Vehicles

Disconnect the battery’s negative terminal before handling any electrical components to prevent shorts or accidental engine starts. Locate the ignition coil near the engine block–identify the positive (+) terminal (typically marked with a red wire) and the negative (-) terminal (black or dark-colored wire). Attach the main power lead from the ignition switch to the coil’s positive terminal using a 14-gauge crimped connector, ensuring a secure fit with heat-shrink tubing to prevent corrosion. Run a secondary wire from the coil’s negative terminal to the engine’s grounding point, verifying the surface is clean and free of paint or debris for optimal conductivity.

• Trace the solenoid’s thick starter cable from the battery’s positive terminal, connecting it to the solenoid’s input post–use a 10-gauge wire for minimal resistance. Attach the solenoid’s output post to the starter motor’s terminal using the same gauge to handle high current draw.
• Verify the kill switch circuit by connecting a 16-gauge wire from the ignition switch’s accessory terminal to the kill switch, then back to the coil’s negative terminal–ensure the switch interrupts the circuit when engaged.
• Check resistance values: coil primary circuit should read 0.4–1.0 ohms; secondary circuit (spark plug wire) must range between 5,000–15,000 ohms. Replace any components outside these specifications to avoid misfiring or power loss.
• Reconnect the battery last, then test the system with a multimeter: ignition switch in “ON” position should show 12V at the coil’s positive terminal. Crank the engine briefly while monitoring voltage drop–values below 9.6V indicate battery or starter wear.

Troubleshooting Common Issues

No spark? Confirm the coil’s ground connection first–corrosion here mimics a failed coil. Replace the ignition module if the primary circuit tests normal but secondary resistance exceeds 20,000 ohms. Hard starting often traces to a weakened solenoid–measure voltage at the starter during cranking; if below 9V, replace the solenoid or clean its contacts with 220-grit sandpaper. Intermittent firing may stem from frayed spark plug wires–inspect boots for cracks and use dielectric grease when reinstalling.

1. Inspect all connectors for oxidation–clean with electrical contact cleaner and apply terminal protectant.
2. Bypass the kill switch temporarily to isolate whether it’s the source of ignition failure.
3. Swap the spark plug with a known-good unit (NGK BPMR7A) to rule out plug fouling.
4. For backfiring, check timing marks–align the flywheel’s “T” mark with the crankshaft sensor if adjustable.

Troubleshooting Common Electrical Issues Using the Schematic

Start by verifying the battery voltage with a multimeter at the solenoid terminals–reading below 11.5V signals sulfation or a failing charger. Trace the main positive cable from the battery to the key switch; corrosion at the terminal connections (visible as white or green deposits) disrupts current flow, causing intermittent power loss. Clean terminals with a wire brush and apply dielectric grease to prevent recurrence. Check the fuse inline with the seat switch: a blown fuse often points to a short in the accessory circuit, particularly if rear lights or accessories fail simultaneously.

• Inspect the accelerator microswitch–if the cart stalls at full throttle, test continuity with the pedal fully depressed. No continuity? Replace the switch.
• Examine the solenoid’s click when engaging the key: a silent solenoid indicates a faulty coil or low voltage; replace if resistance exceeds 0.5 ohms.
• For headlight failures, probe the voltage regulator output; voltages below 13.8V suggest regulator degradation, leading to dim or flickering lights.
• Ground issues manifest as erratic behavior–secure all ground wires to the frame, ensuring no paint or rust isolates the connection.

Advanced Checks for Persistent Problems

Use the color-coded lines in the schematic to isolate faults: red/black wires carry ignition current, while orange wires feed accessories. If the engine cranks but stalls, focus on the fuel pump relay–test for 12V at the relay coil terminal when the key is turned. A missing voltage signal confirms a bad relay or broken wire. For no-start conditions despite cranking, remove the spark plug and check for spark: no spark? Test the ignition module by swapping it with a known-good unit.

1. Test the voltage drop across the main power cables–any drop over 0.5V indicates excessive resistance from frayed or undersized wires.
2. For intermittent electrical gremlins, wiggle wires near connectors while monitoring voltage; a fluctuating reading pinpoints a loose or corroded pin.
3. Check the brake light switch continuity–if lights stay on or fail entirely, adjust the switch plunger or replace it.
4. Inspect the DC converter if accessories lose power under load; convertor failures often mimic battery issues but are diagnosed by testing output voltage.
