Complete Electrical Wiring Diagram Guide for 1997 Ford F150 Models
Start repairs by locating the main power distribution box under the dashboard on the driver’s side–this contains critical fuses and relays controlling engine, lighting, and auxiliary systems. Reference pin assignments C138 (22-pin gray connector) for ignition, starter solenoid, and fuel pump circuits; miswiring here causes no-start conditions. Check fuse #14 (20A) for turn signals and hazard lights, as corrosion at the bulkhead connector often disrupts these circuits.
Trace the instrument cluster harness using the white/orange wire (pin 30 on connector C212) for tachometer signals; voltage drops below 9V indicate faulty alternator diodes or a degraded pigtail ground near the brake booster. For trailer wiring, verify the brown/yellow circuit (pin 9 on the 7-way socket) carries 12V from the auxiliary relay box–intermittent trailer lights often stem from melted terminals at the rear junction block.
Inspect the anti-lock brake module via connector C129 (42-pin black) before replacing sensors; the light green/red wire (pin 18) should toggle between 0-5V during wheel rotation. For 4×4 models, test the transfer case motor using the dark blue/white wire (pin 1 on C122) under 10Ω resistance to confirm actuator functionality. Replace the blower motor resistor if voltage at pin 2 (black/light blue) drops below 11.8V under load.
Diagnose parasitic drains by disconnecting the battery feed to the generic electronic module (GEM) at connector C201 (60-pin white)–current draw exceeding 50mA indicates a stuck relay or corroded ignition feed at fuse #18 (15A). For aftermarket stereo installs, reroute the memory keep-alive circuit (yellow wire) directly to the battery terminal rather than the fuse panel to prevent voltage sag during cranking.
Electrical Schematic for Your 1996 Half-Ton Pickup: Hands-On Solutions
Start by locating the under-dash fuse box–labeled as “Power Distribution” on the cover–where color-coded leads for critical systems converge. Pinpoint the orange/light blue (O/LB) wire feeding the ignition coil; this strand routes voltage directly to the powertrain control module. If resistance exceeds 0.5 ohms between the coil connector and the PCM, splice in a 16-gauge copper jumper to restore the circuit.
Common Circuit Failures & Quick Fixes
| Symptom | Faulty Strand | Corrective Action | Tool Required |
|---|---|---|---|
| No-start, no crank | Yellow/black (Y/BK) to starter relay | Bridge relay socket terminals 85-86 with 10A jumper | Multimeter, 18AWG jumper |
| Blower motor dead at high speeds | Dark green/white (DG/W) to blower resistor | Replace resistor or bypass with inline 30A fuse | Soldering iron, crimp connectors |
| Parking lamps flicker | Brown (BN) at headlamp switch | Clean switch contacts or run parallel 14AWG wire | Contact cleaner, wire strippers |
Trace the brown/orange (BN/O) wire from the alternator’s voltage regulator to the instrument cluster; intermittent spikes here indicate failing diode trio. Solder a 1N4007 diode inline–cathode toward the regulator–to suppress transients. Verify charging voltage stabilizes at 13.8-14.4V at 2000 RPM; anything below signals an internal stator short requiring rewinding or replacement.
Swap the 20A fuse labeled “MIRROR” for a blade-style circuit breaker when wiring electric mirrors; repeated fuse failure suggests chafing at the door hinge grommet. Route a new 18-gauge vinyl-insulated lead through a nylon loom to prevent rubbing, securing it with automotive-grade zip ties every 15 cm. Test mirror movement through full range before finalizing the splice–erratic operation points to a faulty switch rather than wire damage.
Finding the Right Electrical Blueprint for Your 1997-Model Pickup Variant
Start by identifying your truck’s exact build configuration. The manufacturer offered multiple trim levels–XL, XLT, Lariat, and Lightning–each with unique electrical layouts. A base XL model lacks features like power windows or fog lamps, while a Lightning includes specialized aftermarket upgrades. Check the door jamb sticker or glove compartment manual for the original build sheet; the ninth character of the VIN reveals the trim code, critical for matching the correct schematic.
Third-party publishers like Mitchell1 and Chilton provide trim-specific guides, but their accuracy varies. Factory service manuals from Helm Incorporated remain the most reliable source, breaking down circuits by system (ignition, lighting, accessories) with color-coded wires and pinouts for the 4.6L, 5.4L, and diesel powertrains. Avoid generic diagrams; a Lariat’s keyless entry wiring differs from an XL’s basic harness.
Key areas prone to errors:
- Rear window defroster grids (often omitted in aftermarket books)
- Trailer brake controller circuits (unique to heavy-duty packages)
- OBD-II diagnostic port pin assignments (varies between EEC-IV and EEC-V modules)
For fleet or work-truck variants, verify upfitter modifications. Municipal or commercial builds may include auxiliary switches, strobe controllers, or custom lighting not covered in standard manuals. Contact the original dealership with the VIN to request archived build data; they can supply ASCII-formatted electrical files from their database.
Digital vs. Paper Resources
Beware of scan-tool outputs masquerading as diagrams. True schematics include:
- Ground locations (e.g., G100 under driver’s seat, G200 near the firewall)
- Fuse amperage and relay numbers (e.g., R03 for the starter relay)
- Wire gauge and insulation colors (orange/light blue for power, tan/yellow for sensors)
Subscriptions to FordTechService offer downloadable PDFs with interactive bookmarks, letting you jump to the lighting or transmission control module section instantly. Free forums may host user-uploaded diagrams, but cross-reference them against a known-good manual–online crowdsourcing often mislabels white/pink as “white/red” or omits splice points.
Troubleshooting Missing Circuits
If the stock schematic doesn’t match discrepancies like a swapped radio or aftermarket alarm, use a digital multimeter to trace unknown wires. Probe connector C201 (instrument cluster) for accessory power; pin 23 carries 12V when the ignition is in RUN. For patch harnesses, the aftermarket standard is Metra 70-1761, but verify it aligns with your trim’s speaker outputs–Lariats use a 7-band equalizer, requiring a different interface than XL models.
Step-by-Step Wire Color Coding and Connector Identification
Begin by isolating the vehicle’s harness near the fuse block under the dashboard–verify each strand against the factory service manual using a multimeter in continuity mode. Pinpoint the primary power feed (typically red with a light blue stripe for 12V constant) and ground (black or black with white stripe) first, as these anchor the rest of your tracing. Use heat-shrink tubing or labeled spade connectors to mark each wire after confirmation; avoid masking tape or flags, which degrade over time. For connectors, match the shape and pin count to the manual–oval 6-pin for the instrument cluster, rectangular 12-pin for the PCM, and circular 4-pin for the transmission range sensor. Cross-reference any deviations with a PDF repair guide, noting that aftermarket alarms or remote starts often splice yellow (ignition) or pink (accessory) wires without documentation.
- Harness side: Examine the connector’s locking tab–if broken, replace the entire pigtail to prevent intermittent faults.
- Component side: Probe female terminals with a straightened paperclip before inserting male pins; corrosion here mimics open circuits.
- Critical splices: Pre-charge circuits (orange with black stripe) and fuel pump triggers (gray with red stripe) require soldered joints, not crimps, to handle current spikes.
- Sensor circuits: Use a scan tool with live data to confirm signal presence (dark green with yellow stripe for O2 sensors) before condemning a wire.
Troubleshooting Common Electrical Issues Using the Schematic

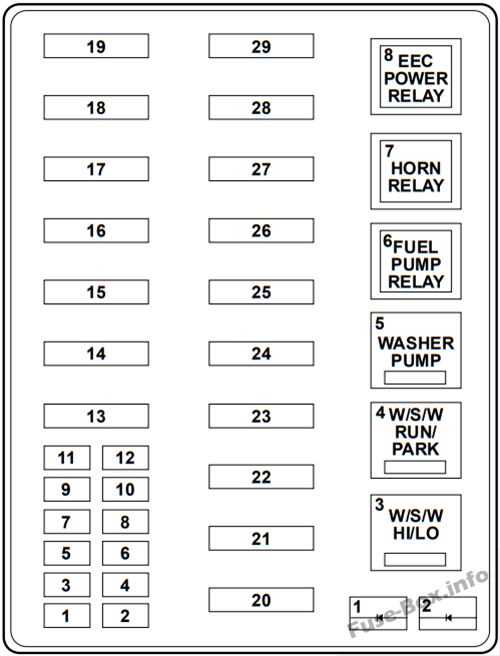

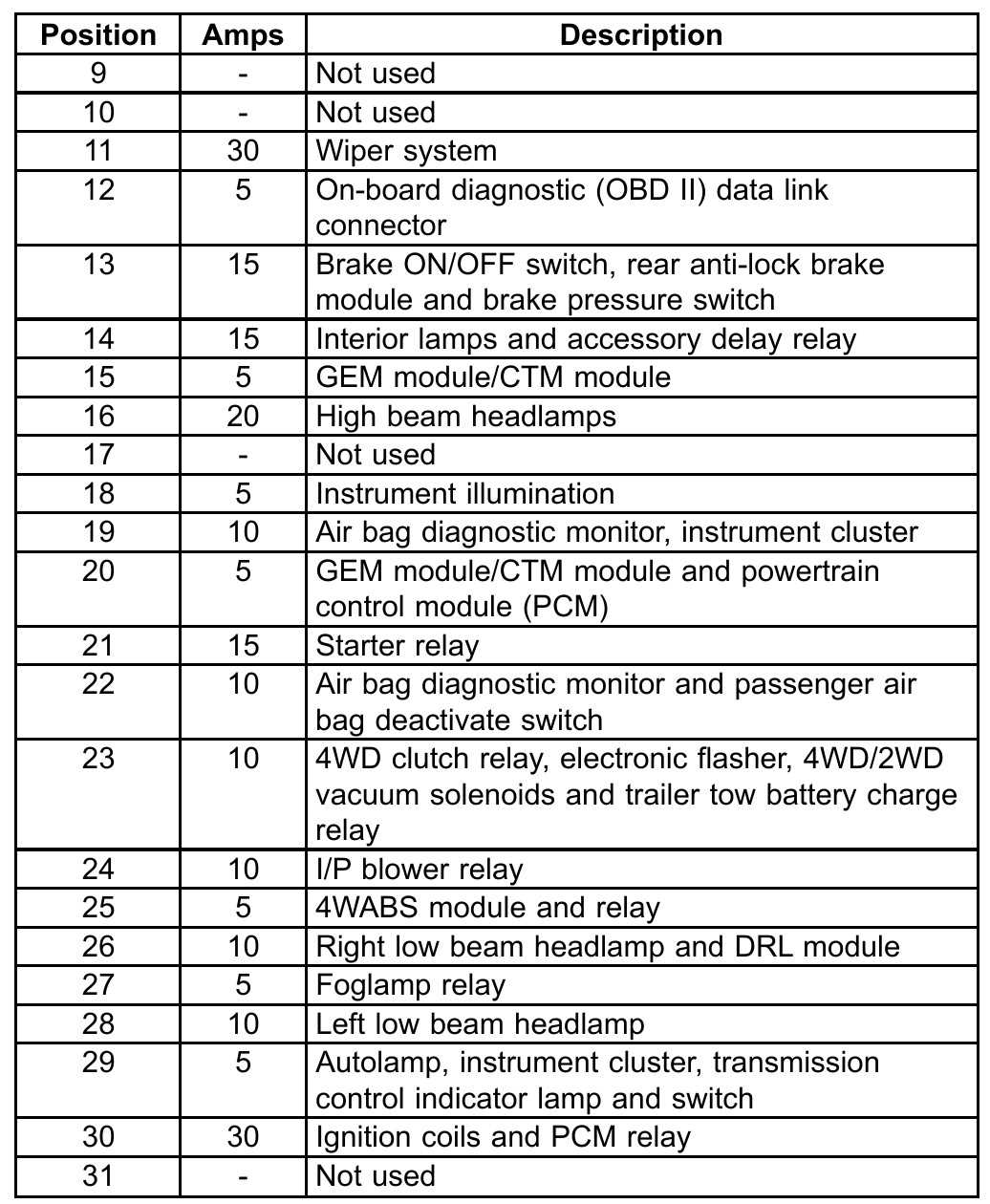

Start by isolating the power distribution box under the dash on the driver’s side. Remove the cover and cross-reference fuse positions with the printed legend. Burnt fuses for the fuel pump or ignition circuit often appear intact visually–use a multimeter in continuity mode to confirm failure. Replace fuses rated below 30A only with identical amperage values; substituting a 20A fuse for a 30A fuse risks wiring harness damage under sustained load.
Trace the ground locations listed on page 12 of the service manual. Corroded grounds at G101 (rear passenger frame rail) or G200 (near the battery tray) create phantom issues–cranking noise, intermittent dash lights, or fuel injectors misfiring. Scrape each grounding post to bare metal, apply dielectric grease, and secure the nut to 12 ft-lbs torque. Failure to properly torque causes voltage drop under load, mimicking a failed alternator.
Check the rear lighting harness connector C301 for brittle seals or green oxidation. Probe pin 13 (brake light signal) against ground with the brake pedal depressed–voltage should read 12V. If absent, inspect the stoplight switch mounted above the pedal arm; adjust or replace if plunger travel exceeds 0.25 inches. Repeated bulb failures in the tail circuit typically originate here, not from bulb wattage mismatches.
For parasitic battery drain, disconnect the negative terminal and place a multimeter in series between the post and cable. Current draw above 50mA indicates a short. Narrow the fault by pulling fuses sequentially from the interior panel–relays R35 (radio memory) and R38 (instrument cluster) are frequent culprits. If draw persists, unplug the rear window defroster switch assembly; the heater element circuit often develops resistance paths inside the glass.
Verifying Voltage Drop in High-Current Circuits
Use a digital voltmeter with a 0.01V resolution. Connect the positive lead to the battery’s positive post and the negative lead to the wiring terminal at the starter motor solenoid. Crank the engine–voltage should not drop below 9.6V. A drop exceeding 0.5V suggests corroded battery cables, loose terminals, or undersized grounds. Replace cables above 5 awg if strands are visibly broken.
Inspect headlight connectors for melted plastic at terminals 56 (low beam) and 56b (high beam). Oxidation here reduces voltage below 11.5V, dimming lights. Clean terminals with contact cleaner and apply anti-corrosion spray. For turn signals flashing rapidly, swap the flasher relay located behind the glove box–it controls blink rate independently of bulb resistance, contrary to common belief.
