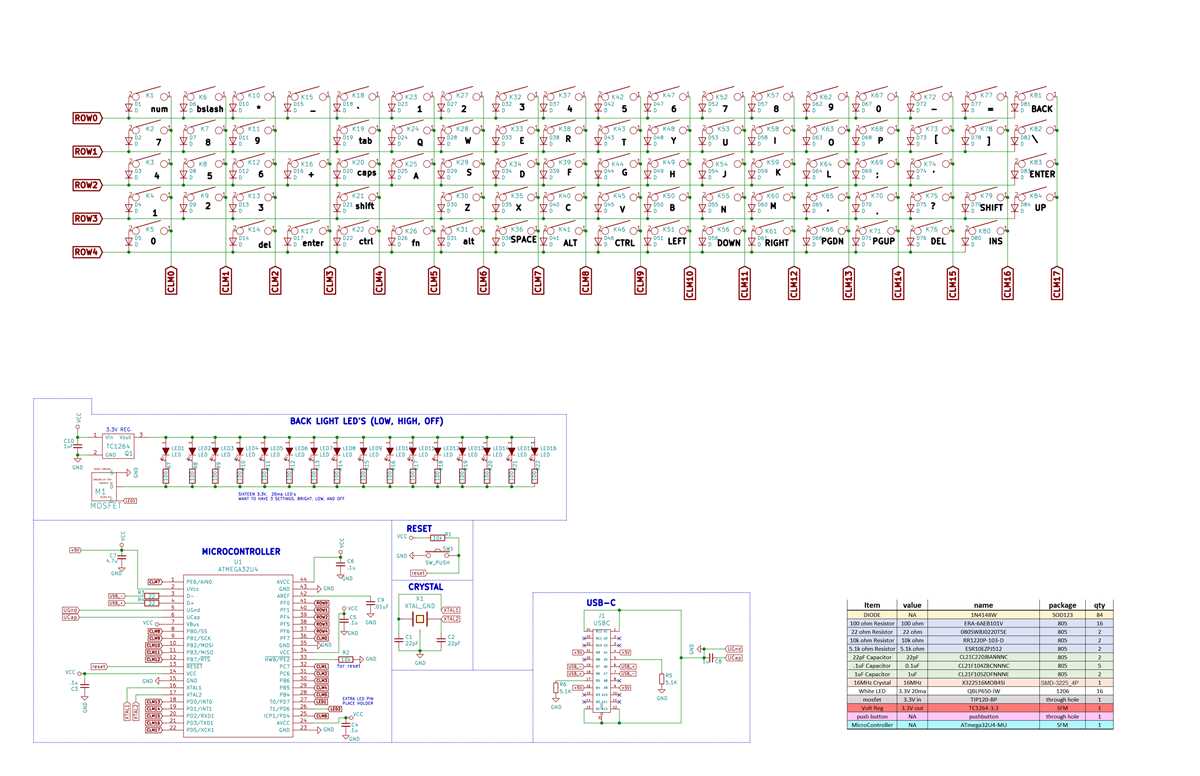

Complete USB Keyboard Schematic for DIY Electronics Projects
Start with a low-power microcontroller that supports HID protocols and has native support for 3.3V logic levels. The STM32F072CBT6 or ATmega32U4 are optimal choices due to their built-in bootloaders and direct interface capabilities without additional transceivers. Ensure the MCU has at least 16KB of flash and 2KB of RAM to handle key scanning, debouncing, and descriptor tables efficiently.
Avoid generic pull-up resistors on data lines. Instead, use 1.5KΩ resistors for the D+ line and 10KΩ for the D– line to comply with specification requirements while minimizing signal reflections. For power delivery, integrate a 5V to 3.3V linear regulator like the AMS1117-3.3, pairing it with a 10µF input capacitor and a 1µF output capacitor to suppress voltage spikes during hot-swap events.
Implement a matrix scanning layout with 1N4148 diodes on each switch to prevent ghosting. Use a 20ms debounce delay in firmware to filter mechanical noise. For PCB traces, maintain at least 0.2mm clearance between high-speed signals and keep differential pairs (D+/D–) matched in length within 5mm to prevent timing skew. If adding RGB LEDs, power them through a dedicated 5V rail with a current-limiting resistor (330Ω per LED) to avoid overloading the regulator.
Include a ESD protection diode (e.g., PRTR5V0U2X) on both data lines to absorb surges up to 8kV. For ground planes, use a star topology to prevent signal loops, and connect the shield directly to the ground pad of the connector. Test the final layout with a USB protocol analyzer to verify compliance with signaling standards before mass production.
Firmware should prioritize interrupt-driven key scanning over polling to reduce latency. Store configuration settings in EEPROM if customizable layouts or macros are needed. For debugging, add a 3-pin header (GND, TX, RX) to expose UART output at 115200 baud, allowing real-time monitoring of keypress states without additional tools.
Building a Peripheral Input Device: Wiring Guide
Select a microcontroller with native HID support like the ATmega32U4 or STM32F103. These chips eliminate the need for additional firmware libraries, handling low-level communication directly. Verify the chosen model includes built-in pull-up resistors on the data lines–this prevents signal noise without extra components. For reference, the default pull-up values typically range between 1.5kΩ to 10kΩ, ensuring reliable data transmission.
Layout matrix scanning traces with a 4-layer PCB if space constraints exist. Dedicate the top layer to signal routing and the second layer as a ground plane to reduce electromagnetic interference. Maintain a trace width of 0.2mm for signal paths and 0.5mm for power lines. Use vias with a diameter of 0.3mm or smaller to connect layers, minimizing impedance mismatches. For keyboards with 60+ keys, prioritize a staggered matrix design to avoid ghosting artifacts.
Integrate transient voltage suppression diodes on every switch input to protect against electrostatic discharge. Use bidirectional TVS diodes rated for 5V, such as the BAV99, placed within 5mm of the connector pins. For backlighting, multiplex LED rows with a dedicated constant-current driver like the IS31FL3731, which simplifies wiring by handling up to 12×16 LED arrays with a single I2C interface.
Critical Component Placement
- Position the crystal oscillator (e.g., 16MHz) within 3mm of the microcontroller’s clock pins to prevent timing errors.
- Route the D+ and D- differential pair with a controlled impedance of 90Ω ±10%. Use a trace width of 0.127mm and spacing of 0.127mm on FR-4 material.
- Avoid routing high-speed traces near analog components like potentiometers or audio jacks to prevent crosstalk.
- Place decoupling capacitors (0.1μF) as close as possible to the microcontroller’s power pins, using ceramic types with X7R dielectric.
For firmware development, start with QMK or TMK frameworks, but modify the scan rate to 1kHz for faster response times. If using an interrupt-driven scan, ensure the debounce delay does not exceed 5ms to maintain responsiveness. For custom layouts, define the matrix rows and columns in the firmware header file with explicit pin mappings–avoid relying on automatic tools, as they may misalign physical traces with logical inputs.
Test the assembled device using a USB protocol analyzer to monitor packet transmission. Look for timing inconsistencies in the SOF (Start of Frame) markers, which should appear every 1ms. If latency exceeds 8ms under load, optimize the firmware’s USB stack or reduce the matrix scan cycle. For troubleshooting, probe the D+ and D- lines with an oscilloscope set to 500mV/div and 1μs/div to verify differential signal integrity.
Key Components of a Peripheral Input Device Board Design
Prioritize signal integrity by maintaining controlled impedance traces for data lines, especially differential pairs. A 90-ohm ±10% target (for high-speed lanes) minimizes reflection and crosstalk; use a ground plane beneath these traces to reduce loop inductance. Keep differential pairs equal in length–tolerance should not exceed 0.15 mm–and route them with smooth curves instead of sharp angles to preserve signal fidelity. Include decoupling capacitors–0.1 µF ceramic–placed within 2 mm of each active component’s power pin to suppress transient noise.
- Microcontroller: Select an MCU with native support for HID protocols–avoid bit-banging firmware. ARM Cortex-M cores (STM32F070, SAMD21) run at 48 MHz or higher; allocate separate clock domains for USB stack and key scanning logic to prevent jitter-induced desync.
- Matrix Scanning: Implement an N-key rollover diode matrix using 1N4148 or BAT54C Schottky diodes. Rows and columns should be no wider than 8 mm; ground adjacent rows with a continuous plane to attenuate ghosting. Scan frequency ≥500 Hz ensures
- ESD Protection: Place TVS diodes (PESD5V0S1BA) on all exposed I/O lines–D+/D- data lanes, reset pin, and power input. Breakdown voltage ≥±8 kV (air discharge) guards against IEC 61000-4-2 Level 4 transients.
- Power Distribution: Trace width for VBUS ≥1.5 mm/A (1 oz copper) to avoid voltage drop under full load (current draw peaks at 500 mA). Include a ferrite bead (BLM21PG601SN1L) on VBUS to block high-frequency noise.
Arrange components in functional clusters: MCU, EEPROM (24LC128, 16 kB), and crystal (12 MHz ±20 ppm) form a high-density zone; scanning matrix and diodes occupy the perimeter. Keep traces short–≤30 mm from switch to diode–and avoid layer transitions; each via adds ~1 nH inductance. Ground stitching vias (0.3 mm diameter, spaced ≤10 mm) around the edge reduce EMI; stitch every 5 mm along high-current paths. Final board thickness should not exceed 1.6 mm–thinner boards warp under keycap force–use FR-4 with ≥135 °C Tg for stability.
Step-by-Step Wiring Guide for HID Peripheral Matrix
Begin by mapping each switch position to a unique row-column intersection on a 6×6 grid for a standard 36-key layout. Use a multimeter set to continuity mode to verify connections before soldering–this prevents incorrect cross-wiring. Assign rows (R1-R6) to GPIO pins with internal pull-down resistors, while columns (C1-C6) require external pull-up resistors (4.7kΩ) tied to VCC (5V). Reference the table below for pin assignments on common microcontrollers:
| Microcontroller | Row Pins (R1-R6) | Column Pins (C1-C6) |
|---|---|---|
| ATmega32U4 (Pro Micro) | 2, 3, 4, 5, 6, 7 | 8, 9, 10, 16, 14, 15 |
| RP2040 (Pico) | GP2, GP3, GP4, GP5, GP6, GP7 | GP8, GP9, GP10, GP11, GP12, GP13 |
| STM32F103 (Blue Pill) | PA0-PA5 | PB0-PB5 |
Solder diodes (1N4148) on each switch’s input side to prevent ghost keypresses–cathode (-) toward the row pin, anode (+) toward the switch. Route traces carefully to minimize signal interference: keep row and column traces perpendicular and avoid parallel runs longer than 2cm. For layouts exceeding 6×6, split matrices into sub-blocks with dedicated GPIO pins to reduce latency. Test each intersection with a two-wire jumper before final assembly–short rows to columns one at a time to confirm debounce behavior.
Flash firmware with pre-configured matrix definitions (e.g., QMK’s `MATRIX_ROWS`/`MATRIX_COLS` directives) and enable USB HID descriptors with a 10ms debounce interval. Probe signal quality with a logic analyzer: inconsistent waveforms indicate floating pins or diode orientation errors. For wireless builds, add a 10µF decoupling capacitor near the microcontroller’s power input to mitigate voltage sag during peak current draw (typical with BLE modules).
Building a Custom Input Device with HID Compliance
Select a microcontroller with native support for the Human Interface Device protocol–avoid bit-banging low-speed protocols. The ATmega32U4 and STM32F103 offer built-in transceivers reducing external component count while guaranteeing timing precision essential for 1 ms polling rates.
Implement pull-up resistors on each matrix row–typically 2.2 kΩ–connecting directly to the controller’s internal VCC. Columns require diodes (1N4148) per switch to prevent ghosting during simultaneous key presses. Arrange the matrix in a 16×8 grid for 128-key layouts, minimizing pin usage without sacrificing scan speed.
Firmware must initialize HID descriptors defining report size (8 bytes for standard layouts), usage pages (0x07 for generic desktop), and report IDs. A minimal descriptor template includes usage minimum (0x00), usage maximum (0xE7), and logical minimum/maximum values (0–1). Upload this via DFU bootloader to bypass Windows driver verification checks.
Power delivery requires a 3.3 V regulator (AP2112) feeding both controller and peripheral logic. Decoupling capacitors (0.1 µF ceramic) placed adjacent to the chip’s power pins suppress voltage transients during rapid state changes. A ferrite bead (600 Ω @ 100 MHz) on the 5 V input line prevents conducted EMI from contaminating adjacent audio or RF modules.
Debugging involves a logic analyzer probing clock/data lines–idle state should remain high with differential signaling during transfers. Test with a hardware USB protocol analyzer (e.g., Total Phase Beagle) to verify that endpoint 1 IN transmits reports at full speed without data corruption. Unexpected disconnects often trace to improper cable shielding; use twisted-pair wiring with a braided shield grounded only at the host side.
For low-latency applications, override the default 10 ms idle rate by sending SET_IDLE requests (value=0) during initialization. Confirm compliance by checking that the device appears in Windows Device Manager under “Human Interface Devices” without yellow exclamation marks–driver compatibility issues frequently arise from mismatched descriptor lengths.
