Complete Wiring Guide for the 1998 Chevy Silverado Alternator System

If your charging system fails, the first step is to disconnect the battery’s negative terminal to prevent shorts. For models equipped with a 5.7L V8, the voltage regulator integrates directly into the generator’s rear housing, simplifying diagnostics–test the output at the stud with a multimeter set to DC voltage; readings should stabilize between 13.8V and 14.4V at 2,000 RPM. Failure to reach this range often points to a faulty rotor, stator, or brush assembly. Replace the entire unit if readings drop below 12.5V under load.

Trace the B+ (battery positive) cable from the generator’s output post to the starter solenoid–this 4-gauge wire must have zero corrosion or fraying. If insulation is compromised, splice in a new segment using military-grade heat shrink tubing and crimp connectors rated for 200A. The ignition exciter wire (typically pink or purple) feeds 12V via the fusible link under the dashboard; verify continuity with a test light before condemning the generator.

Ground paths matter just as much as power feeds. Locate the engine-to-chassis strap–often overlooked–and clean both contact surfaces with a wire brush and dielectric grease. Resistance should measure under 0.2 ohms; anything higher introduces voltage drop that mimics a failed charging component. For dual-battery setups, confirm the isolator solenoid engages fully during cranking–misalignment here drains reserve capacity in under 30 minutes.

Repair manuals omit a critical detail: the PCM adjusts field duty cycle based on accessory load. If aftermarket stereos or auxiliary lights exceed 80A, install a 5-pin relay tapped into the constant hot wire at the underhood fuse block. This bypasses peak demand spikes that overheat internal diodes. Always retest the system after modifications–ignition-off current draw should not exceed 50 milliamps.

Electrical System Layout for a Late-90s GM Truck

Begin by locating the voltage regulator connector on the rear of the charging unit–it’s a two-wire plug with a purple (excitation) and an orange (sense) lead. Disconnect it first, then use a 10-ohm resistor between the purple wire and a 12-volt source to test field excitation; if the charging unit outputs 13.8–14.5 volts at 2,000 RPM, the internal regulator is intact.

Trace the large-gauge (usually 4-gauge) fusible link threaded from the positive battery terminal to the starter solenoid: this is the main charging path. Splice a 100-amp circuit breaker in-line no farther than 18 inches from the battery to prevent meltdown during a dead short. Verify the link’s crimp connections with a torque wrench–12 lb-ft minimum–and coat each splice with dielectric grease to stop terminal corrosion.

Ground Paths and Harness Routing

• Engine-to-chassis ground strap: 1/0-gauge, tap one end to the block’s bellhousing boss and the other to the cab’s firewall stud; resistance must read below 0.2 ohms.
• Battery negative to chassis: bolt directly to the frame rail, avoiding paint; use star washers for biting contact.
• Charging unit case ground: secure the case’s threaded mounting ear to the engine with a separate 8-gauge jumper, ensuring no dependence on the single mounting bolt.

For parasitic draw diagnosis, insert a digital ammeter in series between the battery’s negative post and its cable. With all accessories off, draw should dip below 50 milliamps within 30 minutes; values above 100 milliamps signal a leak in the instrument cluster, glove-box lamp, or aftermarket alarm wire spliced into the ignition harness.

Connector Pinouts and Voltage Reference Points

1. Battery sense (orange wire): must mirror battery voltage within 0.5 volts at idle; if not, inspect the fusible link and junction block under the hood.
2. Ignition feed (pink wire): supplies 12 volts upon key rotation; tap a fused relay here for electric fans or fuel pumps to prevent voltage sag.
3. Charge indicator (white wire):
4. routes to the dash lamp; substitute a 330-ohm resistor across the bulb socket terminals to extinguish false warnings on aftermarket tachometers.
5. Stator output (heavy-gauge stud): measures AC ripple with an oscilloscope; peaks above 0.5 volts signal bad diodes or worn bearings.

Locating and Understanding Power Unit Harness Plugs on a Late-90s Pickup

Start by tracing the main generator lead–the thickest cable coming from the charging component. On this model, it terminates in a large, cylindrical stud connector wrapped in red or orange insulation. This is the primary B+ output; verify it mates directly to the battery-positive line without splices. Discoloration or heat damage here indicates excessive resistance–replace any corroded terminals immediately.

The voltage regulator plug sits adjacent to the rear housing, distinguishable by its two or three pin rectangular socket. The outer pins carry sensor signals, while the center (if present) grounds the internal regulator. Probe these contacts with a multimeter set to 20V DC: ignition-off readings should hover near 12.6V, climbing to 13.8-14.4V when the engine runs. Deviations below 13V suggest regulator failure or field circuit issues.

Identify the excitation wire–a smaller gauge lead, typically blue or yellow–snaking from the ignition switch to the generator’s rear. This wire energizes the rotor coil; voltage should drop to near zero when the key is off. If voltage persists, inspect the ignition relay or diode trio for shorts. Clip-on current probes can measure draw without disconnecting: expect 2-5A at idle, tapering as RPM increases.

Check the fusible link integrated into the charging loop, often bundled with the B+ cable beneath the brake master cylinder. This glass or ceramic element prevents catastrophic shorts–if blown, it melts cleanly, leaving no visible burnout. Test continuity with an ohmmeter; resistance should read below 0.2Ω. Suspect a blown link if the starter cranks slowly despite a fully charged battery.

Harness connectors on this build frequently use weather-pack seals–press the release tabs fully before separating plugs to avoid breaking retention clips. The P-terminal (if equipped) interfaces with the PCM; trace its violet/white-striped wire to the ECM connector C1. Corrosion here mimics charging failures, but ECM codes (P0620) will isolate controller-side faults.

Label each connector before disassembly: mark the battery-side plug “B+”, regulator-side plug “PWR”, and sensing line “S”. Mismatched reconnection risks overvoltage, frying diode bridges. Use dielectric grease sparingly–only on metal contacts–to prevent moisture ingress without insulating conductivity.

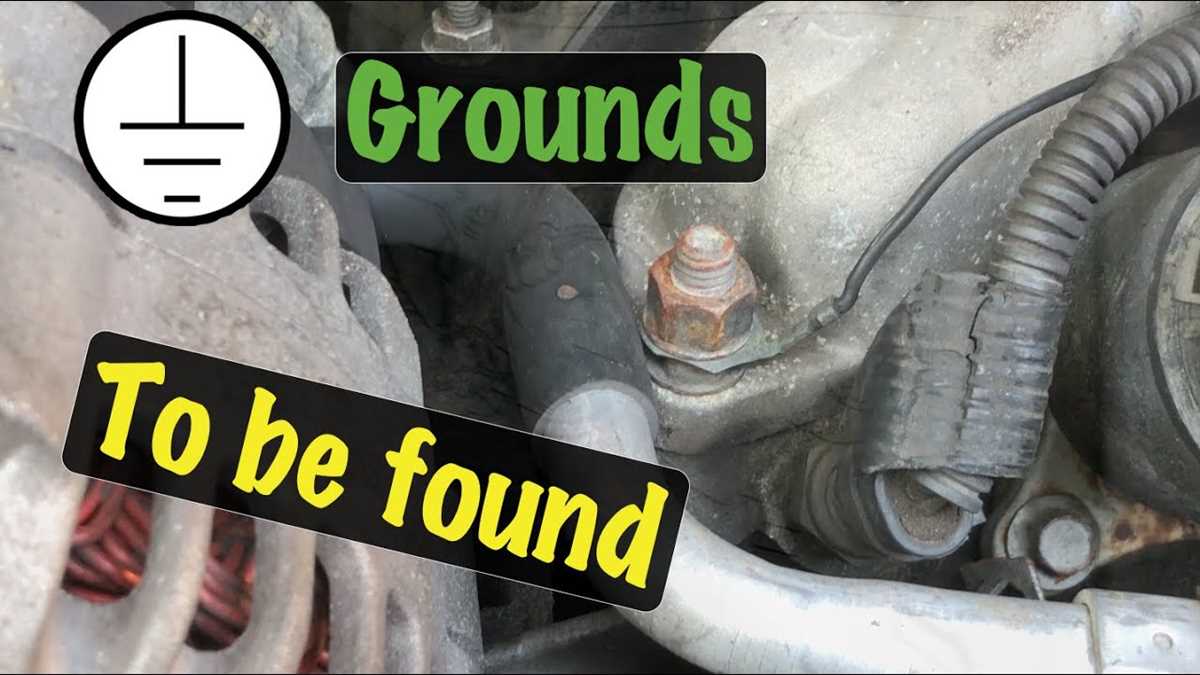

Inspect the engine ground strap, typically a braided cable bolted to the block near the generator mount. Resistance here should mirror the B+ path: test with a multimeter on diode test mode–readings above 0.5V under load mandate strap replacement. Neglected grounds create phantom voltage drops, erroneously blamed on the charging system.

For concealed damage, follow harness routes along the firewall and inner fender liner. Chafed wires near the radiator support or steering gear often hide beneath harness loom tape. Strip back outer sheathing only where necessary; solder and heat-shrink repairs match OEM reliability better than crimp splices.

Step-by-Step Guide to Locating the Voltage Regulator Connections

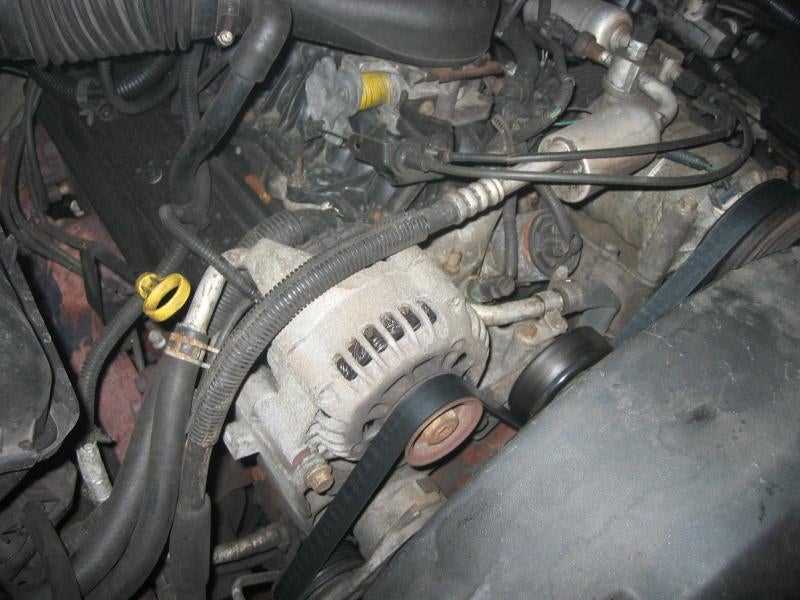

Start by disconnecting the battery’s negative terminal to prevent accidental short circuits. Locate the generator assembly–typically mounted on the engine’s front-right side–and identify the rear housing, where the control module is integrated. The three critical leads you’ll trace are:

• Field (F) terminal: A smaller gauge wire (usually brown or orange) entering a plug or ring terminal.
• Sense (S) line: A thin wire (often yellow or red) connected to the battery’s positive terminal via a fuse link.
• Ground reference: Either a dedicated black wire or a direct case mount.

Use a multimeter set to continuity mode to verify each wire’s path. Probe the F-terminal against the generator’s metal case–readings should confirm a closed circuit when the engine is off. For the sense line, trace it back to the fusible link near the battery; it should register ~12V with the ignition on. If readings deviate, check for corroded connectors or broken insulation, particularly near the valve cover or frame rail.

Remove the protective boot covering the rear terminals if present. On units with internal regulators, the F-terminal connects directly to an exciter coil, while the sense line often shares a harness with the ignition feed. For external regulators (rare in this model year), the wires will route to a separate rectangular box–follow the harness along the firewall, noting splices at the bulkhead connector.

Reconnect the battery and test voltage at the sense line with the engine running. Expected output: 13.8–14.5V. If voltage drops below 13.2V, inspect the F-terminal wire for fraying, especially where it passes through the serpentine belt area. Replace any damaged segments with 14-gauge wire, ensuring soldered or crimped connections sealed with heat-shrink tubing.

Color Coding for Power, Ground, and Sensing Leads in the Electrical Generation System

The primary charging output lead is consistently dark green with a white tracer (DG/W) in factory configurations. This wire carries the generated current directly from the voltage regulator to the battery-positive terminal via the fusible link or maxi-fuse. Interrupting or improperly splicing this circuit will cause immediate charging failure, often misdiagnosed as regulator or stator failure.

Ground and Excitation Circuit Identification

The excitation lead, responsible for initializing the magnetic field, is typically light blue (LB) and connects to the ignition-controlled circuit. This wire must receive 12V when the ignition is in the “run” position; absence of voltage here indicates a faulty relay, blown fuse, or broken ignition switch contact. Ground wires, usually solid black (BK), terminate directly to the engine block or chassis ground–never rely on transmission or accessory mounts for this connection, as corrosion or poor contact can introduce resistance and cause erratic voltage readings.

Sensing circuits, often overlooked, are coded orange (O) or orange with a black tracer (O/BK). These leads monitor battery voltage at the source, feeding data back to the regulator to adjust output. Swapping these with excitation or power wires will force the system into overcharging or no-charge conditions. Verify continuity to the battery terminal using a multimeter; resistance exceeding 0.5 ohms necessitates cleaning or replacing the connection.

Secondary power feeds–such as those supplying the vehicle’s electrical accessories–may use pink (PK) or red (RD) with a tracer. These wires branch from the main output but should never be confused with the primary DG/W lead. Cross-wiring these can result in accessory drain overwhelming the charging system, leading to intermittent battery death. Label all connections during disassembly to prevent misrouting during reassembly.

For non-factory or aftermarket installations, adhere to OEM color codes whenever possible. Deviations (e.g., substituting yellow for orange) require explicit documentation to avoid diagnostic errors later. Use heat-shrink tubing or color-coded labels on modified splices to maintain clarity–failure to do so invites confusion during future repairs or upgrades.
