Complete 1998 Nissan Maxima Radio Wiring Diagram Guide for Installation

Locate the red/blue wire beneath the dash on the driver’s side–this carries switched 12V power directly from the ignition circuit. Splice it cleanly with a butt connector or crimp sleeve, never twisting bare ends; corrosion will disrupt signal within weeks. Attach a 1A fuse no more than 6 inches from the splice to prevent short-induced dashboard fires.

Identify the yellow/green lead behind the factory harness–it delivers constant battery voltage, critical for memory retention during engine-off periods. Route this wire through a 10A fuse holder before connecting it to any aftermarket head unit; a common oversight often blows factory fuses tied to the ECU.

Strip only 3/8 inch of insulation from each wire to maintain proper crimp integrity. Use heat-shrink tubing for all joints, ensuring a watertight seal to avoid whisker-like corrosion that emits low-frequency static mimicking ground loop issues. For amplifiers, tap the black/white chassis ground at the original mounting bolt near the kick panel–avoid bare metal floors or firewall points prone to vibration-induced connectivity loss.

Verify each connection with a multi-meter set to DC volts: switched power must read 12-14V, constant power 12V, and ground under 0.5 ohms. Reject connections showing voltage spikes or intermittent readings–a precursor to future signal degradation. After testing, secure all wiring with split loom tubing spaced at 12-inch intervals; nylon zip ties alone chafe against sharp sheet metal edges.

For speaker wiring, follow the purple (right rear +), purple/black (right rear -), blue/white (left rear +), and blue (left rear -) helical pairings, noting the dashed line tracer on negative leads. These carry 5-watt signals; route them separately from power wires to eliminate electromagnetic interference manifesting as high-frequency whine proportional to RPMs.

Adapters vary: a Metra 70-7550 handles standard AM/FM units, while a Scosche NN03B is required for premium Bose setups–confirm compatibility before purchasing, as incorrect adapters cause parasitic battery drain exceeding 50mA. If retaining steering wheel controls, integrate a Pac SWI-RC with pre-set resistor values matching the vehicle’s protocol; failure here locks controls into phantom “mode” patterns.

Wiring Guide for Fourth-Gen Sedan Audio System

Locate the factory harness behind the dash panel on the driver’s side, adjacent to the fuse box. The primary connector (A) contains 14 pins in two rows–upper row (1-7) carries power, ground, and antenna triggers, while the lower row (8-14) handles speaker outputs. Pin assignments are as follows:

• Pin 1: +12V constant (yellow)
• Pin 2: Ignition-switched +12V (red)
• Pin 3: Ground (black)
• Pin 4: Power antenna trigger (blue)
• Pin 8: Front left speaker (+) (white)
• Pin 9: Front left speaker (-) (white/black)
• Pin 10: Front right speaker (+) (grey)
• Pin 11: Front right speaker (-) (grey/black)
• Pin 12: Rear left speaker (+) (green)
• Pin 13: Rear left speaker (-) (green/black)
• Pin 14: Rear right speaker (+) (violet)
• Pin 7: Rear right speaker (-) (violet/black)

Use a multimeter to verify voltages–constant power should read 12.6V, ignition-switched 12V only when key is in ACC or ON. If replacing the unit, match aftermarket harness colors to these signals; third-party adapters often swap violet and green wires for rear channels.

Troubleshooting Common Issues

If audio cuts out or produces static, inspect ground connection at Pin 3–corrosion or loose contact causes erratic operation. Remove dash trim to access the harness; clean terminals with electrical contact cleaner and re-secure. For no power, probe Pin 1 with the meter set to DC volts; if absent, check 10A fuse in the under-dash panel labeled “RADIO.” Speaker imbalance may indicate reversed polarity on one channel–swap (+) and (-) wires at the head unit or speaker to test.

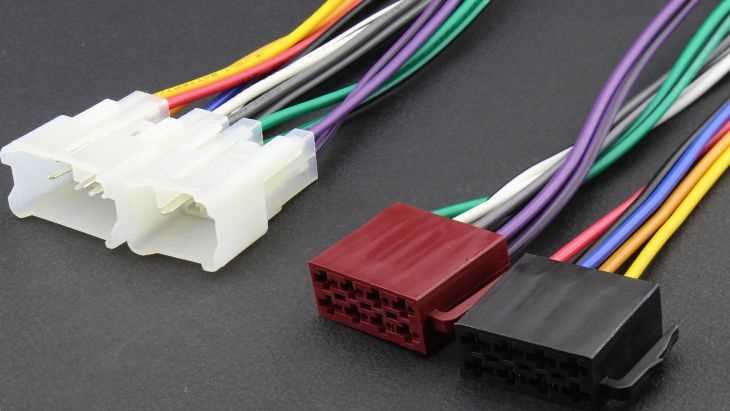

Installation of modern units requires an adapter harness (Metra 70-1761 or Scosche SN1761B). Connect the vehicle-specific plug to the new stereo’s ISO connector, ensuring color alignment. For amplified systems, retain the factory amplifier behind the glove box–bypassing it will reduce output by 50%. If adding a subwoofer, tap into rear speaker wires using high-level inputs on the amp, not the head unit’s RCA outputs.

Matching Harness Colors to Audio System Terminals

Locate the solid yellow cable–the primary 12V constant power supply–directly behind the factory connector. Test with a multimeter set to DC voltage before splicing; readings should maintain 12.6V with the ignition off. The red wire delivers switched power–validate by cycling the key between ACC and ON while monitoring voltage flux. Ground leads appear in two variants: the thicker black wire terminates to chassis metal, while the black/white stripe routes to a dedicated harness pin–avoid mixing them. Speaker outputs follow a striped pattern: white/black (front left positive), white (front left negative), gray/black (front right positive), gray (front right negative). Rear channels mirror this scheme with green and purple.

Verify illumination control via the orange wire–voltage should rise to 5V when headlights activate and drop below 1V with dashboard dimming engaged. The blue/white remote turn-on lead (typically 200mA max) requires a 1W resistor inline if connecting aftermarket amplifiers exceeding 3W. Pink wires handle mute functions–shorting the solid pink to ground mutes audio, while the pink/black stripe handles automatic volume adjustment when tapped by speed-sensing modules. Cross-reference pinout labels against the main 16-pin harness plug, not the smaller accessory connector; terminal 1 correlates to front left+, terminal 9 to front right-, and terminals 2-8 skip unused digital interfaces.

Step-by-Step Guide to Connecting Aftermarket Audio System to Factory Harness

Begin by locating the vehicle’s original connector behind the dashboard panel. Identify the 12-pin plug–typically white or gray–matching the pinout to an aftermarket adapter harness. Cutting into factory cables risks electrical faults; instead, splice wires using crimp connectors and heat shrink tubing to prevent corrosion.

Match the speaker outputs by color-coding: front left (+) and (-) wires (gray/light gray), front right (white/white-black), rear left (green/green-black), and rear right (purple/purple-black). Confirm polarity before securing connections–reversing polarity distorts audio clarity. Test each channel individually before finalizing splices.

Power and Ground Essentials

Locate the constant 12V (yellow) and ignition-switched 12V (red) wires within the harness. Connect these to the aftermarket unit’s corresponding terminals to ensure power retention for presets and proper operation. Route the yellow wire directly to the battery if voltage drops occur, using a 10A inline fuse near the connection point.

Ground the system via a dedicated bolt on the chassis–avoid sharing grounds with other components to eliminate noise interference. Scrape paint from the contact surface to ensure a clean metal-to-metal connection. Secure the ground wire (black) with a star washer to prevent loosening from vibration.

For vehicles with factory amplifiers, bypass or retain the amp depending on the aftermarket unit’s capabilities. If retaining, splice the amplifier’s remote turn-on (blue/white) wire to the new head unit’s corresponding lead. Failure to do so results in silent audio or blown fuses.

Illumination and Data Integration

Preserve dimmer functionality by connecting the illumination wire (orange) to the aftermarket harness. This ensures display brightness adjusts with dashboard lights. For steering wheel controls, use an interface module–solder connections or use a plug-and-play adapter to maintain button responsiveness without coding.

Verify all connections by reconnecting the battery and testing each function: power, volume, balance/fader, and auxiliary inputs. Secure excess wiring with zip ties, routing away from moving parts or heat sources. Double-check crimps and heat shrink before reassembling dashboard panels to avoid shorts or intermittent failures.

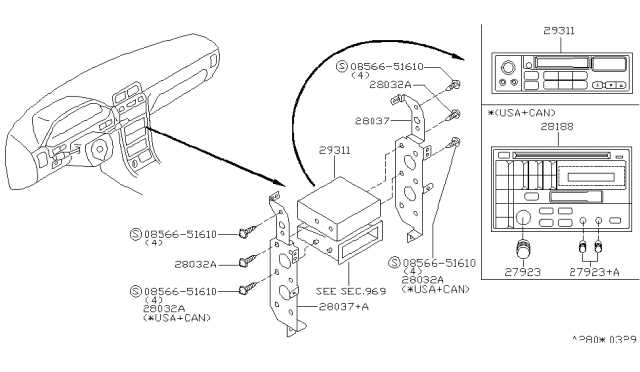

Finding the OEM Stereo Harness Behind the Instrument Panel

Start by removing the lower dashboard cover beneath the steering column. A single 10mm bolt secures this panel–loosen it with a socket wrench and slide the cover downward. The harness connector for the audio head unit sits directly behind this panel, nestled against the climate control housing. Look for a rectangular plug with 14 or 16 terminals, typically encased in black or gray plastic.

If the connector isn’t immediately visible, detach the climate control knobs and faceplate. Two small screws hold the faceplate in place–remove them with a precision screwdriver. Behind the climate controls, the stereo harness may be tucked into a wiring channel or secured with a zip tie. Cut the tie if present, but avoid damaging adjacent wires, especially the thinner orange, yellow, and blue leads responsible for illumination, power, and amplifier triggers.

Tracing the Harness Path

The connector often routes horizontally along the crossbeam supporting the instrument cluster. Follow the bundle of wires from the left side of the dash toward the center console. The harness may intersect with the vehicle’s fuse box or BCM (Body Control Module) connector–identify it by matching the terminal count and color-coding to the OEM pinout. Pink, light green, and dark blue wires signify constant power, speaker feeds, and antenna control, respectively.

For vehicles with a premium sound system (Bose or non-Bose), the harness splits into two connectors: one for the head unit and another for the amplifier. The amp connector is smaller, usually with 6 or 8 pins, and often located near the glovebox hinge or behind the center console trim. Disconnect both connectors if replacing the entire system, but label them first–mixing them up risks blowing fuses or damaging speakers.

In cases where the connector is hidden behind a factory subwoofer or CD changer, remove the glovebox assembly. Four 8mm bolts secure it–drop the glovebox downward and unclip the harness attached to its backside. The stereo connector will be above or to the left of the glovebox cavity, sometimes shielded by a foam pad. Peel back the pad carefully; it’s often glued in place.

If resistance is felt when pulling the harness, check for secondary retention clips. Some models use a white plastic clip that locks the connector into a metal bracket. Press the clip’s tabs inward while wiggling the connector free. Never force the connector–broken clips or bent terminals can cause intermittent power loss or speaker failure post-installation.
