Complete Wiring Diagram Guide for 1999 Buick LeSabre Electrical System
Start by securing the official OEM wiring schematic from a trusted source–either the vehicle’s repair manual or a verified automotive database. The underhood electrical layout for this model, specifically the 3800 Series II V6 variant, includes distinct circuits for the fuel pump relay, ignition system, and instrument cluster, each color-coded for clarity. For example, the power window circuit uses a light blue wire with a black stripe (LBK) for the driver’s side master switch, while the alternator charging circuit relies on a dark green wire (DGN) to monitor voltage.
If tracing a fault, isolate the problematic system first–whether it’s the blower motor resistor, PCM connectors, or body control module. The parking brake switch circuit, for instance, routes through a yellow wire (YEL) that splits into the brake warning lamp and transmission range sensor. Use a digital multimeter set to 20V DC to verify voltage drops across key junctions, particularly at the fuse block under the driver’s side dashboard, where fuses 10, 18, and 28 protect critical circuits.
For quick reference, bookmark online repositories like Mitchell1 or ALLDATA, which provide searchable schematics with pinout details. If handling the EVAP system, note that the purge solenoid connects via a gray wire with a black stripe (GRY/BK) to the powertrain control module, while the fuel level sensor sends signals through a tan wire (TAN). Always cross-check wire colors against the connector terminal maps–misidentifying a brown circuit (BRN) for the radio memory as a ground wire can lead to unnecessary component swaps.
Electrical Schematic Reference for the 2000-Series Park Avenue Engine Variant
Start with the power distribution module under the hood–label LS3B identifies the main 60-amp fuse feeding the ignition system. Trace the orange/yellow striped wire from the fuse box to connector C240 on the firewall, where it splits into three branches: one to the starter solenoid (terminal B), another to the ignition coil pack (terminal 7), and the last to the under-dash relay center (pin 30). Resistance on this path should never exceed 0.5 ohms; any higher indicates corrosion or a partial break in the harness.

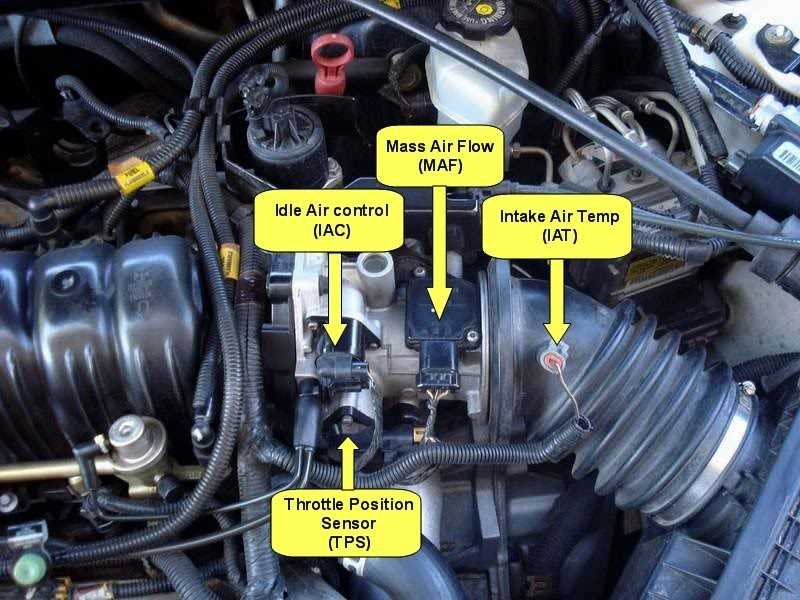

For the fuel injection circuit, focus on the ECM’s gray 24-pin connector–pin 12 sends a 5V reference signal to the throttle position sensor, while pin 18 returns the scaled voltage (0.5V–4.5V). Cross-reference this with the dark blue wire at the sensor’s terminal B; inconsistencies between ECM input and sensor output point to a frayed connection or a faulty ground at G101, located behind the right front strut tower. Verify continuity with a multimeter set to 200 ohms–any reading above 2 ohms suggests resistance buildup.
Instrument cluster illumination relies on the dimmer control input at the headlight switch, terminal F. A pink wire carries variable voltage (3V–12V) to the BCM’s brown/white connector, pin 16, then branches to each gauge. If backlighting flickers, check the black/orange ground wire at the BCM’s pin 10–loose connection here causes erratic voltage drops. Replace the bulb sockets if corrosion is visible; replacement sockets from AC Delco (part #12162249) include heat-resistant terminals that resist oxidation.
Airbag diagnostics require the yellow/yellow-black wire at the SDM connector (terminal C) to maintain a steady 12V from the battery positive terminal. The black/yellow striped wire at terminal D provides the crash signal; voltage should drop to 0V only during deployment. If the airbag light stays on, measure resistance between terminals A and B–any value outside 2.2–2.8 ohms confirms a faulty clock spring or torn harness behind the steering wheel column. Disconnect the battery before probing to avoid accidental deployment.
Charging System Verification
The alternator’s voltage regulator uses a single violet wire (terminal L) to communicate with the PCM. At idle, this wire should pulse between 0V and 5V at roughly 120Hz; any deviation suggests a failing regulator or a slipping drive belt. Alternator output at terminal B+ must read 13.8V–14.5V with all accessories off–values below 13.5V indicate worn brushes or a shorted diode trio. Test the diode trio by disconnecting the alternator and measuring AC voltage between terminal B+ and ground; readings above 0.5V confirm a failed diode.
Cooling fan control involves two relays–K12 for low speed (triggered by the PCM at 226°F) and K13 for high speed (activated at 248°F). The low-speed circuit uses a dark green/white wire from the PCM to relay K12’s coil, while high speed employs a dark blue/white wire. If the fans run continuously, inspect the coolant temp sensor–its resistance should drop from 3.4k ohms at 77°F to 320 ohms at 250°F. Replace the sensor if readings plateau; eight-cylinder models from this production run often have faulty sensors (Delphi #TS10097).
Bluetooth retrofit or aftermarket stereo integration requires tapping the radio harness at connector C210. The light blue wire (terminal D) carries a 12V switched ignition feed–use this for aftermarket amplifiers, ensuring it’s fused at 10 amps. The purple wire (terminal H) delivers the mute signal; connect this to a ground-triggered relay to prevent popping during engine starts. For hands-free microphone input, splice into the tan/orange wire (terminal L)–this carries the vehicle’s original mic signal and is pre-conditioned for 600-ohm impedance.
Parking brake and ABS integration share the same data bus (Class 2). The red/white wire at the EBCM’s connector C1 terminates at the instrument cluster, pin 3; if the brake light illuminates unexpectedly, check resistance across the parking brake switch–values above 100 ohms at 15% pedal travel indicate a misadjusted switch. For anti-lock issues, probe the tone ring sensor at connector C305–the gray wire (terminal A) and black wire (terminal B) should flip polarity with each wheel rotation. Noise in this signal typically stems from cracked reluctor rings; replacement rings for the rear axle require torquing to 45 ft-lbs at 4 points.
Finding the Powertrain Harness Layout for the 2000 Model Year Sedan
Start by opening the vehicle’s owner manual to the electrical schematics section–typically page 8-12 under “Engine Bay Connections.” The factory booklet includes a labeled grid with two-letter segment codes (e.g., “PC” for powertrain control, “AC” for air conditioning) that map directly to color-coded wires. If the manual is missing, download GM’s official TSB #99-EL-007 from the NHTSA portal; it replicates the same layout with crisper print quality.
| Wire Color | Connector Pin | System |
|---|---|---|
| Pink/Black | C101-3 | Ignition Feed |
| Dark Green/White | C101-16 | TPS Signal |
| Yellow | C102-5 | Oxygen Sensor Heated |
| Light Blue/White | C103-2 | EVAP Canister Purge |
Pop the hood and locate the under-hood fuse relay box; the upper-right corner hides a white decal illustrating every harness branch. Trace each branch starting at the main 60-pin bulkhead connector–labeled “C100”–using a multimeter set to continuity mode. Probe each pin while comparing against the decal; deviations exceeding ±2 ohms indicate corrosion or damage requiring splice replacement per GM spec #20250.
For deeper branch verification, detach the plastic cowl cover and peel back the right-side insulation pad. Behind the brake booster lies the secondary fuse junction; a small clip retains a folded paper guide listing every circuit path. Match the paper guide to the main schematic–any mismatch suggests aftermarket alterations that should be documented before proceeding.
Decoding Fuse Panel Wire Colors and Labeling in the ’99 Electra-Style Sedan

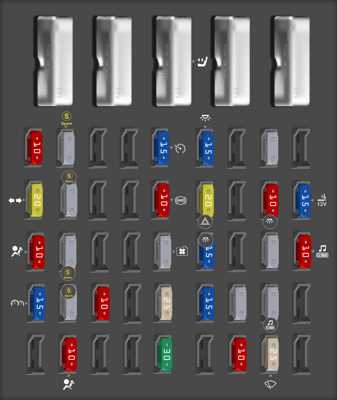

Check the fuse block lid first–it carries a printed legend matching numbered slots to system circuits, though factory labels fade or peel. For missing or illegible markings, cross-reference with a factory service manual (section 8D-30) where each cavity lists paired colors; cavity 6 always feeds the ignition coil with a yellow/black tracer stripe, cavity 14 powers the instrument cluster via pink/black. Use a voltmeter set to 20 VDC: probe both sides of each fuse holder while cycling switches–live wire will register 12–14 V, ground side stays 0 V.
- Red/white = driver’s power window motor (cavity 2)
- Dark green/white = cooling fan (cavity 9)
- Light blue = right turn signal (cavity 15)
- Tan = transmission range sensor (cavity 12)
- Orange = main power bus (fused link near battery)
Strip a 6-inch segment of suspect wire, then expose 2 mm of copper at each end. Twist one end to a known-good ground point (negative battery terminal or unpainted chassis bolt) and clip the other end into the back-probe slot of a test light. Activate the circuit–the light illuminates white for power, stays off for ground. Swap polarity on the probe to confirm ground circuits; if both ends stay dark, the wire is either broken internally or misrouted. Verify against the manual’s splice charts: splice S111 joins tan/black dash harness to tan block connector, splice S34 ties light blue/white door locks.
Step-by-Step Diagnosis of the Full-Size Sedan Ignition Circuit
Begin by disconnecting the battery’s negative terminal to prevent accidental shorts. Locate the ignition coil pack near the valve cover–distinguish it by the three wiring connectors leading to the spark plugs. Use a multimeter set to 20k ohms and probe the coil’s primary terminals (labeled “+” and “-“) while observing the reading. A functional coil should register between 0.5 and 1.5 ohms; deviations outside this range indicate a faulty unit requiring replacement.
Trace the wiring harness from the coil pack toward the powertrain control module (PCM). Identify the intermediate connectors along this path–often a gray or tan plug with three or four terminals. Inspect each pin for corrosion, bent contacts, or greenish oxidation. If present, clean the terminals with electrical contact cleaner and a small wire brush. Verify continuity between the coil pack and PCM using a multimeter in ohmmeter mode; infinite resistance means a broken circuit needing repair.
Check the crankshaft position sensor, positioned behind the harmonic balancer. Disconnect its two-wire connector and measure resistance between the sensor’s pins. Specifications call for 500–900 ohms at room temperature. If readings are irregular, replace the sensor. While reattaching the connector, ensure the wiring isn’t frayed or pinched near the engine’s moving components, as intermittent faults often originate here.
Test the ignition control module (ICM) by probing its five-wire connector with the multimeter. With the key in the “ON” position, pin A (B+) should read 12V, and pin E (ground) should show 0V. Any other result points to a faulty power feed or chassis ground issue. Swap the ICM with a known-good unit if tests confirm a malfunction–these modules frequently fail without external symptoms.
Examine the security passlock sensor embedded in the ignition lock cylinder. Insert the key and turn to the “RUN” position while monitoring voltage at the sensor’s yellow wire. It should drop from 5V to near 0V within two seconds. If the voltage remains high, the anti-theft system is preventing fuel injection, mimicking an ignition failure. Recalibrate the sensor by cycling the key multiple times or consult a scan tool for specific reset procedures.
Finally, fire the engine while monitoring spark output at each plug wire with an inline spark tester. Attach the tester between the spark plug and coil boot, then crank the engine–consistent blue sparks at all cylinders confirm a healthy ignition system. Weak or absent sparks demand further scrutiny of the coil pack, high-voltage cables, or distributor rotor if equipped. Replace components showing signs of arcing or carbon tracking.
