How to Design a Reliable 19V to 12V DC Converter Step by Step Guide
Begin with a LM2596 or MP1584 switching regulator for reliable output under varying loads. These modules handle currents up to 3A with minimal heat loss, outperforming linear alternatives like 7812 ICs that waste energy as thermal dissipation. Ensure the input voltage never exceeds 22V–most buck modules tolerate surges but sustained overvoltage risks permanent damage.
For demanding applications, pair the regulator with a Schottky diode (e.g., 1N5822) on the output to prevent reverse current during power cycles. A 47μF input capacitor and 100μF output capacitor stabilize fluctuations, critical for sensitive electronics. If noise suppression is needed, add a 10μF ceramic capacitor in parallel with the output.
Adjust the feedback resistor values carefully: a potentiometer (10kΩ) allows fine-tuning, but fixed resistors (1.5kΩ + 1kΩ) ensure long-term stability. Measure output with a multimeter–deviation beyond ±0.2V signals component failure. For compact builds, consider SMD modules like the XL4015, but verify cooling requirements for loads above 2A.

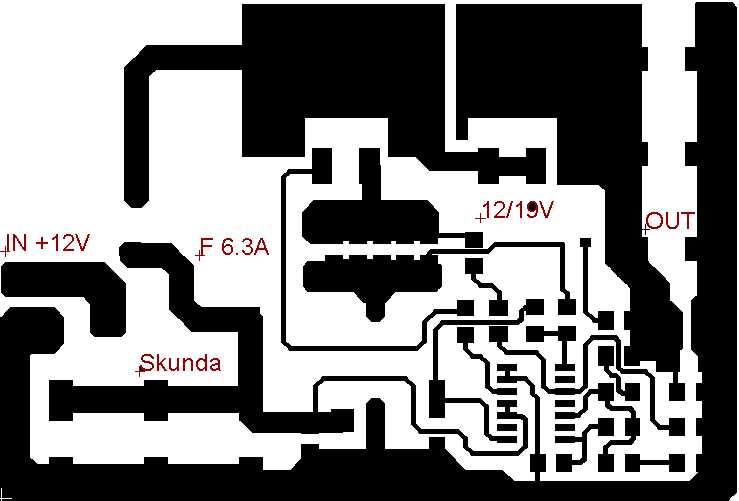

Isolate high-current paths from signal traces on custom PCBs to minimize interference. Ground planes improve efficiency, while thinner traces (1oz copper) may require thermal vias near the regulator. Test under full load (90% of rated current) before deployment–transient spikes often reveal flaws invisible during idle operation.

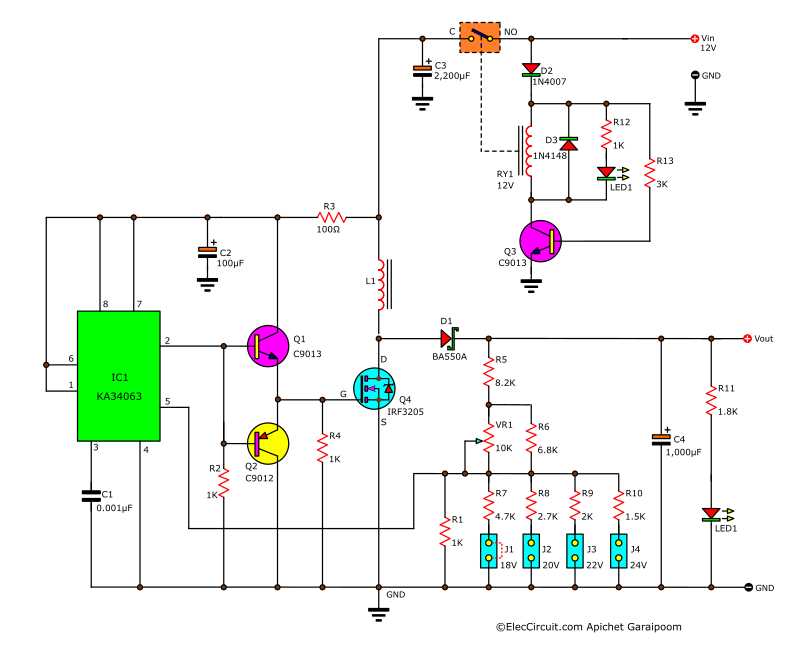

Step-Down Power Supply Design for Voltage Adjustment
Use a switching regulator like the LM2596 or XL6009 for efficient transformation of higher input to a stable lower output. Configure the feedback resistors (R1 and R2) to set the target voltage–calculate values using the formula Vout = Vref × (1 + R1/R2), where Vref for the LM2596 is 1.23V. For a 12V output, typical values are R1=10kΩ and R2=1.5kΩ, yielding approximately 12.3V. Ensure the input capacitor (22µF–47µF) and output capacitor (220µF–470µF) are rated for at least 25V to handle ripple and transient spikes.
Critical Component Selection for Reliability
Opt for an inductor between 33µH and 100µH with a saturation current exceeding the maximum load demand–typically 2A for most applications. Schotky diodes (e.g., 1N5822) are preferred for low forward voltage drop (≤0.5V), reducing power loss. Thermal management is non-negotiable: mount the regulator on a heatsink if continuous current exceeds 1.5A or ambient temperatures surpass 50°C. Use a PCB with thick copper traces (≥2oz) for paths carrying >1A to prevent overheating.
Test the assembly under load with a multimeter and oscilloscope to verify output stability. Expect
Selecting Between Linear and Switch-Mode Regulators for High-to-Mid Voltage Step-Down
For low-current applications under 500 mA, a linear regulator like the LM7812 or LM317 offers simplicity with minimal components: an input capacitor (10–22 µF) and output capacitor (1–10 µF). These devices maintain a fixed or adjustable output with less than 1% ripple when properly decoupled, making them ideal for noise-sensitive loads such as analog sensors or audio preamps. Linear regulators dissipate excess energy as heat–calculate power loss as (input voltage − target voltage) × load current. At 7 V drop and 0.5 A, dissipation reaches 3.5 W, requiring a small heatsink or PCB copper pour for thermal relief. Avoid linear solutions if efficiency below 60% is unacceptable or if ambient temperatures exceed 60°C without forced cooling.
When to Opt for Switch-Mode Solutions
Switching regulators excel in efficiency (85–95%) and thermal performance, critical for currents above 1 A or compact enclosures. Use a buck topology with components like the LM2675 or TPS5430 for 3–10 A loads, pairing the IC with an inductor (10–47 µH, saturation current >1.5× load), input/output capacitors (22–100 µF, X5R/X7R dielectric), and a Schottky diode (e.g., 1N5822 for
- Switch-node ringing demands short trace lengths and grounded pours near the inductor to suppress EMI.
- Output ripple ranges 20–100 mVpp; add a 20–100 kHz LC filter (e.g., 10 µH + 10 µF) for sensitive loads.
- Quiescent current (~1 mA for LM2675) impacts light-load efficiency; for ultra-low-power standby, consider a pulse-skipping or PFM-mode IC like the LT8610.
Sync buck converters eliminate diode losses but require careful layout to avoid ground loops. For isolated designs, a flyback controller (e.g., LT3748) with a coupled inductor and safety capacitors meets reinforced insulation standards.

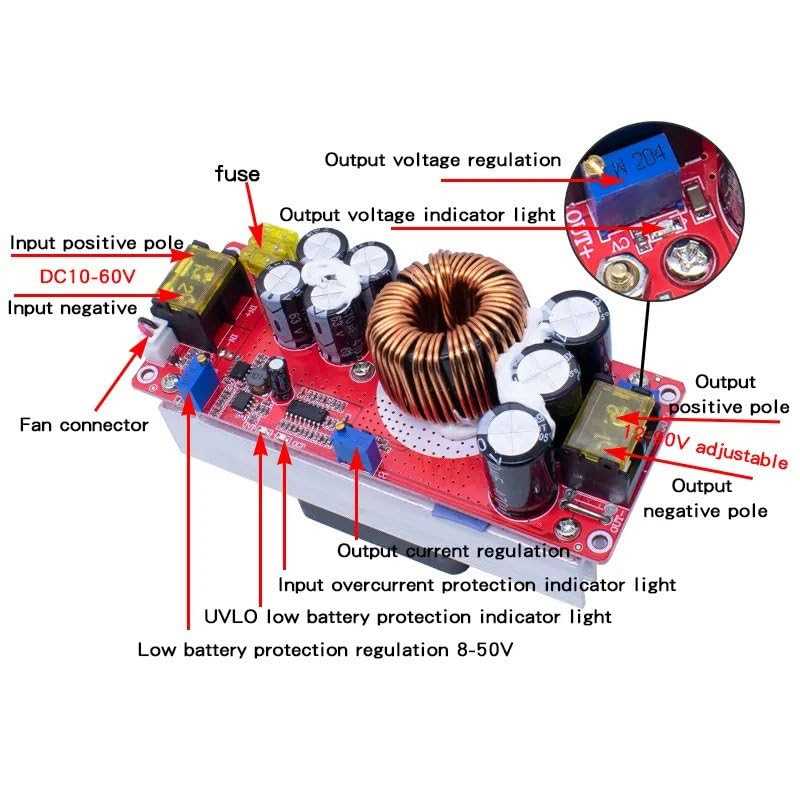

Step-by-Step Assembly Guide for a Voltage Reduction Module
Begin by selecting a high-efficiency switching regulator IC with a current rating exceeding your load requirements by at least 20%. For a 3A output, use the LM2596 or MP2307, soldering it onto a perforated board with a 35μm copper layer for optimal heat dissipation. Connect the input capacitor (22μF electrolytic, 35V) within 1cm of the IC’s input pin, followed by a 0.1μF ceramic capacitor to filter high-frequency noise–failure risks voltage spikes damaging the module. Route the inductor (33μH, 4A saturation) from the IC’s switching pin to the output capacitor (100μF, 25V low-ESR), keeping traces wide (minimum 2mm) to minimize resistive losses.
Fine-Tuning for Stability
Add a Schottky diode (1N5822, 3A) between the inductor and ground to prevent reverse current during switch-off cycles–position it less than 5mm from the inductor for efficiency. Adjust the feedback resistor network (10kΩ + 5kΩ potentiometer) to target 12.0V ±0.1V; verify with a 4½-digit multimeter under full load (e.g., 2Ω resistor). If oscillations occur, increase the output capacitor to 220μF or add a 10nF ceramic capacitor in parallel. Secure the assembly in a grounded metal enclosure to shield against EMI, using a thermal pad under the IC if ambient temperatures exceed 40°C.
Critical Component Selection: Inductors, Capacitors, and Diodes for Stable Output
Select inductors with a saturation current rating at least 30% above the peak switching current to prevent core saturation. For a 3A output stage, aim for a 4.5A–5A minimum saturation threshold. Ferrite cores (e.g., RM or PQ series) deliver superior efficiency in high-frequency applications (200–500 kHz) due to lower core losses compared to powdered iron. ESR values below 0.1Ω ensure minimal energy dissipation; verify this via datasheet or LCR meter measurements. Torroidal inductors excel in compact designs but require careful winding to avoid leakage flux.
Capacitor Selection: Balancing ESR, Ripple, and Voltage Ratings
| Type | ESR (mΩ) | Voltage Rating (V) | Ripple Current (A) | Use Case |
|---|---|---|---|---|
| Ceramic (X7R/X5R) | <10 | 25–100 | 0.5–3 | High-frequency filtering |
| Aluminum Polymer | 20–50 | 16–35 | 2–8 | Bulk energy storage |
| Tantalum (MnO₂) | 50–200 | 6.3–50 | 0.3–1.5 | Low-ESL applications |
Ceramic capacitors dominate input/output filtering due to ultra-low ESR and high ripple current tolerance, but their capacitance drops significantly under DC bias–account for a 50% derating when selecting values. Aluminum polymer capacitors offer higher energy density for bulk storage but require parallel ceramic caps to mitigate ESR-induced voltage spikes. For noise-sensitive loads, pair low-ESL tantalum or film capacitors (e.g., polypropylene) in parallel to ceramic to suppress high-frequency transients above 1 MHz.
Fast recovery diodes (e.g., Schottky or SiC) with reverse recovery times under 50 ns are mandatory for switching frequencies above 100 kHz to minimize reverse recovery losses. A 40V Schottky (e.g., STMicroelectronics’ STPS30L40) provides 0.4V forward voltage drop at 3A, reducing conduction losses by 40% compared to ultrafast silicon diodes. For higher input-output differentials, opt for 60V+ components to avoid avalanche breakdown; verify thermal resistance (RθJA) and package size (TO-220 or PowerDI) for adequate heat dissipation. Avoid generic 1N400x series–their 2–5 µs recovery time causes excessive ringing and EMI.
Thermal derating is non-negotiable: operate inductors below 80% of rated current, capacitors at ≤60% of voltage rating, and diodes with a junction temperature 45°.
Calculating Power Dissipation and Heat Management in a High-to-Low Voltage Regulator
Begin by measuring the input-output differential across the linear stage. For a 7-volt drop at 3 amperes, dissipation reaches 21 watts–enough to require forced cooling. Use P = (Vin – Vout) × I to confirm; deviations beyond ±2% indicate measurement error or unstable load.
Thermal resistance (θJA) dictates heatsink sizing. A TO-220 package with θJA = 50°C/W and 21W dissipation yields a ΔT = 1050°C–impossible without a heatsink. Subtract junction-to-case (θJC = 1.5°C/W), then solve for heatsink θSA: θSA ≤ (ΔTmax – (P × θJC)) / P.
Select heatsink material based on power density. Extruded aluminum (λ ≈ 200 W/m·K) suits ≤30W; copper-wire finned (λ ≈ 390 W/m·K) handles >50W. Ensure fin spacing ≥2.5mm to prevent airflow blockage at natural convection.
- Ambient max: If enclosure air temperature exceeds +45°C, derate power by 15% per 10°C.
- Mounting: Apply thermal grease (k ≈ 4 W/m·K) in a 0.1mm layer; excess increases θJC.
- Insulation: Use mica washers (0.1mm, 10kV/mm) only if galvanic isolation is mandatory; they add ≈1°C/W.
Current-limiting resistors protect against transient loads. A 0.1Ω sense resistor drops 300mV at 3A–negligible power (
Alternative: Switching Topology Efficiency
Replace linear regulation with a buck stage for ≥80% efficiency. At 21W input, losses drop to 4.2W if switching at 150kHz with 85% duty cycle. Use Ploss = I2 × RDS(on) + f × Coss × V2 for MOSFET selection.
- Inductor: Core saturation ≥1.2 × (Vin × D) / (f × ΔI). For 3A, use ≥47µH with Isat = 4.5A.
- Diode: Schottky (Vf ≤ 0.5V) reduces reverse recovery loss; derate current by 30% at +100°C.
- Capacitor: Bulk capacitance ≥(ΔI × D) / (f × ΔVout). 1000µF aluminum electrolytic withstands 3A ripple at 100kHz.
Thermal vias under the PCB pad improve heat transfer to copper planes. Four vias of 0.5mm diameter each provide θv ≈ 12°C/W; tin-plated copper vias reduce this by 30%. Use ≥2 oz copper weight for planes.
