Complete 2014 Chevrolet Silverado Radio Wiring Harness Color Code Guide

Locate the C2 connector (14-pin, gray) behind the factory head unit–pin 5 carries constant 12V+, pin 10 supplies illumination, and pins 2-4 handle left/right front speaker outputs (4Ω, 20W). Disconnect the OEM plug before tapping; use Metra 70-2003 for seamless splice-in without cutting factory wires. Keep harness length under 18 inches to prevent signal degradation.

Ground the new unit directly to the chassis at a bare-metal point–avoid powder-coated surfaces. Use #10 AWG copper wire (tinned) and a star washer for corrosion resistance. Check amperage draw: aftermarket units exceeding 10A require a relay-triggered circuit tied to pin 5 to prevent OEM fuse overload (typically 10A).

Verify CAN bus compatibility if retaining steering-wheel controls–aftermarket interfaces like Axxess ASWC-1 require firmware update for 2015-2019 K2XX platforms. Program mute functionality by bridging the BCM pin 38 to the aftermarket harness’s mute wire (usually purple/white).

For parking brake integration, intercept the brake-light switch signal (gray wire, pin 1 on C1 connector) and route it to the new unit’s parking-brake input. Bypass the OEM amplifier only if upgrading to a 4-channel amp–stock speakers tolerate 75W RMS, aftermarket tweeters require high-pass crossovers at 3.5kHz to avoid distortion.

Test all connections with a multimeter before reassembly: continuity on ground (dash panels → HVAC ducts → cluster bezel–tighten screws in a star pattern to prevent warping. Replace all plastic clips damaged during removal.

Chevy Truck Audio Connector Pinout Guide

Locate the 16-pin OEM plug behind the dash panel; pins are numbered clockwise starting at the top-left keyway slot (1) down to bottom-left (8), then bottom-right (9) up to top-right (16). Match each pin as follows:

• Pin 2 (LT BLU wire) – Left front speaker positive (+)
• Pin 3 (DK GRN) – Left front speaker negative (–)
• Pin 6 (LT GRN) – Right front speaker positive (+)
• Pin 11 (YEL) – Right front speaker negative (–)
• Pin 4 (ORG) – Battery constant 12V (max 10A fuse within 12″)
• Pin 5 (BLK) – Ground (chassis near firewall stud)
• Pin 7 (GRY) – Illumination sense (varies 0–12V with headlight switch)
• Pin 9 (PPL) – Data bus low (keep open if not used)
• Pin 10 (TAN) – Data bus high
• Pin 13 (DK BLU) – Antenna motor control (12V trigger, max 300mA)
• Pin 15 (RED) – Switched ignition 12V (matches fuse C1-IG3)

Trim the factory retainer clips without damaging the locking tabs; insert a flat-blade screwdriver at 45 degrees to release the tab, then pull straight outward. Verify each connection with a multimeter set to 200 Ω continuity mode–any reading above 5 Ω indicates corrosion or partial break requiring wire brushing or splice crimping (18–22 AWG butt connectors, heat-shrink tubing).

Matching the Proper Fuse Block Connector to Your Crew Cab Model Variant

Begin by locating the glove compartment or under-dash panel on the passenger side–this is where the primary socket cluster resides. For LTZ and LT trims, the connector will feature a 12-pin layout with color-coded outputs: yellow (battery constant), orange (accessory), and purple (illumination). Base WT models substitute the 12-pin for an 8-pin arrangement, omitting the secondary ground and ambient light feeds. Verify the connector shape–LTZ/LT use a trapezoidal housing, while WT’s is rectangular.

Check the vehicle’s RPO code sticker, typically affixed to the glove box door or spare tire well. Codes UPF (premium audio), UQA (Bose), or IO5 (navigation-ready) confirm the presence of amplified speaker outputs–these trims require the 12-pin harness with RCA pre-outs. Absence of these codes indicates a standard system; retrofit kits must include an external amplifier module for aftermarket upgrades.

Connector Pinout Reference by Trim

Trim	Connector Type	Critical Pin Functions	Compatibility Notes
LTZ	12-pin trapezoid	RCA L/R (pins 7-8), Amp trigger (pin 11)	Requires retained accessory power relay for delayed shutdown
LT	12-pin trapezoid	Illumination (pin 10), Parking brake (pin 6)	Pin 6 must be grounded to bypass video restrictions
WT	8-pin rectangle	Single ground (pin 4), Dimmer (pin 5)	Avoid splices–use Metra 40-CR10 adapter for CAN bus retention

Measure the distance from the fuse block to the head unit–LTZ/LT run a bundled loom (~18 inches), WT models separate the USB and antenna leads (~24 inches). Adapter plugs like AXXESS AX-AdSUB1 bridge length discrepancies but may introduce signal noise; always use shielded extension cables rated for 10A current. For trims with OnStar, retain pins 3 (voice) and 9 (mic) unless replacing with a standalone telematics module.

Test for battery drain by probing the yellow feed (pin 2) with a multimeter–LTZ/LT should register voltage drop below 50mV when the ignition is off; WT’s simpler circuit may show 80-100mV due to parasitic draws from the CAN bus. If values exceed thresholds, isolate the accessory relay or install a Pac APWR-CH11 timer switch to prevent module conflicts.

Color-coding schemes differ between OEM and aftermarket harnesses–Metra’s 70-2103 aligns with GM’s factory palette (e.g., dark green for reverse trigger), while Scosche’s GM01B inverts the illumination and ground leads. Cross-reference the installation manual with your trim’s pinout; discrepancies risk frying the amplifier chip in Bose-equipped models. WT trims lack a dedicated amp trigger–insert a 12V relay between the ignition and accessory leads if adding a subwoofer.

Troubleshooting Fuse Block Mismatches

Symptoms of an incorrect connector include:

• Inoperative steering wheel controls (LTZ/LT: pins 1/12; WT: not applicable)
• Static in FM reception (check antenna amplification circuit–LTZ uses a 5-step booster, WT relies on passive)
• USB port failure (requires 5V power from pin 7 on LTZ, WT uses a switched feed from pin 5)

For hybrid trims (e.g., eAssist), the harness includes an additional 4-pin subset for hybrid powertrain interference suppression. Avoid third-party “universal” adapters–these omit the LCK-4 capacitor filter, causing erratic Bluetooth pairing. Replace the entire loom if insulation is brittle, as GM’s proprietary TPU-jacketed wires degrade after 8+ years, particularly in high-humidity climates.

Final verification involves a continuity test between the head unit’s chassis and the designated ground pin (LTZ: pin 12; WT: pin 4). Resistance should read below 0.5 ohms–higher values indicate corrosion at the chassis point (typically behind the driver’s knee bolster). Apply dielectric grease to all pins post-installation; GM’s factory coating degrades with heat cycles, and aftermarket connectors lack this protection.

Finding the OEM Audio Connector Behind the Instrument Panel

Remove the trim panel surrounding the climate and media controls by prying loose the retaining clips with a plastic wedge. Work systematically from the lower edge upward, disengaging each clip before moving to the next–there are 12 clips total, spaced approximately 7 cm apart. Once free, tilt the panel downward and disconnect the two electrical plugs at the back; label each connector with masking tape to avoid confusion during reassembly.

Behind the now-exposed mounting bracket, locate the factory audio loom–it’s secured with a single 8 mm bolt and hidden behind a foam-lined access cover. Rotate the bracket clockwise 20° to reveal the loom’s six-pin plug; pull the red release tab outward before gently wiggling the connector free. Inspect the pins for oxidation–clean with a cotton swab dipped in isopropyl alcohol if any greenish residue is visible. Avoid excessive force; the pins bend easily under lateral pressure.

Trace the loom’s path downward to where it branches behind the glove compartment–this secondary connector holds power, speaker, and illumination circuits. Use a T15 Torx driver to remove the two screws holding the lower dash reinforcement; the loom routes through a rubber grommet that must be carefully pushed inward to prevent pinching. Confirm continuity with a multimeter before splicing, ensuring the ignition-switched 12V lead (typically pink or yellow) shows zero resistance only when the key is in the ACC or ON position.

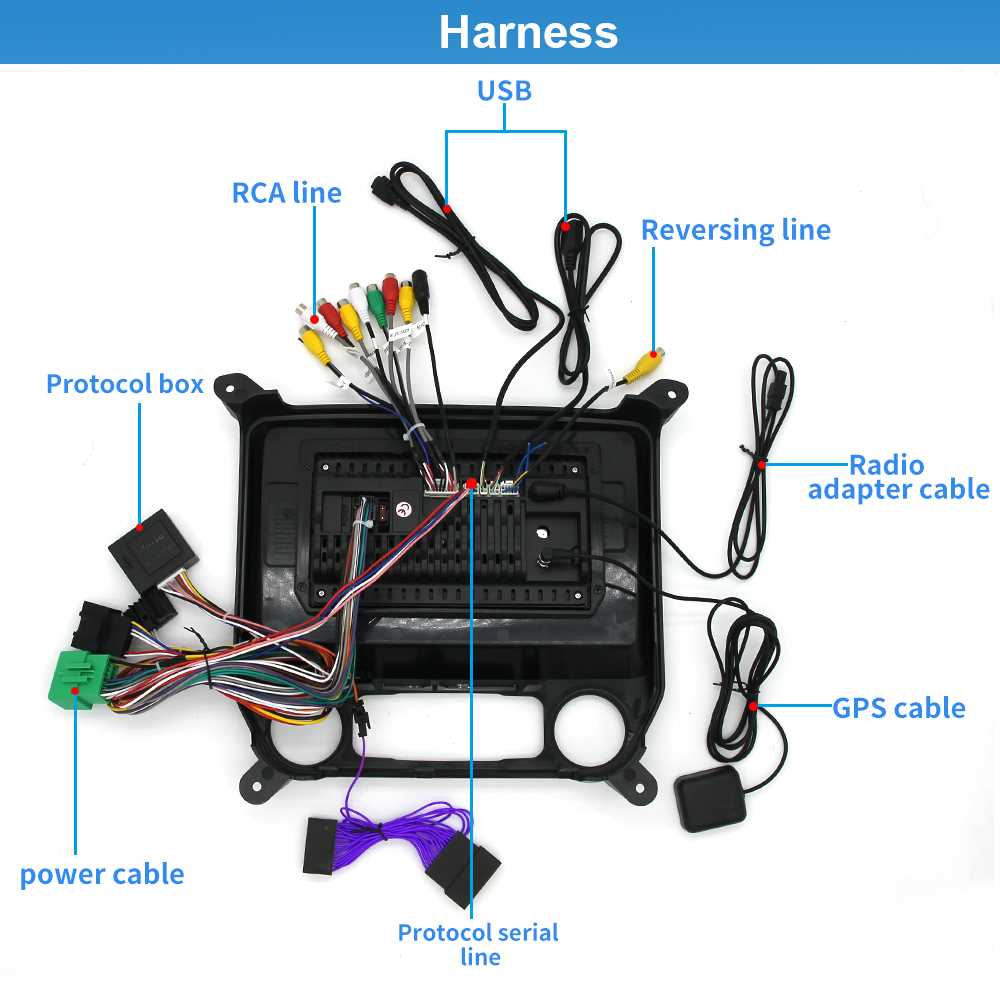

Step-by-Step Guide to Integrating Third-Party Audio System Cables with Factory Connectors

Begin by identifying the aftermarket head unit’s power leads–locate the constant 12V (yellow), accessory (red), and ground (black) wires on both the new system and the vehicle’s existing plug. Cross-reference these with a color-coded chart specific to the vehicle’s make to avoid mismatches. Securely strip 6–8 mm of insulation from each wire, then twist the matching strands together tightly before applying a rosin-core solder sleeve. Heat-shrink tubing over the joint ensures a moisture-resistant seal.

1. Match the speaker outputs: each door’s positive (+) and negative (-) leads must align precisely. Front left (gray), front right (white), rear left (green), and rear right (purple) wires follow standard OEM conventions. Confirm impedance compatibility–most aftermarket units expect 4-ohm loads. Use a multimeter set to continuity mode to verify connections without powering the system, preventing short circuits.
2. Install a parking brake bypass module if integrating video capabilities. Splice a resistor (typically 500–1,000 ohms) inline with the parking brake wire to simulate engagement, ensuring compliance with safety regulations. Avoid grounding this wire directly, as it may trigger false warnings or disable features.
3. For amplified systems, connect the remote turn-on lead (blue/white) to the factory harness’s equivalent signal source–usually found near the fuse box or behind the dash. A relay may be necessary for high-power setups to prevent voltage drops. Test each connection by cycling the ignition; the head unit should power on without delay.

Testing and Troubleshooting

Verify all connections with a 12V test light before finalizing. Probe each soldered joint while the ignition is on; the light should illuminate on constant and accessory wires. If the unit fails to power on, check for blown fuses–refer to the vehicle’s manual for locations (typically a 10–20A fuse). Common issues include:

• Ground loops (buzzing/humming): relocate the ground wire to a bare metal chassis point.
• Intermittent sound: ensure speaker wires are not pinched or routed near high-current cables (e.g., alternator leads).
• Display errors: re-seat the factory connector if retaining steering wheel controls.

Finalize the installation by securing all wires with nylon wire ties, keeping them away from moving parts (e.g., pedals, steering columns). Reassemble the dash panels, ensuring no clips are missed. Perform a road test to confirm all audio zones function at varying volumes and that integration with vehicle warnings (e.g., turn signals) remains intact. Adjust equalizer settings to match the vehicle’s acoustics–factory tuned systems often compensate for cabin resonance.
