2 Bit Multiplier Circuit Guide with Schematic Design and Truth Table

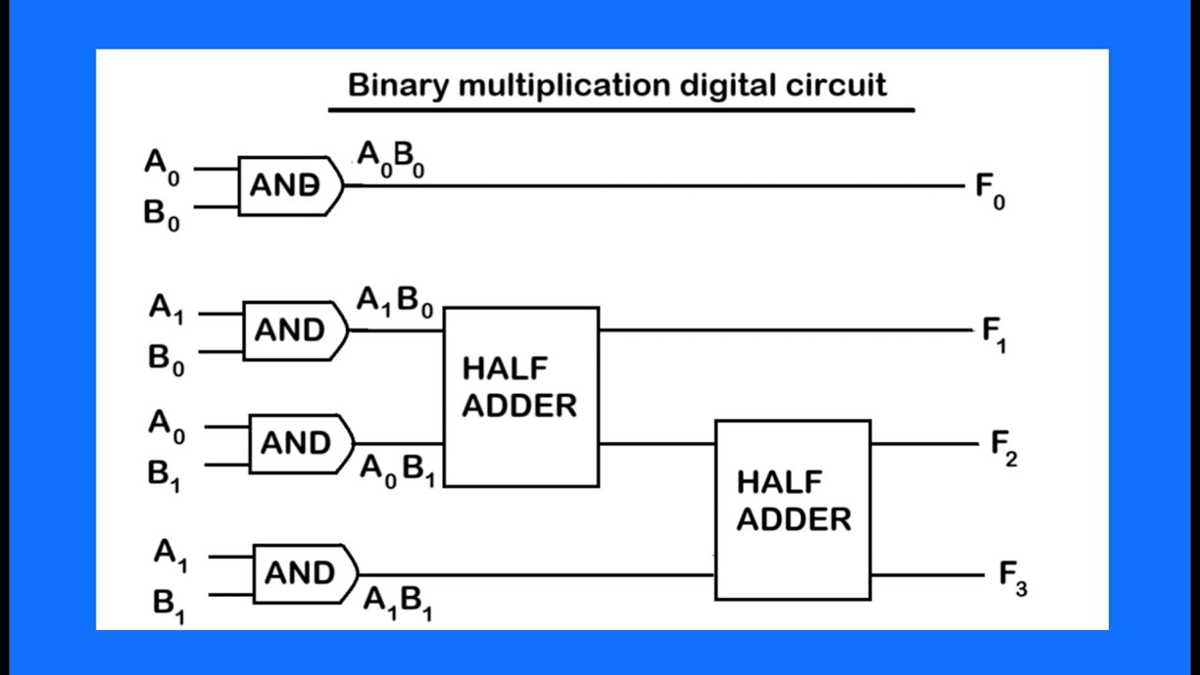

Begin by arranging four AND gates to handle pairwise signal intersections–these form the foundation of the arithmetic operation. Input combinations A0B0, A0B1, A1B0, and A1B1 must feed directly into separate AND gates to compute partial results. The outputs of these gates require precise routing: the first (A0B0) becomes the least significant digit, while the remaining terms need summation via a half-adder for the middle digit and another for the most significant digit.

Minimize propagation delay by employing fast NAND gates followed by inverters for AND functionality–this reduces gate count without sacrificing speed. For the half-adders, use exclusive OR gates to sum partial products and AND gates to generate carry signals. The resulting carry from the middle position must cascade into the final adder stage to ensure correct two-digit output formation.

Verify functionality by applying all four input permutations (00, 01, 10, 11). Expected outputs–00, 01, 10, 11–should appear without glitches. If skew occurs, adjust wire lengths or replace slower gates with higher-speed equivalents (e.g., 74HC series). Power constraints? Replace standard gates with low-voltage variants like LVX or LVC for reduced consumption without altering logic flow.

For layout optimization, cluster identical gate types and route carries orthogonally to inputs. Use ground planes beneath critical paths to suppress noise, especially in high-frequency implementations. Document each stage’s truth table–this isolates faults quickly during debugging. When scaling beyond two digits, replicate this structure but expand carry chains linearly, not exponentially, to avoid combinatorial explosion.

Designing a Compact Dual-Digit Arithmetic Unit

Construct this logic network using four AND gates, two half-adders, and one full-adder to handle dual-digit operand multiplication efficiently. Start by feeding the two least significant digits (LSDs) into an AND gate–this yields the first product digit directly. The remaining three intersections require custom combinational logic: pass the two LSDs and the two most significant digits (MSDs) into separate AND gates, then route their outputs into a half-adder; its sum output combines with the final AND gate result via a full-adder for the final carry resolution.

Signal Routing Optimization

Label input lines A0, A1 and B0, B1 for clarity–this simplifies tracing through the network during verification. Use 74HC08 for AND operations, 74HC86 for XOR-based half-adders, and 74HC283 for the full-adder stage to maintain signal integrity while minimizing propagation delay. Ground unused pins on each IC to prevent floating inputs that introduce noise. Pre-calculate expected outputs for test vectors (00×00, 01×11, 10×01, 11×11) and compare against measured waveforms on an oscilloscope to isolate faults quickly.

Fundamental Components Needed for a Dual-Digit Arithmetic Device

Constructing a dual-digit arithmetic device demands three core logic building blocks: AND, OR, and XOR gates. The AND gates generate partial products, while the OR gates aggregate these results. XOR gates handle carry propagation and final summation. For a 2×2 configuration, allocate four AND gates–one per pair of inputs–to compute each partial product. Combine these with two XOR gates for the least significant digit and an additional XOR gate paired with an AND gate for the carry logic of the most significant digit.

The exact gate count depends on input pairs and required outputs. Below is a breakdown of minimal requirements for a dual-digit setup:

Gate Type	Quantity	Primary Function
AND	4	Partial product generation
OR	1	Partial product aggregation
XOR	3	Summation and carry resolution
NOT	2	Input inversion for complementary logic

Begin by wiring the four AND gates to each possible pair of inputs–A0B0, A0B1, A1B0, A1B1–yielding the intermediary outputs. Route these outputs into a single OR gate to consolidate the partial products into a base sum. For the least significant digit, direct the first two AND outputs (A0B0 and A0B1) into an XOR gate. The remaining two AND outputs (A1B0 and A1B1) require an XOR gate followed by an AND gate to manage the carry-over into the higher digit.

Include two NOT gates if the design incorporates NAND or NOR alternatives, as inverted inputs simplify gate cascading. For optimized space, replace individual gates with a 4-input AND-OR-Invert (AOI) cell, reducing the total component count to three AOI units and two XOR gates. This approach minimizes propagation delay while maintaining accuracy. Verify each output with a truth table before finalizing connections to ensure no redundant pathways exist.

For carry logic, the XOR-AND pairing resolves overflow by checking if both higher-bit AND outputs (A1B0 and A1B1) are active. If true, the AND gate triggers a carry-over to the next significant place. This cascade effect repeats for wider implementations but remains confined to single-bit carry in a dual-digit case. Always test both combinations where carry occurs (inputs 2×2, 2×3, 3×2, 3×3) to confirm expected behavior.

Step-by-Step Truth Table for Dual-Digit Binary Product Formation

Begin by defining the inputs as two pairs: A₁A₀ and B₁B₀, where each pair represents a 2-digit binary value. The output requires four places: P₃P₂P₁P₀, since the maximum product of two 2-digit binaries (11 × 11) equals 1001 (decimal 9). Construct a 16-row table covering all possible input combinations (00 × 00 to 11 × 11) to ensure exhaustive verification. List inputs in ascending order for clarity.

• Row 1: A₁A₀ = 00, B₁B₀ = 00 → P₃P₂P₁P₀ = 0000
• Row 2: A₁A₀ = 00, B₁B₀ = 01 → P₃P₂P₁P₀ = 0000
• Row 3: A₁A₀ = 00, B₁B₀ = 10 → P₃P₂P₁P₀ = 0000
• Row 4: A₁A₀ = 00, B₁B₀ = 11 → P₃P₂P₁P₀ = 0000
• Row 5: A₁A₀ = 01, B₁B₀ = 00 → P₃P₂P₁P₀ = 0000
• Row 6: A₁A₀ = 01, B₁B₀ = 01 → P₃P₂P₁P₀ = 0001 (decimal 1)
• Row 7: A₁A₀ = 01, B₁B₀ = 10 → P₃P₂P₁P₀ = 0010 (decimal 2)
• Row 8: A₁A₀ = 01, B₁B₀ = 11 → P₃P₂P₁P₀ = 0011 (decimal 3)
• Row 9: A₁A₀ = 10, B₁B₀ = 00 → P₃P₂P₁P₀ = 0000
• Row 10: A₁A₀ = 10, B₁B₀ = 01 → P₃P₂P₁P₀ = 0010 (decimal 2)
• Row 11: A₁A₀ = 10, B₁B₀ = 10 → P₃P₂P₁P₀ = 0100 (decimal 4)
• Row 12: A₁A₀ = 10, B₁B₀ = 11 → P₃P₂P₁P₀ = 0110 (decimal 6)
• Row 13: A₁A₀ = 11, B₁B₀ = 00 → P₃P₂P₁P₀ = 0000
• Row 14: A₁A₀ = 11, B₁B₀ = 01 → P₃P₂P₁P₀ = 0011 (decimal 3)
• Row 15: A₁A₀ = 11, B₁B₀ = 10 → P₃P₂P₁P₀ = 0110 (decimal 6)
• Row 16: A₁A₀ = 11, B₁B₀ = 11 → P₃P₂P₁P₀ = 1001 (decimal 9)

Verify each entry by converting inputs to decimal, computing the product manually, then converting back to binary. Cross-check rows 8, 12, 15, and 16–these represent the most significant edge cases where both inputs have non-zero values. For hardware implementation, translate this table into logical expressions using AND gates for partial products and OR gates for summation. Isolate P₀ as A₀ AND B₀, P₁ as (A₁ AND B₀) XOR (A₀ AND B₁), P₂ as (A₁ AND B₁) XOR carry from P₁, and P₃ as the carry from P₂. Simplify using Karnaugh maps if gate count minimization is critical.

Deriving the Sum-of-Products Formula from Logic State Tables

Identify all input combinations where the output column yields a high signal. For a minimal 2-input combinational module, the table will contain four rows; list only those with a logical true result. Each valid row translates directly into a product term, where inputs asserting positive logic are written as-is, and those with negative logic are inverted. Combine these product terms using logical OR to form the complete expression.

Example for a system with inputs A, B, and output F set to high in rows 01 and 10:

• First row (01): ¬A ∧ B
• Second row (10): A ∧ ¬B
• Final expression: F = (¬A ∧ B) ∨ (A ∧ ¬B)

Simplify the expression using Boolean algebra rules when possible. Common reductions include combining adjacent product terms with one differing input or applying absorption laws. Validate the simplified formula by cross-checking against the original table to ensure all positive output states remain covered without introducing false positives.

Optimizing Logic Design via Karnaugh Mapping Techniques

Start by listing the four output functions of the 2-input combinational system–each should correspond to a sum-of-products (SOP) expression derived from the truth table. For a minimal implementation, identify all prime implicants by grouping adjacent cells in the map, where adjacency includes wrap-around edges (top-bottom and left-right). Groups must be powers of two in size (1, 2, 4, or 8 cells) and should contain only active states (logic high). Avoid over-grouping; prioritize larger clusters first to eliminate redundant terms.

For the output representing the least significant logic state, a 4-cell group typically forms, reducing to a single literal (e.g., AB or CD). The next state often requires two 2-cell groups, each simplifying to two-term products (e.g., A’B + AB’ or C’D + CD’). Use don’t-care conditions strategically–assign them to logic high only if they enable larger groupings, otherwise treat as logic low. Verify each minimized term by cross-referencing the original truth table demands; even a single misaligned grouping can introduce errors.

Common Pitfalls in Simplification

Misclassifying don’t-care states as mandatory signals tops the list of errors, leading to oversized or incorrect logic gates. Another frequent mistake: ignoring diagonal adjacencies–these cells do not form valid groups. For 2-variable maps, confirm that every group aligns with exactly one literal or product term; leftover ungrouped cells indicate an incomplete or erroneous simplification. Reassess all groupings if the minimized SOP contains more than three terms per function–further reduction is almost always possible.

Implement each minimized function using NOR or NAND gates if targeting a compact physical layout, as these gates naturally invert outputs. For example, a product term like A’B translates to a NOR gate with inverting inputs (pull A high through an inverter) or direct NAND inputs (treat A’ as an inverted signal). Trace every signal path from input to output; floating signals or improperly combined gates introduce glitches or static hazards. Simulate the optimized design in a standard logic analyzer before fabrication–K-maps minimize terms, not necessarily timing issues.

Validation Through Sum-of-Products Verification

After simplification, expand each SOP back into its canonical form (minterms) to verify equivalence with the original truth table. A mismatch means the grouping missed active states; revisit the map, ensuring no cell is overlooked. For systems with more than two inputs, cascade multiple 2-variable maps–handle each output function separately but maintain consistent grouping rules. Document each minimized term alongside its gate-level realization; clear mapping prevents misinterpretation during hardware integration. The goal is a gate count reduction of 30-50% over brute-force methods while preserving exact logical behavior.
