How to Wire a 2 Ohm Dual Voice Coil Subwoofer for Optimal Sound
For subwoofer setups requiring consistent power delivery, link both terminals in parallel: attach the amplifier’s positive lead to both red connectors and ground to both black ones. This halves the load resistance (1 unit) while preserving flexibility for amplifier stability. Test impedance with a multimeter before powering–fluctuations beyond ±0.2 units indicate faulty connections.
Series connections demand precision: join one driver’s red terminal to the second’s black, then wire the amplifier to the remaining free terminals. The resulting load doubles (4 units), ideal for underpowered systems but risking distortion at high volumes. Use 12-gauge oxygen-free copper wire to minimize signal loss; thinner cables introduce resistance spikes, skewing performance.
Bridged amplifiers necessitate unique setups: wire the subwoofer’s pairs in opposite polarity (one side reversed) to avoid cancellation. Verify phase alignment with a 1kHz test tone–peaks should peak at ≥0.5V RMS on both channels. Mismatched polarity cancels bass frequencies below 80Hz, audibly thinning output.
For multiple drivers, avoid mixing parallel/series: inconsistencies in power distribution overheat smaller units. Standard stamped steel baskets tolerate 200W RMS; cast aluminum extends this to 500W. Exceeding these limits risks thermal compression, reducing SPL by 3dB per 10°C rise.
Optimizing 2-Unit Speaker Impedance Configurations

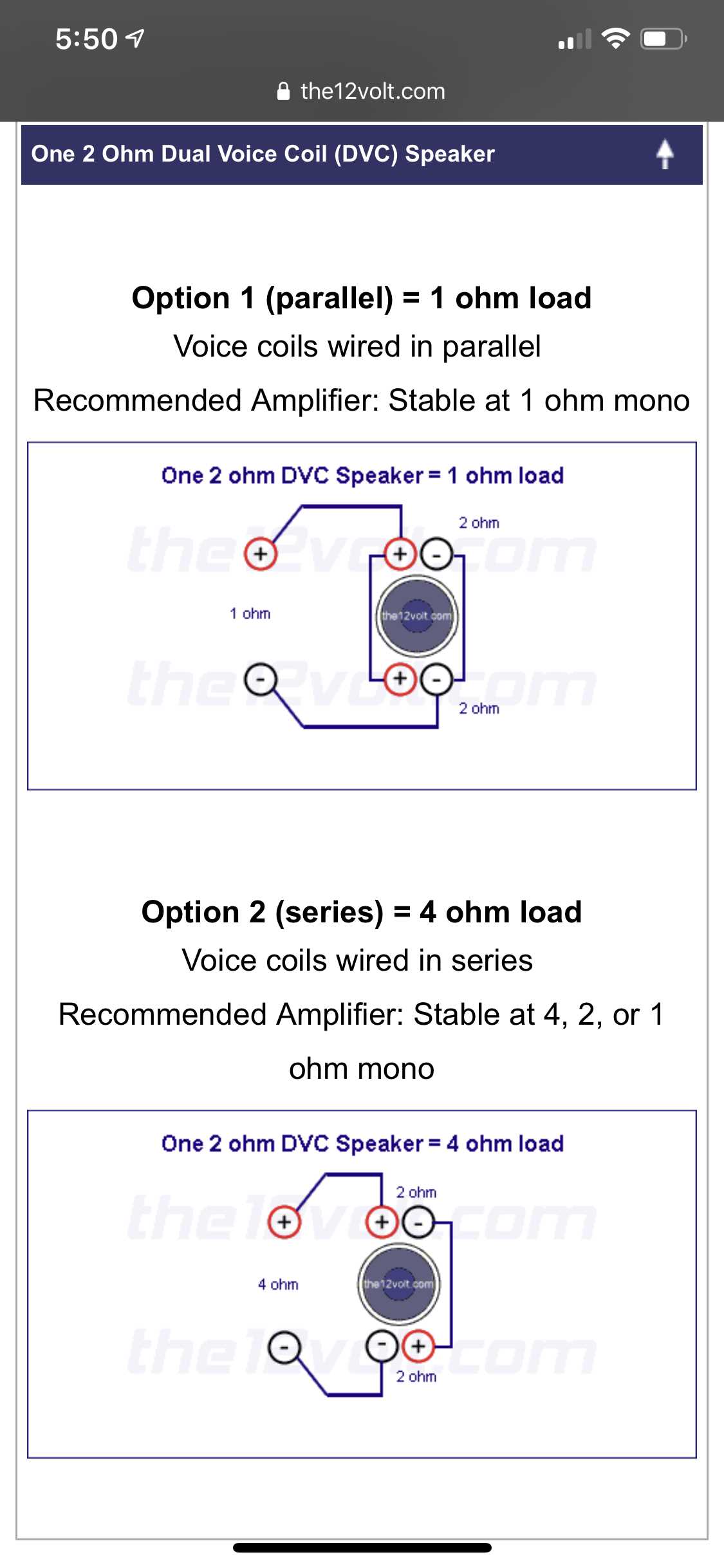

Connect both resistive elements in parallel to achieve a 1Ω load when using identical 2-unit components. This setup maximizes amplifier compatibility with low-impedance systems, but verify your amp’s minimum impedance rating first–many Class D models handle 1Ω, while older Class AB units may risk overheating.
For series linkage, attach the positive terminal of the first element to the negative of the second, yielding a 4Ω result. This configuration suits higher-power applications where impedance stability is critical, particularly in home audio installations or sealed enclosure systems requiring precise tuning.
| Configuration | Resulting Load | Best Use Case |
|---|---|---|
| Parallel (both units) | 1Ω | Car audio (stable amps only) |
| Series (sequential) | 4Ω | Home subwoofers (sealed boxes) |
| Independent channels | 2Ω each | Multi-channel systems |
Use a multimeter to confirm continuity before finalizing connections. Probe the terminals–parallel paths should show half the individual resistance, while series links should total their combined value. Failure to verify can lead to blown fuses or amplifier shutdowns, especially in high-current setups.
Bridge-mode amplifiers benefit from 2-unit elements wired in parallel, but only if each side of the single channel is connected to separate terminals. Distribute the positive wire to one side and the negative to the opposite terminal to avoid imbalance, which can cause distorted output or clipping.
For car audio systems with limited space, combine one element in parallel and leave the other wired separately to maintain 2Ω on one channel while getting 1Ω elsewhere. This hybrid approach works well with amplifiers featuring multiple outputs, like 4-channel units routed to both front and rear zones.
Ventilated enclosures require special attention–parallel wiring reduces damping factor, potentially compromising bass control in ported designs. Test frequency response using a sine wave generator at 40Hz and 100Hz to detect unwanted peaks or nulls before finalizing the box tuning.
When soldering connections, use 16-gauge oxygen-free copper wire for runs under 18 inches and 12-gauge for longer distances–undersized wiring introduces resistance, effectively altering your targeted load value. Heat shrink tubing on all joints prevents short circuits from vibration, particularly in mobile installations.

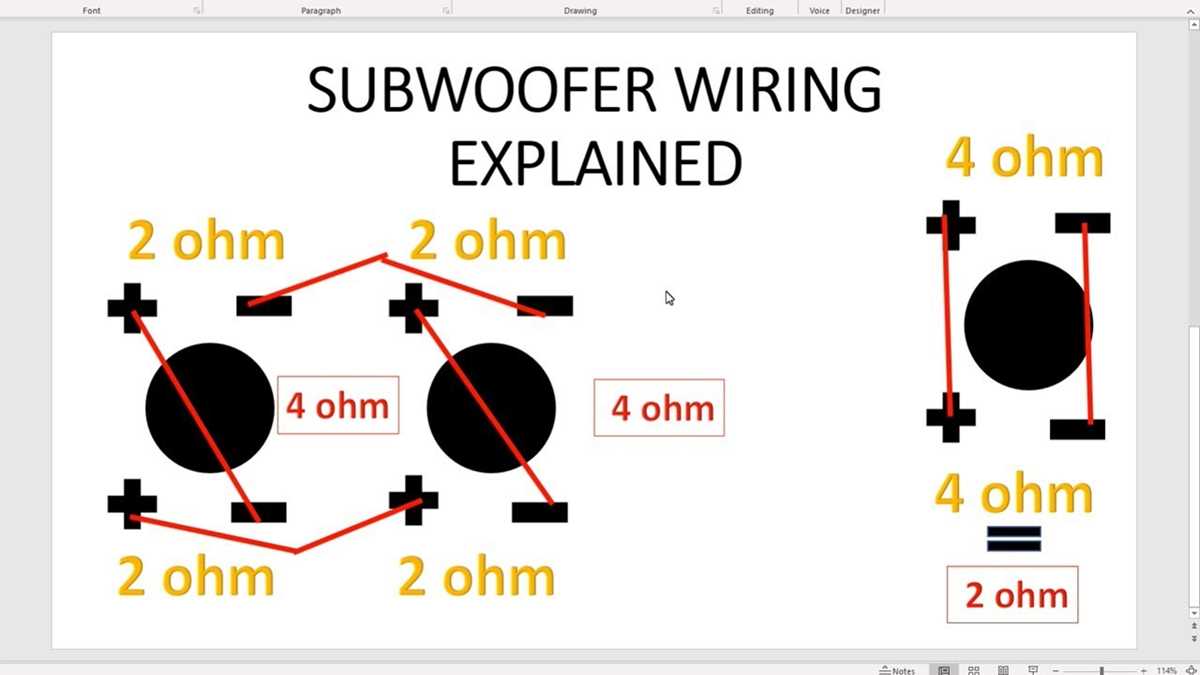

Connecting 2Ω Two-Driver Subwoofers in Parallel for Optimal Load
Link both driver terminals directly from one speaker to the corresponding inputs of the next using 12–14 AWG wire. Ensure the positive terminal of the first unit connects only to the positive terminal of the second, and repeat for the negative side. This direct coupling halves the total resistance the amplifier sees to 1 Ω, matching the stable operating range of most modern monoblock amplifiers rated at 1–4 Ω continuous.
Use a digital multimeter set to resistance mode to verify the final measurement across the combined leads before securing any connections. A reading between 0.95 Ω and 1.05 Ω confirms correct parallel coupling; readings outside this range indicate crossed wires or a faulty driver. For systems requiring multiple pairs, daisy-chain each pair separately then combine their outputs at the amplifier to maintain balanced current distribution.
Install a 100–150 A ANL fuse within 18 inches of the amplifier’s positive output terminal if the amplifier does not include a built-in protection circuit. This prevents overheating and potential failure when driving below the manufacturer’s minimum specified load. Larger wire gauges (8–10 AWG) may be necessary for runs exceeding 12 feet to minimize voltage drop.
Secure all connections with heat-shrink tubing or terminal boots to prevent corrosion and accidental shorts. Label each wire at both ends with shrink-wrap sleeves showing polarity and group number if combining multiple pairs. Avoid twisting bare wire ends; use crimp connectors or solder joints for reliability.
Test the setup at low volume first, monitoring amplifier temperature for 10–15 minutes. Gradually increase volume while observing for distortion or unusual noises. If the amplifier enters protect mode, immediately disconnect the load and recheck connections for miswires or damaged components.
Step-by-Step Series Connection for 2-Ω Dual-Speaker Loads
Begin by identifying the positive and negative terminals on each speaker unit–mark them with tape to avoid confusion. Connect the positive terminal of the first unit to the amplifier’s positive output. Then, link the negative terminal of the first unit to the positive terminal of the second unit. Finally, attach the negative terminal of the second unit back to the amplifier’s negative output. This creates a continuous loop, combining the internal resistances.
Critical Checks Before Powering On
- Verify all connections are securely fastened–loose contacts cause impedance spikes.
- Measure total resistance with a multimeter: it should read 4-Ω across the amplifier terminals.
- Avoid exceeding the amplifier’s RMS power rating–series links halve current draw but double effective load.
- Use 14-gauge or thicker wire for runs over 3 feet to prevent voltage drops.
For amplifiers sensitive to inductive loads, add a 0.1μF capacitor in parallel with each speaker to suppress transient voltages. If using more than two units, repeat the process: string positives to negatives sequentially, ensuring the final negative connects back to the amp. Never mix series and parallel links in the same setup unless the amp explicitly supports asymmetric loads–this risks overheating or distortion.
Optimizing Amplifier Output for 2-Load Dual-Winding Speaker Setups
Select an amplifier with a rated power output of 75–150 watts per channel for 2-load dual-winding drivers in parallel to prevent clipping while maintaining dynamic range. Monoblock amplifiers often deliver more stable current than multi-channel units in this impedance, reducing thermal stress during extended playback. Check manufacturer specs for continuous (RMS) power rather than peak ratings–many budget amplifiers exaggerate peak numbers by 30–50%, leading to premature distortion at actual listening volumes.
Bridge Mode Considerations
Bridging two amplifier channels to drive a single 2-load parallel setup doubles voltage swing but halves effective load tolerance; confirm the amplifier supports bridged impedance no lower than 4 loads before attempting. Most Class D amplifiers handle bridged 2-load configurations reliably, while Class AB units may require heat sinks or forced cooling to avoid shutdown. Test with a 1 kHz sine wave at 80% of maximum volume for 10 minutes–if distortion exceeds 0.5% THD, reduce volume or upgrade to a higher-current amplifier.
Volumetric efficiency varies significantly: a 2-load parallel connection demands 1.4x more current than an equivalent 4-load single-winding setup, requiring heavier gauge speaker wire (minimum 12 AWG for runs under 5 meters, 10 AWG for longer). Capacitance and inductance in cheap cables degrade transient response–use oxygen-free copper or silver-plated conductors for frequencies above 2 kHz. Pair amplifiers with regulated power supplies; unregulated linear supplies often exhibit voltage sag under sustained bass, compromising low-end punch.
Frequent Errors in Connecting Dual 2-Ohm Speaker Configurations to Amps
Mixing parallel and series connections incorrectly destroys load calculations. A single misstep here drops impedance to 1 ohm or sends it skyrocketing to 4 ohms–both extremes either fry channels or leave amplifiers underpowered. Always label terminals before connecting: red-to-red and black-to-black guarantees the intended outcome. Verify with a multimeter: parallel paths should read 1 ohm total, series should hit 4 ohms. Jumping between connection types without recalibrating guarantees mismatched power distribution.
- Skipping terminal polarity checks leads to phase cancellation–bass response weakens, and amplifiers strain against phantom resistance.
- Assuming identical subs share identical wiring layouts risks shorting terminals if manufacturer specs differ.
- Ignoring amplifier bridgability limits forces single-channel operation at half potential when dual-channel could optimize output.
Overlooking amplifier minimum load ratings triggers thermal protection or permanent damage. Many class-D amps accept 2-ohm loads, but budget monolocks often cut off at 4 ohms. Verify spec sheets: connecting two 2-ohm drivers in parallel demands a minimum 1-ohm-tolerant amp to avoid shutdown under sustained playback. Amplifiers below 80 watts RMS at 1 ohm distort or clip, negating the advantage of lowered load.
- Using thin-gauge wire (below 12 AWG) introduces resistance, skewing calculated load values by 10–15%.
- Connecting terminals without insulating unused ports invites accidental shorts–always cap unutilized connectors.
- Rushing impedance calculations without accounting for wire resistance hides 0.2–0.5 ohm losses per 20-foot run.
