How to Wire a Dual Speed Blower Motor Correctly Step by Step Guide

Verify the correct voltage match between the power source and the fan’s high/low settings before connecting any wires. Most residential HVAC systems use a 24-volt control circuit, but industrial or commercial units may require 115V or 230V. Check the fan’s data plate–common dual-rate models include Dayton 4C760, GE 5KCP39PGV220S, or Fasco A151. Incorrect voltage risks overheating or failure within minutes.

Locate the run capacitor first–typically 5–10 µF for single-phase setups. The high-rate setting connects through the capacitor’s start winding, while the low setting bypasses it directly to the main winding. Label each wire with masking tape: “H” for high flow, “L” for reduced flow, and “C” for common. Mislabeling leads to reversed rotation or erratic operation.

Use 18–16 AWG stranded copper wire–solid core increases breakage under vibration. Secure connections with crimp-on butt splices (not wire nuts) and apply heat-shrink tubing over splices to prevent corrosion. For outdoor installations, upgrade to waterproof connectors rated for the ambient moisture level.

Test the fan’s current draw with a multimeter in series. High flow should read ~1.5–2.5 amps depending on blade pitch and housing size; reduced flow drops to 0.8–1.2 amps. Values outside these ranges indicate worn bearings or incorrect wiring configuration–replace bearings before re-testing.

Dual-Rate Fan Circuit Schematic Guidance

Connect the high-output terminal to a dedicated 12-gauge wire with a 20-amp circuit breaker for stable current flow under load, reducing voltage drop to under 3% at full capacity. The low-mode connector should pair with an 18-gauge wire through a separate 15-amp breaker to prevent overheating during prolonged operation. Both paths must meet at a single-pole double-throw switch with a rated capacity of 25 amps to handle transient surges during mode shifts without arcing.

Ground the unit’s chassis via a 10-gauge green wire bonded directly to the main service panel’s grounding busbar, ensuring resistance below 0.1 ohms. For capacitor-start variants, bridge the auxiliary winding to a 40-microfarad run capacitor wired in parallel with the main coil–polarity markings face the line side to avoid phase inversion. Test continuity across each leg with a megohmmeter set to 500V; readings below 50 MΩ indicate compromised insulation requiring replacement.

Label each conductor at both ends using heat-shrink tubing: “HI” for the main power lead, “LO” for the secondary path, and “GND” for the grounding strap. Route all cables through liquidtight conduit where exposed to moisture, securing every 18 inches with UV-resistant straps to prevent vibration-induced wear. Verify proper operation by measuring output at the vent: high mode should deliver 1,200 CFM (±5%), low mode 650 CFM (±5%) at 115VAC/60Hz.

Tools and Materials Required for Dual-Rate Fan Circuit Setup

Equip yourself with a multimeter calibrated to at least 600V AC for verifying line voltage and identifying grounded or open circuits in the assembly. Use a clamp-on ammeter (10A range) to measure current draw at each operational tier without interrupting connections. Select crimping tools with interchangeable dies (16-10 AWG) for reliable terminal attachments; ratcheting models prevent under-crimping. Include a heat gun with adjustable airflow (120°C–250°C) for shrink tubing application, ensuring moisture resistance at splice points.

Essential Components

• 14-gauge THHN copper wire (stranded, 90°C rating) for primary/current-carrying paths
• 18-gauge THWN wire (solid core) for auxiliary sensing or relay control circuits
• DIN-rail mounted 30A double-pole breaker (UL489 listed) to isolate the system during maintenance
• Weatherproof junction box (NEMA 3R) with threaded hubs for outdoor installations
• Silicon bronze wire nuts (size 18–14) with integrated spring tension for vibration resistance
• XHHW-2 insulated grounding conductor (green, 10 AWG) for chassis bonding per NEC 250.122
• Heavy-duty relays (SPDT, 20A @ 240V) with 12V DC coil for low-voltage control integration
• Polyolefin adhesive-lined shrink tubing (3:1 ratio, 3/8″ expanded diameter) for waterproof splices
• Self-drilling TEK screws (1/4″ hex head) for securing electrical panels to metal studs without pre-tapping
• Contact cleaner (non-flammable, residue-free) for removing oxidation from relay sockets

Specialized Diagnostic Equipment

1. Thermal imaging camera (
2. Oscilloscope with isolated inputs (CAT III/1000V) for analyzing PWM control signals in variable-rate systems
3. Torque screwdriver (0.5–4.0 Nm range) for tightening terminal screws to manufacturer specifications
4. Insulation resistance tester (500V Megger) to verify >1MΩ separation between conductors and ground
5. Wire tracer with tone generator (audible up to 500m) for identifying circuits in congested conduit runs

Step-by-Step Guide to Connecting High and Low Circuit Leads

Identify the primary and secondary terminals on the fan assembly by referencing the manufacturer’s color codes–typically, the dominant output is marked in red or black, while the auxiliary one uses blue, brown, or yellow. Verify polarity with a multimeter: the higher voltage reading confirms the main lead, the lower confirms the secondary. Label both with heat-resistant tape to prevent mixing during assembly.

Preparing the Control Module

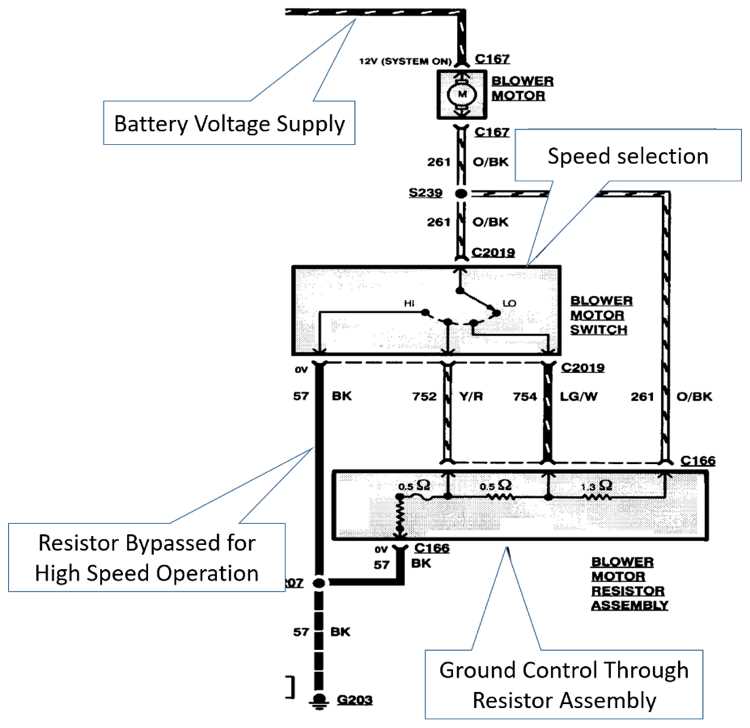

Locate the resistor block or relay switchboard–most systems route the higher output through a series of resistors to reduce voltage for quieter operation. Disconnect power at the fuse panel before touching any terminals. Match the labeled fan leads to the corresponding outputs on the control board: main to the central post, auxiliary to the adjacent lower-current post. Secure connections with crimp connectors or solder for vibration-resistant joints.

Test intermediate stages by reconnecting power incrementally–first activate the lower output to confirm airflow at reduced intensity, then switch to the dominant one. Listen for unusual noises: a faint hum is normal, while screeching or grinding indicates misalignment or loose fasteners. Adjust torque on mounting screws to 8-12 inch-pounds to prevent rattling without warping housing components.

Finalizing and Calibration

Reassemble access panels, ensuring no wires are pinched or routed near moving parts. Restore power and cycle through all operational modes–low, medium, high–while monitoring current draw. Record amperage with a clamp meter: typical values range 4-7A for dominant output and 2-4A for auxiliary. If readings exceed specifications, inspect for shorted resistors or partial ground faults in the harness.

Key Color Standards for Fan Circuit Connections

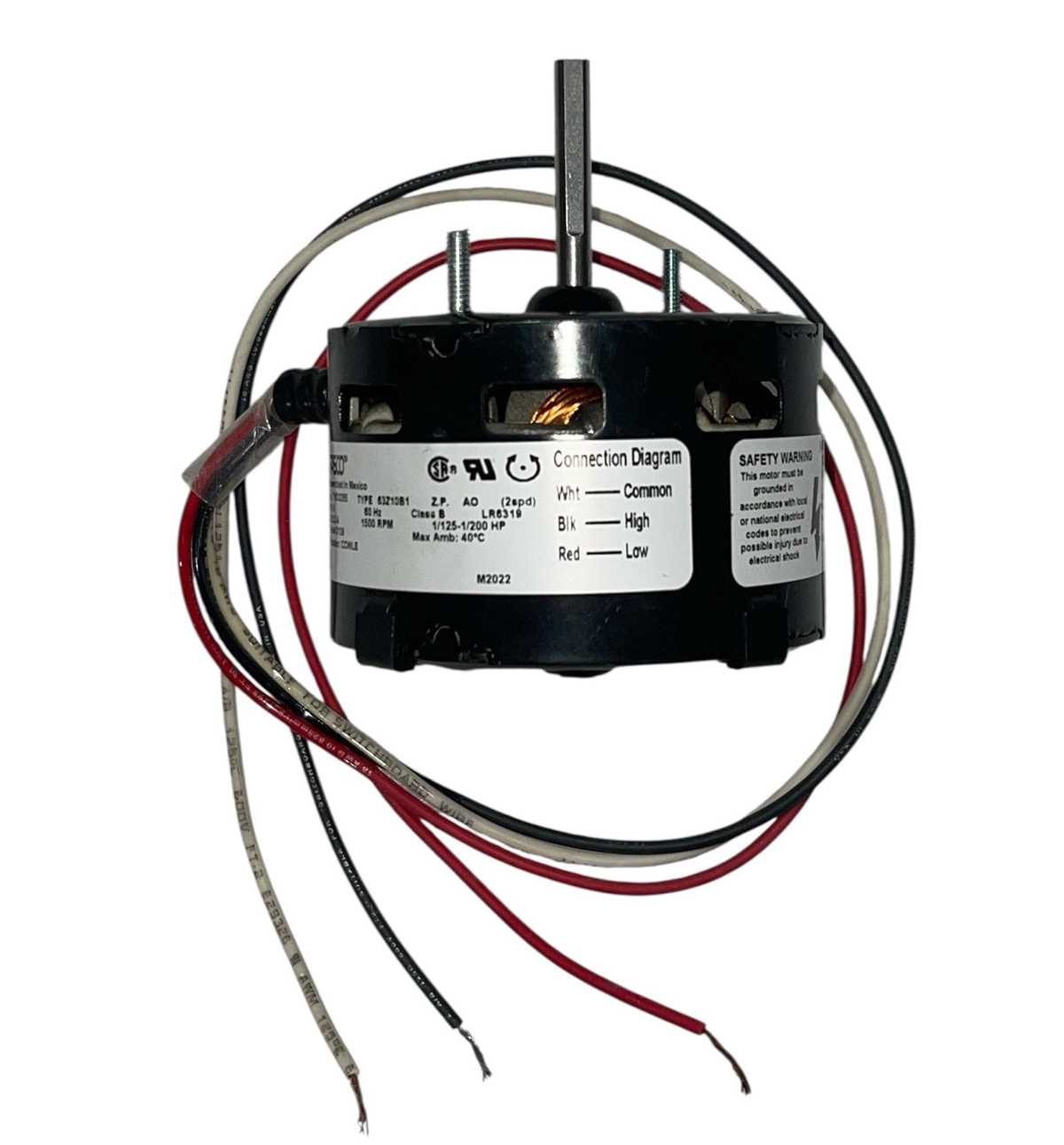

Start by locating the white lead–this almost always serves as the neutral link in single-phase HVAC systems. Confirm its role by tracing it to the main 24V transformer or power distribution block; deviations from this rule are rare but may occur in custom builds.

High/Low State Wires and Their Roles

The red conductor typically carries the high-output signal, while blue or yellow (sometimes stripped) marks the lower level. Manufacturers like Carrier and Trane adhere to this scheme, though Rheem occasionally swaps blue for a light blue or purple stripe. Check the equipment label–most list the function next to each terminal.

Ground connections universally use green, either solid or with a yellow stripe. Never assume bare copper is ground; verify with a multimeter by probing between the lead and the cabinet–readings should show zero ohms. Some legacy units may use green/yellow twisted pairs; treat these the same as solid green.

A black wire usually feeds constant 120V AC power directly from the breaker. If paired with an orange lead (found in some dual-range setups), the orange carries switched input–commonly 24V–triggered by the control board. Cross-check against the schematic buried in the unit’s service door.

For three-stage systems, expect a brown or gray wire–these handle intermediate output. GE and Whirlpool often label these as “MED” on the data plate, while Lennox uses numeric codes (e.g., “M1,” “M2”). Isolate each lead with the circuit de-energized, then test resistance: low resistance (under 5Ω) between high/med/low confirms intact windings.

Unlabeled wires–especially any pink, violet, or striped combinations–should be treated as suspect. Trace them back to their origin (relay, resistor pack, or capacitor) and label with heat-shrink tubing. In older Goodman units, a dark brown may substitute for black; reconciliation requires matching colors to terminal screws rather than conventional codes.

Troubleshooting Common Issues in Dual-Rate Fan Assembly Circuits

Check the control module’s relay contacts first if the fan fails to switch between rates. Use a multimeter set to continuity mode–probes on the relay’s output terminals should show zero ohms when energized. If resistance reads above 0.5 ohms, replace the relay. Verify the coil voltage matches the system’s 12V or 24V rating; under-voltage often causes intermittent operation or failure to engage.

Inspect the thermal fuse if the assembly operates at only one rate. Locate the fuse in-line with the high-rate lead, typically housed in a small thermal cutoff casing. Test for continuity–an open fuse indicates overheating. Common causes include blocked vents or a seized bearing producing excessive heat. Replace the fuse only after resolving the root cause to prevent recurrence.

Examine the resistor block for corrosion or burnout when abnormal noise accompanies rate switching. Use a schematic to identify the correct terminals–burnt components often show discoloration or a melted housing. Measure resistance across each segment: low-rate typically reads 3-5 ohms, high-rate near zero. A deviation of ±10% suggests internal damage, requiring replacement of the entire module.

Diagnostic Flow for Unresponsive Circuits

Step	Action	Expected Result	Fault Indication
1	Verify power at fuse panel	12V/24V at input terminal	No voltage: blown fuse or open circuit
2	Check switch continuity	Closed circuit when engaged	Open circuit: faulty switch
3	Test capacitor (if present)	Charge/discharge response	Flatlined reading: failed capacitor
4	Inspect ground connection	Zero ohms to chassis	>0.2 ohms: corrosion or loose terminal

Address intermittent power loss by tracing the circuit path from the source to the fan assembly. Start at the fuse: a voltage drop here points to a corroded terminal or undersized wiring. Move to the selector switch–loose connections often cause erratic behavior. For capacitor-start units, test with a capacitance meter: values below 10% of rated microfarads indicate failure. Replace the capacitor or recrimp connections as needed.

Clean oxidation from terminals if airflow diminishes over time. Use a wire brush and dielectric grease on reconnection. For units with a separate driver board, check for dry solder joints or blown SMD components. Reflow suspect joints with a soldering iron–cold joints often cause transient failures. If traces are charred, jumper the damaged section with 18-gauge wire and verify with circuit diagrams before energizing.
