Complete Two-Stage Air Conditioner Wiring Diagram and Connection Guide
Connect the dual-capacity cooling unit’s high-load output to a dedicated 240V breaker with a minimum 30A rating–never share this line with other appliances. Use 10 AWG copper wire for runs under 50 feet; increase to 8 AWG for longer distances to prevent voltage drop. The low-capacity side can operate on a 120V circuit but requires a separate neutral and ground–do not combine them at the terminal strip.
Install a dual-pole disconnect switch within three feet of the outdoor unit. The high and low compressor terminals must link to separate contacts on the switch, while the fan motor and capacitor share a common line. Label each wire at both ends: “C” for common, “H” for high-side, “L” for low-side, and “F” for fan. Mislabeling risks reversing polarity, which will trigger the thermal cutoff after 90 seconds.
Use a 40VA transformer for control power–lower ratings may cause erratic cycling. The thermostat’s R and C terminals must connect to the transformer’s secondary, while Y1 and Y2 go to the low and high compressor relays respectively. Route the thermostat wire through a conduit if running outdoors; exposed wiring degrades after 18 months due to UV exposure.

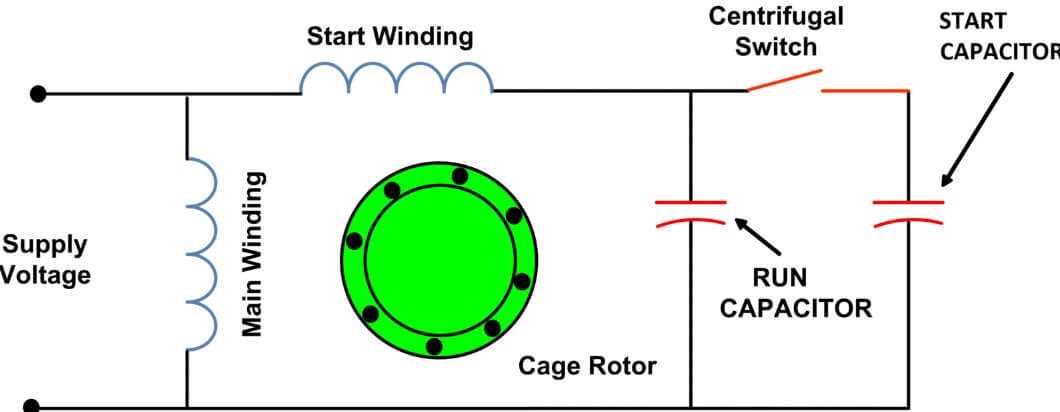

Check the manufacturer’s data plate for exact capacitance values–undersized start capacitors will cause the compressor to hum but fail to engage. For systems with scroll compressors, add a 15-second delay relay between the low and high relays to prevent short-cycling. Omitting this can reduce the compressor lifespan by 40%.
Test each circuit with a multimeter before energizing–confirm 240V across high-side terminals and 120V across low-side. Verify the fan motor spins freely; a seized bearing will trip the overload protector within three minutes. After installation, run the system for two hours and check for excessive vibration at the compressor base, which indicates loose mounting bolts.
Dual-Cooling System Electrical Layout Guide
Begin by identifying the compressor’s dual-relay configuration on the schematic–most setups use separate contactors for low and high power modes. The first relay typically handles 30-40% of the total load (e.g., 12-15A for a 3-ton unit), while the second engages at 60-70% (up to 25A). Verify the thermostat’s sub-base wiring: the “Y1” terminal connects to the low-speed relay, “Y2” to the high-speed, and “C” must tie to a common 24V transformer ground. Mistakes here risk short-cycling or single-speed operation.
Key Circuit Components
- Dual Capacitor: Check microfarad values–common pairings are 35/5 MFD (low) and 5/2.5 MFD (high). Replace if bulging or oil-leaking.
- Hard-Start Kit: Optional but recommended for compressors over 5 years old; bypasses initial inrush current via a PTC relay (e.g., Supco SPP6).
- Defrost Board: For heat pumps, confirm the “DF” terminal links to a defrost thermostat (normally closed at 32°F) and a defrost relay with a 30A fuse.
Trace the power supply: L1 and L2 should feed through a double-pole breaker (30-50A, depending on unit size) directly to the relays. The low-voltage control circuit (24V) often splits from a single transformer–measure across “R” and “C” with a multimeter (≥25VAC indicates proper output). If the compressor hums but doesn’t start, confirm the high-speed relay’s coil resistance (≈32-45 ohms at 20°C). For troubleshooting, isolate the outdoor unit and test each relay independently by jumpering “R” to “Y1” and “Y2” at the thermostat sub-base.
Key Elements in Dual-Compressor Cooling System Schematics
Locate the thermostat subbase first–it houses the primary controls for varying capacity modes. Models like the Honeywell TH8320 or Ecobee SmartThermostat use distinct terminals labeled Y1/Y2 (or Y/W2 in some configurations) to manage low- and high-demand outputs. Verify compatibility by checking for dual-stage markings; single-stage units repurposed for this setup risk improper cycling or compressor damage.
Contactor relays determine power distribution: dual-stage systems require separate relays for each compressor, often labeled K1 and K2. Inspect the coil voltage (typically 24VAC) and ensure the contact ratings exceed the unit’s run-load amperage by at least 30%. Undersized relays overheat, causing premature failure–replace any with discolored contacts or buzzing immediately.
Capacitors–run and start–are segmented by compressor: primary (high-capacity) and secondary (low-capacity) units each need dedicated components. Measure microfarads (µF) against manufacturer specs; deviation beyond ±6% reduces efficiency by 12-18%. Test with a capacitance meter at 10V DC; bulging or leaking cases indicate imminent failure.
Safety and Overload Devices
Dual compressors demand independent overload protectors–look for thermal disc types with bimetallic contacts. Wire them in series with the common terminal (C) to each compressor; cross-wiring trips the wrong breaker during faults, leaving one compressor unprotected. Verify reset mechanisms; manual-reset types require a 30-second cooldown between cycles.
Low-Voltage Control Board
Trace the defrost control module if the unit includes heating; it toggles between cooling modes based on ambient temperature (typically below 45°F/7°C). Some boards, like those in Trane XV or Carrier Infinity systems, integrate capacity staging into the logic–interrupting these circuits disables auto-adjustment, forcing single-mode operation. Label all terminal connections with wire gauge (18-14 AWG for control circuits) to prevent voltage drop during peak loads.
Step-by-Step Installation Guide for Dual-Compressor Regulation Circuits
Begin by identifying the power supply terminals on the outdoor unit’s control panel. Most modern systems require a dedicated 240V circuit with a double-pole breaker rated for 30-50A, depending on the model’s load demands. Connect the L1 and L2 terminals to the corresponding breaker outputs, ensuring the neutral wire (if required) links to the designated N terminal. Verify the voltage across L1-L2 before proceeding–deviations beyond ±5% of 240V indicate improper supply or breaker issues. For split-phase systems, confirm the compression sequence controller matches the manufacturer’s polarity specifications; reversing L1 and L2 may cause erratic operation or damage to the compressor’s dual-speed relay.
| Component | Wire Gauge (AWG) | Termination Point | Torque Spec (lb-in) |
|---|---|---|---|
| High-capacity leads (main) | 8-10 | Compressor L1/L2 | 30-40 |
| Low-voltage control | 18-20 | Thermostat terminal block | 6-8 |
| Fan motor | 14 | Outdoor unit capacitor | 18-22 |
Route the low-voltage control cables from the thermostat to the outdoor unit’s PCB, avoiding sharp edges or heat sources. Daisy-chain the Y1 (first speed) and Y2 (second speed) terminals in strict accordance with the sequence diagram–incorrect daisy-chaining triggers false triggers or compressor lockouts. Secure all terminals with a torque wrench; over-tightening strips threads, while under-tightening causes arcing. Test the setup by energizing the system in cooling mode–Y1 should engage first, followed by Y2 after a 30-60 second delay. If Y2 fails to activate, inspect the dual-pressure switch and time-delay relay for continuity.
Integrating a Thermostat with Dual-Cooling Systems for Optimal Performance
Begin by verifying the thermostat’s compatibility with the cooling unit’s compressor configuration. Most multi-speed setups require a thermostat supporting at least two cooling outputs–typically labeled “Y1” and “Y2” on the control board. Connect the first speed (Y1) to the primary compressor circuit and the second (Y2) to the auxiliary circuit, ensuring the wire gauge matches the manufacturer’s specifications (usually 18 AWG for standard residential loads). Failure to do so may cause voltage drop, reducing efficiency or triggering overload protection.
Adjust the thermostat’s differential settings to prevent short cycling between speeds. A default differential of 2°F (1.1°C) is common, but for larger systems, increase it to 3–4°F (1.7–2.2°C) to allow the compressors adequate runtime before switching. Check the unit’s technical sheet for the minimum runtime requirement–typically 5–10 minutes–to avoid premature wear on components. Program the thermostat’s algorithms to prioritize the primary compressor (Y1) under moderate loads, reserving the auxiliary (Y2) for peak demand only.
Terminal Connections and Polarity Considerations

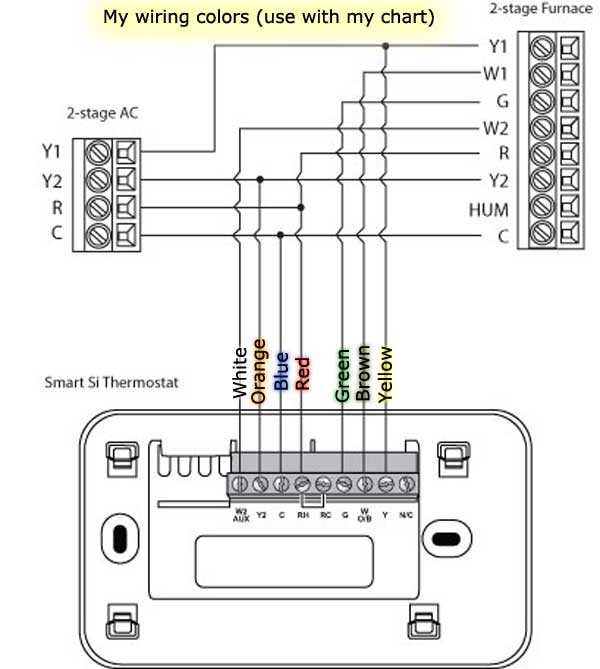

Identify the low-voltage terminals on both the thermostat and the outdoor unit’s control board. The “R” terminal supplies 24V power; connect it to the thermostat’s “Rc” (or “Rh” if combined) terminal. For cooling demand, route the “Y1” and “Y2” wires separately from the thermostat to the corresponding terminals on the outdoor unit–some systems combine “Y1” and “C” for power return, while others require independent “Y2” and “C” connections. Use a multimeter to confirm 24V between “R” and “C” before energizing; stray voltage indicates miswiring and risks damaging the control board.
Label all wires at both ends with heat-shrink tubing or permanent markers to simplify future troubleshooting. Avoid using wire nuts for low-voltage connections; instead, use lever nuts or crimp connectors rated for the wire gauge. If the system includes a reversing valve (for heat pump setups), connect the “O/B” terminal on the thermostat to the corresponding valve terminal–incorrect polarity here can reverse the cooling cycle, causing the unit to blow hot indoor air during operation.
Calibration and Functional Testing
After wiring, perform a manual override test on the thermostat to verify each compressor engages independently. Configure the thermostat to call for full cooling (both speeds) and monitor the outdoor unit’s response–listen for the contactors to energize sequentially, with the primary compressor starting first, followed by the auxiliary after a 30–60 second delay (built-in safety feature). Use a clamp meter to measure current draw on the “Y1” and “Y2” circuits; discrepancies beyond 10% of the nameplate amperage suggest a faulty compressor or refrigerant issue.
Reset the thermostat to its default schedule and observe operation over 24 hours. If the auxiliary compressor activates frequently during mild conditions, adjust the staging delay or temperature differential to reduce unnecessary cycling. For variable-speed blowers, ensure the thermostat’s “G” terminal is connected to the indoor fan relay–failure here can cause the blower to run continuously, even when compressors are off, leading to humidity control problems and energy waste. Document all settings and test results for reference during maintenance or repairs.
