Complete 2 Way Lighting Circuit Wiring Guide with Schematic Explained

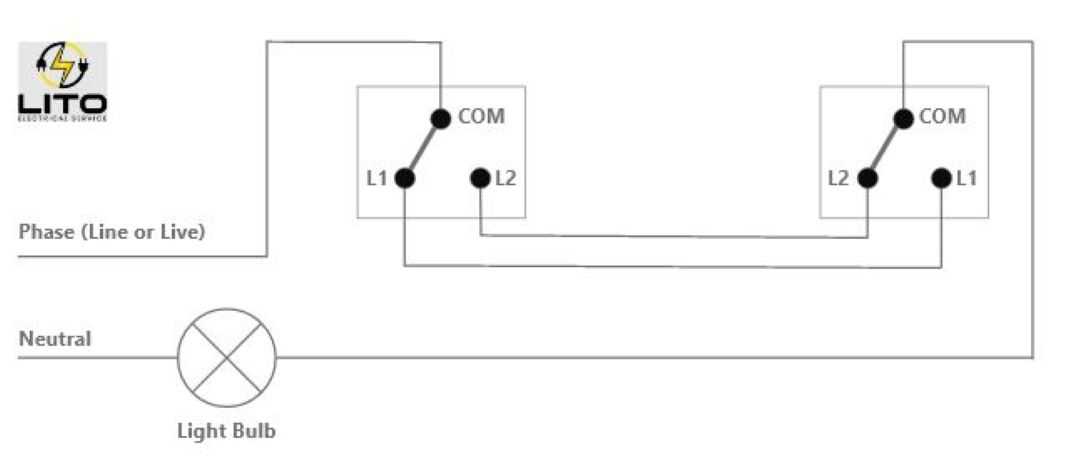

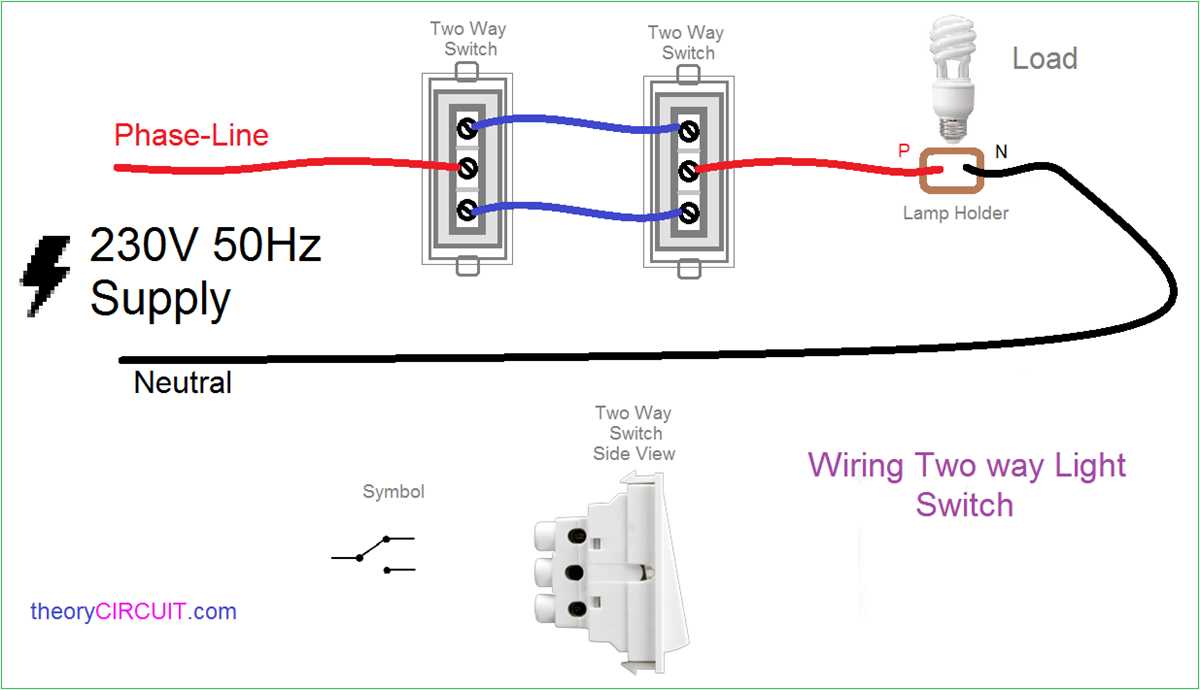

Connect two switches to control one fixture by running a 3-core cable between them. Use the brown core for permanent live, the grey for switched live, and the black as neutral. Terminate both switches with a shared common (COM) terminal linked to the fixture’s live input. Connect the lamp’s neutral directly to the circuit’s neutral busbar–avoid splicing through switches.
For existing installations, identify the loop-in point where permanent live enters the first switch. Attach a separate 3-core cable between switches, ensuring the grey conductor bridges the switched outputs (L1 terminals) of both units. Test continuity before energizing–miswired switches create dead shorts. Use 1mm² cable for 6A circuits; upsize to 1.5mm² if exceeding 10 meters between switches.
Label every conductor at termination points. Permanent live (brown) must be clearly marked to prevent accidental contact during maintenance. Install a 6A fuse in the circuit’s live feed unless the distribution board already includes RCD protection. Switched live (grey) connections demand insulation-resistant terminals; twisted joints increase resistance and risk overheating.
Verify earth continuity across all metallic switch plates. If using plastic enclosures, omit the earth conductor. For two-way spurs, run an additional 2-core cable from the second switch’s COM terminal to auxiliary devices–never parallel loads across the same switched live. Measure voltage drop under load: acceptable limits are 2% for 230V circuits.
Dual-Switch Circuit Layout for Rooms

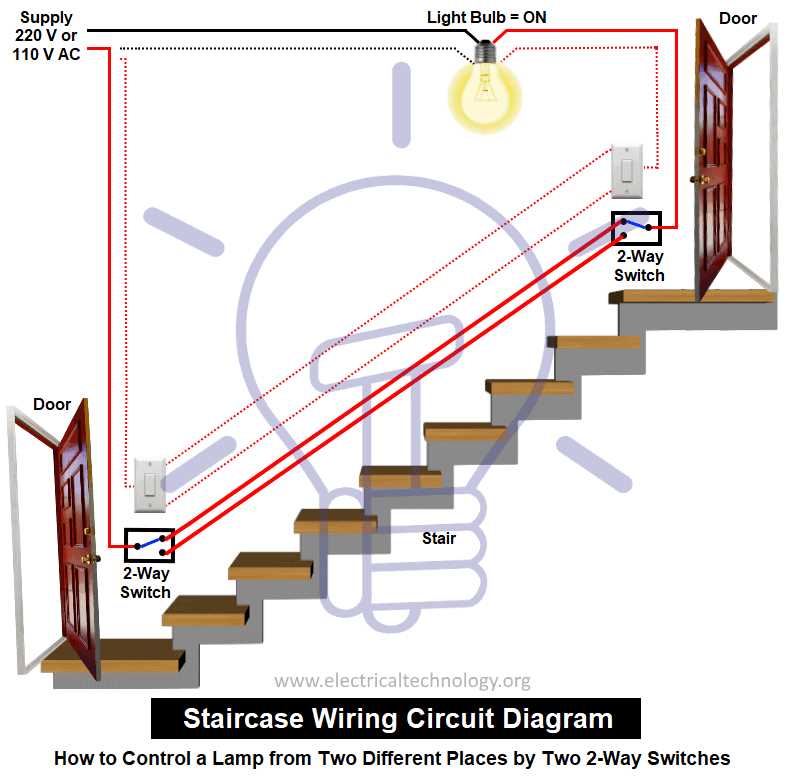

Install the first toggle device at the entry point of the room and connect its common terminal to the power source’s live conductor. Run a three-core cable (plus earth) from this switch to the second control point, linking the two intermediate terminals of each switch together–this creates the alternate path for current flow. The second toggle’s common terminal must tie directly to the fixture’s live input, while neutrals and earth wires follow separate, uninterrupted routes back to the distribution board. Use 1mm² cross-sectional area conductors for standard LED loads under 6A, increasing to 1.5mm² if halogen bulbs exceeding 300W are involved.
Critical Connections for Reliable Operation
Label every conductor at both termination points with colour-coded sleeves matching the cable cores–brown for permanent live, grey for switched live, black for neutral, and green/yellow for earth–to prevent miswiring during future maintenance. Secure terminal screws to a torque of 0.5Nm for solid-core cable and 0.4Nm for stranded variants, ensuring consistent conductivity without conductor deformation. Test continuity between each switch’s common and intermediate terminals in both positions before energising the circuit; a multimeter should read near-zero ohms when activated and infinite resistance when off.
Place both control devices at heights between 1200mm and 1400mm above finished floor level, measured to the centre of the actuator, to comply with accessibility standards. If retrofitting into plasterboard walls, use dry-lining clips to secure the back boxes instead of mortar, reducing installation time by 40%. For rooms exceeding 6m in length, introduce a third intermediate device wired in the same intermediate-terminal configuration–this maintains operational symmetry without requiring additional live feeds.
Connecting a Dual-Control Switch Using Neutral Wire
Shut off the circuit at the breaker panel before handling any conductors. Use a voltage tester to confirm no live current remains on any terminal. Identify the neutral busbar in the junction box–it’s typically the silver-colored terminal or a bundled white wire group. Connect the neutral conductor from the supply cable directly to both switch modules at their dedicated neutral terminals; these are often marked “N” or left unlabeled as the lone empty terminal. For a standard 120V setup, strip 3/8 inch of insulation from each neutral end and secure with a wire nut if splicing is required.
Route the hot feed (black or red) from the source to the common terminal on the initial switch–this terminal is frequently distinguished by a darker screw or labeled “COM.” Use 14-gauge copper wire for 15-amp circuits, 12-gauge for 20-amp. Link the two traveler contacts (brass screws) between switches with matching red and black wires, ensuring correct polarity: red paired with red on opposing devices, black with black. Secure all connections with terminal screws torqued to 12 in-lbs; overtightening can strip threads. Label each conductor at both ends before securing switches into the box to prevent miswiring. Below is a concise reference for terminal assignments:
| Component | Terminal Color | Wire Color | Torque (in-lbs) |
|---|---|---|---|
| Common Input | Dark (COM) | Black (feed) | 12 |
| Neutral | Silver | White | 12 |
| Traveler #1 | Brass | Black | 12 |
| Traveler #2 | Brass | Red | 12 |
Step-by-Step Guide for Installing Dual-Control Switches for One Fixture
Begin by shutting off power at the circuit breaker to the room where you’ll work. Use a non-contact voltage tester to confirm no current flows to the existing setup before proceeding. Locate the two switch boxes and the junction box for the fixture–ensure they’re accessible with enough cable slack for connections.
Remove the switch plates and fixture cover. Identify the live conductor (typically black or red, depending on local codes), neutral (white), and ground (bare or green). If existing cables lack a neutral at the switch boxes, you’ll need to run new 3-core cable from the fixture junction box to each switch. Check local regulations–some areas permit using the ground as a return path, but this is not recommended for safety.
Preparing the Cables
Strip 12mm of insulation from each conductor end. For new installations, pull 3-core cable (live, neutral, ground) from the fixture box to each switch. Use 14-gauge for 15-amp circuits or 12-gauge for 20-amp circuits. Label each wire with masking tape if working in an environment with multiple circuits to avoid confusion later.
- At the fixture box: Connect the fixture’s live terminal to the incoming live wire (from the circuit). Join all neutrals with a twist-on connector.
- At each switch box: Connect the incoming live wire to the common screw terminal of the switch (usually darker-colored). Attach the corresponding traveler wires (usually brass terminals) to the remaining screws–one traveler from switch 1 pairs with one from switch 2.
- Ground all switches and the fixture to the bare or green wires, bonding them securely with a crimp sleeve or ground screw.
Before sealing the boxes, test each switch independently. One should toggle the fixture on/off from either location. If the circuit doesn’t respond, recheck all connections–common errors include swapped travelers or loose neutrals. Use a multimeter in continuity mode to verify correct path completion between switches when toggled.
Final Checks and Troubleshooting
Insulate all connections with electrical tape, then secure the switches and fixture. Restore power and test again under load. If flickering occurs, a loose neutral is likely–reopen the fixture box and re-tighten all wire nuts. For dimming issues, ensure the fixture and switches are compatible; some LED bulbs require specific dual-control mechanisms.
Seal the boxes with appropriate cover plates. Label the circuit at the breaker panel for future reference. If running new cables, staple them every 1.2m along joists or studs (per NEC/CEC guidelines) and avoid sharp bends to prevent conductor damage. Store leftover cable neatly–future modifications may require extending existing circuits.
Common Mistakes to Avoid When Installing Dual-Control Switch Setups
Inverting the live and neutral conductors at any point in the circuit causes immediate short circuits and trips protection devices. Verify polarity with a multimeter before connecting terminals–many installers assume the same color code applies universally, but regional standards differ (e.g., brown vs. red for active lines). Confusing two-core with three-core cables leads to missing the switched feed; label cables at both ends before stripping insulation. Over-tightening terminal screws damages conductors, increasing resistance and heat buildup–torque settings matter even for low-voltage applications.
Critical Errors During Implementation
- Ignoring continuity tests between switch positions: Poor connections in junction boxes create ghost flickering or non-operation.
- Skipping earth bonding: Metallic switch plates or fixtures without proper grounding violate IEC 60364 and NEC Section 250.
- Using undersized conductors: 1.5mm² wires rate for 16A circuits; exceeding this trips breakers under load.
- Incorrect splice insulation: Exposed conductors near moisture-prone areas corrode within months, fail silently.
- Mixing AC and DC circuit principles: Dual-switch loops rely on momentary contact reversal–DC wiring conventions disrupt functionality.
Always map the circuit on paper first, noting cable lengths and junction locations. Hidden splices behind plaster require accessible junction boxes–contractors often bury them, violating electrical safety codes.
How to Verify a Dual-Switch Circuit Before Securing Connections
Isolate the circuit at the breaker panel by switching off the corresponding breaker. Use a non-contact voltage tester to confirm power is fully disconnected at both switch terminals and the fixture box. Probe all wires–including grounds–to eliminate false negatives. If the tester emits a signal, revisit the breaker; residual current can linger in multi-branch setups.
Test switch functionality sequentially: with power restored, toggle one switch while observing the load output with a multimeter set to AC voltage (200V range). Expect near-line voltage (typically 110–120V or 220–240V depending on regional standards) when the switch is closed, and 0V when open. Repeat for the second switch. If readings deviate, inspect terminal connections for loose screws or misaligned wires–common culprits in two-control configurations.
Validate fixture operation by installing a temporary bulb or LED tester. Activate both switches in all combinations (on/on, on/off, off/on, off/off). Confirm instantaneous response without flickering; delay or partial illumination signals incorrect traveler wire placement, necessitating re-examination of the three-conductor cable routing between switches.
