How to Wire a Two Way Light Switch in the US Step by Step Guide

Use a 14-3 or 12-3 NM cable between the two control points to carry both travelers and the neutral. Connect the red and black wires to the brass screws marked “traveler” on each device–these terminals are always positioned at the top or bottom of the unit, never in the middle. The white wire serves as the neutral and must be tied to the silver screw or wire nut with the circuit’s neutral bundle. Ground wires attach to the green screw or bare copper ground.

The common terminal (usually darker or labeled “COM”) on one control receives the incoming hot wire (black, from the breaker), while the same terminal on the second unit connects to the light fixture’s hot lead. Miswiring this terminal will cause the setup to fail or create a short. Always verify the circuit is dead with a non-contact tester before touching any connections.

For existing installations, replace both control devices simultaneously–mixing brands or models can lead to unreliable operation due to variations in terminal placement. If the setup includes multiple light fixtures, splice all neutrals together in a single junction box, but keep traveler wires isolated between the two controls. Avoid daisy-chaining travelers; each red and black wire must run directly between the two units without intermediate splices.

Test the circuit by flipping one control on and off several times, then repeat the process with the second control. If the lights flicker or fail to respond, recheck the common terminal connections–this is the most frequent point of failure. For circuits with dimmers, ensure compatibility; most dual-control dimmers require a neutral and won’t work with older wiring that lacks one.

Connecting Dual-Control Light Circuits in the U.S.

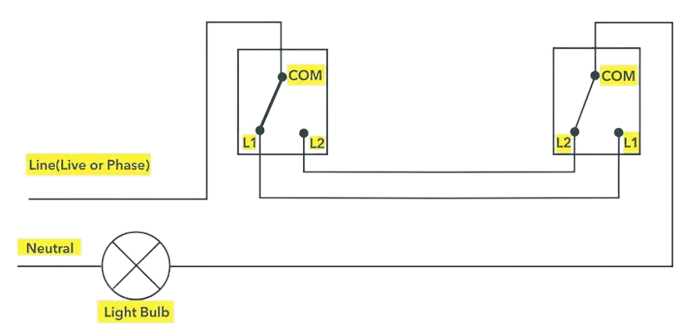

Start by identifying the common terminal on each toggle mechanism–marked in black or labeled “COM”–and connect it to the incoming power line (hot wire) at the first device. For the second, link its common terminal to the light fixture’s hot input. Use 14/3 NM cable (or 12/3 for 20-amp circuits) between the two toggles, ensuring the red and black travelers attach to the brass screws on both units, while the white neutral bypasses them entirely unless a smart fixture requires it.

Safety Checks Before Energizing

Verify all wire nuts are secured with no exposed copper, then wrap each connection with electrical tape. Test continuity with a multimeter: travelers should show open circuit between themselves when toggles are in opposite positions and closed when aligned. If voltage readings exceed 120V between travelers and ground during operation or show irregular drops, re-examine splices and cable insulation for nicks.

Label each conductor at both junction boxes–traveler wires in red, power feed in black, and neutral in white–to prevent miswiring during future maintenance. For large rooms where multiple fixtures require dual control, use a three-way switch paired with a four-way unit in the middle to extend the circuit without exceeding NEC ampacity limits for 14-gauge wire.

Essential Equipment for Installing a Dual-Control Electrical Setup

Start with a non-contact voltage detector to verify circuits are dead before handling live wires. Models like the Klein Tools NCVT-3 or Fluke 1AC-A II offer reliable sensitivity down to 50V AC, ensuring safety without false positives. Test it on a known live outlet first to confirm functionality.

Use solid copper 12- or 14-gauge THHN wire for connections, matching the circuit breaker capacity (20A for 12AWG, 15A for 14AWG). Avoid aluminum wiring–it oxidizes faster and requires specialized connectors. Purchase wire in spools of 25 to 50 feet to minimize waste and ensure consistent gauge.

Key Tools for Precise Work

• Wire strippers: Insulated grips like the Irwin Vise-Grip 2078300 strip 10–18AWG cleanly without nicking conductors. Adjustable blades prevent over-cutting.
• Long-nose pliers: The Knipex 06 03 160 (6-inch) handle tight spaces, bending loops for terminal screws without distorting wire.
• Screwdriver set: Magnetic-tip Phillips #2 and flat-head 1/4-inch drivers (Wiha 32195 recommended) prevent slippage in switch terminals.
• Fish tape: Passthru tape (50-foot, GF-50) glides through walls easier than steel variants when routing new cables.

Mounting hardware demands UL-listed electrical boxes: 4-inch square or 3.5-inch round junction boxes for retrofit work, with raised device covers if wall depth exceeds 3/4 inch. Secure boxes with non-metallic clamps (Carlon B618R) to avoid grounding issues. For new installations, 2-gang old-work boxes (like the Arlington FB600) simplify dual-control setups.

Label every conductor at both ends using heat-shrink tubing or self-laminating wire markers (Brady BMP-21-500). Color-code travelers yellow, common terminals black, and neutrals white–even if local codes don’t require it. This prevents miswirings that create unintended parallel paths or dead shorts. Store leftover markers in a labeled bag for future repairs.

Specialty Items for Reliable Performance

1. Torque screwdriver: Klein ET310 sets terminals to NEC 110.14(D) specifications (10–14 in-lbs for #10 wire). Over-tightening damages terminal plates.
2. Cable ripper: Ideals for removing Romex sheathing without damaging conductors–run it along the cable length once, then peel sheathing by hand.
3. Hole saw kit: 1/2-inch to 2-inch bits (DeWalt D180004) cut clean openings for rerouting wires through studs or joists.
4. Outlet tester: Klein RT210 identifies miswired circuits, open grounds, or reversed neutrals post-installation. Trip-test GFCI breakers monthly.

Assembling a Dual-Control Circuit: Precise Connections

Turn off the circuit breaker for the area where you’ll work. Identify the live conductor entering the first junction box–typically marked black or red–and connect it to the common terminal (usually darker or copper-colored) of the first toggle using a short piece of 12 AWG solid copper wire, stripping ⅝” of insulation. Route a traveler conductor (red or another distinct color) from the first toggle’s brass terminal to the matching brass terminal on the second toggle, securing with a wire nut to prevent shorts. Repeat this step with the second traveler conductor (white if using standard colors), ensuring both travelers maintain identical order at each endpoint.

• Attach the load–lamp or outlet–to the second toggle’s common terminal, again using 12 AWG wire, stripping ⅝” and twisting clockwise under the terminal screw.
• Ground both toggles by linking their green grounding screws to the box’s grounding conductor (bare or green) with a continuous copper pigtail, tightening securely.
• Verify all connections by tugging lightly; reinstall covers after confirming no exposed copper remains.
• Restore power at the breaker and test each toggle: flipping either should instantly toggle the load on or off without delay or flicker.

Common Errors in Dual-Control Circuit Installations

Connecting the traveler terminals incorrectly leads to dysfunctional operation. In a standard setup, the two brass screws on each mechanism must link the same-colored wires–typically red and black–between devices. Reversing these connections causes the system to short when toggled or fail to activate the fixture entirely. Verify polarity before securing terminals; a multimeter set to continuity mode confirms proper pairing.

Omitting a neutral conductor in junction boxes violates NEC 404.2(C) for installations requiring smart controls or illuminated toggles. Many older U.S. homes lack neutrals at light locations, forcing electricians to run an additional conductor or choose compatible low-voltage alternatives. Skip this step, and integrated LEDs or timers won’t function. Modernized circuits demand neutrals–retrofitting may require attic or basement access.

Misidentifying common terminals guarantees reversed logic. The dark-colored screw on each unit–often black or copper–must tie to the power source (line side) on one device and the load side on the second. Swapping these results in erratic behavior: toggles may control alternate fixtures or nothing at all. Use a labeled diagram or tape markers during disassembly to avoid this pitfall.

Over-tightening screws damages stranded copper or strips thread. Torque specifications for terminal screws typically range between 12-18 in-lbs for residential toggle mechanisms. Exceeding this crushes wire strands, increasing resistance and potential hotspots. Employ a torque screwdriver for consistency; loose connections arc under load, while overtightened ones fracture conductors over time.

Neglecting cable strain relief triggers gradual wire detachment. NMB cable staples require 1/4-inch spacing from boxes per NEC 314.4, yet many installers staple too close or omit insulation protection at entry points. Exposed conductors chafe against sharp edges, risking shorts or ground faults. Secure cables firmly but avoid deforming sheathing–plastic grommets or flexible conduit prevent damage in high-flex areas.

How to Identify Live, Neutral, and Ground Conductors in a Dual-Control Setup

Begin by shutting off power at the breaker panel using a non-contact voltage tester to confirm all conductors are dead–never rely on switch positions. Test each wire individually before handling; even “off” devices may retain residual charge in improperly wired systems.

In standard U.S. installations, live conductors (hot wires) are typically black, red, or blue–though local codes and older builds may deviate. Neutral conductors are nearly always white or gray, except in rare cases of re-identified wires. Ground conductors are bare copper, green, or green with yellow stripe. Assume nothing: color codes alone are unreliable; verify with a multimeter.

Use a multimeter set to AC voltage (200V range) to measure between wire pairs. Probe the suspected live (black/red) against neutral (white): a reading near 120V confirms proper pairing. Then test live against ground (bare/green); a similar voltage verifies grounding. Zero voltage between neutral and ground indicates correct bonding. Record readings in a table for clarity:

Test Pair	Expected Reading (U.S.)	Interpretation
Live – Neutral	~120V	Correct circuit path
Live – Ground	~120V	Proper grounding
Neutral – Ground	<1V	Proper bonding
Live – Live	0V or 240V	Split-phase or error

Trace wires back to their origin if colors are ambiguous. Live conductors from the panel will originate at a breaker. Neutrals connect to the neutral bus bar, while grounds terminate at the grounding bus or device enclosure. Follow conduit or cable runs visually to confirm termination points.

Examine wire insulation dates: pre-2000 installations may reverse neutral and ground in older three-way setups, particularly with knob-and-tube or cloth-insulated wiring. Look for splices or rework–these often indicate past modifications where conductors were re-purposed. If in doubt, label each wire at both ends before disconnecting anything.

For persistent uncertainty, use a tone generator and probe. Attach the transmitter to a known live conductor, then trace the signal through the circuit. The neutral will return the tone back to the panel, while the ground will show no continuity unless bonded. Document findings immediately–sketches or photos prevent mistakes during reassembly.

Common Pitfalls to Avoid

Never assume all white wires are neutrals; some three-conductor cables re-mark white as live. Check screw terminals on switches–live wires may attach to brass screws, neutrals to silver, and grounds to green. Avoid relying solely on outlet testers; they detect polarity but not improper grounding or bootleg neutrals. Always double-check with a multimeter for absolute certainty.
