Dodge Ram 2017 Radio Wiring Color Codes and Connector Guide
Start by locating the aftermarket head unit harness behind the factory dashboard. Pin 12 (orange with a white tracer) delivers constant 12 V from the battery–keep this wire uninterrupted to preserve vehicle memory settings. Pin 3 (dark green) is the ignition-controlled power source; splice it directly to the new harness to avoid erratic shutdowns. Pin 5 (light blue) carries amplifier turn-on signals–match this to the remote lead of your replacement receiver or the power antenna output if retaining OEM speakers.
Ground connections demand attention: Pin 14 (black) attaches to the chassis via a 10 AWG wire; verify continuity with a multimeter before securing the connection. Speaker outputs follow: front left (+) pink/violet stripe (Pin 2), front left (–) dark green/red stripe (Pin 16), front right (+) dark green/orange stripe (Pin 6), front right (–) gray/red stripe (Pin 4). Rear channels use purple (Pin 10, +) and purple/black (Pin 8, –) for left, tan (Pin 13, +) and tan/black (Pin 11, –) for right–confirm polarity with a 9 V battery test.
Avoid these common pitfalls: default settings reset if the orange memory wire is severed during installation; steering wheel controls require a separate adapter (Metra ASWC-1 or equivalent) wired into the telematics connector beneath the driver’s kick panel. If integrating a subwoofer, tap the rear speaker outputs–do not parallel front channels, as this distorts midrange frequencies. For vehicles equipped with Uconnect, retain the factory antenna adapter to maintain GPS and SiriusXM functionality.
Wire gauge matters: use 18 AWG for signal leads, 16 AWG for speaker outputs, and 12 AWG for power and ground to prevent voltage drop. Crimp connectors with heat shrink tubing; solder joints under the dashboard risk melting adjacent components. Label each wire before disconnecting the factory plug–misrouting causes blown fuses or permanent module damage. Test all connections with the vehicle off before reassembling the dash; a short in the wiring harness can drain the battery overnight.
Vehicle Audio System Electrical Connections for Recent Dodge Pickup Models
Locate the factory harness behind the dashboard center stack–it typically consists of a 12-pin connector (usually gray) and an 8-pin connector (often tan). Match the wire colors precisely: the yellow lead (constant 12V) powers memory functions, while the red (switched 12V) activates the unit when the ignition is turned. Ground connections (black) require direct chassis attachment; avoid sharing screws with other components to prevent interference.
For aftermarket upgrades, use a bypass harness adapter (MOPAR PN 05016837AA or equivalent) instead of cutting original cables. The adapter maintains factory security features like the Uconnect module integration. If installing a subwoofer, trace the purple/white (right rear speaker) and gray/white (left rear speaker) wires–these often carry low-level signals suitable for amplified systems. Verify signal integrity with a multimeter: expect 4-8 ohms impedance on each channel.
Key Harness Pinouts
- Gray 12-pin connector:
- Pin A1: Yellow – constant 12V (fuse 25)
- Pin A2: Red – switched 12V (fuse 23)
- Pin A3: Black – chassis ground
- Pin A4: Dark blue – antenna trigger
- Pin B1: Orange – illumination (+)
- Pin B2: White/purple – CAN-H
- Tan 8-pin connector:
- Pin C1: Purple/white – right rear speaker (+)
- Pin C2: Purple – right rear speaker (-)
- Pin C3: Gray/white – left rear speaker (+)
- Pin C4: Gray – left rear speaker (-)
When integrating steering wheel controls, connect the light blue/white wire (steering wheel audio switch) to the aftermarket interface. Most adapters (ASWC-1, Metra ASWC-X) require programming via the head unit–follow the specific sequence: typically volume up + seek up for 5 seconds. Test each button individually; unresponsive controls often indicate reversed polarity on the CAN bus wires (white/purple and white/orange).
For backup camera installations, splice into the light green/white wire (reverse trigger) found in the tailgate harness. This wire carries 12V only when the transmission is in reverse. Route new cabling along existing wire looms–use grommets when passing through firewall bulkheads to prevent chafing. Secure connections with solder and heat-shrink tubing rather than crimp connectors for reliability in high-vibration environments like pickup beds.
Amplified systems require tapping into the factory amplifier outputs, typically found in the passenger kick panel. The amplifier’s 16-pin connector includes:
- Red/white: front right speaker (+)
- Red: front right speaker (-)
- Gray/light blue: front left speaker (+)
- Gray: front left speaker (-)
- Dark green/black: rear right speaker (+)
- Dark green: rear right speaker (-)
Cap unused wires with electrical tape to prevent short circuits. For subwoofer installations, tap into the dark blue/white (subwoofer output) wire–this carries a 5V preamp signal suitable for line-level inputs.
Troubleshooting Common Issues
- No power: Verify fuses #23 and #25 in the under-hood junction box. Check for voltage drop on the yellow wire–more than 0.5V indicates corroded connections.
- Distorted audio: Inspect speaker wires for partial shorts. Measure impedance across each pair–consistent values below 3 ohms suggest a failed voice coil.
- Intermittent controls: Reseat connectors at the back of the head unit. Clean contacts with DeoxIT D5 for oxidized pins.
- No reverse camera: Confirm the light green/white wire receives 12V in reverse. Test with a probe–if absent, inspect the transmission range sensor or reverse light circuit.
For vehicles equipped with premium audio (Harman Kardon), additional connections are present in the rear quarter panel behind the driver’s side tail light. The 24-pin amplifier connector includes dedicated tweeter outputs (tan/white for front left, tan/yellow for front right) and a separate ground (black/orange). Avoid modifying these circuits unless replacing the entire system–they integrate with the vehicle’s noise cancellation algorithms. Always disconnect the negative battery terminal before working on audio circuits to prevent accidental shorting of the 40-amp audio fuse.
Locating Uconnect Infotainment System Pinouts in Dodge Pickup Models

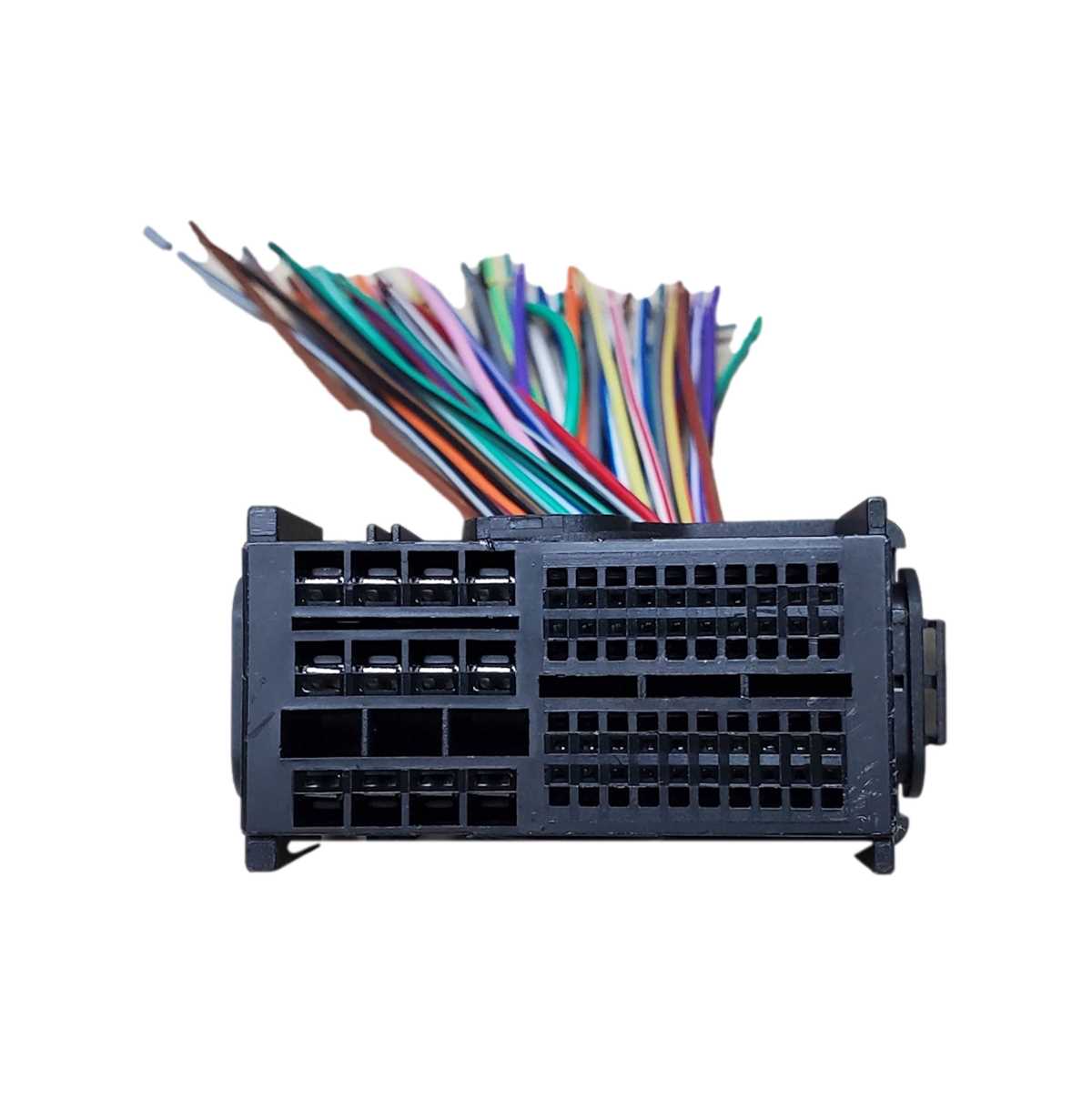

Begin by disconnecting the vehicle’s negative battery terminal to prevent short circuits before handling any connectors. The main harness interface for the Uconnect system is situated behind the dashboard’s lower trim panel, adjacent to the driver-side kick panel. Use a trim removal tool to carefully pry off the panel–avoid excessive force to prevent breaking retaining clips. The primary connector is a 56-pin black plug labeled “C1” (part number 68061349AA), which consolidates power, ground, speaker outputs, and data lines. For precise pin identification, refer to the following breakdown of key circuits:
| Pin | Circuit Function | Wire Color | Voltage/Resistance |
|---|---|---|---|
| 3 | Battery constant (+12V) | Yellow/Red stripe | 12-14V (key off/on) |
| 16 | Ground | Black | 0 ohms to chassis |
| 21 | Illumination (+) | Dark Blue | 0-12V (dimmed with dash lights) |
| 38 | Front left speaker (+) | Gray/Black stripe | 2-4 ohms to Pin 39 |
| 50 | CAN C bus high | Orange/Black stripe | 2.5-3.5V (signal) |
Secondary connections include the antenna lead (RF connector, coaxial type) and USB/auxiliary input harness (14-pin white plug). Verify continuity with a multimeter–speaker outputs should show symmetrical resistance (2-4 ohms) across paired pins, while CAN lines require a scope for signal validation. If retrofitting aftermarket components, ensure compatibility with the original harness by splicing only matching gauge wires (20-18 AWG for power/ground). Avoid taping splices; use solder and heat-shrink tubing for durability. For satellite radio modules, locate the dedicated 8-pin connector (part number 05185409AA) adjacent to the main harness–pins 1 (power) and 4 (ground) must maintain uninterrupted contact.
Step-by-Step Guide to Locating the Factory Audio System Connector Behind the Dashboard Panel
Begin by removing the trim panel surrounding the climate controls. This section typically snaps into place with plastic clips and requires no tools–gently pry it loose using your fingers or a thin plastic trim removal tool, starting from the lower edge. Avoid forcing it, as excessive pressure may crack the panel.
Once the lower trim is detached, locate the two screws securing the central bezel–one near the hazard warning button and the other adjacent to the temperature dial. A 7mm or T20 Torx driver is usually required. Set these screws aside in a small container to prevent misplacement.
- Disconnect any electrical connectors attached to switches or dials before fully removing the bezel.
- Check for hidden latches beneath the hazard button; some models have a secondary locking mechanism.
- Tilt the bezel downward carefully–it may still be tethered by wiring harnesses at the rear.
Behind the bezel, the original equipment interface should be visible, mounted to the HVAC housing. It is often a rectangular or square connector with 12-24 pins, depending on the vehicle’s trim level. Trace the harness leading from the head unit cavity to confirm its position–it is usually bundled with other wiring near the left side of the dash.
Verifying the Correct Harness
If multiple connectors are present, identify the primary power harness by its distinct color coding: typically, a black or gray socket with red, yellow, and black wires indicating constant, accessory, and ground feeds. A smaller, separate plug may deliver speaker outputs–these are often white, gray, purple, or green for front and rear channels.
- Use a test light or multimeter to confirm power on the red (constant) and yellow (switched) wires–12V DC should register when the ignition is off and on, respectively.
- Label each harness with masking tape before disconnecting to simplify reconnection.
- Inspect for factory adapters or splices, which may already exist if an aftermarket unit was previously installed.
Reassembly requires reversing the steps: reattach any disconnected harnesses, align the bezel over the mounting points, and press firmly until the clips snap into place. Test all functions–including volume, climate controls, and steering wheel inputs–before securing the final trim panel.
