Complete Guide to 2 Wire Transmitter Wiring Connections for Industrial Sensors
Begin by ensuring the power supply matches the device’s specifications–typically 24V DC for industrial loops. Confirm loop compatibility by checking the load resistance; most standard installations require 250–500 ohms to maintain signal integrity. Miscalculations here will distort readings or damage components.
Route the positive leg directly to the supply’s output terminal, avoiding splices or sharp bends that introduce noise. Ground the negative lead through the load resistor before connecting it to the return path. Skipping this step risks floating voltages, corrupting data transmission.
Use shielded twisted pairs for distances exceeding 10 meters to suppress electromagnetic interference. Terminate the shield at one end only–connecting both ends creates ground loops. Verify connections with a multimeter before powering up; stray currents indicate reversed polarity or shorted circuits.
For hazardous areas, apply intrinsic safety barriers rated for the device’s current draw. Non-certified barriers will trip protection circuits or compromise explosion-proof ratings. Follow the manufacturer’s derating curves–exceeding current limits voids certifications and violates compliance standards.
Test the installed system under operational conditions. Simulate process extremes (temperature, humidity) to confirm stability. Drift exceeding 0.5% of span signals incorrect termination, insufficient power, or defective gear. Isolate faults by systematically disconnecting each segment and retesting.
Connecting a Two-Lead Signal Device: Key Setup Guidelines
Use screened, twisted pair cables with a cross-section of at least 0.5 mm² for power and signal lines to minimize interference over distances up to 200 meters. Verify loop resistance remains below the device’s maximum load specification–typically 450 Ω for 24 VDC supplies–by summing cable resistance and all connected loads (e.g., indicators, PLC modules).

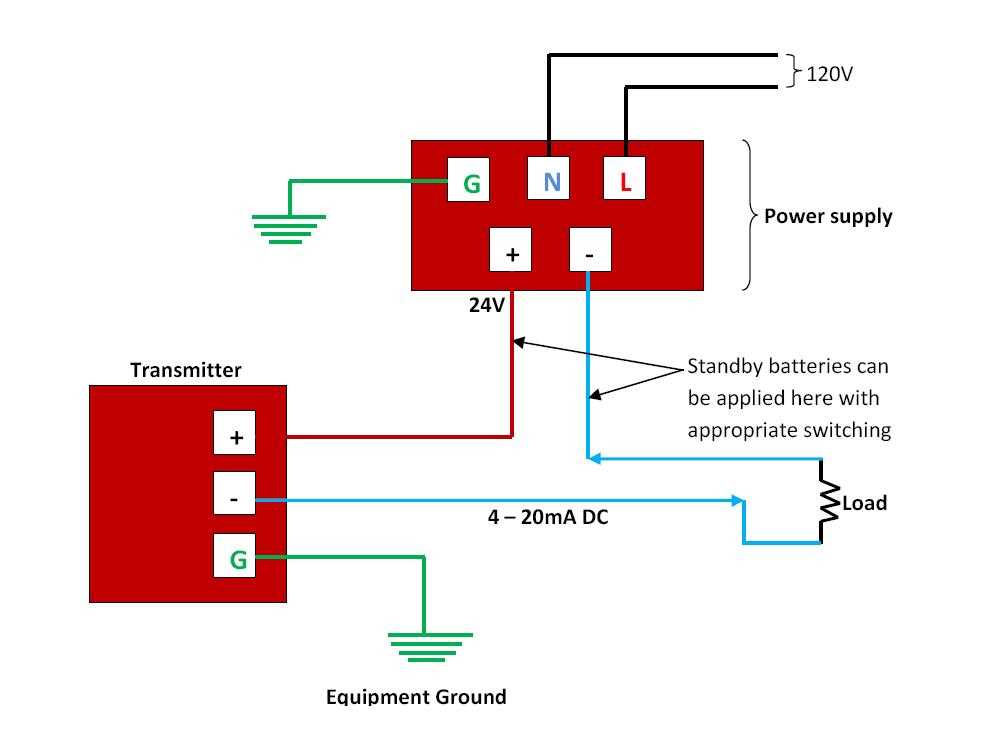

Connect the positive terminal directly to the power supply’s positive output; route the negative terminal through the receiver (e.g., controller, display) before returning to the supply’s negative. This ensures the signal path carries both supply current and measurement data. Avoid branching the loop into parallel loads–use a single serial path to prevent signal degradation.
Critical Connection Checks
- Insulate all splices with heat-shrink tubing or crimp connectors; verify continuity with a multimeter.
- Ground the screen at one end only–preferably at the power supply–to prevent ground loops.
- Polarity: Reversing leads can damage components; confirm labeling before powering on.
- Test with a simulated signal (e.g., 4 mA for 0% range) before final installation to validate loop integrity.
For hazardous areas, adhere to entity parameters: use barriers with ≤ 250 Ω loop resistance, ensure cable capacitance stays below 120 nF/km, and confirm intrinsic safety certification (e.g., Ex ia IIC T4) for all connected devices. Always cross-check with the manufacturer’s manual for device-specific constraints, such as maximum capacitance or inductance limits.
Basic Components for 2-Wire Signal Path Assembly
Select a precision resistor network to condition the signal loop. Use a 250 Ω shunt for 4–20 mA paths, ensuring it has a tolerance of ±0.1% and a power rating of at least 0.5 W. Alternatives like 150 Ω or 500 Ω can be chosen based on load constraints, but verify compatibility with the power source’s compliance voltage first.
A steady excitation source is critical. Opt for a DC supply between 12 V and 30 V, with a ripple specification below 20 mV peak-to-peak. Linear regulators (LM78xx series) or isolated switch-mode modules (RECOM R-78) deliver cleaner output than unregulated adapters, directly impacting noise immunity in low-level measurements.
Key Peripheral Elements
| Component | Specification | Role |
|---|---|---|
| TVS Diode | 6–10 V breakdown, 400 W peak | Clamps transient spikes |
| Ferrite Bead | 600 Ω @ 100 MHz | Suppresses RF interference |
| Polyester Capacitor | 0.1 µF, 100 V | Stabilizes loop dynamics |
Integrate a galvanic isolator if ground loops threaten stability. Digital isolators (Silicon Labs SI86xx) or optocouplers (Toshiba TLP2745) maintain 2.5 kV isolation while preserving signal integrity. Place the isolation barrier as close to the sensor interface as feasible to minimize exposed conductive paths.
Layout Practices
Keep high-impedance nodes shorter than 2 cm to thwart stray capacitance. Separate analog traces from digital clock lines by at least 5 mm and add copper pours beneath passive elements to enhance thermal dissipation. Ground planes should connect at a single star point to prevent circulating currents.
Step-by-Step Connection Guide for Two-Lead Signal Devices and Power Sources
Begin by verifying the polarity markings on the sensor’s output terminals–typically labeled + (positive) and – (negative)–against the supply voltage specifications in the device documentation. Most industrial 4–20 mA instruments require a DC loop supply between 12 VDC and 36 VDC; configure the power module accordingly before connecting. Strip 6 mm (0.25″) of insulation from each conductor end, then insert the positive lead into the supply’s + terminal block and the negative lead into the – terminal block. Secure each connection with a torque screwdriver set to 0.5 Nm to prevent vibration-induced loosening, especially in environments with mechanical stress or frequent temperature cycling.
Loop Integrity Verification
Apply power and measure the current flow between the sensor and power source using a calibrated multimeter in series with the circuit; expected readings should immediately rise to the 4 mA baseline. If the value remains at zero, disconnect the circuit and inspect for reversed polarity, improper terminal contact, or open paths in the conductor route. For installations exceeding 100 meters, use shielded twisted pair with a grounded drain to minimize EMI interference–connect the shield exclusively at one end, typically at the power supply chassis ground.
Common Mistakes to Avoid When Connecting Two-Lead Signal Devices
Grounding polarization mismatches create unstable readings. Always verify that the loop’s negative terminal aligns with the control system’s ground reference–reversing polarity can induce a 4-20mA shift indistinguishable from valid process data. Isolated outputs tolerate minor ground differences, but non-isolated units demand strict ground equality within ±0.5V to prevent zero-point drift.
Ignoring loop resistance limits forces current starvation. A 24V supply with 600Ω total load drops 14.4V; exceeding the device’s max impedance spec (typically 900Ω) leaves insufficient headroom. Check the spec sheet’s min/max voltage at full-scale current–many devices require ≥10V across their terminals to maintain accuracy.
Cable shielding termination at a single end invites interference. Connect the shield to earth ground at the control panel only; bonding both ends forms a ground loop. Twisted pairs reduce magnetic coupling, but capacitive noise persists above 1 kHz–use ≤0.5mA/volt sensitivity specs to gauge shield effectiveness.
Supply Voltage Margins Overlooked
Assuming 24VDC tolerates ±10% ignores transient dips. A 22V sag during motor starts can reset low-power units. Measure minimum supply voltage under worst-case load–devices needing 12mA consume 0.288W, leaving only 4.8V across an 800Ω loop at 22V input. Opt for 26VDC nominal supplies when possible.
Skipping polarity protection diodes risks permanent damage from reverse connection. Install a 1N4007 across the leads–it diverts 1A reverse current, enough to protect most 4-20mA loops. Verify diode voltage drop doesn’t steal loop headroom; a 0.7V drop on a 24V supply subtracts from usable voltage across the loop.
Neglecting supply decoupling capacitors near the device causes sporadic errors. Add a 1µF ceramic capacitor within 1cm of the power input terminals to filter high-frequency noise. Larger electrolytic capacitors (≥100µF) belong at the power supply, not the field unit–long leads act as antennas, amplifying noise pickup instead of attenuating it.
Grounding and Shielding Techniques for 2-Lead Signal Paths
Connect the sensor’s low-potential terminal directly to the controller’s analog input ground using a dedicated conductor no longer than 1 meter. Avoid daisy-chaining ground returns between multiple devices; each signal pair should terminate at a single, star-connected ground reference point located at the control panel.
Use twisted-pair cabling with an overall metallic foil shield for the entire run. The shield must be bonded only at one end–preferably at the controller enclosure–to prevent ground loops. Bonding at both ends invites circulating currents that superimpose 50/60 Hz noise onto the 4–20 mA loop.
For installations in high-noise environments (e.g., variable-frequency drives or switching power supplies), add a 10 nF, 250 VAC-rated ceramic capacitor across the signal pair at the sensor terminals. This shunts transient spikes above 1 MHz while preserving the DC integrity of the current signal. Verify the capacitor does not load the loop below 4 mA under normal operation.
Bonding Practices for Shields
Terminate the foil shield to the metallic sensor housing or conduit using a 360° clamp and a 16 AWG drain lead. The drain must be insulated to prevent accidental shorts and run parallel to the signal pair, never exceeding 30 cm in length before reaching the single-point ground. Aluminum conduit joints should be bonded with copper jumpers to maintain a continuous low-impedance path back to the star ground.
In hazardous areas, consult IEC 60079-14 for grounding continuity requirements. Stainless-steel conduit couplings must be tightened to 40 Nm; insufficient torque raises loop resistance above 1 Ω, degrading noise rejection. Record resistance measurements during commissioning to establish a baseline for future troubleshooting.
For outdoor runs, use a spiral-shielded cable with UV-resistant jacketing. The outer shield should be isolated from earth except at the single grounding point to prevent electrolytic corrosion between dissimilar metals. Test shield-to-earth resistance annually; values below 1 MΩ indicate moisture ingress or compromised insulation.
Signal Isolation and Noise Suppression
Isolate the 2-lead path from adjacent power circuits by maintaining a minimum 300 mm spacing. If separation is impossible, install a grounded steel divider between trays. For runs exceeding 200 m, splice in a repeatable isolator every 150 m; these units pass 4–20 mA while breaking ground loops and rejecting common-mode voltages up to 250 VAC.
