Complete Wiring Diagram Guide for 2000 Chevy Astro Van Electrical System

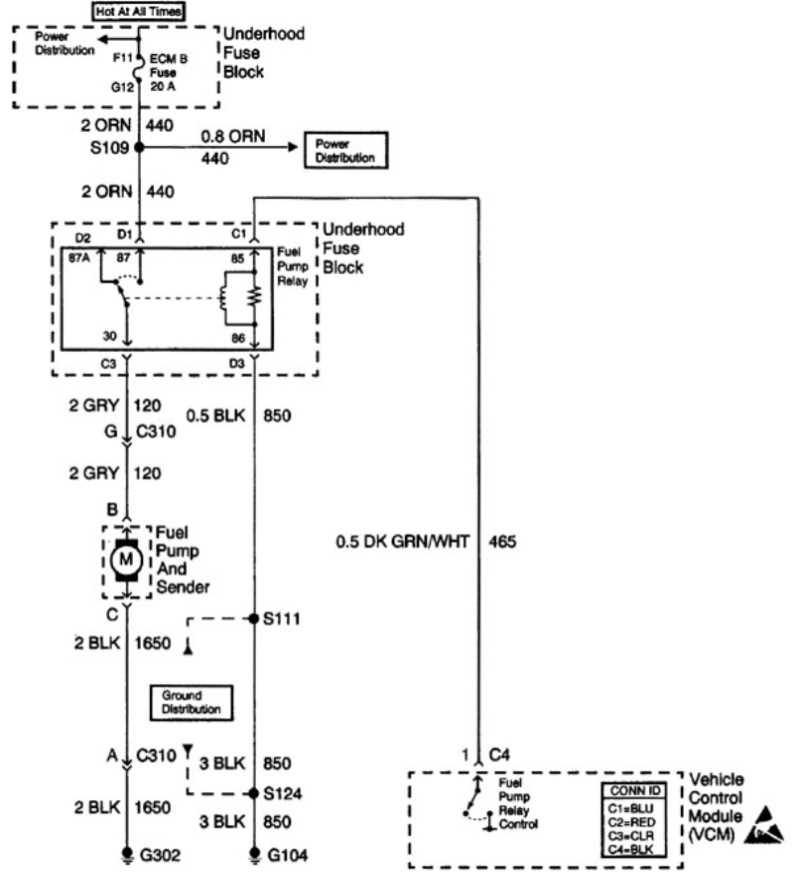

Begin repairs by locating the under-hood fuse block near the brake master cylinder–terminal references C1 (black), C2 (red) and C3 (dark blue) control critical circuits including ignition feed, fuel pump relay, and cooling fans. Verify power distribution module connections first; corroded terminals here disrupt 4.8L V6 fuel injection pulses and starter solenoid activation.
Trace the instrument cluster harness along the firewall driver-side corner–pinout chart K33 (tan/black wire) carries fuel gauge signals direct to the dash. If readings fluctuate, inspect the sender float assembly inside the tank; sediment buildup alters resistance values false negatives. For trailer wiring retrofits, bypass factory brake controller connections–utilize the seven-pin auxiliary port (TBC module) only after confirming uninterrupted 85A fuse (#18) continuity.
Grounding integrity dictates reliability: test engine block-to-chassis bonds at G103 (left cylinder head bolt) with multimeter set to ohms scale–readings above 0.3 ohms necessitate terminal cleaning and die-electric grease application. Auxiliary circuits–electric seats, rear defrost grids–require separate 30A circuit breakers (#27, #28) instead of fuses to preventoverloading the240-address CAN bus network.
For aftermarket stereo installations, splice yellow/orange ignition wires exclusively from the radio harness pin B+–avoid tapping into turn signal circuits which trigger erratic amplifier shutdowns. Check rear cargo dome light relay socket for melted plastic signs; replace it immediately if thermal degradation is evident, as compromised 120W ballast resistorsinvalidate warranty claims post-2004.
Electrical Schematic Reference for the GMC Safari Van: Hands-On Instructions
Locate the under-dash fuse block first–the power distribution hub hides behind a snug plastic cover adjacent to the driver’s left knee. Peel back the cover to expose twenty-two slots; four maxi-fuses (purple) handle the blower motor, ignition coil, and ABS pump, while sixteen mini-fuses (yellow, orange, red) feed the headlights, taillights, and instrument cluster. Use needle-nose pliers to extract suspect fuses without twisting–straight vertical pull only–then hold each against a halogen penlight to verify the filament continuity.
Probe color-coded conductors with a 10 MΩ impedance meter set to 200 Ω scale. The factory harness groups ground circuits in solid black wires, battery-positive paths in red or orange, switched ignition leads in yellow-and-black stripes, and signal wires in light blue, dark green, or pink. Clip the black meter lead to chassis ground–bare metal on the wiper-motor bracket–then touch the red probe to pin 15 (yellow-and-black) inside the diagnostic connector; voltage should spike 11.8–13.2 V when cranking.
Splice repairs demand adhesive-lined heat-shrink sleeves, 18–22 AWG crimp connectors, and rosin-core solder (60/40 alloy). Cut damaged sections flush; strip 6 mm of insulation, twist strands clockwise, align crimp lugs, then apply 350°C heat until the flux bubbles. Seal all joins with high-zinc primer before shrinking; verify final resistance under 0.1 Ω. Avoid electrical tape–it traps moisture–and never solder alone; mechanical crimp must carry primary load.
Trace auxiliary circuits by following printed legends stamped along the loom. The cargo-area inverter taps into pin 1E (white wire) on the rear junction box; voltage dip below 11.3 V trips the auto-shutdown relay. Passenger-side fog lamps split the main beam feed at splice S-117, marked by teal shrink tubing; bypassing the switch module requires jumpering pin 30 to pin 87 across the relay socket–insulated 16-gauge jumper lasts 45 minutes tops, sufficient for bench testing.
Digital oscilloscope readings reveal intermittent faults invisible to static meters. Connect channel A to an injector signal (tan/orange), channel B to ignition coil primary (dark blue); trigger threshold 2.5 V rising edge. A healthy capture shows 3.2 ms pulse width and sharp vertical edges. Any rounding or elevated ripple (>250 mV) signals corroded terminals–disassemble the C103 bulkhead connector, clean male tabs with aluminum oxide cloth, apply dielectric grease, then torque to 4 N·m.
Finding the Primary Electrical Bundle and Terminal Layouts for Your Van
Access the central electrical harness beneath the dashboard on the driver’s side–remove the lower trim panel secured by three 7mm screws and two plastic clips. The harness exits from the firewall grommet near the brake booster; trace it to the bulkhead connector labeled “C100” (white, 32-pin). Use a multimeter set to continuity mode to verify pin assignments: pin 1 (red/black) supplies ignition-switched 12V, pin 7 (purple) feeds the radio memory circuit, and pin 12 (dark blue) carries the starter solenoid signal. A secondary harness runs along the left kick panel; its 16-pin connector (gray, “C201”) contains crucial gauges inputs–pin 3 (light green/black) links to the temp sender, while pin 9 (tan/black) connects to the fuel level sensor.
- Check for brittle insulation or corrosion on pins 5–8 of the C100 connector–common failure points for intermittent power loss.
- Label each terminal with masking tape before disconnecting to prevent miswiring.
- Refer to the vehicle’s service manual, pages 8-11 through 8-14, for exact resistance values (e.g., 240 ohms for the coolant sensor at 70°F).
- Use a T-pin to probe male terminals without damaging the contact springs.
How to Methodically Follow Circuit Paths in Vehicle Schematics
Locate the power source on the electrical chart first. Trace the thick red or orange lines leading from the battery icon to the fuse block. Verify fuse ratings match the circuit label–common values for lighting systems hover around 10-15 amps, while ignition circuits may require 20-30 amps. Cross-reference these with the legend at the bottom of the sheet.
Identify ground points next. Look for black wires or symbols resembling three horizontal lines converging downward. These terminate at metal chassis points–common grounds often cluster near the firewall, engine bay, or rear cargo area. Use a multimeter to confirm zero resistance between ground and battery negative if continuity issues arise.
Follow the colored conductors step-by-step. Note junctions where splits occur (marked by dots or labels like “C100”). Each segment between these points should correspond to a component:
- Red/white stripe: typically heads to instrument clusters
- Yellow/black: often feeds rear lamp assemblies
- Dark green/white: usually connects to fuel pump relays
Label each wire with painter’s tape before disconnecting to prevent mix-ups during testing.
Test each connection systematically. Set the multimeter to DC voltage mode (20V range) and probe both sides of connectors while someone activates the circuit (e.g., turns on headlights). A voltage drop exceeding 0.5V indicates resistance–common culprits include corroded terminals or undersized conductors. For switched circuits, check both sides of the switch; faulty switches often show voltage on only one terminal.
Inspect connectors for heat damage or contamination. Pull apart plastic housings and examine pins for:
- Blackened or melted plastic near pin #37 (common for heated seats)
- Greenish corrosion on #42 (frequently affects A/C relays)
- Pushed-out pins in harness plugs (particularly near the steering column)
Apply dielectric grease after cleaning to prevent future oxidation. For intermittent faults, flex wires while monitoring voltages–broken strands often cause sporadic failures.
Document every finding immediately. Sketch a simplified version of the route on notebook paper, noting:
Compare measurements against specified values–manuals typically list expected voltages within ±0.2V for sensitive circuits like oxygen sensors.
Locating Power Distribution Components in GMC Variant Models
Begin by accessing the primary fuse panel beneath the instrument panel on the driver’s side. Remove the lower dash cover by releasing two retaining screws–often concealed behind a small trim panel–then pull the cover downward. The panel houses 30+ fuses and 6 relays, organized in a grid of two columns: fuses 1-20 on the left, 21-40 on the right. Relays occupy the bottom row, labeled R1 through R6. Reference the printed legend on the underside of the cover or use a multimeter to verify continuity if labels are worn.
Critical components often misidentified include:
– Horn relay (R1): Controls the dual-tone horn circuit, prone to corrosion from road spray.
– Blower motor resistor (inline fuse near HVAC): Failure causes intermittent fan operation across speeds.
– ABS module fuse (10A): Located in slot F11; absence of power triggers the BRAKE warning lamp.
For quick cross-referencing, use this partial mapping of common circuity identifiers:
| Label on Panel | Amperage | Circuit Protected (Common Issues) |
|---|---|---|
| F8 | 20A | Power windows (motors stall at half-travel) |
| F22 | 15A | Instrument cluster (gauges resets to zero) |
| R4 | 30A max | Hazard flasher (LEDs flash erratically) |
The secondary power junction resides under the hood, adjacent to the battery tray. Snap off the plastic cover using the hinge clips at the rear–excessive force breaches the clips. This box contains high-current distribution nodes including:
– Alternator fuse link (140A): Filament burns black if alternator shorts; test with voltmeter at battery posts–should read 13.8-14.4V engine running.
– Cooling fan relay (R6): Swap with known-good relay (e.g., R1) to isolate fan failure; fans should pulse at 50% duty cycle at 213°F coolant temp.
Notable fuses here feed transmission solenoids (F10, 10A) and fuel pump prime circuit (F5, 20A)–both often overlooked during starting issues.
Trace circuits using the colormap provided in service manuals–solid colors denote main feeds, stripe patterns indicate splices or returns. Example: the orange wire with black stripe (ORG/BLK) carries ignition-switched power from the under-dash panel to the radio and HVAC controls. Probe connections with a test light at the following harness connector points:
– Behind glove box (C101): Blue 18-gauge wire; powers interior lamps.
– Firewall bulkhead (C200): Red 12-gauge; supplies headlamp switch.
Faulty splices here manifest as dim headlights or radio cutouts under acceleration due to voltage drop across corroded terminals.
Print the legend from OEM documentation and attach it to the underside of each panel cover using clear adhesive–prevents label wear. When replacing fuses, match amperage exactly; upgrade F4 (cigar lighter) to a 20A blade fuse if adding high-draw accessories. For relays, label the socket with masking tape noting the relay’s function (e.g., “A/C clutch R2”) to streamline future diagnostics. Replace the under-hood fusible link immediately if exhibiting bulges or discoloration; bypassing delay risks starter damage.
