Complete Wiring Diagram Guide for 2000 Jeep Grand Cherokee Electrical Systems

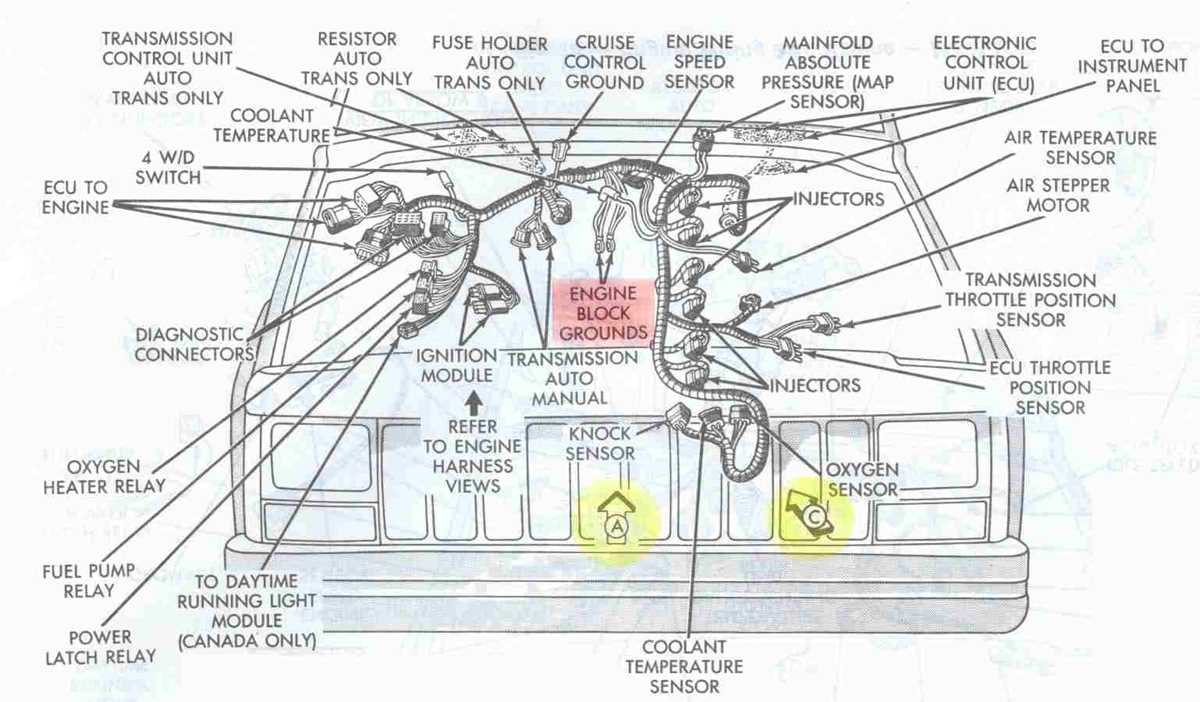

Start troubleshooting electrical gremlins by locating engine bay fuse block schematic–found under the hood on the driver’s side, labeled “Power Distribution Center.” Pinouts for the PCM (Powertrain Control Module) follow C1 connectors: white (A) handles ignition-switched power, dark green/red (B) feeds sensor ground, and tan/light blue (C) carries MAP sensor inputs. Verify these first before probing deeper.

Transmission wiring for the 42RE/44RE automatics centers on the T47 pin connector. Pin 7 (orange/black) delivers +12V from the ignition, while pin 9 (brown/red) triggers the torque converter clutch solenoid. Resistance should measure 20-30 ohms–any deviation signals internal shorting. Bypass the TCM module temporarily to isolate solenoid faults if bucking persists under light throttle.

Front axle disconnect harness (models with NP242 transfer case) uses twin grey 8-pin plugs behind the grille. Pin D4 (yellow/red) carries vacuum switch feedback–test continuity to chassis ground while toggling 4WD modes. If intermittent, trace circuit T30 back to the fuse panel under the dash; corrosion here mimics encoder motor failure.

Instrument cluster illumination relies on bulb test circuit: probe pin 8 (black/white) of the C210 connector for steady 12V during bulb check self-test. Dimmer control feeds from the headlight switch via grey/white wire–replace the rheostat if dash lights flicker without dimming. Avoid splices on this trace; voltage drop causes premature failure of LED retrofits.

Fuel pump relay activation hinges on ECM relay circuit–pin 87 (pink/black) outputs +12V to pump when ignition is keyed. If silent, jump pin 30 to 87 at the relay socket; pump whine confirms relay failure. Swap with the AC compressor relay (identical part 93630674) to verify–OEM specs require 1.3A steady-state draw.

Electrical Schematic for a 1999-2001 Overland Edition: Key Connections

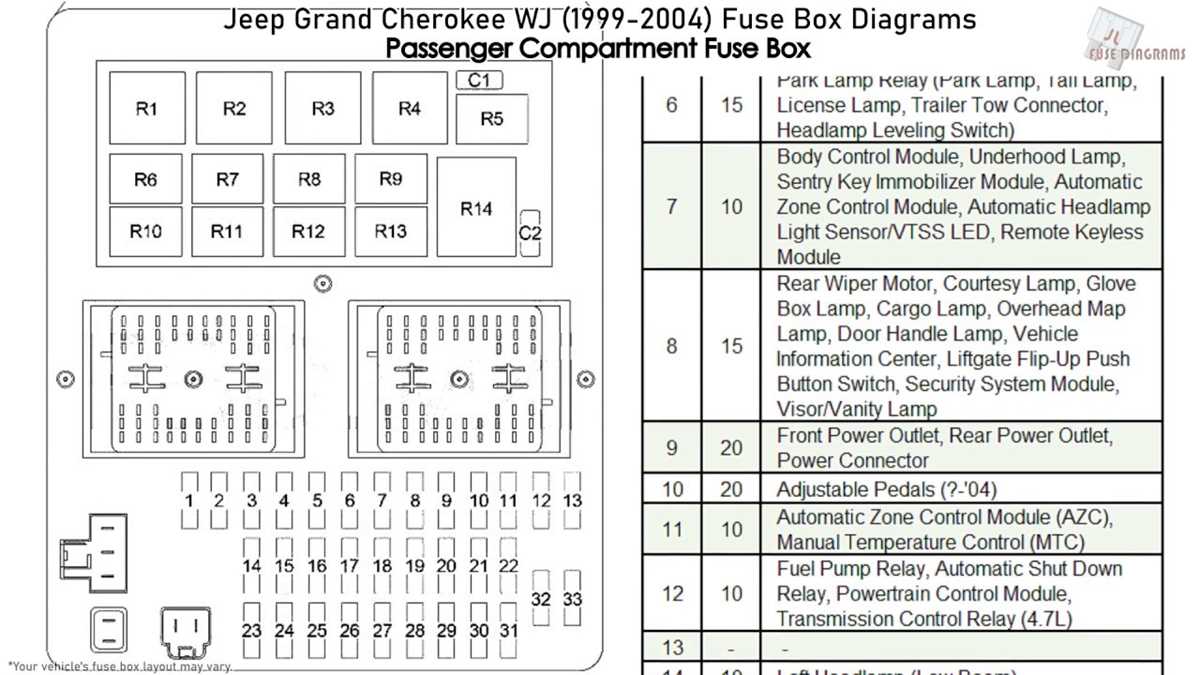

Locate fuse box C2 underneath the driver-side dashboard–pins 4 and 6 feed the rear defogger relay coil. Trace the violet/orange wire (20-gauge) directly to the rear window grid; corrosion at the liftgate hinge causes intermittent drops. Replace the 30-amp fuse with a slow-blow type if circuit resistance exceeds 0.3 ohms under load.

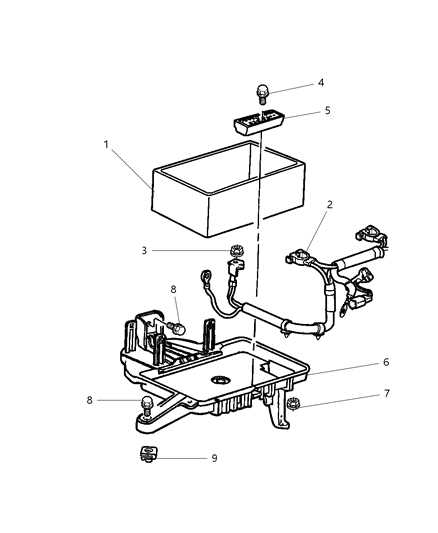

For the powertrain control module (PCM), connection D15 supplies ignition-switched voltage via a 14-gauge red wire; verify continuity with a multimeter on the 200 mV scale. The gray/black wire on pin D13 delivers fuel pump signal–if voltage drops below 10.5V during cranking, inspect the inertia switch beneath the left kick panel. Clean the ground at G104 near the battery tray (10 mm bolt) to restore proper ECM grounding.

Critical Harness Points Prone to Failure

• Door jamb harness (left rear): yellow/light-blue wire for power window motor–chafing against the hinge bracket requires taping or conduit;
• Instrument cluster C1 connector: pink wire (fused ignition) fractures at pin 11–solder and heat-shrink red insulation;
• Engine bay main harness: black/white sensor ground wire near the throttle body–corrodes at the splice; strip back 15 mm and crimp a new terminal;
• Trailer harness plug: green/white wire for left turn signal–replace with a heavier 18-gauge wire if towing exceeds 2,000 lbs.

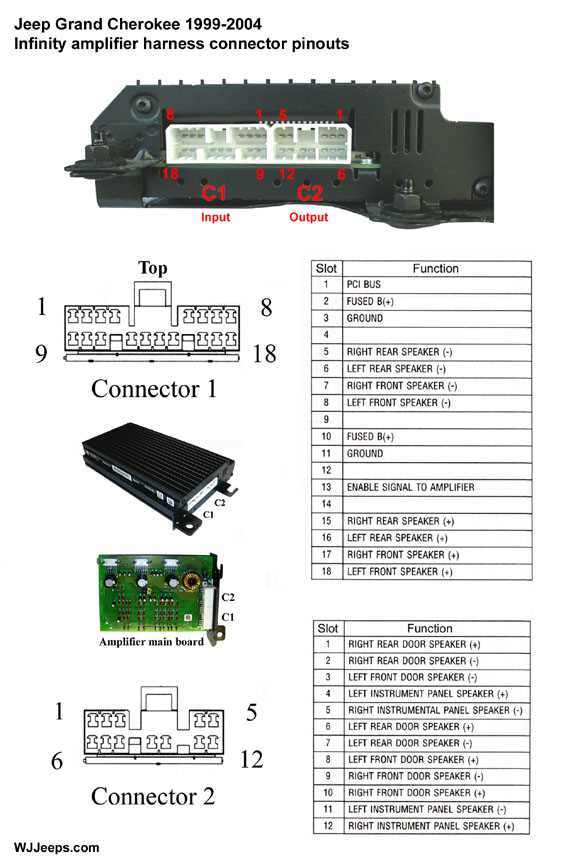

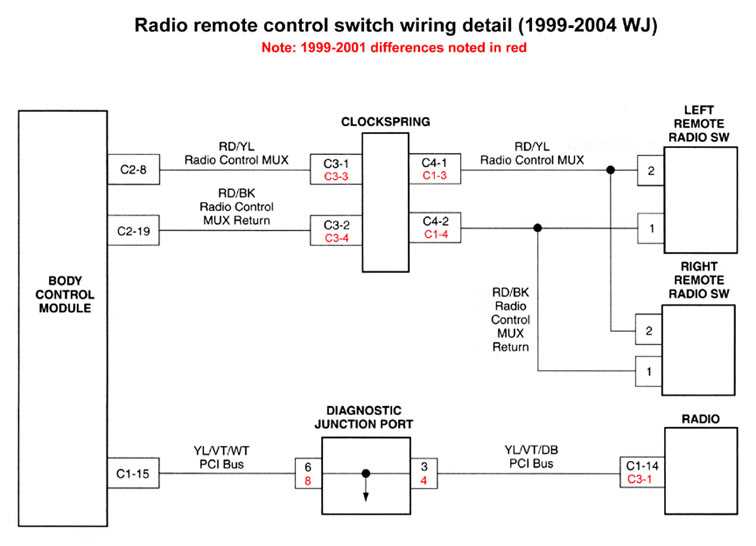

Bluetooth retrofit requires splicing into the CD changer wiring: pin 8 (gray/black) carries CAN-H from the BCM. Add a 120-ohm terminating resistor between CAN-H and CAN-L to prevent false DTCs. For heated seats, connect the orange/black wire (switched 12V) at the HVAC controller plug to a new 20-amp circuit breaker.

When testing the anti-lock brake module, use a scan tool with bidirectional control; trigger the solenoid valves individually while monitoring voltage at pins 2 (gray) and 6 (white) of the EBCM connector. A steady 4.8V reading indicates proper operation. Replace the wheel speed sensor if waveform amplitude drops below 150 mV at 30 mph–clean the reluctor ring to restore signal integrity.

Locating Complete Electrical Schematics for Your 1999-2001 Laredo Limited Model

Start with the official service manual released by the manufacturer. The 2000 Factory Service Manual (FSM) includes detailed circuit maps for all systems, including engine control, lighting, and accessories. This document is sold through authorized dealers or specialty publishers like Haynes or Chilton, though prices range from $80 to $150 for a physical copy. Digital versions occasionally surface on forums like JeepForum.com or CherokeeSquad.com, where members share scanned PDFs under fair-use claims.

Specialized automotive databases offer subscription-based access to OEM schematics. Mitchell1DIY and AllDataDIY provide single-vehicle access for $25–$40, with exact wire colors, connector pinouts, and ground locations. These platforms also include diagnostic trees for troubleshooting fuse box layouts or sensor circuits. Avoid pirated copies–versions from eBay or Russian-hosted sites often contain corrupted files or incorrect revisions.

Online communities like WranglerForum or Reddit’s r/MechanicAdvice archive high-resolution images of key pages from the FSM. Users frequently upload specific sections–such as the Body Control Module (BCM) or Power Distribution Center (PDC) diagrams–with annotations for common modifications. Requesting a targeted schematic (e.g., “trailer wiring harness” or “fuel pump relay”) can yield direct links to Google Drive or Mega.nz shares within hours.

For free but fragmented sources, check AutoZone’s Repair Guides or O’Reilly Auto Parts’ online manuals. These offer simplified overviews of major systems, though critical details like wire gauge or splice points may be omitted. YouTube channels like EricTheCarGuy or South Main Auto occasionally walk through specific circuits while referencing the official diagrams, which can help cross-verify connections.

If all else fails, visit a salvage yard with a multimeter and a notebook. Label each wire as you trace it from the component to the fuse box or ground point. Works for complex systems like the Transfer Case Control Module (TCCM) or Anti-lock Brake System (ABS), where aftermarket diagrams lack precision. This method is time-consuming but ensures accuracy for custom projects or rare trim-level variants (e.g., Orvis Edition).

Methods for Identifying and Verifying Current Pathways with Schematic Reference

Locate the fuse box under the dashboard on the driver’s side and remove the panel cover. Match each fuse to its labeled function in the electrical layout–use a multimeter set to DC voltage (20V range) to probe both sides of the fuse holder. A live circuit will show battery voltage (12.6V nominal) on one side; the other should read 0V if the fuse is intact. If both sides measure 0V, follow the supply line backward in the schematic to the relay or ignition-switched source, checking for corrosion at connector C101 near the firewall.

Expose wiring harnesses behind the instrument cluster by disconnecting the negative battery terminal first. Clip a test light to ground and probe each pin at the cluster’s 16-pin connector while an assistant cycles the ignition and selected circuits (headlights, turn signals). The schematic’s color-coding–red with white tracer denotes high-beam feed, for instance–matches the harness wires; confirm continuity at each pin against the expected voltage: 12V constant, 12V switched, or pulsed signal for indicators. Damaged insulation or melted terminals often indicate a short preceding component failure.

For circuits involving motors or solenoids, disconnect the load first to isolate the control path. Trace the purple wire from the transmission control module to the solenoid connector, ensuring no fraying at the harness’s 90-degree bend near the transmission crossmember. Measure resistance between the module’s output and solenoid input pin–spec should be 20-30 ohms; values below 5 ohms suggest internal short, values above 100 ohms indicate open circuit. Ground integrity at the solenoid bracket should measure less than 0.5 ohms to the negative terminal.

When verifying sensor circuits, back-probe the connector with a fine pin rather than piercing insulation–MAF sensor leads (orange/black and black/white) must carry 5V reference and return 0.5-4.5V signal at idle. Compare live readings to the schematic’s voltage tables; discrepancies outside ±0.3V necessitate inspecting signal ground traces at ECM pin 17 for corrosion. If readings stabilize with external 5V supply, replace the ECM rather than chasing intermittent drops in the reference voltage.

Frequent Electrical Faults and Their Specific Zones in the 1999-2001 ZJ Model

Inspect the fuse block behind the driver-side dashboard panel if dashboard lights flicker or fail–corrosion on terminals 11, 15, and 28 often disrupts power. Replace the entire fuse holder if greenish oxidation appears; soldering contacts alone rarely restores reliability. The factory wiring harness connecting the fuse block to the headlight switch commonly frays near the steering column, causing intermittent headlight failure. Strip back the insulation 2 inches on either side of the damage and splice in new 14-gauge wire using crimp connectors rated for 20A.

Check the rear hatch motor circuit for stalled windows or non-responsive locks–twisted pairs (light blue and tan) linking the door modules to the body control unit frequently short near the liftgate hinge. A multimeter should read under 0.5 ohms across these wires; readings above 1.0 ohms indicate internal breakage requiring full harness replacement. The fuel pump relay socket underneath the passenger-side dash melts due to erratic voltage spikes; swap the relay with a 30A solid-state variant to prevent reoccurrence.

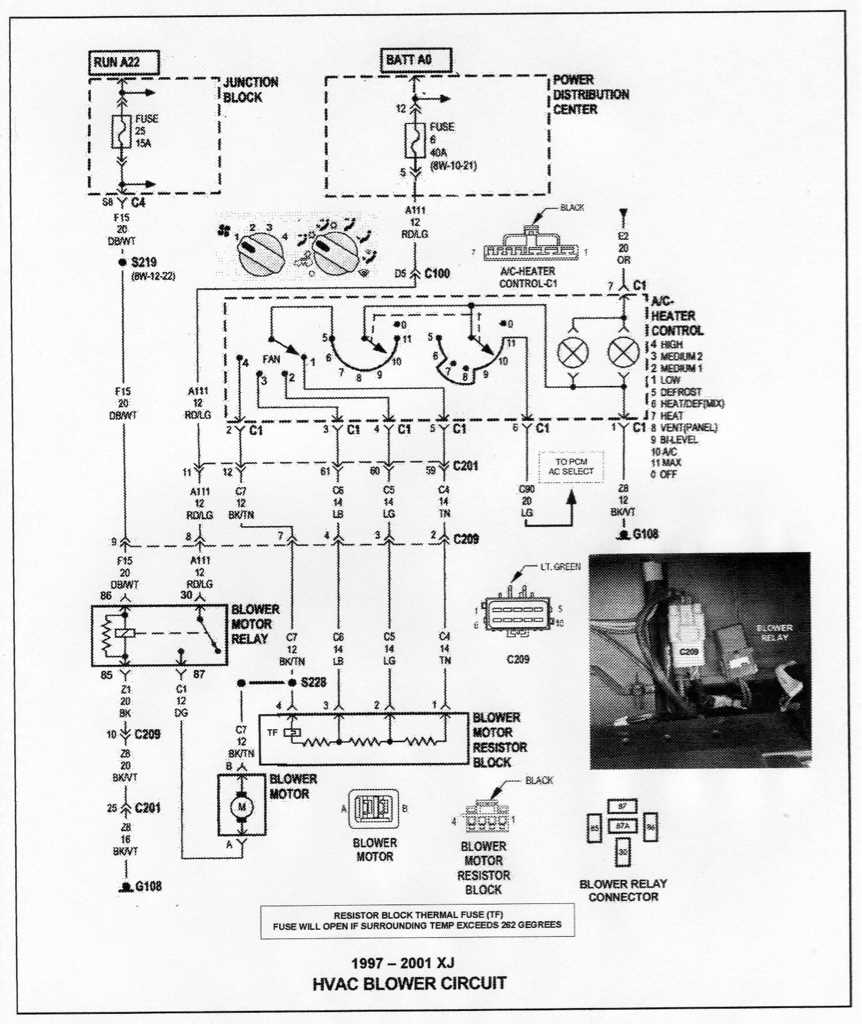

Trace the ignition switch pigtail for sudden stalling–pins 3 and 7 correlate to run and start positions, and worn contacts here mimic starter failure. Clip the connector, strip ½ inch of wire, and solder directly to the switch bypassing the plug. The auxiliary blower motor resistor cluster behind the glovebox burns out after excessive moisture ingress; drill a ¼-inch drain hole beneath the housing to avert future corrosion buildup.

For failing power mirrors, probe the orange/yellow wires at the mirror switch harness–resistance exceeding 0.3 ohms signals a broken heater grid or actuator motor. Swap the entire mirror assembly if the grid registers open circuit; individual repairs are uneconomical. The horn relay under the hood corrodes from road salt, causing sporadic honking–clean the socket with a wire brush and apply dielectric grease before reinstalling.

Symptom	Fault Location	Fix
No crank, dash lights on	Starter solenoid contacts	Jump the solenoid with a screwdriver
Overhead console dimming	Pink wire from BCM to dome light	Replace 10A fuse and check door jamb switch
Brake lights inoperative	Green/red wire at pedal switch connector	Strip wire, solder, and heat-shrink repair

Backfeed from the alternator fries the voltage regulator when jump-starting with polarity reversed–symptoms include flickering gauges and whining noises. Swap the alternator immediately and inspect the battery positive cable for melted insulation near the solenoid clamp. The rear wiper motor wiring harness taped to the liftgate window glass rubs through the insulation; wrap exposed sections with high-temperature loom before routing away from moving parts.

Locate the powertrain control module beneath the passenger-side footwell–water intrusion through the windshield cowl shorts the main 60-pin connector, triggering random misfires and check engine codes. Dry the connector with compressed air, apply corrosion inhibitor, and reseal the cowl vents with silicone. The transfer case shift motor wires break near the transmission tunnel; exposed copper strands cause erratic shifting–strip, twist, and solder a 6-inch repair section using marine-grade heat shrink.

Test the front axle disconnect actuator on 4WD models–resistance readings below 15 ohms across the black/yellow leads indicate internal shorting. Disassemble the housing and reflow solder joints with rosin-core solder; factory joints often crack under thermal cycling. The rear defroster grid fails in segments; each rectangle between gridlines must show under 5 ohms–replace the entire glass if three or more rectangles show open circuit.
