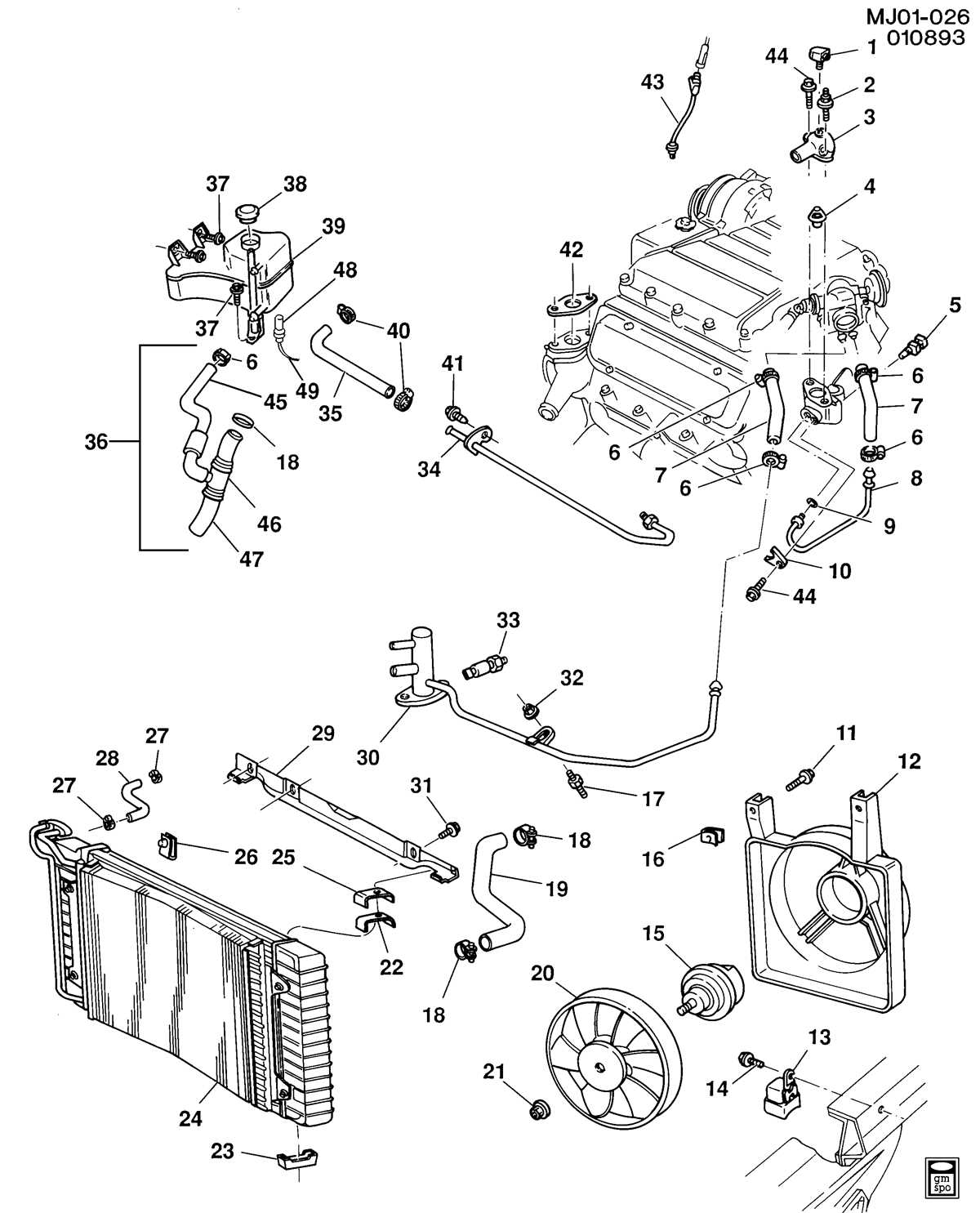

Complete Wiring Diagram Guide for 2001 Chevrolet Cavalier Electrical Systems
Begin by sourcing the official vehicle service manual from Helm Inc. (Part No. 3873087). This document contains verified circuit layouts for every subsystem–powertrain, lighting, instrumentation, and body controls–eliminating guesswork. Alternate reliable sources include Mitchell1 ProDemand or AlldataDIY, which offer searchable databases with pinpoint accuracy for connector views and wire gauge specifications.

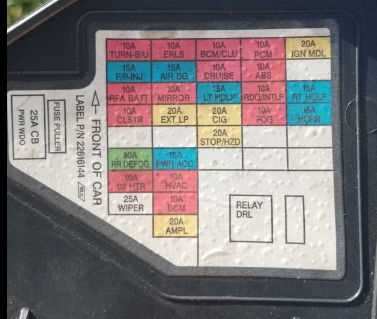

For immediate troubleshooting, focus on the under-dash fuse block (located driver-side, behind the kick panel). Trace circuits using a multimeter set to continuity mode: black probe to chassis ground, red probe to terminal. If resistance exceeds 5Ω, inspect for corroded splices–common at the junction near the A-pillar. Replace any oxidized connections with heat-shrink crimp connectors (GM #12047163) to prevent future voltage drops.
Prioritize the engine bay harness when diagnosing MIL codes P0300–P0306. The ignition coil pack (AC Delco D514A) receives 12V from the ignition feed relay (fuse #22, 10A). Verify signal input from the PCM at terminal B11; a missing 5V reference indicates an open in the gray/black wire (circuit 432). Use a back-probing tool to avoid damaging the weather-pack seal on the harness.
For audio system failures, check the radio harness adapter (Metra 70-1761). The factory head unit requires a constant 12V (+B) and accessory trigger (ACC) from fuse #13 (10A). If dimming controls malfunction, test the orange/white wire (circuit 14) at the instrument cluster connector C1; a short here disrupts dashboard illumination. Solder repairs with 16-gauge wire and insulate with non-adhesive loom (Techflex F6).
Avoid aftermarket universal wiring kits–these often lack the OEM color-coding: white (ground), pink (ignition), dark green (fuel pump), and light blue (serial data). Instead, reference the body control module (BCM) schematics for integrated functions like keyless entry and daytime running lamps. Reflash the BCM if erratic behavior persists using a Tech2 scan tool (or Snap-on Solus) with the latest GM calibration files.
Understanding Electrical Schematics for Your Late-Model Compact Sedan
Locate the under-dash fuse block on the driver’s side first–pin 12 delivers constant 12 V to the PCM, while pin 3 feeds the ignition-switched circuit. Use a multimeter set to DC volts; probe between the red wire (terminal 12) and any chassis ground to confirm a steady 12.6 V reading with the key off. If voltage varies by more than 0.3 V, inspect the battery cables for corrosion at the positive terminal or the ground strap where it bolts to the strut tower.
| Connector | Pin | Wire Color | Function | Expected Voltage |
|---|---|---|---|---|
| C1 (PCM) | 12 | Red | Constant power | 12.6 V (key off) |
| C1 (PCM) | 3 | Pink | Ignition feed | 12.6 V (key on) |
| C2 (Instrument cluster) | 7 | Yellow | Illumination | Varies with dimmer |
| C3 (Headlight switch) | 5 | Dark green | Low-beam trigger | 0 V (lights off) / 12 V (lights on) |
Trace the dark-green wire from the headlight switch back to the under-hood relay center. The relay coil draws 12 V from pin 86 when the switch is turned to “low beams”; ground the probe to pin 85 and verify continuity when the switch is activated. If the relay clicks but headlights remain off, remove the relay and jumper pins 30 and 87–if the lights now illuminate, replace the relay.
Ground Locations and Troubleshooting Steps
Check G101, mounted on the driver’s-side inner fender near the strut tower. Scrape paint from the bolt head and body contact point to ensure clean metal-to-metal grounding. Tighten to 18 ft-lb. Next, examine G201 beneath the rear seat; corrosion here mimics fuel-pump failure. Disconnect the fuel-pump connector, probe the brown wire (terminal A) to ground–if resistance exceeds 2 ohms, remove the seat and sand the ground lug surface.
Sources for the Full Electrical Schematic of Your Early 2000s GM Compact Sedan
Manufacturer-authorized repair manuals remain the most reliable origin for unabridged schematics. General Motors’ official Service Information platform, formerly known as ALLDATA DIY or Motor Manuals, distributes factory-approved blueprints. Subscriptions start at $29.95 for a 30-day window, granting access to the exact fuse box layouts, ground points, and connector pinouts that dealership technicians reference.
- ChiltonDIY provides downloadable PDF snapshots of each harness segment–engine bay, instrument cluster, and rear lamp circuit–for roughly $17 per individual diagram.
- Mitchell1 ProDemand consolidates all OEM diagrams in one interactive module; a single-vehicle 24-hour pass costs $24.99.
- Physical Haynes manuals sold at Advance Auto Parts and O’Reilly’s often include a fold-out poster-sized schematic tucked inside the rear cover–part number
39013typically delivers the full printed map.
Enthusiast forums host user-verified files that circumvent paywalls. The CavFanatic archive contains member-uploaded ZIP folders segmented by subsystem–BCM, HVAC resistors, starter relay paths–each folder tagged with thread-ID 20550 for direct download. Similarly, GMInsideNews threads under “Tech Guides” share annotated JPEG scans; these may lack color-coding but preserve exact wire gauge and splice locations.
Decoding the Vehicle Electrical System Schematic
Locate the fuse box legend first–it maps each circuit breaker to its amperage rating and function. Trace the main power feed from the battery to the distribution block, noting color-coded conductors: red typically carries 12V constant, yellow supplies switched ignition, and black grounds the circuit. Verify circuit protection by cross-referencing wire gauge with fuse values; a 14-gauge wire should pair with a 15A fuse, while 12-gauge requires a 20A breaker to prevent overload. Identify relays by their pin assignments–85 and 86 for coil, 30 for input, 87 for output–and test with a multimeter set to continuity mode.
Isolating Subsystems for Troubleshooting
Segment the layout into zones: lighting, ignition, accessories, and sensors. For lighting, follow the dimmer switch’s purple wire to the headlight relay, then to the headlamp bulbs’ brown and light green leads. Ignition circuits split at the ignition switch, with pink wires feeding the fuel pump and ignition coil. Accessories like power windows route through the driver’s door module via gray and dark blue wires. Measure voltage drop across connections; a reading above 0.2V indicates corrosion or loose terminals. Use a scan tool to monitor sensor signals (e.g., oxygen sensor on orange/black wire) while backprobing with a needle adapter.
How to Locate and Verify Ground Paths in Electrical Schematics
Begin by identifying all ground symbols on the schematic–these are typically marked with a downward-pointing triangle, three parallel lines of decreasing length, or a “G” designation. Focus on components sharing a common ground point, such as the engine control module, chassis connections, and sensor clusters. Use a multimeter set to ohms (Ω) to test continuity between each ground terminal and a known clean ground source, like the battery negative terminal. Readings above 0.5 Ω indicate corrosion, loose connections, or incorrect routing requiring immediate attention.
Trace each ground path backward from its origin to the central distribution point. For example, the instrument panel grounds often route through the dash harness, converging at a single bolt near the firewall or under the steering column. Label each branch with masking tape or a dry-erase marker to avoid confusion. Check for shared grounds–components like the fuel pump and ignition coil should not rely on the same path as sensitive electronics to prevent voltage spikes.
- Disconnect the battery negative terminal before probing to avoid short circuits.
- Clean all ground contact surfaces with a wire brush to remove oxidation.
- Apply dielectric grease to ground bolts after tightening to 8-10 Nm torque.
- Refer to the engine bay layout for hidden ground straps, often near the strut towers or transmission bellhousing.
Compare your findings against the vehicle’s service manual, which lists exact ground locations and acceptable resistance values. If a ground path splits, ensure each branch terminates at a dedicated chassis point rather than splicing into another circuit. For persistent issues, use a 10-gauge jumper wire to bypass suspect sections, measuring voltage drop under load–any value exceeding 0.1V suggests a compromised ground needing replacement.
Typical Power Faults and Their Schematic Positions
Locate the instrument cluster fuse (15A, position 9 in the under-hood fuse block) when gauges fail intermittently; corrosion on the tan/black wire at connector C201 (pin 7) is the usual culprit. Replace the terminals with gold-plated ones and seal with dielectric grease to prevent future oxidation on the run back to the body control module.
The ignition feed circuit often drops voltage at the pink/black wire between the ignition switch and the powertrain control module; probe the splice near the brake booster for chafing against the brake lines, then solder and heat-shrink a new segment of 18-gauge wire if resistance exceeds 0.3 ohms. Check the alternator output at terminal “B+” of the voltage regulator for spikes above 14.8V, indicating a faulty rectifier diode that must be replaced as a complete unit rather than individual diodes.
