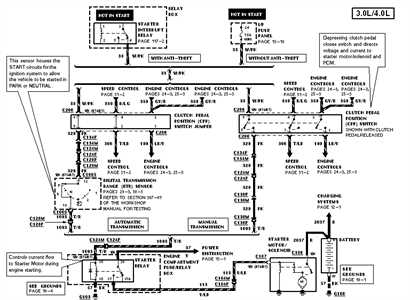

Complete Ford Ranger 2001 Starter Wiring Schematic Guide with Connections

If your compact truck’s cranking system fails, check the relay fuse–located in the central power distribution box under the hood–first. A blown 30-amp fuse disrupts the entire circuit, preventing voltage from reaching the solenoid. Replace it with an identical rating to restore function without risking damage to the ignition module.

Trace the wiring harness from the battery’s positive terminal to pin 85 on the starter relay. A 10-gauge red wire with a white stripe should deliver 12 volts when the key moves to the “start” position. Verify continuity with a multimeter; any drop below 10 volts suggests corrosion at the terminals or a frayed conductor near the transmission bellhousing.

Examine the ground strap connecting the engine block to the chassis. A weak or oxidized connection creates resistance, causing intermittent starting issues. Clean both contact surfaces with a wire brush and secure the strap with a new 10-mm bolt torqued to 15 ft-lbs. Ignoring this often leads to voltage leaks that mimic solenoid failure.

For models equipped with an automatic transmission, ensure the neutral safety switch engages properly. Jumper the switch’s connector briefly–if the engine cranks, adjust the linkage or replace the switch. Manual transmissions rely on the clutch pedal position sensor, which requires a 5-volt reference signal from the powertrain control module to close the relay circuit.

Inspect the solenoid’s small trigger wire–typically a 14-gauge green or yellow conductor–connected to terminal S. This wire carries the ignition signal from the starter relay. If voltage is present but the motor doesn’t engage, the solenoid’s internal contacts may be welded shut, requiring replacement of the entire starter assembly.

Use dielectric grease on all electrical connections to prevent moisture-induced oxidation. Reapply every three years or after significant temperature cycles. Overlooking this step accelerates wear on terminal blocks, particularly where the harness exits the firewall near the brake master cylinder.

Electrical Hookup Guide for 2000–2002 Compact Pickup Ignition Circuit

Locate the solenoid terminal marked “S” on the side of the motor assembly–this is the trigger contact that engages the flywheel gear. Trace the purple wire with a black stripe (often marked “I” or “IGN”) from the back of the ignition key cylinder directly to this terminal; any corrosion here causes intermittent fails, so clean both ends with a wire brush before reconnecting. For 4.0L V6 models, the neutral safety switch interrupts this circuit when the transmission is not in park or neutral, so verify switch continuity with a multimeter before assuming solenoid failure.

The battery positive cable splits at the starter relay: one thick red lead goes to the “B” (battery) terminal on the solenoid, while the thinner pink wire (fused at 30A) carries power from the relay to the “M” terminal–this powers the motor windings once the plunger closes. If the engine cranks slowly, check voltage drop across both connections; anything above 0.2V indicates resistance from loose terminals or oxidized clamps. Always disconnect the negative battery cable first when servicing to avoid accidental shorts that can burn the flywheel teeth or wiring harness.

Ground path completes through the motor housing to the engine block–inspect the mounting bolts for paint or oil buildup that breaks contact. On extended-cab models, the chassis ground strap from the firewall to the radiator support often corrodes; scrape bare metal and reattach before condemning the motor. Test solenoid operation by jumping 12V directly from the battery positive to the “S” terminal–if the motor spins, the ignition circuit or relay is faulty; if it clicks without engaging, the solenoid contacts are burnt and require replacement.

Finding the Electrical Hookups for Your Pickup’s Ignition System

Begin by tracing the large red cable from the battery’s positive terminal–it leads directly to the solenoid mounted atop the motor’s engagement mechanism. Look for a smaller wire, typically purple or dark violet with a yellow stripe, attached to the solenoid’s “S” terminal; this carries the trigger signal from the ignition switch. Disconnect the battery ground first to prevent accidental sparking when probing connections.

Behind the engine block, near the transmission bellhousing, you’ll find the starter relay harness. The wire colors here matter more than labels: the red/light blue stripe wire supplies constant power, while the yellow/light blue stripe transfers current when the key turns. Probe each connection with a multimeter–ignition-on voltage should read 10-12V on the yellow/light blue circuit. If not, inspect the fuse panel under the dash, specifically fuse #26 (15A) which protects this pathway.

For models with automatic transmissions, locate the neutral safety switch wiring–this is a white wire with a red stripe exiting the transmission case. It must be grounded (or show continuity) when the shift lever is in Park or Neutral for the start command to reach the solenoid. Manual versions skip this step, relying instead on a clutch pedal switch (gray/red wire) that completes the circuit only when fully depressed.

Tracing Power Delivery Lines: Battery, Relay Switch, and Key Circuit Paths

Locate the positive cable terminal on the power cell first–it’s the thick red line bolted directly to the cylindrical casing, typically marked with a “+” symbol. Follow this cable visually or with a multimeter probe (continuity test) toward the engine bay’s relay switch, a compact rectangular unit mounted near the fuse panel or on the fender well. The relay’s primary input lug (thick red wire) will match the battery’s gauge; output wires (smaller gauge, purple or yellow) branch toward the ignition cylinder and the solenoid’s control post. Use a voltmeter set to DC 20V: probe the relay’s input when the key is turned–it should read near 12.6V; ignition circuit wires (purple/white stripe) will drop to ~0.5V when engaged, confirming the signal path.

Key Wire Identification by Color and Function

Segment	Standard Color Code	Expected Voltage	Fault Symptoms
Relay input	Red (8-10 AWG)	Battery voltage	No crank, dim lights
Relay output to solenoid	Purple (14-16 AWG)	12.4–12.6V (key start)	Clicking noise only
Ignition feed to relay	Yellow (18 AWG)	~0.2V (key off) → ~12V (crank)	Silent, no relay click
Ground return path	Black (engine block)	0V (verified at chassis)	Intermittent start failures

Interrupts in the yellow wire from the ignition tumbler often mimic a failed relay–strip 6 mm of insulation at both ends, twist in a 10 AWG jumper wire, and bridge directly to the relay’s activation terminal (yellow input). If the engine turns, the original yellow wire circuit is compromised. For solenoid-side diagnostics, clamp a 14 AWG jumper wire onto the small solenoid lug (purple/white) and touch the other end to the battery post briefly–engine spin without key intervention confirms a solenoid or control wire fault. Never bypass the purple wire to ground; this triggers uncontrolled starter engagement.

Ground paths require zero resistance: sand the chassis mounting surfaces until bare metal appears, re-secure bolts with star washers, and apply dielectric grease. Measure ground-to-battery-negative with an ohmmeter–readings above 0.2 Ω indicate corrosion or loose connections. The auxiliary enclosure bracket behind the left headlight also doubles as a secondary grounding point; verify continuity between this bracket and the battery’s negative terminal before proceeding with relay or switch replacements.

Step-by-Step Guide to Testing Ignition Relay Voltage Drop

Park the vehicle on level ground with the transmission in neutral and engage the parking brake. Disconnect the negative battery terminal to isolate the power distribution network, then reconnect it after 30 seconds to reset the onboard computer’s transient memory. Locate the solenoid activation wire–typically a thin red or purple gauge lead–connected to the electromagnetic switch housing beneath the engine bay’s right fender bracket. Probe the terminal with a multimeter set to DC 20V scale; key-on-engine-off voltage should read 8.5–10.2V with less than 0.3V drop when cranking. If readings exceed this tolerance, strip ½-inch insulation from the wire harness 4 inches upstream of the connector and verify continuity against a known-good chassis ground point using an ohm scale ≤5Ω.

Voltage Drop Isolation Procedure

1. Remove the air intake assembly to access the thin blue/white stripe control wire running from the ignition cylinder to the relay block.
2. Attach a 10A fused jumper lead between the battery positive post and the relay’s input terminal (pin 30) while monitoring the multimeter connected to the solenoid output (pin 87) terminal.
3. Observe voltage: ≥11.8V during cranking validates relay integrity; if below threshold, replace the relay with an OEM-spec Denso DR-21 unit (resistance ≤120Ω at 20°C).
4. Check the black/yellow ground strap under the driver’s side kick panel–corrosion here mimics solenoid failure; clean both mating surfaces with 220-grit emery cloth and torque to 8.5 Nm.
5. Re-test with all accessories off; a 0.5V drop across the ground path confirms resolution.

Common Electrical Problems and Solutions

Check the solenoid connections first if the engine cranks weakly or not at all. Corrosion on the terminals prevents proper current flow–clean them with a wire brush and apply dielectric grease to prevent future buildup. Loose or burnt wires at the relay can mimic starter failure; probe each connection with a multimeter while attempting ignition to verify 12V output. Replace frayed leads immediately–temporary fixes like electrical tape degrade quickly.

Faulty Grounds and Power Delivery

• Inspect the engine-to-chassis ground strap. A corroded or broken strap reduces voltage to critical components. Scrape paint off mating surfaces before reattaching with stainless steel bolts.
• Test the battery cables for internal breaks by flexing them while monitoring voltage drop. A drop above 0.2V indicates hidden damage–replace the entire cable, not just the terminal ends.
• Bypass the ignition switch by jumpering the small solenoid terminal to battery positive (briefly) if clicks occur without cranking. This isolates switch failure without full disassembly.

Intermittent failures often stem from heat-damaged insulation–feel for warm spots near the harness while the engine runs. Wrap exposed sections with high-temperature sleeving and reroute wires away from exhaust manifolds. For persistent issues, install a relay between the ignition switch and solenoid to reduce load on the original circuit.
