Detailed Wiring Guide for 2001 Jeep Cherokee Fuel Pump Electrical System

Begin troubleshooting by locating the relay center beneath the driver-side dashboard–specifically pin 87 on the module labeled K11. This output feeds the in-tank sender via an orange wire with 12-gauge thickness; verify continuity using a multimeter set to ohms rather than voltage, as resistance under 5 Ω confirms the path is intact.

Inspect the inertia switch mounted near the firewall–its red and blue leads must show 12 V when toggled. If voltage drops below 11.5 V, replace it immediately; a faulty switch interrupts current flow even with a functional motor. Trace the purple wire back to the PCM connector C2; corrosion here mimics pump failure, so clean terminals with deoxIT before assuming hardware replacement.

For power verification, back-probe the gray wire at the sender’s harness connector–expect 12 V when cranking. If absent, test the ignition feed at the relay socket (pin 30) while bypassing the relay with a jumper; consistent voltage here isolates the relay as the fault point.

Ground connections often fail silently. Check the black wire at the tank’s sender–it anchors to chassis point G203. A weak ground causes voltage sag, mimicking pump failure. Scrape paint off the mounting surface to ensure bare metal contact; a loose bolt here drops voltage by 0.5 V, enough to prevent startup.

Resistance specs: sender windings should read 10–20 Ω. Anything outside this range indicates internal damage. For bench testing, apply 12 V directly to the sender motor–listen for steady whine; irregular noise suggests contaminated fuel or rotor wear.

Electrical Connections for the 2001 Model Year SUV’s Fuel Delivery Module

Locate the main relay control module beneath the driver-side dashboard–it houses the three-prong connector labeled C1. Pin 87 delivers 12V constant when ignition is in RUN; splice into this line with 18-gauge wire and route directly to the sender unit’s power terminal. Confirm voltage without load first using a multimeter, as corrosion or broken solder joints inside the relay socket can mimic open-circuit faults.

Ground reference (pin 85 on the same relay) must terminate at a chassis point free of paint or rust; the factory spot behind the left rear wheel well works reliably. Clean the surface with a wire brush, apply dielectric grease, and secure with a stainless-steel M6 bolt. If resistance exceeds 0.2 ohms, current starvation will cause erratic module behavior or false fuel-level readings.

Signal return from the sending unit runs a twisted pair–orange wire (low reference) and tan wire (variable resistance)–back to the instrument cluster connector C2, positions 2 and 3 respectively. These wires must not share ground with any other circuit; parasitic currents from heated seats or rear defrosters can corrupt the 50-110 Ω sweep signal. Use a dedicated 10-pin Weatherpak splice kit to repair broken insulation near the tank flange.

The inertia switch, mounted behind the kick panel on the passenger side, interrupts power during impact. Its normally closed contacts reset manually; test continuity with the key off before condemning the module. A failed switch will drop voltage at the module’s power pin, simulating a dead unit–swap in a known-good switch from any Chrysler platform (Dodge Durango 1999-2002 shares identical part number 52010854AB).

Diagnostic Shortcuts

Back-probe the tan signal wire at the cluster while cycling ignition from OFF to RUN–voltage should climb smoothly from 0.5 VDC to 4.5 VDC. A stair-step pattern indicates a failing sender resistive track; disassemble the tank sender and clean the wiper contacts with isopropyl alcohol. Replace the entire unit if resistance drifts outside 45-115 Ω range, as partial repairs rarely last beyond a few heat cycles.

Oxygen sensor heater circuits often trigger parasitic draws on the same fuse (10A, position 11 in the junction block). Disconnect the rear O2 sensor harness at the frame rail connector before load-testing the module; a 2.5 A draw at idle is normal, values above 3.8 A indicate internal module failure. Swap the fuse with a higher-rated one only for bench testing–fire risk escalates rapidly.

Harness chafing near the rear cross-member routinely breaks the thin gauge orange wire. Expose the entire run between tank and frame rail, repair breaks with shrink-wrapped splices, and secure the harness away from the exhaust shield using spiral wrap. Factory tape adhesive deteriorates after 120 °C ambient; replace the entire sleeve if brittleness appears.

Adapter plugs PT1 (black) and PT3 (gray) under the hood bridge the body harness to the powertrain control module. Pin 54 carries switched ignition feed to the ASD relay coil; measure 10-12 VDC here to isolate faults upstream of the anti-theft module. A missing pull-up voltage here will disable module operation without setting pending codes–supplant with a fused 5 A jumper wire for testing only.

Finding the Electrical Connections for Your Vehicle’s Fuel Delivery System

Begin under the rear seat or beneath the cargo compartment cover–depending on configuration–to access the sender assembly. The harness emerging from the top of the module contains three wires: a 12-volt supply (bright orange), a ground return (black or dark brown), and the sender signal (gray with a black tracer). Trace these back to the main loom; they splice into the body-side connectors near the D-pillar behind the rear quarter panel trim.

For vehicles with the tank-mounted relay, locate the bundled harness near the left frame rail aft of the filler neck; it terminates in a compact two-pin connector and a heavier six-pin plug. Match colors: the relay’s coil side receives ignition feed (dark green with orange stripe) from fuse block position J1-8, while the switched side outputs 12 volts (light blue with dark stripe) directly to the delivery module.

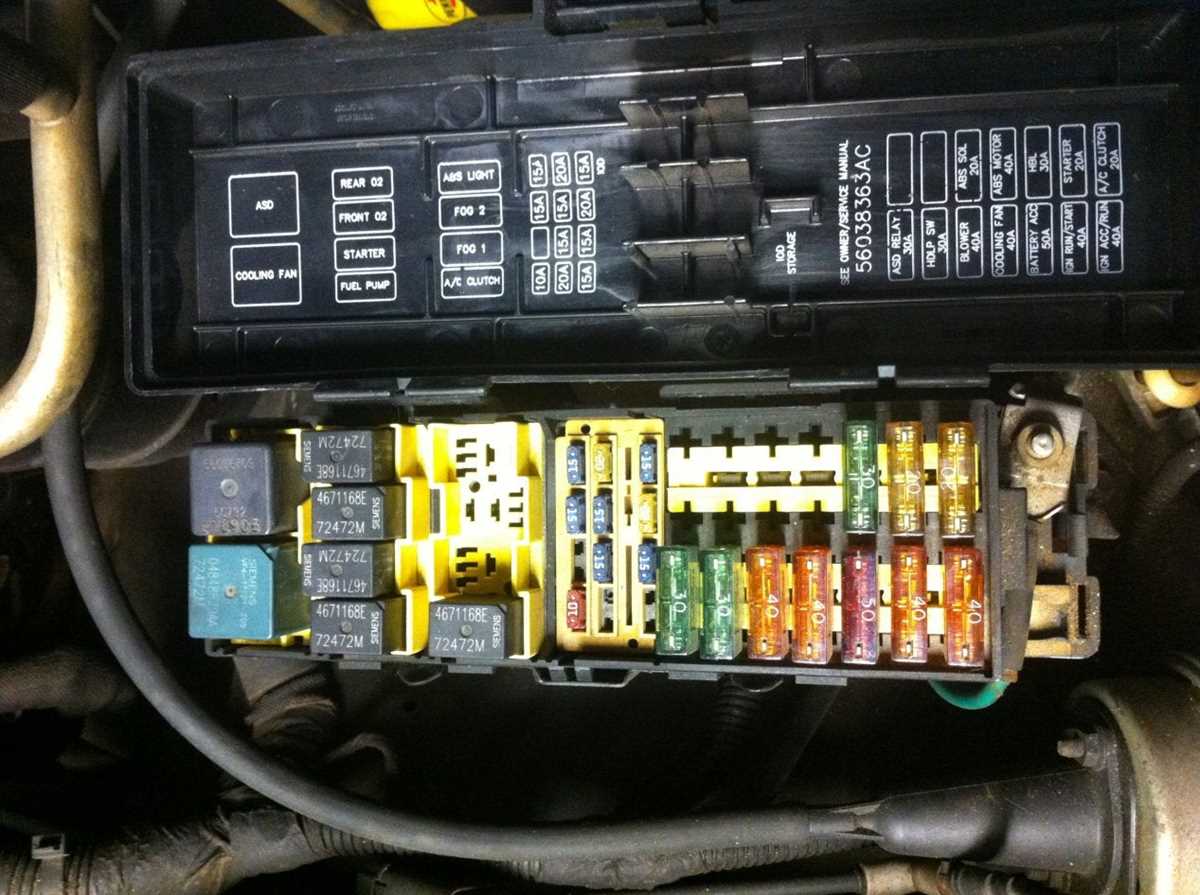

Inspect underhood at the PDC (power distribution center) next; fuse F43 (20A) and relay R2 control the feed. Probe the relay socket–terminal 87 delivers current, terminal 85 ties to ignition circuit (dark green/orange), 86 carries ground (black/light green), and 30 connects power. Confirm continuity before reassembly.

Step-by-Step Guide to Tracing the Power Supply Circuit for the Automotive Delivery Module

Begin by locating the vehicle’s central relay box under the dashboard on the driver’s side. The main control unit for the injection system typically connects here–identify the relay marked for the high-pressure line actuator. Use a digital multimeter set to DC voltage (20V range) to probe the output terminal while the ignition is in the “ON” position. A reading between 11.5V and 14.2V confirms the relay is energizing properly. If voltage is absent, inspect the fuse link (often a 20A or 25A fuse) in the under-hood distribution block.

Isolating Ground Path Issues

Trace the negative return path by backprobing the harness connector at the tank-mounted module. Connect the multimeter’s black lead to a known good chassis ground and the red lead to the module’s ground pin (typically black or brown wire). A resistance reading below 0.5 ohms indicates a clean path. If resistance is higher, follow the harness along its route–common failure points include corroded splice connections near the rear subframe or pinched wires behind interior trim panels. Disconnect the battery before cleaning corroded terminals with a wire brush and dielectric grease.

Verify the signal from the powertrain control module by accessing the OBD-II port’s data stream. Use a scan tool to monitor live PID 223 (supply voltage to the delivery actuator). If the values fluctuate or drop below 10V during cranking, suspect a faulty ignition switch or alternator output issue. For deeper diagnosis, splice a 10A inline fuse into the positive feed wire 12 inches downstream of the relay–if the circuit holds, the problem lies upstream; if the fuse blows, the module or harness has an internal short.

Examine the wiring harness for chafing where it passes through the vehicle’s frame rails or near suspension components. Replace any damaged sections with automotive-grade wire (18-20 AWG, GPT insulation) and solder connections before sealing with heat-shrink tubing. For final validation, load-test the circuit by connecting a 30W test lamp between the positive terminal and ground–if the lamp illuminates brightly without flickering, the circuit is intact and ready for reinstallation of components.

Troubleshooting Relay Circuit Problems in the Fuel Delivery System

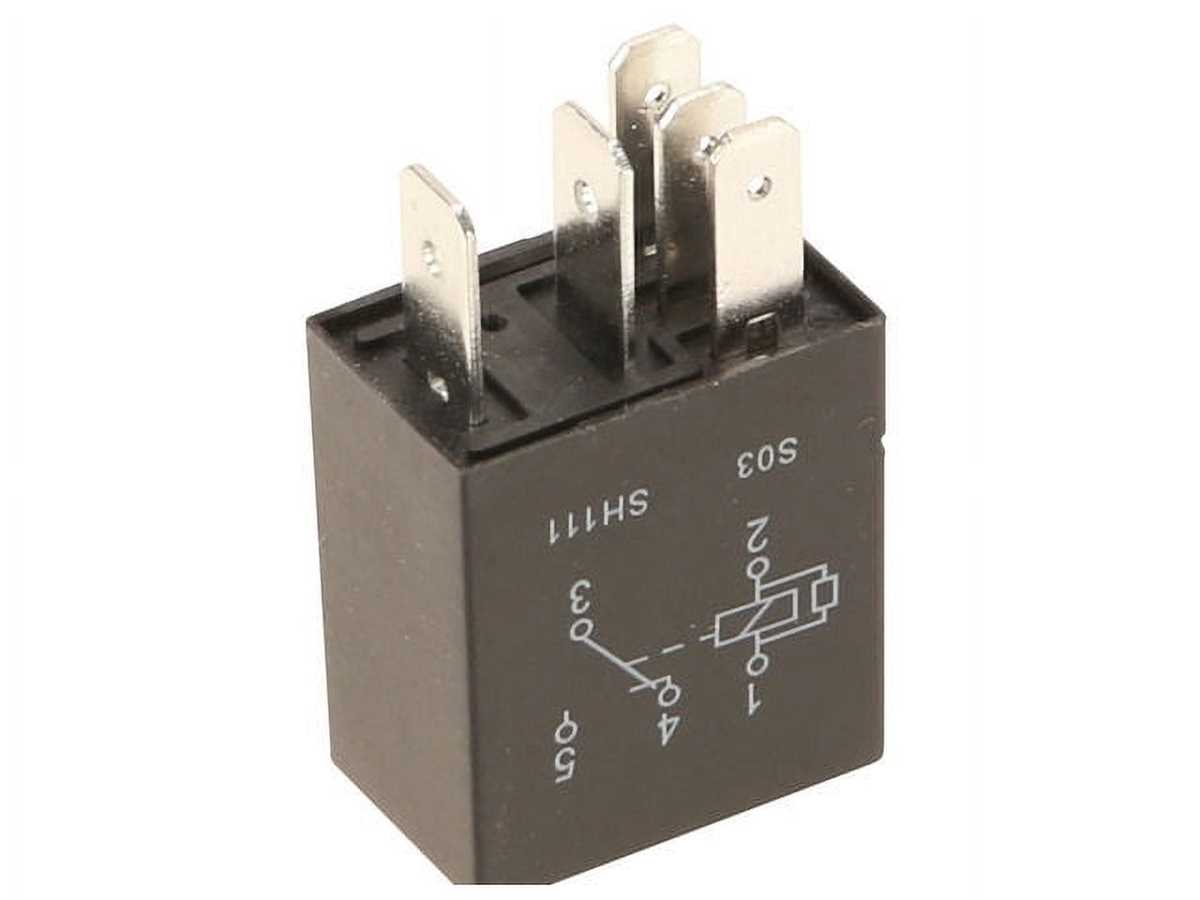

Inspect the relay socket for corrosion or burnt contacts first–common failure points in models with high-current circuits. Remove the relay and probe the terminals with a multimeter: pins 85 and 86 should show coil resistance between 50–120 ohms, while pins 30 and 87 must register open circuit with no power applied. Any deviation signals internal degradation. Clean terminal blades with electrical contact cleaner and a small wire brush; oxidation here causes intermittent power loss even if the relay tests correctly statically.

Relay Pin	Expected Reading	Fault Indication
85–86 (Coil)	50–120 Ω
30–87 (Contacts)	OL (no load)	0.1V

Trace the control wire from the powertrain control module to pin 86–this thin-gauge conductor often frays near bulkhead grommets. Back-probe the connector with a test light while cranking: if voltage toggles but the relay clicks without engaging, the issue lies in the relay’s internal switching mechanism or the power feed on pin 30. Verify the main fuse (typically 20A) and fusible link upstream; a melted link leaves telltale melted insulation near the junction block.

Check ground integrity at the tank sender unit–loose mounting screws or corroded ring terminals create voltage drops measurable with a voltmeter across the circuit during operation. A reading exceeding 0.2V under load confirms excessive resistance; clean the ground path with a stainless-steel brush and re-seat connectors with dielectric grease. If the system still fails to prime, substitute the relay with a known-good unit from an identical system (horn or A/C relays often use the same part number) to isolate whether the issue is component-specific or systemic.
