Complete Wiring Diagram Guide for 2001 Harley Sportster 1200 Custom
A direct route to solving electrical issues in these bikes begins with isolating the main power distribution block. On models built from 2000 onward, the junction box sits beneath the seat, clipped to the frame rail just aft of the rear shock mount. Trace the heavy-gauge red cable from the battery positive terminal–it should split into two 10-gauge branches: one feeds the ignition switch, the other loops to the starter solenoid. If voltage drops below 11.8V at this junction under cranking load, replace the solenoid before chasing smaller faults.
Color-coded runs differ slightly on bikes fitted with aftermarket handlebar controls. Factory wiring harnesses use violet with a white tracer for the front brake switch circuit; aftermarket kits often substitute violet-blue or violet-black. Measure continuity from the lever switch to the turn-signal module–expected resistance should not exceed 2.5 ohms. Resistance above 5 ohms indicates corrosion inside the handlebar switch assembly; disassemble and clean contact surfaces with electronic-grade contact cleaner, then apply dielectric grease to the terminals before reassembling.
Ground points vary by sub-model. Early 2000s variants ground the taillight assembly through a single stud mounted on the left side of the rear fender support strut; later bikes moved the ground to a dedicated tab welded beneath the license plate bracket. Verify chassis ground integrity by connecting a multimeter set to DC mV scale between the battery negative post and the taillight housing–readings above 50 mV confirm a high-resistance path; sand the mounting points to bare metal and torque to 12 Nm.
The charging circuit relies on a 32-amp stator wired in delta configuration. Test AC voltage at the regulator/rectifier while running at 2000 RPM–expected output is 18–22V AC per phase. Lower values point to stator failure; replace the stator rather than attempting rewinds. If AC voltage is correct but DC voltage remains below 13.8V at the battery terminals, isolate the rectifier by disconnecting the brown wire from the stator connector and measuring DC output–if voltage rises above 14.2V, the rectifier is faulty. Always use a dedicated diode tester to confirm before replacing.
Turn-signal flashers on these bikes operate via a mechanical relay located inside the right side cover. Early units are prone to sticking contacts; later solid-state modules improve reliability. To test, disconnect the brown/brown-white wire pair from the flasher socket, apply 12V directly to the socket pins, and listen for audible clicking. No sound indicates relay failure–swap the relay or bypass it with a plug-and-play LED flasher module rated for 2–8 amp loads.
Harley Custom Electrics: Step-by-Step Color Codes for Your 2000cc Ironhead
Locate the main 30-amp fuse under the seat–tripped or corroded contacts here kill ignition, lights, and charging simultaneously. Test continuity with a multimeter: the fuse holder’s brass tabs must show zero ohms; anything above 0.3 Ω points to pitted contact surfaces. Replace the holder if sanding fails to restore conductivity.
Identify circuits by wire gauge:
- 10 AWG (orange) – starter motor lead
- 12 AWG (violet) – high-beam filament
- 14 AWG (yellow) – ignition coil feed
- 16 AWG (black/orange) – turn-signal flasher output
- 18 AWG (white/red) – ECM ground reference
Measure voltage drop across each run while cranking; drops exceeding 0.2 V indicate internal strand breakage–splice in new wire, not thicker than original gauge.
Connector C1005 (4-pin gray plug behind the dash) links lighting switches to rear lamps. Pin assignments:
- Tail light constant 12 V (±0.5 V dropout)
- Brake light input (momentary +12 V)
- Right turn signal output (flashing +12 V)
- Ground return (≤0.1 Ω to frame)
Back-probe pins with needles while pressing brake pedal–if Pin 2 reads less than 9 V, inspect pedal switch contacts for carbon build-up.
Stator Output Validation
Disconnect the stator 3-pin plug (round blue connector near primary cover). Set multimeter to AC volts range; crank engine for 3 seconds–healthy stator delivers 25–35 VAC per leg. Readings below 18 VAC signal shorted winding; disassemble alternator housing, replace rotor if magnets show surface rust. Insulate new stator leads with shrink tubing before reassembly to prevent future vibration-induced chafing.
Splice repairs follow OEM color-coding: strip ½ inch, twist strands clockwise, solder with rosin-core flux. Avoid acidic flux–residue corrodes copper within weeks. Crimp 16–18 gauge butt connectors rated 20 A minimum; heat-shrink each joint to seal against vibration and moisture. Route harness along original frame clips; rerouted wires shorter than 6 inches create stress fractures at connectors.
Test all relays–horn, starter, and accessory–by swapping identical spares; relays sharing the same part number fail intermittently due to coil burnout. Bench-verify each by applying 12 VDC across coil pins–audible click confirms operational status. Replace burned relays with heavy-duty 30/40 A units if accessories draw more than 15 A continuous.
Finding Key Electrical Bundle Attachments on the Early Harley Engine Variant
Begin beneath the fuel tank, where the primary harness splits toward the ignition assembly and regulator. The connector block–typically a 12-pin Molex plug–hides behind the left-side cover, secured by a single 8mm bolt. Remove the cover to expose the terminals; label each wire with masking tape before disconnecting to avoid misalignment during reassembly.
The frame-mounted junction box rests near the battery tray, identifiable by its rectangular plastic housing with four screws. Inside, three sub-harnesses converge: one routes to the tail section, another feeds the headlamp circuit, and the last branches to the instrument cluster. Trace the red/white wire from the ignition switch–it marks the main power input for verifying continuity with a multimeter (set to 20V DC).
Critical Ground Points
Locate the engine-case ground, a ring terminal bolted to the rear cylinder fin. Corrosion here disrupts the entire system; clean the contact surface with a wire brush and apply dielectric grease before reattaching. A secondary ground strap connects the battery negative post to the frame–inspect for fraying, especially where it bends around the steering neck. Replace if copper strands show exposure.
For the turn signal module, follow the harness from the handlebar controls downward. The plug sits behind the front fender support, a 6-way connector with color-coded L-shaped tabs. Press the release latch fully to avoid damaging the pins when separating. If signals flash erratically, test the flasher relay by swapping it with a known-good unit; it’s the cylindrical component near the fuse block.
Hidden under the seat, the rear harness exits through a rubber grommet in the frame backbone. Pull back the seat base to reveal two connectors: a large 10-pin plug for the tail light assembly and a smaller 4-pin for the license plate lamp. Check the brown wire with yellow stripe–it carries brake light voltage. A faulty splice here often mimics master cylinder issues.
When reconnecting any bundle, insert plugs until they click, then tug gently to confirm engagement. Misaligned pins cause intermittent failures; if a circuit refuses to close, probe each male/female terminal pair individually. Keep a reference of wire colors and terminal numbers (e.g., “C1-4 = green/white”)–factory schematics use inconsistent notation, so document your own map during disassembly.
Identifying Color Codes for Key Electrical Components

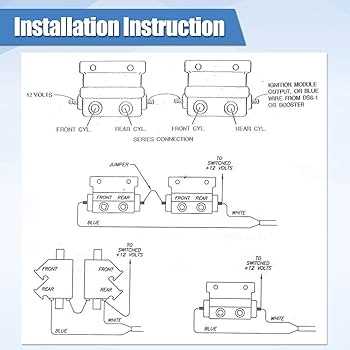

Locate the main harness connector near the battery tray–pin assignments follow standardized Harley-Davidson schematics. The ignition coil carries two critical leads: solid black (primary ground) and black/white tracer (switched 12V). Verify these before troubleshooting misfires; inconsistent voltage here often mimics sensor failures.
Use a multimeter to trace the charging circuit. The voltage regulator’s output wire is orange, designed to handle 14.2–14.8V under load. If readings drop below 13.5V at 2,000 RPM, inspect the stator’s yellow wires for continuity–they should resist at 0.1–0.3 ohms. Higher resistance indicates internal stator degradation.
| Component | Color Code | Function | Expected Reading |
|---|---|---|---|
| Run/Stop Relay | Pink/Black | Fuel Pump Trigger | 12V (key-on) |
| TPS Sensor | Gray/Red | Throttle Position Signal | 0.5–4.5V (variable) |
| Neutral Switch | Brown/White | Clutch Safety | Ground (closed) |
Headlight wires use a dual-filament setup: high beam is light blue, low beam light blue/yellow, and common ground is black. Probe these at the handlebar switch–the high beam should show full battery voltage while active. Dim outputs suggest corroded bullet connectors, a frequent failure point.
For turn signals, the flasher unit outputs brown/yellow for the left circuit and brown/white for the right. Disconnect the bulbs when testing–active circuits should pulse at 1–2Hz. If the flasher clicks but lights stay solid, replace the 2-pin thermal relay beneath the seat.
Step-by-Step Voltage Testing Points on the Electrical Schematic
Locate the battery terminals first–positive (+) and negative (-)–using a multimeter set to DC voltage (20V range). Probe the main power feed (red cable) with the ignition off; readings should match battery voltage (12.6–13.2V). Any drop below 12.4V indicates corrosion, loose connections, or parasitic drain. Check the ground path next: attach the negative probe to the battery’s negative post and the positive probe to the engine block or frame ground. A voltage above 0.2V suggests a poor ground needing cleaning or reattachment.
Follow the primary power wire to the ignition switch. Test voltage at the switch’s input terminal (red/white stripe) with the key in the OFF position; expect battery voltage. Turn the key to ON and probe the switched output terminal (black/yellow stripe)–voltage should remain stable. If readings fluctuate or drop, inspect the switch contacts or relay. Move to the fuse block: verify each fuse socket’s voltage matches the input side of the fuse when the circuit is active. A 0V reading suggests a blown fuse or broken trace in the harness.
Examine the lighting circuit by testing the headlight plug: connect the positive probe to the high-beam wire (blue stripe) and the negative probe to ground. With the high beam engaged, readings should reach 13.5–14.5V. Low voltage here points to a failing stator, regulator/rectifier, or corroded connectors. For turn signals, probe the flasher relay output (light blue stripe)–pulsing voltage (6–8V peaks) confirms proper operation. Absence of pulses indicates a defective relay or open circuit in the signal wires.
Test the charging system at the stator connector. Backprobe the AC output wires (yellow) with the engine running at 2,000 RPM; each pair should read 18–25V AC. Convert the multimeter to DC voltage to check the regulator/rectifier’s output (red wire)–expect 13.5–14.5V. Readings below 13V signal stator failure or regulator issues. Next, verify the engine control module (ECM) power supply: probe the 12V input (violet stripe) with the key ON–voltage should match battery level. A drop here disrupts fuel injection and ignition timing.
Inspect the sensors by testing the throttle position sensor (TPS) signal wire (green/white stripe). With the key ON and throttle closed, voltage should read 0.8–1.2V; wide open, 4.0–4.8V. Readings outside this range require TPS recalibration or replacement. For the engine temperature sensor, probe the signal wire (brown stripe)–cold engine readings should be 4.5–5.0V, dropping to 0.5–1.5V as the engine warms. Anomalies here cause erratic idle or starting problems.
Final checks include the clutch safety switch (orange wire) and sidestand switch (dark green stripe). With the clutch engaged or sidestand up, both should show battery voltage. No voltage signals a faulty switch or broken wire. Document each reading against the color-coded reference in the manual to isolate faults precisely. Replace any worn connectors or terminals immediately–oxidized contacts are a primary cause of intermittent failures.
