Complete 2002 Cadillac Escalade Stereo Wiring Color Codes and Diagram

Locate the yellow/black wire behind the factory head unit–this is your primary constant 12V power source. Connect it directly to your aftermarket amplifier’s remote turn-on lead using a soldered joint wrapped in adhesive-lined heat shrink tubing. Avoid quick disconnects; corrosion in these vehicles can compromise signal integrity within 12 months.

The light blue/white wire delivers the antenna trigger. Route it through a 3A fuse before splicing into your new receiver’s power antenna output. Factory systems often share this circuit with OnStar–verify voltage drops don’t exceed 0.2V during peak current draw to prevent module reset errors.

For speaker outputs, left front positive (tan) and left front negative (gray/black) terminate at a 6-pin plug near the A-pillar. Match these to your amplifier’s input using oxygen-free copper wiring; stock harnesses use 20-gauge conductors that introduce signal loss above 80Hz. Replace with 16-gauge twisted pairs for accurate reproduction of sub-bass frequencies.

Ground all components to the bare metal chassis behind the driver’s kick panel. Sand away factory paint and apply dielectric grease to the contact point. Factory grounds in this series are notorious for high impedance; expect a 3-5Ω reduction in resistance after proper preparation. Test continuity with a multimeter before finalizing connections.

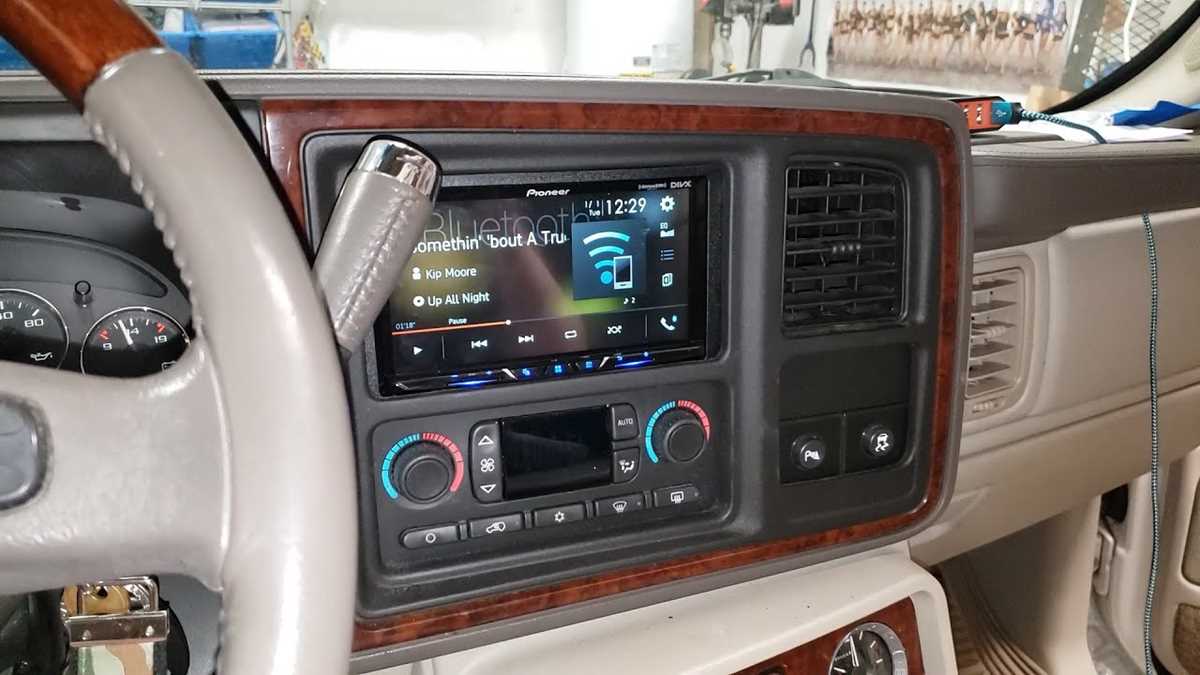

Aftermarket Audio System Connection Guide for Early 2000s Luxury SUVs

Locate the factory harness behind the OEM radio unit–typically a 12-pin rectangular connector with color-coded wires. The following mappings apply to most base models with premium Bose systems:

• Constant 12V (memory): Yellow wire, 18-gauge, maintains radio presets and clock settings.
• Switched 12V (accessory): Light green wire, 16-gauge, activates with ignition.
• Ground: Black wire, 14-gauge, direct chassis connection (verify zero ohms to frame).
• Front left speaker (+): Pink wire, 20-gauge, connected to 10W amplifier channel.
• Front right speaker (+): Dark blue/white stripe, same gauge as left channel.
• Rear left/right (+): Gray (left) and dark green (right), both 18-gauge, often muted if navigation unit is present.

For Bose-equipped variants, disconnect the 4-channel amplifier beneath the driver’s seat before splicing new components. Use a digital multimeter to confirm:

1. Each speaker output registers 4-6V AC when playing test tones.
2. No parasitic draw exceeding 50mA on constant power lines.

Failure to bypass the amplifier will result in distorted output or blown fuses.

Subwoofer integration requires tapping into the rear RCA pre-outs (purple/green pair) on the factory head unit, if equipped. For vehicles without pre-outs:

• Install a line-level converter between the speaker wires and aftermarket sub.
• Adjust gain settings to -6dB to prevent clipping at high volumes.

The antenna lead (blue/white stripe) triggers automatic power antennas–ensure compatibility with replacement units.

Steering wheel audio controls rely on a data bus protocol; retain the OEM clockspring and splice a Metra ASWC-1 module into the violet/white wire (pin 17 on the harness). Verify voltage fluctuations between 3.5-8.5V when pressing buttons–erratic readings indicate faulty connections.

For vehicles with OnStar, preserve the teal wire (pin 2) to maintain microphone functionality. If removing OnStar, cap this wire with a 1kΩ resistor to prevent fault codes. When routing new cables:

1. Avoid running power wires parallel to RCA cables (minimum 18″ separation).
2. Use loom tubing near sharp edges (e.g., firewall pass-through).
3. Secure grounds with star washers; sand paint off mounting surfaces.

Retain the factory theft-deterrent wiring (orange wire, pin 6) to prevent the “LOC” error on aftermarket head units. If this feature is bypassed, the radio will shut off after 30 minutes of continuous operation. For GPS navigation retention, connect the gray/purple wire (pin 12) to the new unit’s parking brake sensor circuit.

Final verification steps:

• Test all speaker outputs at 75% volume with a pink noise track.
• Check for backlight synchronization between the radio and dash illumination (use dimmer wire: brown/white stripe).
• Ensure USB/iPod integration preserves charging (orange/gray wire, pin 18).

Document all splices with labels (e.g., “FL+ Pink”) to simplify future troubleshooting.

Finding the Audio System Connection Points in Your Vehicle

Begin by removing the lower dash panel on the driver’s side–it’s secured with seven 7mm screws. The harness you need sits behind the climate control module, wrapped in black plastic loom. If you’re replacing the head unit, focus on the 12-pin rectangular plug marked “Bose” or “Premium Sound”; this is the main interface for power, speakers, and data lines.

Key Connection Clusters

Four primary wire bundles emerge from the factory connector. The orange/white stripe delivers constant 12V power, while the pink wire carries switched ignition voltage. Ground connections typically use a thick black or brown wire, often tied to the chassis near the fuse box. Speaker outputs follow a standardized color code: solid color for positive, same color with stripe for negative (e.g., gray/gray-white for front right).

Trace the antenna lead–usually a thin coaxial cable with a single pin connector–to the rear of the original radio. If integrating an amplifier, locate the purple/white and dark blue wires; these handle remote turn-on and signal outputs. For vehicles with navigation, a separate 8-pin plug (often green) carries GPS and vehicle speed data–avoid modifying these unless adapting a compatible system.

The climate control housing hides an additional 4-pin connector for the optional rear seat entertainment system. Disconnect the battery before probing any harness to prevent shorts–even brief contact can trigger airbag faults. Use a multimeter to confirm voltage on suspect wires; factory schematics sometimes list incorrect colors.

Modification Pitfalls

Chasing wires deeper into the dash risks severing the instrument cluster illumination circuit–typically a light green wire with a red stripe. If the dashboard lights flicker after installation, reconnect this immediately. Door chimes and warning tones route through the same loom; cutting the wrong wire silences critical feedback. For aftermarket adapters, match wire gauges–factory wires use 18-20 AWG, while cheap harnesses often skimp with 22 AWG, causing voltage drops.

Access the rear cargo area for subwoofer or rear amplifier connections. The carpet liner lifts easily, revealing a metal access panel held by four Torx T20 screws. Behind it, a junction block distributes power to the cargo-area audio components. Label every wire before disconnecting; factory tape markings fade over two decades, leaving only brittle adhesive residue.

Decoding Factory Audio System Harness Colors for Precise Installation

Begin by locating the 16-pin connector at the rear of the OEM sound unit–this is your primary interface for signal distribution. The following color codes are standard for this model’s harness, though variances may occur if aftermarket modifications exist. Verify each lead with a multimeter set to 12V DC before connecting replacement equipment to prevent electrical damage.

The yellow lead (B+) supplies constant battery voltage, ensuring memory retention for presets and clock functions. It must connect directly to the vehicle’s main power line, not through ignition-controlled circuits. A 20-amp fuse should be installed within 7 inches of the battery connection to comply with manufacturer safety protocols.

Wire Color	Function	Voltage (Key On)	Notes
Red	Ignition-switched power	12V	Activates unit when key is in ACC/RUN position; size gauge matches B+
Black	Ground	0V	Must terminate to chassis or unpainted metal; poor ground causes intermittent functionality
Gray/Purple stripe	Front left speaker (+)	4-8V AC	Polarity-sensitive; reversed connection distorts audio
Light green/Purple stripe	Front right speaker (+)	4-8V AC	Matched impedance (typically 4 ohms) required for correct soundstage reproduction

For rear speakers, dark blue/white stripe and dark green/white stripe represent the positive leads for left and right channels respectively, each paired with a solid-colored counterpart (negative). These carry amplified signals–test with a 9V battery to confirm speaker movement direction before finalizing connections, as reversed polarity will invert sound output.

Antenna control uses a pink wire that triggers power to the mast when the unit is turned on. This lead requires no resistor for standard powered antennas, but aftermarket motorized units may need a 10-amp relay for proper operation. Illumination is managed via orange (dimmed) and orange/white (constant) leads–connect these directly to the dashboard lighting harness to ensure proper brightness adjustment with headlight activation.

Additional leads like brown/white (mute during phone calls) or light blue (steering wheel controls) may appear but serve non-critical roles. Ignore these if not interfacing with retained factory auxiliary functions. Always disconnect the negative battery terminal before working on the wiring to prevent shorts, and use dielectric grease on connectors to inhibit corrosion in humid environments.

Step-by-Step Guide to Connecting Aftermarket Speakers

Locate the factory audio system’s harness behind the dashboard panel on the driver’s side. Disconnect the negative battery terminal to prevent short circuits. Remove the door panels by unscrewing the retaining bolts and prying off the plastic clips–use a trim removal tool to avoid cracking the material. Identify the speaker wires: front doors typically use 20-gauge wiring, while rear units may require 18-gauge for higher power handling.

Match the aftermarket speaker terminals to the OEM harness using a wiring adapter. If adapters are unavailable, strip ¼ inch of insulation from each wire and splice them with solder for a secure connection–heat-shrink tubing prevents corrosion. Avoid twisting wires, as vibration can loosen them over time. For coaxial speakers, connect the tweeter’s positive lead to the woofer’s positive terminal, ensuring polarity aligns with the amplifier’s output.

Testing and Troubleshooting

• Reconnect the battery and test each speaker individually before reassembling the panels.
• If no sound emits, verify the head unit’s fader and balance settings–factory systems often default to rear-only output.
• Check for impedance mismatches: most aftermarket speakers are 4-ohm, while OEM setups may use 2-ohm loads–consult the amplifier’s specs to avoid overheating.
• Inspect ground connections if distortion occurs: bare metal surfaces should be free of paint or rust for proper conductivity.

Secure all wiring with zip ties to prevent rattles or pinched cables. Route power wires away from signal cables to minimize interference–use shielded RCA cables if adding a subwoofer. For amplified systems, run a dedicated power wire from the battery directly to the amp’s terminal block, fused within 18 inches of the battery to protect against overloads. Avoid routing near engine components or sharp edges.

Reinstall door panels by aligning the clips and pressing firmly until they snap into place. Tighten retaining screws to 8-10 inch-pounds–over-tightening risks stripping threads. Reconnect the battery and verify all connections by playing a full-range test track at moderate volume. Listen for phase issues (e.g., weak bass or hollow sound) and recheck wiring if detected.

Final Adjustments

1. Adjust the head unit’s crossover settings: set high-pass filters for door speakers at 80Hz to prevent cone distortion.
2. For component systems, mount tweeters at ear level–aim them toward the listener for optimal high-frequency dispersion.
3. Apply sound-deadening material (e.g., butyl rubber sheets) to door panels to reduce vibrations and improve clarity.
4. Calibrate the system using a handheld SPL meter or EQ app–cut frequencies where peaks exceed +2dB to prevent fatigue.
