Complete 2002 Chevy Tahoe Radio Wiring Harness Diagram and Guide
Start by locating the factory vehicle connector behind the dashboard–typically a 12-pin plug with color-coded leads. The left cluster (A) carries power and ground, while the right cluster (B) distributes speaker signals. Pinout details are critical: red (constant 12V), yellow (switched power), black (chassis ground), and gray/light blue for rear-right positive. Verify each connection with a multimeter; factory manuals often mislabel brown (left-front positive) as dark blue.
For aftermarket installations, bypass the stock wiring interface entirely. Solder direct leads to the head unit’s harness–use heat-shrink tubing on all joints and route cables away from steering column gears. Speaker wires follow a twisted pair standard: solid color for positive, striped for negative. Ignore generic schematics; the 2002 model variant includes an unusual orange/white wire (auxiliary power) not found in earlier or later years.
Fuse protection cannot be ignored. The circuit’s 10A fuse (position F21 in the under-hood box) supplies the radio memory; replacing it with a 15A risks damaging the onboard computer. If static persists, check the antenna lead–factory coaxial uses a non-standard connector requiring an adapter (Part #88986235). Always disconnect the battery’s negative terminal before probing connections to avoid shorting the BCM.
Signal interference is common with OEM configurations. Add a ferrite choke to the power lead and ground the head unit directly to the firewall using an 8-gauge wire. Avoid splicing into the vehicle’s lighting circuit; shared voltage drops cause dimming LEDs and erratic audio cutouts. For amplifiers, integrate a dedicated ground block–factory harnesses lack sufficient current-handling capacity.
Electrical Connector Layout for Factory Audio System Upgrades
Locate the 12-pin plug behind the dashboard assembly–pin A (orange) delivers constant 12V, while pin C (purple) carries switched power. Ground connections occupy pins E (black) and F (brown/white stripe), ensuring stable signal transmission. Verify continuity with a multimeter before connecting aftermarket speakers to prevent short circuits.

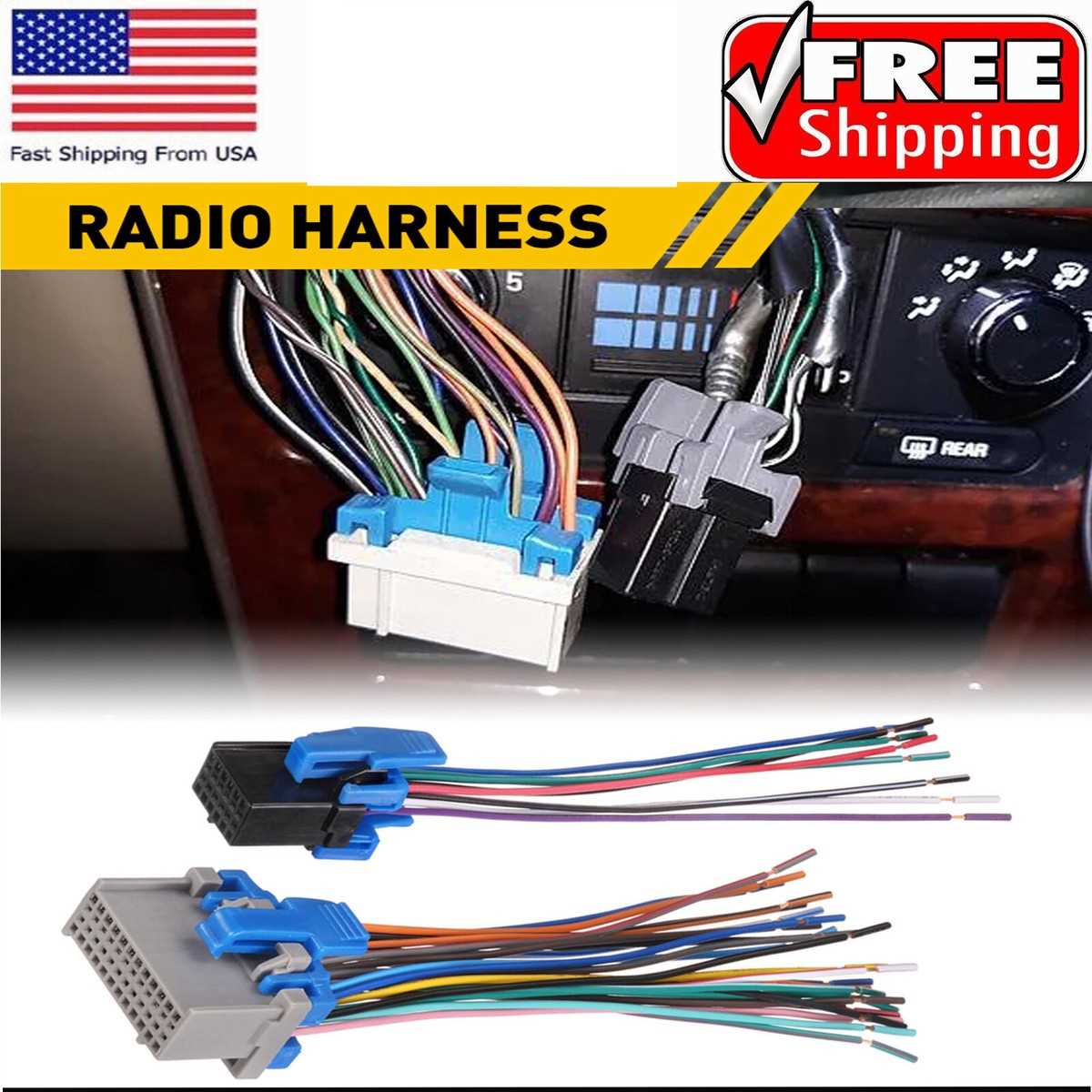

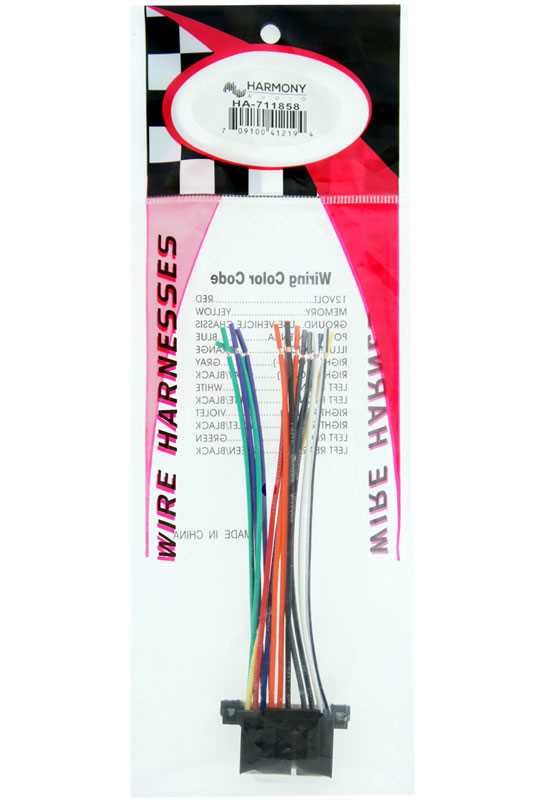

Factory head unit harnesses typically include color-coded leads for amplifier triggers (gray/red) and antenna control (pink). Splice these into a Metra 70-1858 adapter cable for seamless integration with third-party receivers without cutting original wires. Retain the OEM mute wire (light blue/white) if installing a navigation system requiring vehicle speed signals.
Voltage Regulation and Signal Isolation
Install a noise filtration module between the power source (pin A) and new stereo to eliminate alternator whine. Use relay-based circuits for high-current devices like subwoofers, drawing power directly from the battery with 8-gauge wiring. Ensure all ground connections terminate at a single chassis point to avoid ground loops.
Signal wires (yellow for rear left, green for front right) must be shielded with foil wrap if extending beyond 18 inches. Cross-reference wire functions against the GM Class 2 data bus pinout–accidental connection to pin H (dark green/white) can trigger unintended BCM responses. T-tap connectors are prohibited on communication lines to preserve diagnostic capabilities.
For dual-zone systems, repurpose the unused HVAC harness (pins 6–8) to carry RCA signals. Confirm compatibility with the vehicle’s 4-channel amplifier by checking resistance values (4Ω typical) before bridging channels. Replace stock fuses (15A) with 20A blade-style units when adding high-output amplifiers to prevent overload.
Document each modification on a schematic using international wire color codes–red/white for brake illumination wires, brown/yellow for cargo lamp circuits. Store the original harness in a labeled bag for potential reinstallation of factory equipment. Test all connections with a known-good speaker before finalizing dashboard reassembly.
Finding the Audio System Connector in Your Early-2000s SUV
Begin by removing the trim panel around the center console. Use a trim removal tool or flathead screwdriver wrapped in tape to avoid scratches. Pry gently at the bottom edge near the climate controls–clips release sequentially. Work upward and inward, lifting the panel clear once all retaining clips disengage.
Disconnect the cigar lighter or accessory socket directly behind the panel. This reveals a narrow gap exposing the main entertainment unit’s rear. Two screws secure the head unit–locate and remove them with a 7mm socket. Slide the unit forward carefully, unplugging the main power and antenna connectors from its back.
- Look for the primary connector bundle tucked against the firewall, near the HVAC ducts.
- Identify the 16-pin connector nested below the unit–it’s wider than auxiliary plugs.
- Avoid tugging wires directly; press the tab release on the plug housing to detach.
The connector bundle splits into color-coded leads. Verify each wire’s origin using a multimeter set to continuity mode. Probe the harness side while grounding the chassis–speaker outputs register ~4 ohms, power feeds ~12V, ground reads ~0 ohms. Note discrepancies for cross-checking against factory schematics.
Trace the bundle downward if the connector isn’t visible. It often routes behind the glovebox frame, secured by zip ties or adhesive clips. Snip ties with diagonal cutters, then peel back the carpeted kick panel on the passenger side to access the lower portion. The harness may tuck alongside the emergency brake cable.
- Label each detached plug with masking tape before separation.
- Use a flashlight–ambient light rarely penetrates behind dash components.
- Check for fused links inline with power feeds; corrosion here causes intermittent failures.
Reinstallation requires aligning the connector’s keyed slot with the port. Push firmly until the tab clicks. Reattach the head unit, securing screws to factory torque specs (8-10 in-lbs). Test all functions–volume, tuning, auxiliary inputs–before reassembling trim to confirm no short circuits exist.
If the connector remains elusive, consult the vehicle’s onboard diagnostic port. Pin 16 delivers constant 12V; use a test light to trace power feeds back through the fuse box to the audio circuit. Look for splices or tap points near fuse #28–these often lead to the main harness path.
Standard Color Identifiers for Aftermarket Audio System Integration
Begin by matching the constant 12V power lead–typically a bold orange or orange-striped cable–to the corresponding factory connector. This wire supplies uninterrupted voltage to preserve memory settings and should connect directly to the positive terminal of the new unit’s yellow input. Verify voltage with a multimeter (12V+ reading) before securing connections to avoid resets during ignition cycles.
The ground reference, usually a black or black-brown conductor, must attach to a bare metal chassis point near the installation site. Ensure the surface is free of paint, rust, or debris, and use a star washer for optimal conductivity. A weak ground causes noise interference, especially under load from amplifiers or high-power speaker outputs.
| Function | Primary Color | Secondary Stripe | Critical Notes |
|---|---|---|---|
| Ignition-switched power | Purple | White | Feeds head unit only when key is ON; fuse within 15 cm of harness |
| Front left speaker (+) | Light green | Black | Polarity-sensitive; reverse will invert stereo image |
| Front right speaker (+) | Gray | Dark blue | Pair with gray-black (-) for balanced output |
| Rear left speaker (+) | Brown | Yellow | Avoid adjacent routing to RCA cables to prevent hum |
| Rear right speaker (+) | Dark green | Red | Twisted pair reduces radio frequency interference |
| Illumination dimmer | Pink | Light blue | Syncs with dashboard brightness; requires voltage divider for some units |
Speaker outputs require strict polarity adherence–confirmed by matching solid-colored wires (positive) with their striped counterparts (negative). Use crimp connectors or solder joints insulated with heat-shrink tubing; electrical tape degrades over time, risking shorts. Test each channel individually after connection with a 1 kHz sine wave at moderate volume to isolate wiring errors before final assembly.
For vehicles equipped with amplified systems, locate the remote turn-on lead–a slender blue or blue-white cable. This triggers external amplifiers only when the audio system is active; improper connection drains the battery. Secure it away from ground potentials and verify functionality by monitoring amp current draw (typically 100-300 mA) during operation.
Step-by-Step Removal of the Original Audio System Connection
Begin by disconnecting the vehicle’s battery to prevent electrical shorts or accidental deployment of airbags. Locate the negative terminal–typically marked with a minus sign–and loosen the clamp using a 10mm wrench. Remove the terminal and set it aside, ensuring it does not touch metal surfaces.
Next, remove the dashboard trim surrounding the stereo unit. Use a plastic trim removal tool to gently pry along the edges, starting from the bottom vents. Work methodically to avoid cracking the plastic. If resistance is felt, check for hidden clips or screws–some models have two 7mm bolts behind the ashtray or near the climate controls.
Releasing the Factory Unit
With the trim detached, locate the mounting screws securing the audio head unit. These are often Phillips-head or Torx T20 bolts, positioned at the corners or sides. Remove all screws and set them aside in a magnetic tray to prevent loss. Gently pull the unit forward–if it resists, check for additional securing tabs or wiring plugs at the rear.
Disconnect the antenna lead by pressing the release tab on its plug, then twist counterclockwise to remove. For the main connector block, squeeze the locking clip while pulling straight back. Avoid yanking wires; if stuck, use a flathead screwdriver to carefully pry the clip open. Some variants include a separate amplifier link–label all connectors with masking tape to simplify reinstallation.
For models with a chime module or amplified systems, trace an additional smaller plug near the base of the unit. This often controls warning tones and requires a firm but controlled pull. If rewiring a replacement system, note wire colors now–yellow (constant power), red (switched power), black (ground), and blue/white (remote turn-on for amplifiers) are critical.
Final Checks Before Reassembly
Inspect the mounting cavity for debris or forgotten screws, then test-fit the new head unit to confirm alignment. Reattach the battery terminal and turn the ignition to “ACC” to verify no warning lights or error messages appear. If the vehicle’s display shows “NO AUDIO,” recheck ground connections–most issues stem from improperly secured black wires.
