Complete 2002 Ezgo Golf Cart Wiring Diagram Guide with Color Codes
Start by identifying your cart’s controller type–whether it uses a resistor-based or solid-state system. Resistor models, common in earlier builds, rely on physical switches to regulate speed through step-down voltage. Locate the main power lugs on the solenoid: the positive terminal connects directly to the battery pack, while the load side feeds the motor. Miswiring here risks burning the solenoid contacts or causing intermittent power loss.
Trace the ignition circuit next. The key switch assembly (typically a three-post configuration) sends voltage to the solenoid coil when engaged. Use a multimeter to confirm 36V or 48V output depending on the battery pack arrangement. If voltage drops below 90% of rated capacity at the key switch, inspect the fuse block–early models often use a 200A fusible link instead of a blade fuse.
For reverse operation, verify the micro-switch on the forward/reverse lever sends a signal to the controller. A faulty switch will prevent the cart from engaging reverse or cause erratic behavior. Check continuity across the switch terminals with the lever in each position. Replace if resistance exceeds 0.5 ohms in the closed state.
Headlight and accessory circuits draw power from a separate 12V tap on the battery pack. The voltage reducer (often a cylindrical module near the batteries) steps down the main pack to 12V. If accessories fail, test the reducer output–it should maintain 12.6V under load. Excessive heat or voltage fluctuations indicate failure, requiring replacement.
Ground connections demand clean, corrosion-free metal-to-metal contact. Strip paint or rust from chassis points before securing a new terminal. A poor ground will mimic other electrical faults, causing dim lights, weak throttle response, or intermittent stalling. Use a star washer between the terminal and chassis to ensure a tight, long-lasting bond.

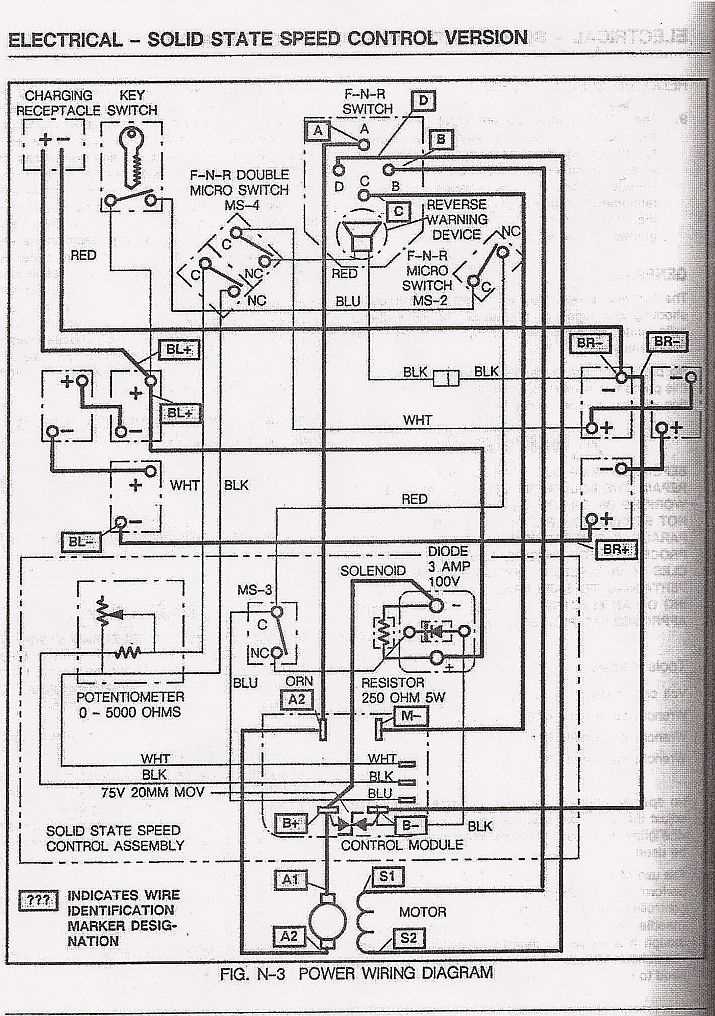

Comprehensive Electrical Schematic for Your Golf Cart Model: Full Breakdown
Begin by locating the primary power source–the battery bank–typically housed beneath the seat or in the rear compartment. For TXT or RXV models from this era, verify the voltage: 36V systems use six 6V batteries in series, while 48V setups require eight. Disconnect the negative terminal first when servicing to prevent short circuits. Check the solenoid–mounted on the frame near the controller–by listening for a distinct *click* when activating the throttle. If absent, test resistance across its small terminals (should read ~20-30 ohms) and large terminals (infinite resistance when inactive). Replace if readings deviate or physical corrosion is visible.
| Component | Color Code (Primary) | Function | Fault Symptoms |
|---|---|---|---|
| Direction Switch | Red (forward), Black (reverse) | Polarity reversal for motor rotation | Single-direction movement, arcing at terminals |
| Throttle Potentiometer | Yellow (signal), Blue (power), Green (ground) | Voltage modulation for speed control | Erratic acceleration, full-throttle failure |
| Controller | Red (battery +), Black (battery -), Orange (motor) | PWM regulation of current to motor | Overheating, sudden power loss |
| Fuse Block | White (input), Gray (output) | Overcurrent protection | Repeated fuse blows, accessory failures |
Trace each lead with a multimeter set to continuity mode; frayed or brittle insulation demands immediate replacement (minimum 14 AWG for accessory circuits, 4 AWG for motor feeds). For microswitches on the brake pedal, ensure plunger activation aligns with brake light illumination–adjust linkage if timing drifts. On models with onboard chargers, isolate the AC input (typically a 3-prong plug) before probing internal circuits to avoid lethal shock hazards. When reconnecting the motor, torque terminals to 12-15 lb-ft to prevent voltage drops from loose connections.
Finding the Right Electrical Schematic for Your Early EZ-Go Golf Cart
Check the manufacturer’s official resources first–EZ-Go’s service manuals for vehicles produced in the early 2000s include detailed circuit layouts specific to each model variant. Serial numbers stamped on the frame near the rear wheel or under the seat determine the exact configuration; cross-reference this with the manual’s index to identify the correct page. Third-party suppliers like Golf Cart King or Parts Pros often host downloadable archives, but verify the file matches your cart’s voltage (36V or 48V) and motor type (series or shunt wound) to avoid mismatches that could damage components.
Key Locations to Verify Before Downloading
- Battery Compartment: Look for a metal plate or decal listing voltage, amperage, and sometimes a schematic revision code–example: “REV C-36V” indicates compatibility.
- Controller Box: The part number on the speed controller (e.g., Curtis 1204M) narrows the search; pair it with a wiring guide for precise connections.
- Charger Port: Models with onboard chargers use different diagrams than those requiring external units; locate the charger’s label for model-specific diagrams.
Forums like Buggies Gone Wild and Golf Cart Talk attach user-uploaded schematics, but always compare them against factory diagrams to confirm relay placements, fuse ratings, and solenoid wiring colors–older posts often contain inaccuracies.
Detailed Analysis of Golf Cart Electrical Parts and Connections
Start by locating the solenoid–typically mounted near the battery pack–since it functions as the primary relay between the power source and motor. Verify its terminals: small posts connect to the ignition switch and throttle, while larger ones handle high-current flow from the batteries to the drive system. If voltage doesn’t pass through these larger terminals during activation, replace the solenoid immediately; corrosion or failed windings often cause intermittent performance.
Examine the controller next, usually a rectangular box beneath the seat or rear panel. Check resistance across its key pins: throttle input (typically 0-5V signal), battery voltage (full pack voltage), and motor output. Modern solid-state models use pulse-width modulation, so measure output frequency with a multimeter set to Hz–values outside 100-500Hz suggest a failing unit. Always disconnect batteries before probing; mistakes here can fry sensitive circuits.
The motor’s field and armature coils demand periodic resistance checks. Use an ohmmeter to test field coils (expected 0.1-0.5 ohms) and armature windings (1-5 ohms); deviations signal internal shorts. Brushes should extend at least 1/4 inch from their holders–replace if worn below this threshold. Lubricate bearings annually but avoid over-greasing; excess attracts dirt that accelerates wear.
Trace battery cables from the pack to the main fuse or circuit breaker. Gauge 4/0 wire handles 200+ amps continuously; anything thinner risks overheating under load. Verify connections with a voltmeter–voltage drop across terminals shouldn’t exceed 0.2V when accelerating. Clean corrosion with baking soda paste, apply dielectric grease, and torque terminals to manufacturer specs (usually 10-12 ft-lbs) to prevent arcing.
Inspect the throttle potentiometer by monitoring its voltage output while slowly depressing the pedal. A smooth 0-5V rise indicates proper function; erratic jumps or dead zones necessitate adjustment or replacement. Note the connector type–older carts use mechanical pots, newer ones rely on Hall-effect sensors. Test sensor output directly at the controller pin to isolate faults.
Check reverse buzzer and light circuits last, as they’re low-priority but safety-critical. Bulbs should draw consistent current–fluctuations point to loose bulb grounds or failing switches. Replace incandescent bulbs with LED equivalents where possible; they draw 80% less current and won’t drain batteries during storage. For buzzer function, ensure it sounds within 1 second of selecting reverse–delayed activation suggests relay issues.
How to Pinpoint and Follow Electrical Paths in Your Golf Cart’s Circuit System
Begin by disconnecting the battery terminals to eliminate power risks. Use a multimeter set to continuity mode to test connections between components and the main harness. Probe suspected wires while referencing the vehicle’s electrical layout–color codes and pin locations differ by model year but typically follow a pattern: red for positive leads, black for ground, and yellow or blue for accessory circuits.
Locate the central fuse block beneath the seat or dashboard panel. Remove the cover to expose fuses and relays; each slot corresponds to a specific branch of the circuit. Match fuse ratings (e.g., 20A, 30A) with the owner’s manual–mismatches indicate corroded connections or faulty relays. Replace blown fuses with identical amperage; higher ratings risk overheating wires.
- Inspect the throttle microswitch near the accelerator pedal. Its harness often contains orange, purple, and gray wires–these regulate speed signals. Press the pedal while probing these leads; inconsistent readings suggest a loose plug or damaged connector.
- Check the solenoid on the frame rail. The large terminals connect to the battery, while smaller ones (usually two) link to the ignition and controller. A clicking solenoid with no voltage at the motor terminal confirms a failed component.
Trace the ignition switch wires–typically a bundle of thin, color-striped leads–back to the steering column. The switch’s output terminals (often labeled “B,” “G,” “L”) distribute power to accessories. Label each wire with masking tape as you disconnect them; reattachment errors cause non-starting or dashboard malfunctions.
Examine the controller box, mounted near the motor. Its 6-pin connector includes key circuits: battery input (thick wires), motor output (braided cables), and signal wires (thin, color-coded). Use a voltmeter to verify 36V or 48V input (depending on model) at the controller’s positive terminal when the key is turned.
- For braided motor cables, split the strands to inspect for fraying–exposed copper causes intermittent power loss. Wrap damaged sections with heat-shrink tubing and solder the ends for a permanent fix.
- Test the reverse buzzer circuit, usually a single white or brown wire leading to the rear chassis. No sound when shifted into reverse indicates a broken wire or defective alarm module.
Follow battery cables from the rear tray to the forward-mounted solenoid. Corrosion at connection points disrupts current flow; clean terminals with a wire brush and apply dielectric grease. For vehicles with onboard chargers, verify the charging port’s pins connect directly to the battery bank–interruptions here prevent proper recharging.
Isolate dashboard gauge wires–often a cluster of blue, green, and white leads–to rule out instrumentation failures. A non-functional fuel gauge or voltage meter suggests a severed ground wire or faulty sender unit. Re-solder joints with rosin core solder to prevent oxidation.
