Step-by-Step Guide to Designing a Bluetooth Speaker PCB Layout
For optimal signal integrity in compact audio transmission systems, prioritize a four-layer stackup with dedicated ground and power planes. The top layer should host high-frequency traces (≤ 0.25mm width) for the RF frontend, while the second layer serves as a continuous ground reference. Avoid vias for RF paths longer than 5mm–use microstrip lines with 50Ω impedance instead. Position decoupling capacitors (100nF X7R) within 2mm of power pins to suppress switching noise below 10mV.
Integrate a PIFA antenna (6.5 × 12mm for 2.4GHz) at the module’s edge, spaced ≥3mm from metal components to prevent detuning. Terminate unused GPIO pins with 10kΩ pull-down resistors to eliminate floating inputs. For Class-D amplifiers, use a differential output stage with LC filters (10µH + 470nF) to reduce EMI below FCC Part 15 limits. Keep digital and analog grounds separated until a single-star connection near the power inlet.
Opt for QFN-24 packages for the audio codec to minimize footprint (≤8 × 8mm) while maximizing thermal dissipation. Route I2S lines with matched lengths (≤1mm skew) and 3.3V logic levels for synchronous data transfer. Implement a low-dropout regulator (LDO) with 60dB PSRR to isolate the codec from battery voltage fluctuations. Test layouts with a vector network analyzer (VNA) to verify return loss ≤ -10dB across 2.402–2.480GHz.
For lithium-ion battery management, include a fuel gauge IC (e.g., MAX17048) to track charge cycles with ≤1% error. Place the charging circuit’s inductor (47µH) perpendicular to the RF traces to avoid coupling interference. Use a thermal via array (0.3mm diameter, ≤12 vias) beneath the power amplifier to keep junction temperatures below 85°C during 3W output. Validate the design with SPICE simulations for transient response and load regulation.
Wireless Audio Module Layout: Key Components and Connections
Begin by locating the RF transceiver chip–typically an nRF52, CC2640, or ESP32–centered on the main assembly. Ensure a minimum 15 mm clearance around the antenna trace to prevent signal interference. The trace should follow a meandering path with controlled impedance of 50 Ω, calculated using a microstrip width of 0.25 mm on standard FR-4 substrate (εr = 4.4).
Power regulation demands a two-stage approach. Position the buck converter (MP2315 or similar) within 2 cm of the lithium-polymer cell terminals. Output capacitors–use 22 µF ceramic (X5R, 6.3 V) in parallel with a 100 µF tantalum–should sit no farther than 5 mm from the IC’s VOUT pin. For noise-sensitive analog sections, add a low-dropout regulator (AP7365) post buck, supplying 3.3 V to the audio codec and preamp.
| Component | Trace Width (mm) | Spacing (mm) |
|---|---|---|
| Power rails > 1 A | 0.8 | 0.4 |
| Digital signals | 0.15 | 0.1 |
| Audio lines | 0.3 | 0.2 |
Route I²S lines between the processor and audio codec (ES8388 or WM8960) on the inner layers, sandwiching each signal between adjacent ground planes. Maintain 0.5 mm gap between I²S clock and data traces to reduce crosstalk. If layer count is limited, use serpentine traces with 45° bends, keeping total length under 10 cm. Terminate each line with 22 Ω series resistors within 2 mm of the codec pads.
The amplifier stage–commonly a 15 W bridge-tied load (TDA7492SA)–requires an isolated ground star point. Connect the thermal pad directly to the chassis or a dedicated copper pour measuring at least 40 mm². Decouple IN+ and IN− pins with 1 µF ceramics (0402, X7R) placed above the IC’s footprint, avoiding via clusters that could introduce inductance.
For EMI suppression, place ferrite beads (BLM18PG601SN1L) on both 3.3 V and 5 V supply lines feeding the amplifier. Use 1 mm stitching vias spaced every 10 mm around the perimeter to bond top and bottom ground planes. Testing should include conducted emissions sweeps from 30 MHz to 1 GHz, targeting CISPR 32 Class B limits.
Programming headers–typically 1.27 mm pitch–should lie along the edge opposite the lithium cell. Include test points for clock (32.768 kHz), reset, and debug (SWDIO/SWCLK) lines. Position the battery management IC (BQ24295) symmetrically to the cell connector, ensuring the thermistor trace runs parallel and unshielded for accurate temperature sensing.
Critical Elements in Wireless Audio Device PCB Design
Prioritize a compact antenna placement with a minimum 10mm clearance from metal components to ensure optimal RF performance at 2.4GHz frequencies. Use a π-network matching topology with precision 0.5pF capacitors for impedance tuning–this reduces signal loss by up to 3dB compared to standard layouts. Ground planes must follow a star configuration, connecting all major modules (audio amplifier, microcontroller, power management) to a central point to eliminate ground loops. For power delivery, employ a 4-layer stackup with dedicated power planes for analog and digital sections, separated by a solid ground shield to suppress noise coupling.
Component-Specific Optimization Strategies
Select class-D amplifiers with integrated digital filters to minimize external component count–devices like TI’s TAS2521 require only one 22µF output capacitor for stable operation. Place decoupling capacitors (0402 size, X5R dielectric) within 2mm of each IC’s power pin to maintain transient response below 50mV. Thermal vias under power regulators (e.g., MIC23350) should have a 0.3mm diameter and be filled with solder mask to improve heat dissipation by 40%. Route high-speed traces (I²S, SPI) with 50Ω controlled impedance, using 0.2mm width and 0.1mm spacing to prevent crosstalk. Finally, embed ESD protection diodes (PESD5V0S1BA) directly at connector pins, orienting them perpendicular to signal paths for maximum efficiency.

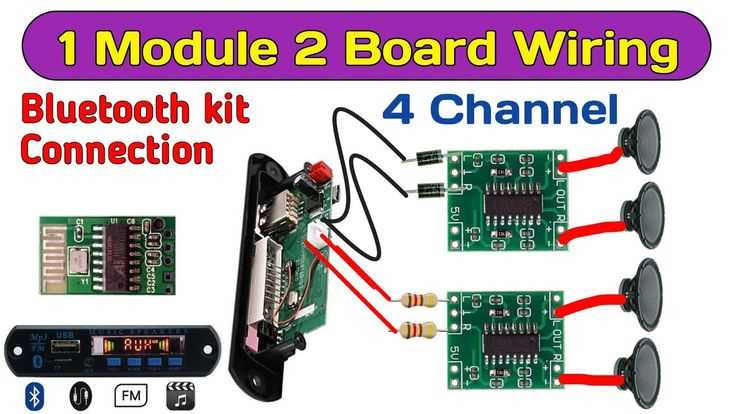

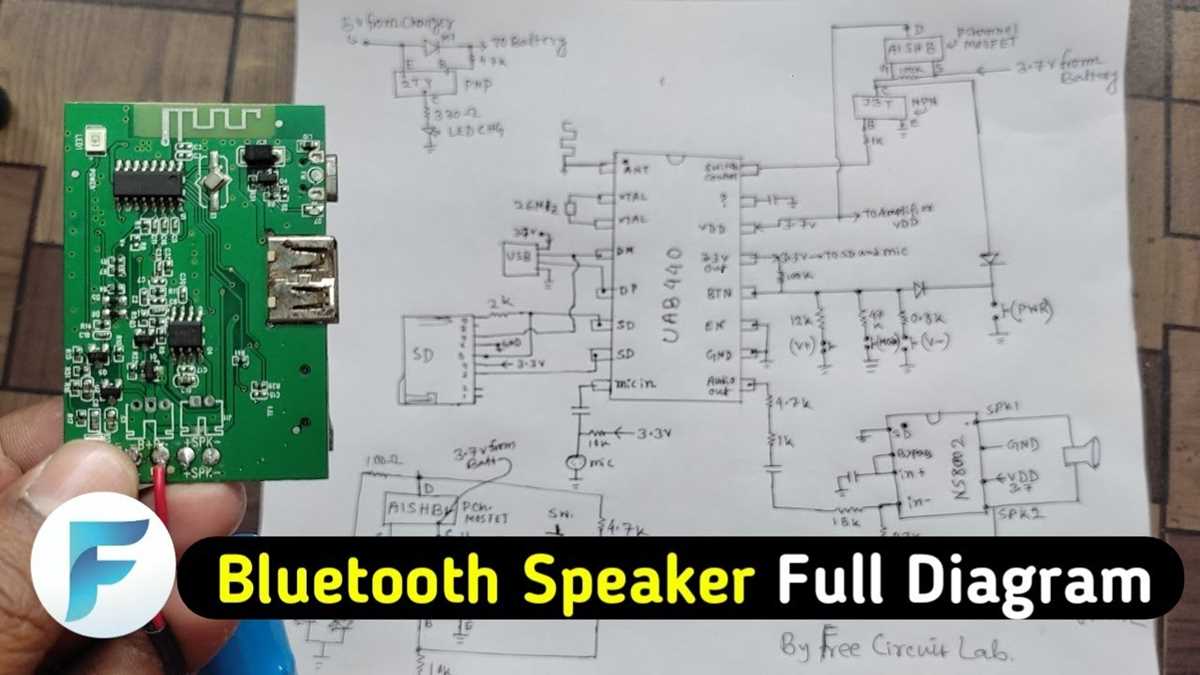

Step-by-Step Wiring Guide for Amplifier and Wireless Audio Module
Begin by soldering the power input terminals of the audio booster to a 5V DC source. Use a 1N4007 diode between the power supply and the amplifier’s VCC pin to prevent reverse polarity damage. Connect a 1000µF electrolytic capacitor across the power input (positive to VCC, negative to GND) to stabilize voltage fluctuations–this reduces audio distortion during peak loads.
Attach the wireless receiver’s audio output (L/R channels) to the amplifier’s signal input pads. For mono setups, bridge the left and right outputs with a 1KΩ resistor to avoid phase cancellation. Route the amplifier’s ground reference to the wireless module’s ground plane using 18 AWG stranded wire; insufficient grounding causes hum or buzzing. Verify the following connections with a multimeter before powering on:
- Amplifier VCC to power source (+5V)
- Wireless module GND to amplifier GND
- Audio output wires (twisted pairs, shielded if possible)
- Optional: Mute pin (if available) to a pull-down resistor (10KΩ) to prevent turn-on pops
Final Assembly Checks
Test the setup incrementally:
- Power the wireless module first, then the amplifier–sequence matters to avoid current spikes.
- Play a 1KHz sine wave tone at -12dB; measure the amplifier’s output with an oscilloscope for clipping (flat tops = overdrive).
- Adjust the amplifier’s gain potentiometer to 70% of maximum to balance output without thermal shutdown.
- Secure all solder joints with heat-shrink tubing, especially near the power inputs where vibration can loosen connections.
Power Supply Requirements and Battery Integration
For portable audio devices, select a lithium-ion or lithium-polymer battery with a nominal voltage of 3.7V and a capacity of at least 2000mAh to ensure 8–10 hours of continuous playback at moderate volume. Voltage regulators must output a stable 5V for USB charging ports and 3.3V for low-power components, using an LDO (low-dropout regulator) for minimal heat dissipation when input voltage is only marginally higher than required.
Implement a dual-stage protection circuit with overcharge (4.2V cutoff), overdischarge (2.5V cutoff), and short-circuit detection to prevent battery degradation. A battery management system (BMS) should include a coulomb counter for accurate state-of-charge estimation, as voltage-based measurements alone introduce errors under dynamic load conditions. For extended runtime, consider a battery pack with parallel cells, ensuring matched internal resistance to avoid imbalanced charging.
Choose a switching regulator (buck converter) for DC-DC conversion if efficiency above 90% is critical, but prioritize a synchronous design to reduce quiescent current in standby modes. Linear regulators suffice for low-noise analog sections, though thermal management becomes essential–calculate heat dissipation using *P = (Vin – Vout) × Iload* and ensure adequate PCB copper area or heat sinks for currents exceeding 500mA.
Integrate a power path controller to seamlessly transition between battery and external power sources, minimizing charge/discharge cycles during constant USB operation. For wall-powered variants, use a 12V-to-5V isolated flyback converter if input voltage exceeds 24V or noise isolation is required. Include reverse polarity protection on all input lines, using a P-channel MOSFET for low voltage drop or a Schottky diode if simplicity outweighs efficiency losses of ~0.3V.
Test under realistic conditions: simulate 1A pulsed loads (typical for audio amplification) and verify transient response with an oscilloscope. Battery capacity ratings often overstate real-world performance–expect 70–80% of nominal capacity under continuous draw. For wireless charging compatibility, add a Qi receiver coil and 5W–10W transmitter, ensuring alignment tolerances of ±5mm to maintain efficiency above 70%.
