Complete 2003 Dodge Ram 1500 Stereo Wiring Color Code Guide

Start by locating the factory harness behind the dashboard on the driver’s side–this is where the main power, speaker, and amplifier wires converge. The constant 12V supply (typically a yellow wire) should measure between 12-14 volts with a multimeter when the ignition is off. If it doesn’t, check the fuse box under the hood (slot F15, 20A) before proceeding. The switched 12V line (often red) activates only with the key in the RUN or ACC position; falsely connecting this to constant power will drain the battery overnight.

Speaker wires follow a double-pair color code: front left (+) and (-) match light green and dark green, while rear left uses gray and dark gray. Right-side channels invert the pattern–front right (+) and (-) are white and violet, with rears in purple and black. Mistaking polarity during installation results in phase cancellation; verify each pair with a 9V battery–positive should push the speaker cone outward before soldering or crimping.

Factory systems often include a separate amp harness near the glove box. Trace the orange/white wire (amp turn-on) to ensure it carries 12V when the audio unit powers up; if missing, splice it into the head unit’s blue/white accessory line. Ground connections (black wires) must terminate directly to unpainted metal, preferably near the original chassis point–resistance here causes alternator whine at high volumes.

For aftermarket adapters, avoid generic harnesses labeled “universal”–they may lack the data bus wire (purple/white), which retains steering wheel controls. If bypassing the factory unit entirely, connect the OEM antenna lead (pink) to the new radio’s AM/FM input to prevent signal loss. Use heat-shrink tubing on all splices; electrical tape degrades within 18 months, risking corrosion.

Test the setup with low bass frequencies (80-100Hz) before finalizing–rattling or distortion indicates loose speaker mounts or incorrect impedance matching (factory speakers are 4Ω). If adding a subwoofer, dedicate a new 12V relay to the power cable, fused within 18 inches of the battery with a minimum 40A fuse.

Wiring Guide for Factory Audio System in Chrysler Full-Size Pickup

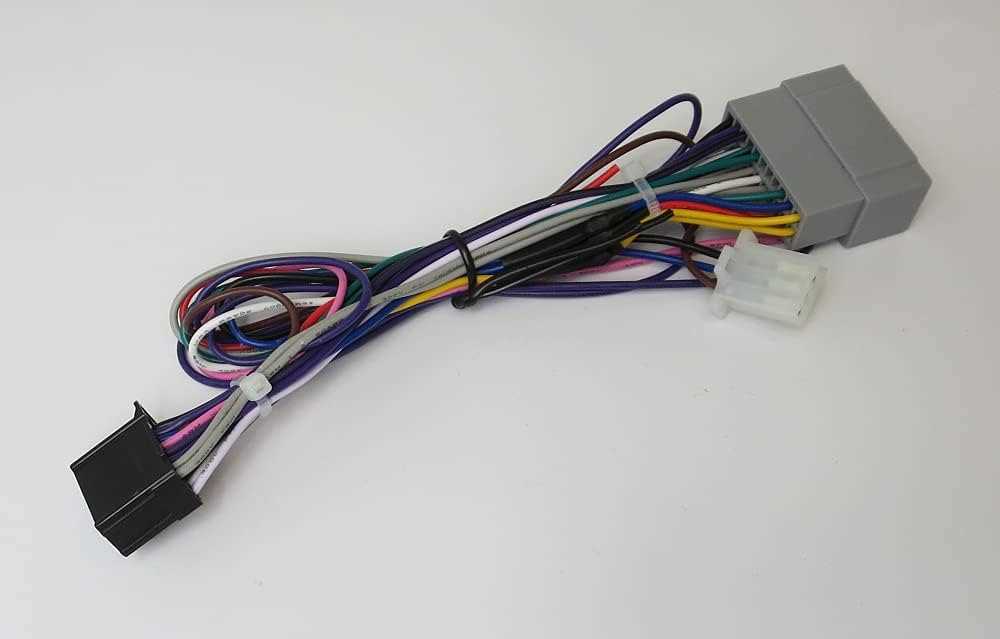

Start by locating the harness behind the head unit–orange/light blue wire supplies 12V constant power, pink carries memory retention, and dark green/red delivers switched ignition. Ground connects via black/light blue near the fuse panel. If replacing original speakers, note factory wiring gauge: 18 AWG tweeters, 16 AWG door woofers, and 14 AWG subwoofer. Resist splicing stock harness; use a 12-pin Metra 70-1002 adapter to match aftermarket decks.

• Front left door: yellow (+), brown/white (-) for 4-ohm 20W coaxial
• Front right door: violet (+), brown/yellow (-)
• Rear left: dark blue (+), gray/light blue (-)
• Rear right: gray (+), gray/violet (-)
• Amp trigger: light blue/white; tap for external amplifiers
• Illumination: yellow/white adjusts with dimmer

Secure connections with solder and heat-shrink tubing–avoid crimp connectors in high-vibration areas like the cab corners. Verify polarity before finalizing: reverse-phase between doors or rears cancels bass. For steering wheel controls, retain factory clockspring; interface via PAC RP4-CH11 module if adding new units. Overlook the dimmer wire and dash lights stay on with headlights. Test all circuits with a multimeter before reassembly.

Finding the Audio System Connector Behind the Instrument Panel

Disconnect the negative battery terminal before touching any electrical components to prevent shorts or damage. The primary radio harness on this pickup model is located directly behind the factory head unit, secured to the metal dash frame with a single 10mm bolt. Remove the climate control trim panel first–it snaps off with minimal force by pulling outward from the bottom edges.

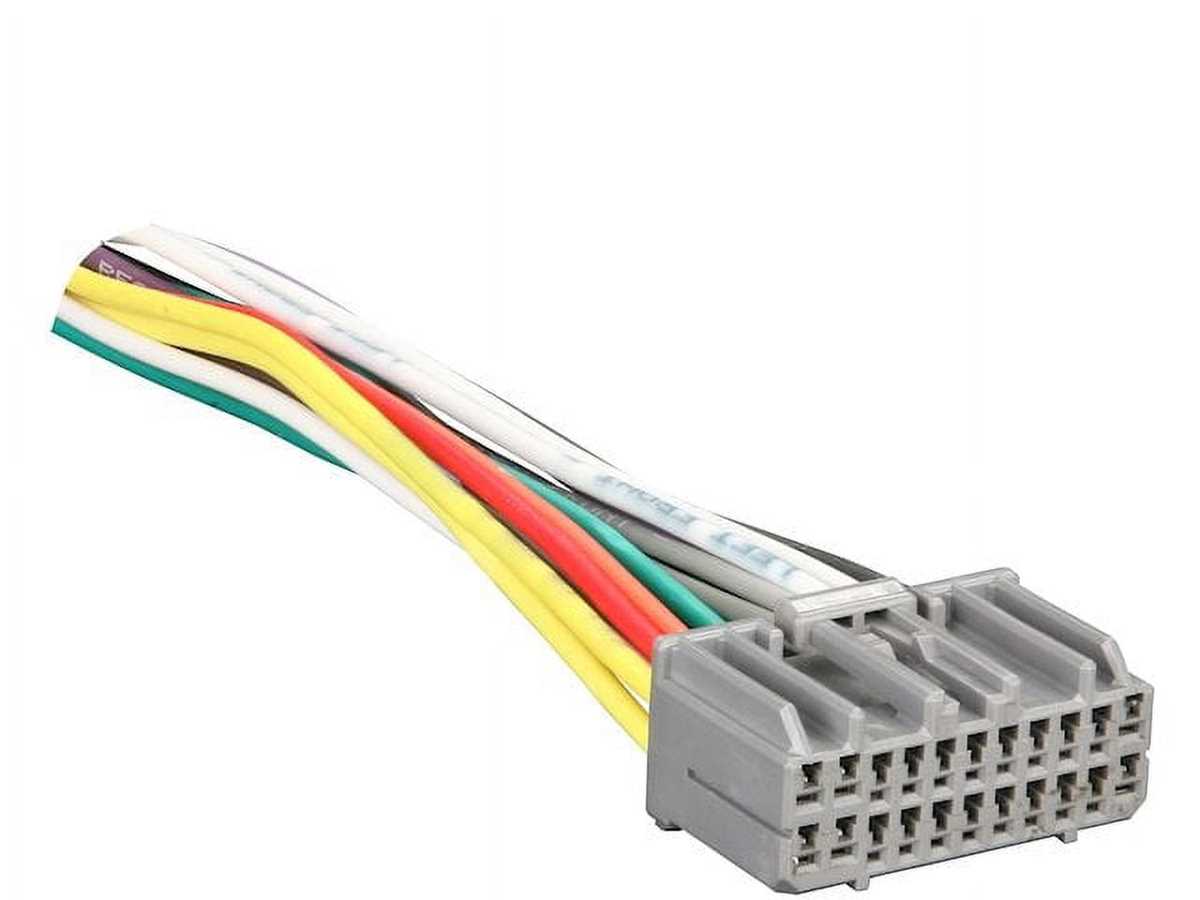

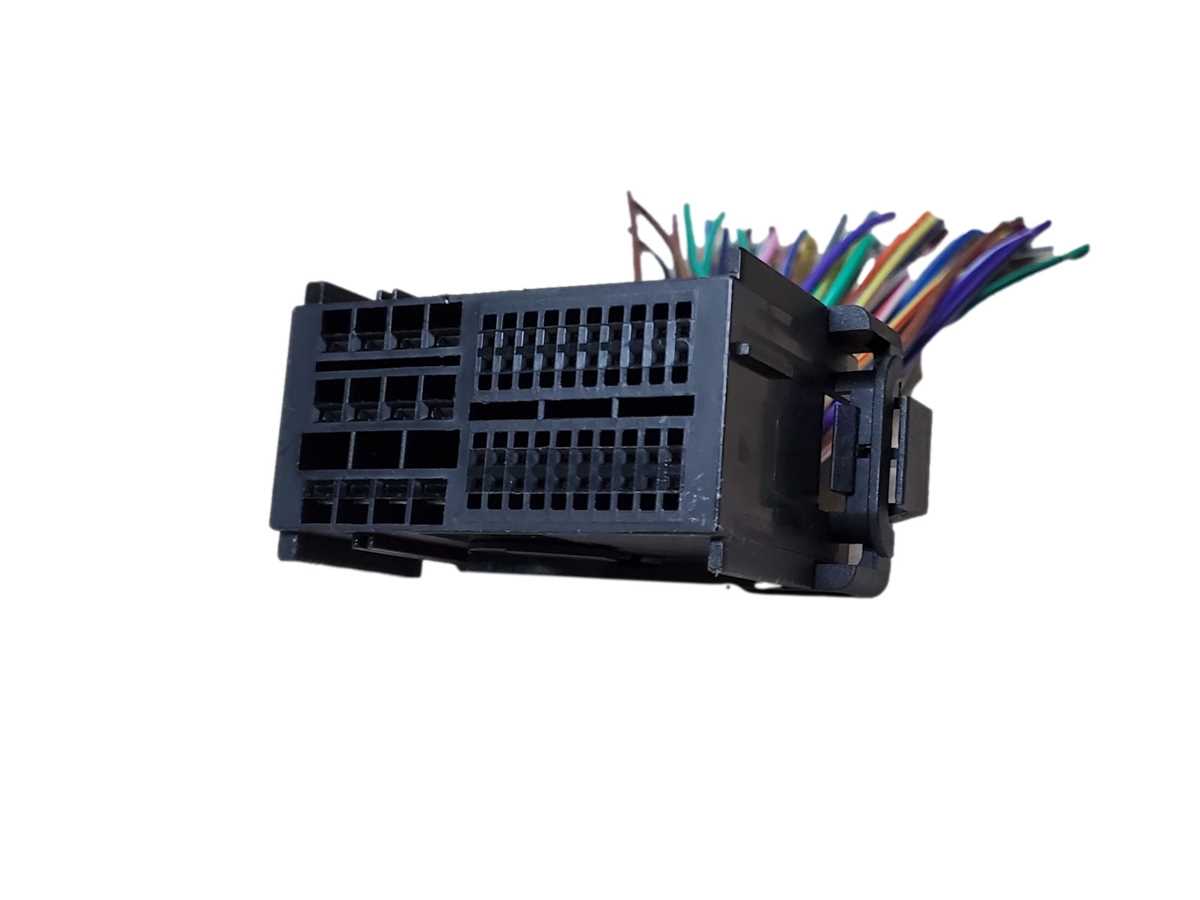

Once the trim is removed, the harness appears as a 24-pin rectangular plug, typically black or gray, tucked just above the heater core tubing. Trace the bundle of wires from the back of the head unit downward–they converge into this plug within 3–4 inches. If replacing the radio, this connector matches the aftermarket wiring harness adapter, but verify wire colors against a reference guide–ground is always black, constant power is yellow, and accessory power is red.

For vehicles with factory amplifiers, a secondary 8-pin connector hides behind the glovebox, requiring removal of the passenger-side kick panel. This smaller plug services the amp and connects via a separate loom. Pull the carpet back carefully, as the kick panel is held by two 7mm screws and plastic clips near the door jamb.

Use a flashlight to inspect tight spaces–dash screws often hide behind hinges or under small plastic covers. The lower trim piece beneath the radio also conceals a screw; remove it to create enough clearance to wiggle the harness free. Label each wire with masking tape if splicing, as color-coding varies slightly between base and premium sound packages.

If the plug doesn’t release easily, check for a small plastic tab on the top–press it while pulling straight back. Forcing it can bend pins; if corroded, clean contacts with electrical spray. Reinstall components in reverse order, ensuring all dash screws are tightened to prevent rattles.

Decoding Signal Cable Hues and Roles in Audio System Schematics

Start by locating the 12V constant power line, typically marked in yellow. This wire maintains memory for presets and settings even when the ignition is off. Verify continuity with a multimeter–voltage should read near battery levels (12-14V) regardless of key position. A drop below 12V indicates corrosion or a faulty fuse, often traced to the fuse box behind the driver-side dash panel.

The switched 12V lead, usually red, delivers power only when the ignition is active. Connect this to the head unit’s ignition input to prevent battery drain. If the system fails to power on, probe this wire while cycling the key–absence of voltage suggests a blown accessory fuse or a severed connection in the harness. Check the under-dash relay cluster for damaged pins.

Ground connections appear in black or brown, often with a stripe. Poor grounding leads to static, weak bass, or intermittent shutdowns. Scrape oxidation off metal chassis contact points and secure with a star washer. Avoid daisy-chaining grounds–each device should terminate directly to the vehicle’s frame. Test resistance between ground and battery negative; readings above 0.5 ohms signal corrosion.

• Speaker outputs: Use these pairings:
  • Front left (+): gray / Front left (-): gray-black
  • Front right (+): white / Front right (-): white-black
  • Rear left (+): green / Rear left (-): green-black
  • Rear right (+): violet / Rear right (-): violet-black

Polarity errors cause phase cancellation, resulting in muffled sound. Confirm speaker wires by tapping each with a 1.5V AA battery–positive connections should make the cone move outward. If bass frequencies sound thin, swap the suspected negative and positive wires at the amplifier or head unit.

For steering wheel controls, seek the light blue or light blue-white wire labeled “SWI” or “resistance.” This carries variable-voltage signals from the steering wheel buttons. If controls fail, check for a short in the clockspring under the steering column. Use a potentiometer test on the wire–valid button presses show distinct resistance changes.

Amplifier remote turn-on uses a blue or blue-white striped wire. Connect this to the head unit’s remote output to trigger external amps when the system powers on. If amplifiers stay off, probe the wire at the harness–absence of 12V suggests a break or a misconfigured head unit setting. Some aftermarket units require manual activation of the remote output in the settings menu.

Factory mute functionality may involve a pink or orange wire tied to the vehicle’s computer. If sound cuts out during phone calls or reverse gear, locate this wire and insulate it–commonly it triggers an unwanted mute state when grounded by accident. For parking sensors interfering with audio, reroute this wire away from parking aid module outputs.

Integrating a Third-Party Audio System with OEM Harnesses

Locate the vehicle’s original radio connector behind the factory head unit. On most full-size pickup models, this is a 16-pin Molex plug, though some models may use a 24-pin connector. Verify pin assignments using a multimeter set to DC voltage; the constant 12V supply wire typically reads battery voltage at all times, while the accessory wire should drop below 1V when the key is removed.

Match aftermarket decoder leads to corresponding OEM pins. Use the following wiring reference for standard head unit functions:

Factory Pin	Color Code	Aftermarket Wire Function
C1 (Pin 1)	Dark Green/Orange stripe	Right rear speaker (+)
C1 (Pin 2)	Light Blue/Orange stripe	Left rear speaker (+)
C1 (Pin 3)	Gray/Red stripe	Right front speaker (+)
C1 (Pin 4)	Tan/Yellow stripe	Left front speaker (+)
C1 (Pin 5)	Dark Green	Right rear speaker (–)
C1 (Pin 6)	Light Blue	Left rear speaker (–)
C2 (Pin 1)	Red	Ignition-switched 12V
C2 (Pin 2)	Yellow	Constant 12V memory feed

Trim factory amplifier wires if upgrading from base to premium sound system. Factory amplifiers often use Pink/Brown (amp turn-on) and Gray/Brown (remote start relay) lines; tap or clip these depending on aftermarket requirements. Failure to remove amplifier wiring can cause feedback loops in line-level outputs.

Secure power connections with soldered joints and heat-shrink tubing. While crimp connectors offer convenience, soldered connections maintain conductivity over long-term vibration exposure common in pickup chassis. Ground the head unit chassis directly to a bare metal point within 18 inches of the mounting location to prevent alternator whine.

Test speaker polarity with a 9V battery before final assembly. Touching the positive battery terminal to the respective wire momentarily should produce a distinct pop from the corresponding speaker. Reverse connection reverses cone movement, causing phase cancellation in multi-speaker setups.

Connect steering wheel control interfaces using an ASWC-1 or equivalent module. Factory control buses typically run on a single Dark Green/Violet wire; verify protocol compatibility–most North American pickups use resistive ladder signals. Incorrect adaptation can damage the vehicle’s BCM or render buttons unresponsive.

Route RCA cables through the firewall grommet adjacent to the brake master cylinder. Separate signal cables from power wires by at least 6 inches to prevent frequency interference. Use dielectric grease at connection points to repel moisture ingress, a common failure point in exposed under-dash installations.

Final System Checklist

Verify each function sequentially:

• Power on with key rotation
• Radio memory retention after 24-hour disconnection
• All speakers reproduce sound without distortion
• Equalizer presets respond to adjustments
• USB port charging at 1.5A minimum
• Microphone input clarity for hands-free calls
