Complete Hummer H2 2003 Radio Wiring Diagram with Color Codes and Connector Guide
Begin your troubleshooting or upgrade process by obtaining the official factory wiring schematic specific to your model’s entertainment cluster. The most reliable source is the manufacturer’s service manual, available through authorized dealers or certified aftermarket providers. Avoid third-party forums unless verified by multiple trusted technicians, as incorrect wiring details can lead to irreversible damage to the vehicle’s electrical modules.
Identify the main harness connections behind the dashboard–specifically the C200 and C300 connectors for the head unit. These typically include power (constant, ignition-switched, and ground), speaker outputs (front/rear, left/right), and auxiliary inputs. Use a multimeter to confirm wire colors and pin assignments; for instance, solid yellow usually denotes battery power, while solid black is ground. Mismatches between generic online diagrams and your actual harness can cause short circuits or blown fuses.
For aftermarket installations, prioritize ISO-standard adapters or brand-specific integration kits. These preserve factory amenities like OnStar, steering wheel controls, or amplifier triggers. If splicing is unavoidable, use soldered connections and heat-shrink tubing instead of crimp connectors–vibration in off-road conditions can loosen inferior joints. Always disconnect the negative battery terminal before handling wires to prevent electrostatic discharge or accidental shorts.
Common pitfalls include overlooking antenna power (often a pink/white stripe wire) or confusing illumination wiring with dimmer signals. Refer to the vehicle’s body control module (BCM) documentation if backlighting or chimes are affected post-installation. For diagnostics, OBD-II scanners with enhanced electrical system capabilities can pinpoint communication errors between the radio and CAN bus network.
If retaining factory functionality is critical, consult GM’s Technical Service Bulletins (TSBs) for known issues–certain model years experienced intermittent speaker outputs due to poor solder joints at the amplifier. Reflowing these connections with rosin-core solder often resolves phantom noise or dropout symptoms without full harness replacement.
Understanding Your Off-Road SUV’s Audio System Connections
Locate the factory harness behind the dash cluster–pinout details vary by trim, but the primary power leads (constant +12V red, switched +12V yellow) always follow this pattern. Ground connections (black) typically terminate near the lower left mounting bracket, though some models route them to a chassis bolt behind the glovebox. For aftermarket upgrades, splice into the orange illumination wire (dimmed +12V) to retain dash integration; neglecting this causes backlighting failures during night driving.
Color-coded wires demand precision: purple (LF+), gray (RF+), dark blue (LR+), and tan (RR+) handle speaker outputs, while light green (LF-) and violet (RF-) act as negatives–never reverse polarity. If retrofitting a subwoofer, tap into the pink/black subwoofer trigger (factory amp output) but expect +6dB attenuation unless bypassing the stock amplifier entirely. Use a multimeter to verify resistance between speaker terminals–4-8Ω indicates intact factory coils.
Troubleshooting Common Issues
Static from the rear speakers often traces back to corroded splice joints near the tailgate; strip, crimp, and seal connections with dielectric grease. No sound from the driver-side tweeter? Check for a broken violet/white wire behind the A-pillar trim–GM’s paint-shop routing frequently frays this lead. For climate-control interference, reroute the antenna coaxial cable away from HVAC ducts, as proximity induces signal noise on AM bands.
Finding the OEM Audio System Plug Beneath the Instrument Panel
Start by removing the lower dashboard trim panel on the driver’s side. This piece is secured by two 7mm bolts near the hood release lever and three hidden plastic push clips along the bottom edge. Use a trim removal tool to gently pry the clips free–avoid force to prevent cracking the brittle plastic.
The factory harness connector sits directly behind the climate control module, clustered with a tangle of multi-colored leads. Identify the 12-pin rectangular plug by its beige plastic housing; it’s distinct from the circular climate control connectors. Trace each wire to confirm it matches the expected pinout: constant 12V (yellow), ignition-switched 12V (red), ground (black), front speakers (gray/gray-white and purple/purple-white), rear speakers (green/green-white and tan/tan-white), and illumination (orange).
If the plug isn’t immediately visible, check for obstructions. The H2’s firewall brace may obscure part of the wiring cluster–remove it temporarily by unfastening two 10mm bolts. Label every connector you disconnect to avoid reinstallation errors later.
The harness itself is often bundled with zip ties or adhesive tape; cut these carefully to avoid damaging the insulation. Examine each wire for signs of corrosion or fraying–common in older models–especially at stress points where the harness bends near the steering column support bracket.
Verifying Connector Integrity
Use a digital multimeter to test each pin before proceeding. Set the meter to DC voltage and probe the yellow wire (pin 1) while the key is off–it should read battery voltage (~12.6V). Cycling the ignition should activate the red wire (pin 2), confirming proper switched power delivery. If readings are inconsistent, inspect the fuse block behind the kick panel; the audio system fuse (10A) is labeled “RADIO” on the cover diagram.
For speaker wires, switch the multimeter to ohms (Ω) and check resistance between each paired lead (e.g., gray and gray-white). A functional speaker circuit will read between 3-8Ω. A reading of 0Ω indicates a short, while OL (open line) suggests a break in the wiring or a failed speaker. Trace any faulty wires back to their source–broken connections often occur where the harness passes through the firewall grommet near the brake booster.
Temporary Workarounds and Permanent Fixes
If the factory plug is damaged, bypass it by splicing directly to the wires using Scotchlok connectors or solder-and-heat-shrink joints. Match each wire by color and function–do not rely on position alone, as aftermarket harness adapters may use different pinouts. Secure splices with electrical tape and route the harness away from moving parts (e.g., pedal assembly) to prevent future chafing.
For a clean reinstallation, consider fabricating a small mounting bracket to hold the new audio head unit’s harness away from the climate control linkages. Reattach the lower dash trim only after verifying all connections–misaligned clips are a common cause of rattles. Store the original harness connector in a labeled bag if planning future upgrades to preserve OEM functionality.
Locating Key Connections in the Factory Audio Setup

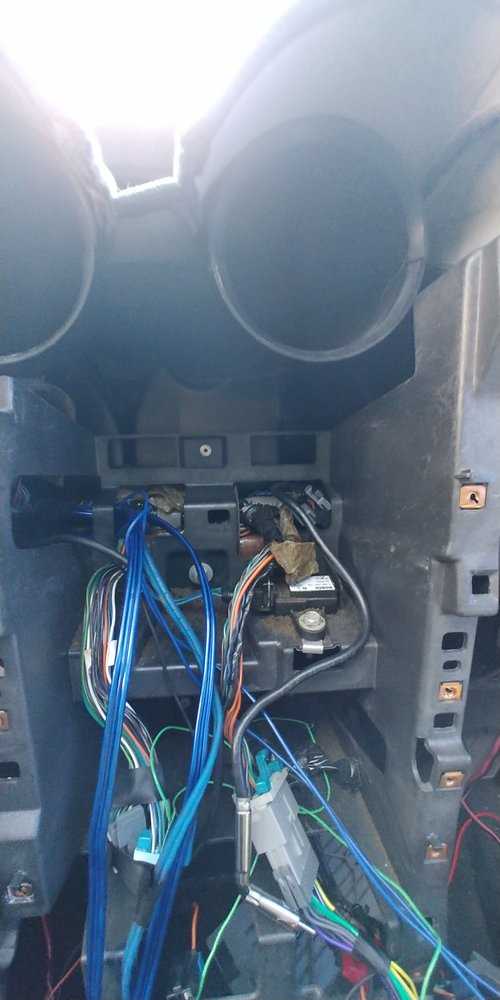

Begin by disconnecting the vehicle’s battery negative terminal to prevent short circuits. Remove the central console panel around the audio head unit using a trim tool–avoid prying near the climate controls to prevent damage to delicate clips. Once exposed, locate the main harness connector at the back of the unit; it’s typically a 12-pin or 16-pin Molex-style plug.
The primary constant power wire is yellow, delivering 12V directly from the battery regardless of ignition state. Verify this by probing with a multimeter–voltage should remain steady when the key is off. Accessory power (red) activates only when the ignition is in “ACC” or “ON” positions. Ground is black, often bundled with other earth connections near the chassis; confirm continuity to bare metal.
| Function | Wire Color | Typical Gauge | Connector Pin (if known) |
|---|---|---|---|
| Constant Power | Yellow | 14-16 AWG | Pin 4 (12-pin harness) |
| Accessory Power | Red | 16-18 AWG | Pin 7 |
| Ground | Black | 14-16 AWG | Pin 8 or chassis screw |
| Illumination | Gray | 18-20 AWG | Pin 3 |
Speaker outputs follow a standard but not universal color scheme. Front left positive is light blue with a dark blue stripe; front right positive is green with a black stripe. Rear left positive is brown with a white stripe, while rear right positive is purple with a gray stripe. Negative leads for each speaker are the same base color without stripes–light blue, green, brown, and purple respectively.
Use a 9V battery to test speaker wires: touch the positive and negative wires briefly–audible pops confirm correct pairing. Avoid prolonged contact to prevent voice coil damage. If the factory amplifier is present (common in premium trims), additional wiring may include remote turn-on (blue/white stripe) and speed-sensitive volume inputs (pink or violet).
Handling Factory Amplifier Wiring
Amplified systems add complexity. The remote turn-on wire (blue/white or blue) triggers the amplifier–probe for 12V when the audio system powers on. Inputs for front and rear channels may be thinner gauge (18-20 AWG) and require adapters if replacing components. Some models route speaker wires through door harnesses–check for additional connectors behind kick panels.
Ground issues often manifest as static or weak output. Scrape paint from grounding points and secure with star washers. If corrosion is visible, clean with a wire brush and apply dielectric grease. For aftermarket upgrades, avoid splicing into factory harnesses–use T-tap connectors or solder joints wrapped in heat-shrink tubing to maintain integrity.
Refer to the vehicle’s service manual for exact pinouts if colors deviate from this guide. Variations exist between model years and trim levels, particularly in luxury packages. Label all wires during disassembly to simplify reinstallation. If retaining the factory chime module, ensure it’s reconnected–it shares wires with the stereo harness (white/red stripe for data signals).
