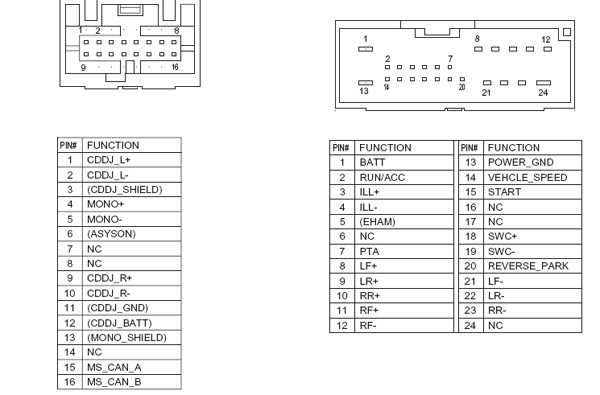

Ford Mustang 2003 Stereo Wiring Guide with Full Color Diagram

Locate the aftermarket harness adapter matching your vehicle’s make from the late 90s to early 2000s–common models include Scosche FMIF or Metra 70-1770. The adapter bridges factory connectors (a 24-pin plug near the dash) with standard ISO leads used by most head units. Skipping this step risks misaligned pinouts, leading to dead channels or blown fuses. Verify compatibility with the car’s 10-speaker premium setup if present; bypassing the amplifier will mute rear fill and subwoofer outputs.

Ground the new unit directly to the chassis near the original harness–a known weak point in this model. Use a 10-gauge wire and a dedicated bolt (clean paint off first) to avoid ground loops causing static. The dimmer wire (pink/orange stripe) connects to the factory dimming circuit; disregard it for non-steering-wheel-control systems. For turn-on leads, splice the remote wire (blue/white) to the vehicle’s ignition-switched 12V (purple in the factory harness)–never to constant power, or the battery will drain overnight.

The factory amplified system requires a separate power lead (yellow, 12V constant) wired to the battery with an inline fuse (20A). Route this wire through the firewall grommet beside the brake booster, avoiding sharp edges. If installing a non-Bose unit, integrate an external amplifier between the head unit’s preamp outputs (front/rear/sub) and the vehicle’s speaker wires–factory tweeters expect 50W RMS, not standard 20W. Subwoofer outputs default to mono; use an LOC (line output converter) if retaining the stock sub signal.

Test all connections before reassembling the dash. Probe each wire with a multimeter set to 12V DC: ignition-switched leads should show ~14.2V when the key is on, ground readings must be 0Ω. Speaker wires should measure 2-4Ω at each terminal. Reconnect the negative battery terminal last, then verify audio balance, fade, and seek functions. If static persists, check for loose RCA shields or mixed grounds–common culprits in this platform.

Ford SN95 Audio System Connection Guide

Locate the factory harness beneath the dashboard on the driver’s side–identify the 12-pin connector marked “AUDIO” by Ford’s OEM labeling. Pin 1 (yellow) delivers constant 12V power; pin 6 (black) is the ground reference. Pin 10 (red) carries switched 12V from the ignition switch; use this for memory retention. Avoid splicing directly into the fuse block–tap into the harness instead to prevent voltage drop.

Aftermarket units typically split the speaker outputs into individual RCA or bare-wire connections. Front left and right channels (pins 3 and 2, gray and gray/black) provide 4Ω at 20W RMS; rear outputs (pins 7 and 8, purple and purple/black) match the impedance. Verify polarity with a 9V battery–positive leads produce a click in the door tweeters. Reversing these can degrade imaging.

Power and Ground Precautions

Avoid connecting ground to the sheet metal–attach to the chassis ground eyelet near the steering column. Use 10-gauge wire for ground runs exceeding 18 inches to prevent ground loops. The constant power wire (pin 1) should feed through a 15A fuse within 6 inches of the battery terminal to protect the head unit’s memory. Switched power (pin 10) activates only in “ACC” or “ON” ignition positions–test with a multimeter before finalizing connections.

Factory amplifiers (if equipped) reside in the trunk behind the left panel. Access requires removing the subwoofer grille; the amplifier harness uses 8-pin connectors with inline resistors for equalization. Bypass these for aftermarket upgrades–connect RCA preamp outputs directly to the amplifier’s inputs, bypassing the resistor network to avoid signal attenuation. Retain the remote turn-on lead (blue/white) from the head unit to the amplifier’s remote terminal for synchronous power-up.

Speaker Wire Gauges and Colors

Factory speaker wires vary: door tweeters (pins 3–4, gray) use 18-gauge, while midrange woofers (pins 7–8, purple) employ 16-gauge. Replace these with 14-gauge for aftermarket coaxial speakers to handle 50W RMS. Rear deck speakers (pins 9–12, light green) share the same gauge–ensure consistency across all channels. Twist pairs by hand before soldering to reduce electromagnetic interference.

Illumination wire (pin 5, orange) dims dashboard lights in sync with the headlights. Connect this to the aftermarket unit’s dimmer input to maintain OEM functionality. If the new system lacks this feature, cap the wire with a 1kΩ resistor to prevent shorts. Telephone mute (pin 11, pink/white) disengages audio during calls–ignore unless integrating a Bluetooth hands-free module.

Verify all connections with a continuity tester before powering up. Reconnect the negative battery terminal last to prevent accidental shorts. Test each channel individually at low volume, then gradually increase to full range to confirm no distortion or clipping occurs. Store factory harness adapters in a labeled bag under the seat for future reference.

Decoding the Factory Harness Color Schemes for Your Pony Car Audio System

Start by locating the 12-pin rectangular connector behind the head unit; the upper row (from left to right) carries yellow 12V constant power, red accessory trigger, orange illumination dimmer, and brown ground. The lower row pairs solid colors with stripes: pink/light green (left front speaker +), pink/black (left front speaker -), gray/violet (right front +), and gray/orange (right front -). Check for continuity with a multimeter if colors appear faded–older harnesses often bleed dye over time. For the rear harness, look for purple/yellow (left rear +) and purple/brown (left rear -), paired with dark green/yellow (right rear +) and dark green/orange (right rear -).

Troubleshooting Non-Standard Wiring Variations

Vehicles equipped with premium Shaker 500 systems swap ground wires to tan/black for the amplifier trigger, while base models retain brown for main chassis ground–verify by tracing the thickest cable back to the firewall. If speakers produce distortion despite correct polarity, inspect for aftermarket splices masking factory codes; common culprits include white repurposed as a 12V feed instead of gray/violet for right front output. Always cross-reference the service manual’s wiring chart–model year overlaps can invert speaker phase on later builds without visual indication.

Installing a Replacement Audio System in Your Pony Car: A Precision Walkthrough

Disconnect the negative battery terminal first–this prevents shorts and protects modules. Locate the factory radio harness behind the dash panel; it’s a flat 12-pin connector with color-coded leads. Match each aftermarket adapter wire to its OEM counterpart: red (constant 12V), yellow (switched 12V), black (ground), blue/white (amplifier turn-on), and purple/green (speaker outputs). Solder or crimp connections, then insulate with heat-shrink tubing–twist-and-tape methods fail under vibration. Verify polarities with a multimeter before powering up.

1. Remove the trim bezel by prying the sides with a non-marring tool–start at the bottom near the hazard button.
2. Detach the climate control unit by unscrewing two 7mm bolts, tilting it forward without disconnecting the cables.
3. Slide the factory unit out after releasing four spring clips (two on each side) using a U-shaped removal key.
4. Mount the new deck’s cage, securing it with screws or manufacturer-supplied brackets–ensure clearance for CD slots or USB ports.

Test the installation before final assembly. Reconnect the battery, then verify: illumination on startup, no error warnings on the dash cluster, and balanced sound from all four doors (front doors: 4-ohm, 20W; rears: 2-ohm, 30W). Adjust fader/balance to confirm door speakers aren’t out of phase–distorted bass or missing midrange indicates reversed polarity. If the amplifier triggers a whine, relocate the ground to the chassis near the parking brake or add a noise filter inline with the blue/white turn-on lead.

Common Issues and Troubleshooting Poor Audio in Factory Sound Systems

Check the fuse for the amplifier located under the dashboard on the driver’s side. The factory harness in these models often uses a 20-amp fuse labeled “AMP” or “AUDIO.” If it’s blown, replace it with an identical rating–never upgrade to a higher amperage, as this risks damaging the internal components. A blown fuse often indicates a short in the speaker wires, so inspect the door panels and rear deck coverage for exposed or pinched connections before reinstalling.

Adjust the balance and fader settings to isolate dead channels. Press the “MODE” button until “BAL” or “FAD” appears on the display, then rotate the tuning knob. If one side (left/right or front/rear) remains silent, the issue is likely a broken wire or failed speaker. Use a multimeter set to 200 ohms to test speaker resistance–factory units should read 3-4 ohms. Readings of 0 or infinite ohms confirm a short or open circuit, respectively.

• Remove the door panels by unscrewing the three 7mm bolts behind the inner handle and popping the plastic clips along the perimeter. The speaker connections are often corroded; clean them with electrical contact cleaner and reconnect firmly.
• Inspect the wiring harness behind the head unit for brittle or cracked insulation. The yellow/black wire (constant power) and red/black wire (accessory power) are prone to failure; splice in new 18-gauge wire if needed.
• Test the antenna motor by manually extending the mast. If it doesn’t retract smoothly, the gear mechanism inside the assembly is stripped–replace the entire unit to restore AM/FM reception strength.

Grounding Problems andamp; Static

Locate the ground wire–typically a black or brown 12-gauge cable–bolted to the chassis near the kick panel. Scrape the paint off the mounting surface until bare metal is exposed, then reattach with a star washer. Loose or corroded grounds cause popping, distortion, or complete loss of audio during engine start-up. For persistent static, run a dedicated 8-gauge ground wire from the amplifier’s chassis to the battery’s negative terminal, ensuring no intermediate connections degrade signal integrity.

Verify the head unit’s auxiliary input isn’t causing interference. Disconnect any aftermarket adapters or Bluetooth transmitters plugged into the front port; factory decks often pick up electrical noise from poorly shielded devices. If the issue persists, replace the factory head unit’s harness with a new OEM pigtail, as internal solder joints degrade over time. For subwoofer hum, ensure the RCA shield wire isn’t grounding against the vehicle’s metal–route signal cables away from power wires to minimize induction interference.
