Complete 2003 Chevy Trailblazer Stereo Wiring Color Code Guide

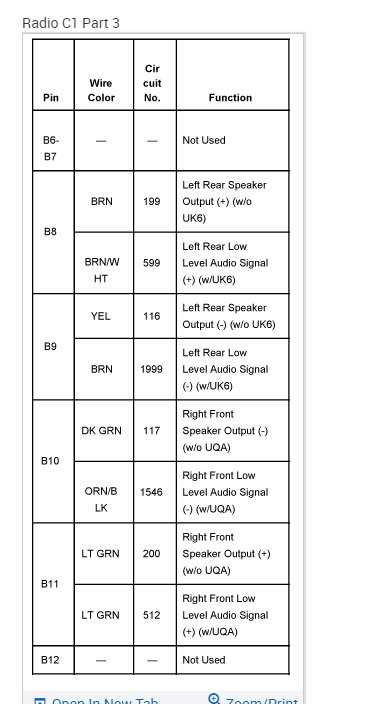

2003 trailblazer stereo wiring diagram

Locate the radio harness behind the dashboard panel on the driver’s side. Release the clips securing the trim by gently prying with a plastic tool–metal tools risk damaging the clips. Three connectors feed into the factory receiver: the C240 (power/ground), C210 (speaker outputs), and C101 (antenna). Verify wire colors against the automaker’s factory schematics before splicing; aftermarket harnesses often mislabel solid pink (constant 12V) and striped pink (switched 12V).

For amplified systems, bypass the built-in amp by connecting harness wires directly to the new head unit’s harness. The rear door speakers (6.5-inch) share a common ground–splice the grey/black (left) and dark grey/black (right) wires to avoid phase issues. Subwoofer installations require tapping the purple (+) and purple/black (-) leads from the factory Bose amp, typically mounted under the driver’s seat. Use a multimeter to confirm these wires carry signal only when the bass system is active.

Grounding points vary: the main chassis ground is a bare stud behind the glove box, while auxiliary grounds are secured under the left kick panel. Secure connections with crimp connectors and heat-shrink tubing–twisting wires will corrode within months. Steering wheel controls (if retained) interface via the light blue/yellow data bus wire; aftermarket adapters like Metra ASWC-1 simplify integration. Always disconnect the battery’s negative terminal before handling any wiring to prevent short circuits.

Chevy SUV Audio Installation Guide: Color-Coded Connections

Begin by locating the factory harness behind the dash near the center console. The 12-pin connector includes these critical leads for aftermarket integration:

  • Yellow: 12V constant (battery) – directly to memory functions
  • Red: 12V accessory (ignition-switched) – powers unit when key is in ACC/RUN
  • Black: chassis ground – ensure clean, rust-free connection point
  • Blue/White stripe: amplifier turn-on signal – triggers external amps (4V+ output)
  • Gray: front left positive (+) – 2V RMS max for standard speakers
  • Gray/Black: front left negative (-) – matches polarity precisely
  • Green: rear left positive (+)
  • Green/Black: rear left negative (-)
  • Purple: rear right positive (+)
  • Purple/Black: rear right negative (-)
  • White: front right positive (+)
  • White/Black: front right negative (-)

Verify each wire gauge before tapping–factory harness uses 18AWG for speaker outputs and 14AWG for power leads. Solder all connections or use crimp connectors rated for automotive use, then seal with adhesive-lined heat shrink tubing to prevent corrosion.

Identifying Aftermarket Harness Compatibility

Check the connector type on your new head unit–most mid-tier receivers (Pioneer DEH, Kenwood Excelon) use ISO 1040 standard plugs, while premium brands (Alpine, JL Audio) may require harness adapters. The factory radio harness on this SUV model splits into two 6-pin blocks; align the adapter’s corresponding colors before making permanent joins. Common mismatches include:

  • Blue/White vs Blue (amp remote vs simple illumination)
  • Orange (dimmer) vs Orange/White (ILL+)
  • Brown (mute) vs Pink (phone)

Test continuity with a multimeter set to 200Ω range–probing the harness pins should show <0.5Ω resistance for valid circuits.

For steering wheel control retention, install a dedicated interface module (Metra ASWC-1, PAC SWI-RC). The factory control wire (Light Blue, pin 3 on C2 connector) carries resistive signals–each button press generates a unique voltage drop between 0V-5V. Calibrate the module using the manufacturer’s app or jumpers, ensuring all functions (volume, track skip, voice command) map correctly to the new head unit.

Grounding issues cause buzzing or erratic volume fluctuations. Locate the original chassis ground connected to the HVAC housing bracket (driver’s side footwell). Scrape off paint down to bare metal using 120-grit sandpaper, then attach a dedicated 10AWG lead from the radio’s ground wire to this point with a ring terminal and 10mm bolt. Torque to 12-15 lb-ft–over-tightening distorts the grounding surface, while under-tightening risks intermittent connections.

Finding the OEM Electrical Linkage Behind the Instrument Panel

Begin by removing the lower dashboard cover beneath the steering column. A single 7mm bolt secures it; turn counterclockwise to release, then pull downward gently to detach the panel. This exposes a bundle of cables and connectors, typically wrapped in black or gray fabric tape. The factory harness junction is positioned near the climate control module–look for a white or beige rectangular plug with at least 12 terminals.

Disconnect the negative battery terminal before proceeding. Use a 10mm wrench to loosen the clamp; this prevents accidental shorts while handling sensitive electronic components. The main interface you need resides behind the HVAC unit, attached to the central support bracket. Slide a slim LED inspection light or a curved dental mirror between the dashboard frame and firewall to locate it without disassembling additional parts.

Key identifiers for the correct connector:

  • Color-coded pins (purple, yellow, brown, black) arranged in two rows
  • A securing latch on the top or side, requiring gentle depression to release
  • Adjacent smaller plugs (4-6 terminals) likely belonging to the heating system
  • Label marks such as “A/C” or “RDO” stamped on the casing

If visibility remains obstructed, remove the glove compartment. It swings down after releasing two retaining screws (one on each side) and squeezing clips at the back. This reveals the passenger-side area where the main wiring loom converges. The target connector will be on the left edge, connected to a gray or black conduit leading toward the center console.

Common Mistakes to Avoid

  1. Forcing connectors apart–apply even pressure while pressing release tabs
  2. Overlooking adjacent harnesses; ensure you’re not disconnecting climate control wires
  3. Neglecting to label connections if partial disassembly is required
  4. Ignoring grounding points–verify no corrosion exists on nearby chassis bolts

For models with rear entertainment systems, an additional harness may be present near the overhead console. Check for a secondary plug above the rearview mirror, distinguished by an extra red or orange lead. This rarely interferes with primary audio integration but should be noted during upgrades.

Once identified, use a multimeter on continuity mode to confirm pin assignments. Probe each terminal against the chassis ground (bare metal behind the kick panel) to isolate power, ground, and speaker outputs. Document each reading–yellow wires typically carry 12V accessory power, while purple leads often handle right rear speaker signals.

Vehicle Audio System Connector Color Standards and Terminal Layout

Start harness integration by matching the factory head unit’s 12-pin rectangular plug. Pins 1 through 4 carry right rear (violet), right front (gray), left rear (dark blue), and left front (white) speaker signals. Pins 5 and 6 handle illumination–orange for dimmer and brown for ground reference–while pins 7 and 8 supply constant (yellow) and switched (red) 12V power. The remaining terminals cover antenna trigger (pink), ground (black), and mute control (light blue). Verify each connection with a multimeter set to DC voltage–yellow should read 12V regardless of ignition state, red only when the key is on.

For aftermarket upgrades, cut splicing risks by crimping 18–22 AWG waterproof terminals onto each lead. Use heat-shrink tubing over splices to prevent corrosion–vehicle vibration loosens taps over time. Avoid relying on wire color alone: GM occasionally uses purple for parking brake or gray for reverse signal in the same harness. Cross-reference the pinout with an OEM service manual page showing pin numbers stamped on the radio housing.

Pioneer, Alpine, and Sony receivers often share a standard ISO harness layout. Connect right front positive (gray) and negative (gray/black striped), then repeat for remaining channels. Confirm polarity before attaching speakers–reversed wires degrade bass response and risk damaging tweeters. If the radio displays “code” after installation, pull 12V for 10 minutes to reset theft-deterrent counters rather than guessing numeric sequences.

How to Safely Integrate New Audio System Cables

Locate the vehicle’s harness adapter before cutting any factory connectors. Verify wire colors against a trusted schematic–misidentifying a single circuit risks fusing incompatible voltage paths. Use a multimeter set to DC voltage to confirm each lead’s function: accessory (yellow), ground (black), left front speaker (gray), right front speaker (white), and constant power (red). Test in both off and ignition-on states to rule out switched versus continuous feeds.

Trim half an inch of insulation from each aftermarket harness wire, exposing clean copper strands. Twist the stripped ends tightly–loose strands cause intermittent shorts. Slide a small section of heat-shrink tubing over one side of the pair before splicing; after soldering, slide it back to cover the joint and apply heat until sealed. Avoid electrical tape–it degrades and loses adhesion under hood temperatures, exposing raw connections.

Align factory and aftermarket wires by function, not just color. European harnesses often reverse polarity on rear speaker outputs (striped wire positive), while Asian brands standardize white as left positive. Crossing these sends reverse current through the amplifier’s output stage, risking immediate failure. Double-check with a polarity tester: connect a 1.5V battery briefly across the speaker terminals–correct polarity produces an audible click.

Solder each splice with rosin-core solder–acid core leaves corrosive residue, eating through copper over months. Heat both wire ends evenly, then apply solder until it wicks into the strands, forming a shiny, solid joint. Overheating melts insulation; underheating creates cold joints. Clip excess wire flush afterward to prevent snagging during installation.

Route spliced cables away from movement paths and sharp edges. Secure loose runs with zip ties every 6 inches–vibration from the drivetrain loosens unsupported connections. Leave slack behind the dash mount for future servicing but avoid coiling excess next to amplifier circuits–inductive loops can pick up engine whine picked up by the power leads.

Ground the new unit directly to chassis metal using a dedicated ring terminal, not the factory bolt–a shared bolt introduces noise. Scrape paint and rust off the grounding point until bare metal shows; any corrosion increases resistance, causing hum. If the head unit still exhibits interference, relocate the antenna lead two feet from power cables–coiled runs act as capacitors, allowing EMI pickup.

Power on the system and verify each function before reassembling trim panels. Test fade/balance controls, subwoofer output, and steering-wheel controls if integrated. If the amplifier clicks erratically, check for stray strands causing ground loops–re-solder any joints showing dull discoloration. Finalize by securing all panels with the original screws; self-tapping replacements strip torque settings, leading to rattles.
