Complete Yamaha R6 2003 Rectifier Regulator Wiring Schematic Guide
Start by locating the stator output wires–typically a trio of yellow leads exiting the engine casing. Connect these directly to the regulator’s input terminals, ensuring no exposed sections remain. Use heat-shrink tubing over each joint to prevent corrosion from moisture or vibration. A multimeter set to AC voltage should read between 40-60V at 5,000 RPM; lower readings indicate stator failure.
Next, identify the white/pink lead from the regulator’s DC output–this feeds the bike’s charging system. Route it to the positive battery terminal, avoiding sharp edges or moving parts. A 30-amp fuse inline prevents catastrophic shorts. The green ground wire must attach to a clean, unpainted engine bolt; poor grounding causes erratic voltage spikes.
Check the three-phase bridge rectifier for diode integrity by probing each diode in forward and reverse bias with the multimeter’s diode setting. Replace the entire unit if any diode shows infinite resistance in one direction. Keep the regulator mounted vertically to allow heat dissipation; overheating degrades performance within minutes.
For the instrument cluster, splice the orange wire from the regulator output into the harness feeding the speedometer and tachometer. Verify all connections with a wiring schematic specific to the third-generation 600cc model–earlier revisions use a single-phase system with different color codes.
Electrical Flow Guide for the 2003 R6 Charging System
Begin troubleshooting by disconnecting the regulator assembly’s white and pink terminals. Use a multimeter set to DC voltage–probe the white wire while the ignition is on; readings below 12V indicate a faulty stator coil or damaged harness. Confirm harms continuity next: black/white grounds must show 0.3 ohms to the engine casing, deviations signal corrosion or broken earth paths.
Locate the orange and gray conductors exiting the alternator housing. Under running conditions, these lines should deliver 45–60V AC at 3,000 RPM–lower figures reveal magnet degradation or insulation breakdown. Inspect the heat shrink tubing along each wire; brittle or melted sections necessitate immediate replacement with 10-gauge silicone cable, soldered and sealed with adhesive-lined heat shrink.
Connect the blue connector block on the rectifying unit: pins A and B (yellow and green) carry full field excitation–verify 5–7 ohms resistance between them. A short circuit demands disassembly to replace the diode trio array. Use a dedicated diode tester; silicon plates must display forward drops between 0.5–0.7V and block reverse current entirely.
Route the charge output cables directly to the battery positive terminal, avoiding fuse taps or accessory circuits. Crimp ring terminals with 14–16 AWG butt splices, then apply dielectric grease before bolt tightening. Test under load: accessory lights should not dim at idle; persistent voltage sag below 13.8V signals a compromised voltage control board.
Critical Color Codes & Pin Assignments
Harness colors follow this mapping: red/white = ignition feed, orange = AC phase 1, gray = AC phase 2, black/yellow = switched 12V, white = stator reference, pink = defeat sense line. Cross-check each terminal against the factory service manual–transposed connections cause immediate regulator burnout.

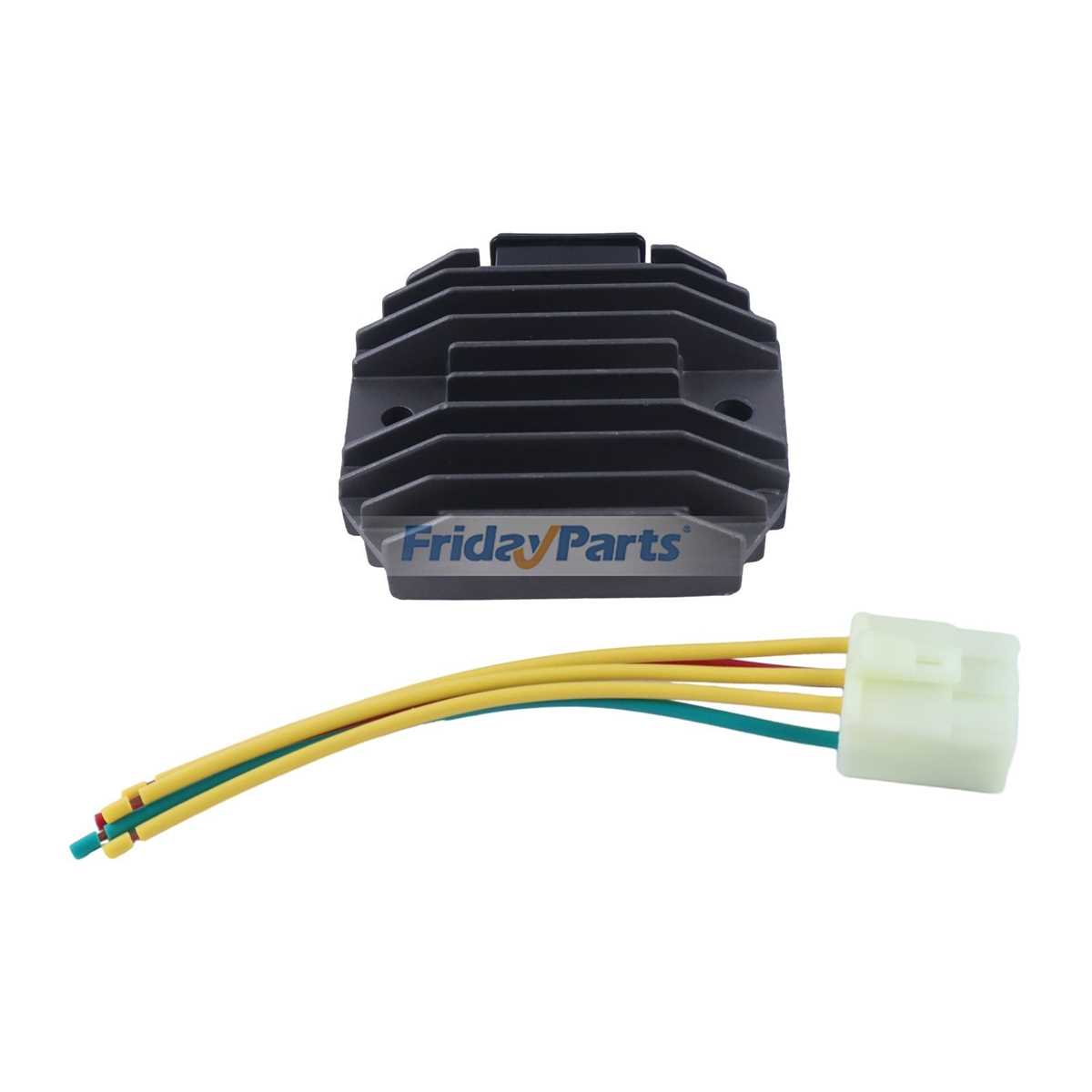

Replace the entire voltage regulation module if internal MOSFET arrays test defective. Aftermarket units often reverse-engineer the internal circuitry; select models rated for 3-phase 320W output with redundant thermal cutoffs. Secure the unit to the frame using vibration-dampening mounts–metal-to-metal contact accelerates heat buildup, reducing lifespan.
Finding the Voltage Regulator Plug on a 2003 R6 Sport Bike
Begin by removing the tail section–this exposes the wiring harness tucked beneath the rear fender. The regulator is affixed to the subframe, directly behind the battery, on the right side when facing the bike’s rear.
Locate the black plastic connector with three or four pins–this is the stator interface. It sits adjacent to the main harness bundle, distinguishable by its rectangular shape and locking tab. If corrosion is present, clean terminals with 600-grit sandpaper or contact cleaner before proceeding.
- Unclip the seat to access the storage compartment–this reveals two 10mm bolts securing the fender.
- Remove bolts using a 10mm socket, tilting the fender upward to expose hidden wiring.
- Follow the primary cable loom from the battery–it leads directly to the regulator plug.
On models with factory undertail exhaust, the regulator is mounted higher, requiring additional removal of the exhaust bracket. Use a T25 Torx driver to detach the bracket without damaging threads.
The plug’s wiring colors follow a standard code: yellow wires carry AC output from the stator, while the white/red stripe supplies DC voltage to the battery. Verify colors against the service manual if discrepancies arise–aftermarket stators may alter wiring schemes.
- Check for heat damage–melted connectors indicate stator failure requiring replacement.
- Test continuity between each yellow wire and ground using a multimeter; readings below 0.2 ohms suggest shorted coils.
- Reconnect the plug securely after inspection–misalignment causes arcing and electrical faults.
Reassembly mirrors disassembly: reattach the fender with bolts torqued to 12 Nm, ensuring wiring isn’t pinched between panels. Start the bike and monitor battery voltage–idle readings should stabilize between 13.8–14.5 volts.
Step-by-Step Guide to Testing the Voltage Regulator with a Multimeter
Disconnect the battery terminals first–negative (black) before positive (red)–to prevent accidental shorts. Locate the stator connectors on the bike’s electrical component cluster, typically marked by three yellow or white wires terminating in a plug. Set your multimeter to DC voltage mode (20V range) and probe the battery posts while cranking the engine; readings below 12.5V indicate a charging system fault requiring further isolation.
Switch the multimeter to AC voltage mode (50V range) and backprobe the stator wires at the connector–do not unplug the harness. Have an assistant start the engine and gradually increase RPM to 3,000. Each wire pair should measure between 15-25V AC (unloaded); readings outside this range suggest stator coil degradation or open circuits. Record all measurements; discrepancies above 10% between phases confirm asymmetry requiring replacement.
Remove the voltage regulator from the bike by unfastening its mounting bolts and disconnecting the electrical connector. Set the multimeter to diode test mode (±2kΩ range) and probe each diode in both directions–forward bias should show 0.4-0.8V drop while reverse bias reads near infinite resistance. Any deviation signals diode failure. Reinstall only after verifying all diodes and stator output meet specifications.
Reconnect the battery, start the engine, and monitor battery voltage at 2,000 RPM with the multimeter set to DC (20V range). Fully functional systems maintain 13.5-14.5V; readings exceeding 15V indicate overcharging, while below 13.2V flags insufficient output. Test under load–turn on headlights, brake lights, and cooling fan–voltage should remain stable within ±0.3V of the unloaded reading. Persistent fluctuations mandate regulator replacement.
Diagnosing Frequent Electrical Faults in the R6 Power Delivery System
Inspect the stator leads for discoloration or brittle insulation–these often signal overheating from inadequate cooling or poor ground connections. Use a multimeter to measure resistance between each lead and ground; values below 0.2 ohms or above 1.0 ohms indicate partial shorting or open circuits, respectively. Check the flywheel magnets for wear or misalignment, as gaps wider than 0.5mm reduce output voltage by 15-20%. Clean corrosion from connectors using contact cleaner and a nylon brush, then apply dielectric grease to prevent future oxidation.
Voltage Regulator Failure Patterns
Test the voltage stabilizer by probing the battery terminals at 5,000 RPM with headlights on. A healthy system should maintain 13.8-14.5V; readings below 13.2V suggest insufficient charging, while spikes above 15V risk damaging sensitive electronics. Replace the unit if idle voltage exceeds 14.8V, as this indicates loss of regulation. Examine the heatsink for thermal paste degradation–dry or cracked paste reduces heat dissipation by up to 40%, accelerating component failure.
| Symptom | Root Cause | Verification Method | Correction |
|---|---|---|---|
| Battery drains overnight | Parasitic draw >50mA | Disconnect fuse circuit-by-circuit | Replace faulty relay or ECU |
| Flickering headlights | Loose AC output connections | Tug-test stator plugs | Crimp terminals with 16-18AWG crimper |
| Overcharging battery | Failed regulation | Load test at 3,000 RPM | Install OEM-spec stabilizer |
Avoid splicing wires thinner than 14AWG–current-carrying capacity drops exponentially below this gauge, leading to voltage drop under load. Verify all chassis grounds with a continuity tester; resistance above 0.5 ohms between engine case and battery negative indicates compromised grounding. When replacing components, route harnesses away from sharp edges and heat sources, securing with nylon ties every 150mm to prevent chafing.
Detailed Breakdown of the R6 Alternator Regulator Terminal Layout
Begin troubleshooting by verifying the three-phase AC input terminals–marked U, V, and W–connect directly to the stator windings with resistance between each pair measuring 0.2–0.5 ohms. If readings exceed 1 ohm or show infinite resistance, inspect the stator coil integrity or corroded connectors, particularly where wires exit the engine case; replace damaged leads with heat-rated 18AWG silicone-coated wire to prevent thermal degradation at high RPM.
DC Output and Ground Reference
The B+ terminal delivers regulated 13.5–14.2V DC to the battery positive terminal under normal load; anything below 13.2V at 3000 RPM indicates faulty internal diodes or excessive battery drain. Ground references (E or chassis point) must exhibit sub-0.1 ohm resistance to the negative battery post–corrosion here creates phantom voltage drops visible only under load, mimicking alternator failure.
Signal lines (L, IG, or sensor inputs) route ignition-switched power to the regulator’s logic circuit, enabling voltage sensing; miswiring here causes erratic charging spikes. Trace these wires with a multimeter in continuity mode, ensuring crisp clicks at the ECU pin header–weak connections corrupt feedback loops, triggering overvoltage warnings in the instrument cluster.
For thermal protection, the regulator’s aluminum backplate must bond flush to the frame using thermal paste; omit this step and transient heat builds within 12 seconds at 8000 RPM, causing premature component failure. Recheck solder joints on the PCB for hairline fractures–common with vibration–and reinforce with high-temp epoxy if retouching adjacent diode traces.
